  • flexible joint

  • * Flexible joint in conjunction with large suction cups for handling workpieces with sloping surfaces.
    * Large plates (e.g. wooden boards or metal plates) that can get stuck during transport and lifting (flexible joints prevent the plates from falling off due to unilateral force) can be used in conjunction with spring buffer rods to compensate for differences in workpiece height and uneven surfaces.
    * Automatic reset.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Flexible joint in conjunction with large suction cups for handling workpieces with sloping surfaces.
    Large plates (e.g. wooden boards or metal plates) that can get stuck during transport and lifting (flexible joints prevent the plates from falling off due to unilateral force) can be used in conjunction with spring buffer rods to compensate for differences in workpiece height and uneven surfaces.
    Automatic reset.

    Product mix
    Flexible connectors are made of high quality steel and equipped with rubber pads (vulcanized and glued) connectors (2).
    The fixed thread stopper limits the maximum bending angle.
    The force is transmitted by the metallic connecting components inside the joint.
    The upper and lower part have mounting planes for non-destructive installation (4).
    The connecting thread is used to connect the ends (1) and (3), and offers different sizes.

    Product advantages
    Flexible connection of vacuum cleaners
    The joints are made of metal and rubber
    Combination of vulcanization of metal and rubber parts

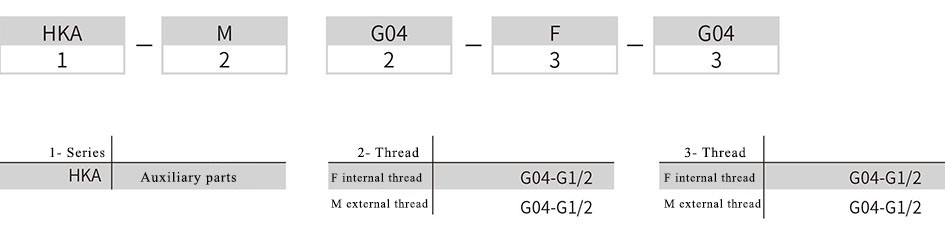

    Ordering no

    Technical data

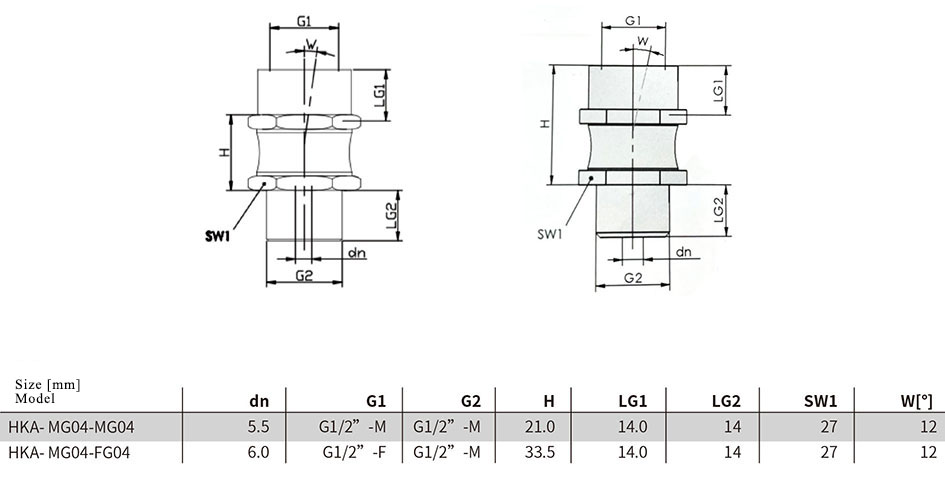

    Design data
