Product

Suspended vacuum suction cup HSBS
*Integrated Bernoulli vacuum generator.
*The suction cup is suspended on the air cushion.
*Low vacuum, high flow rate.
*Do not inhale air through the workpiece.
*Transporting workpieces with extremely high porosity.

Contact: +491727628103

Introduce

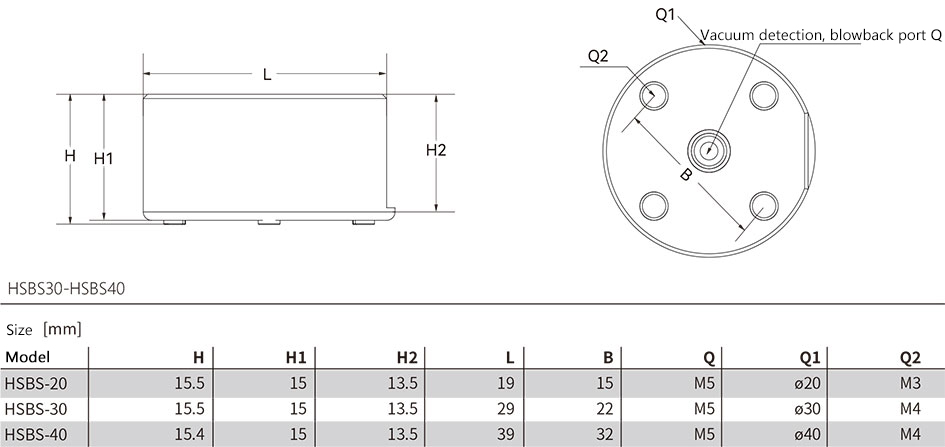

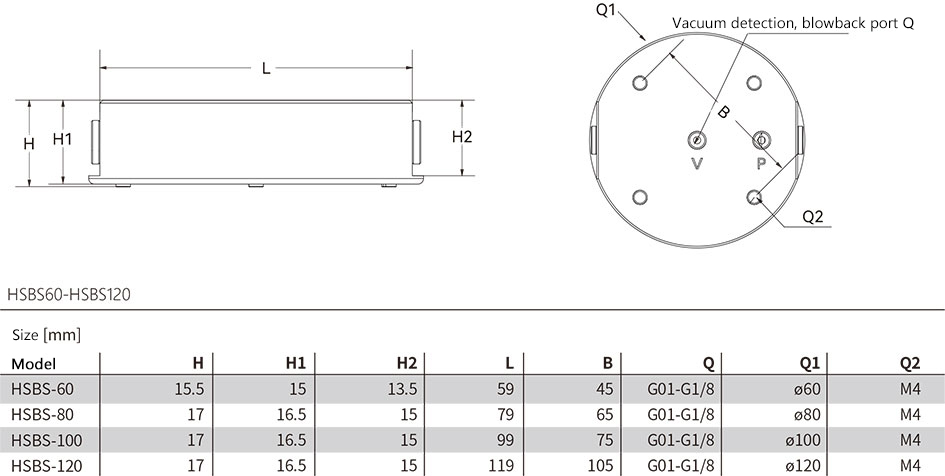

Design

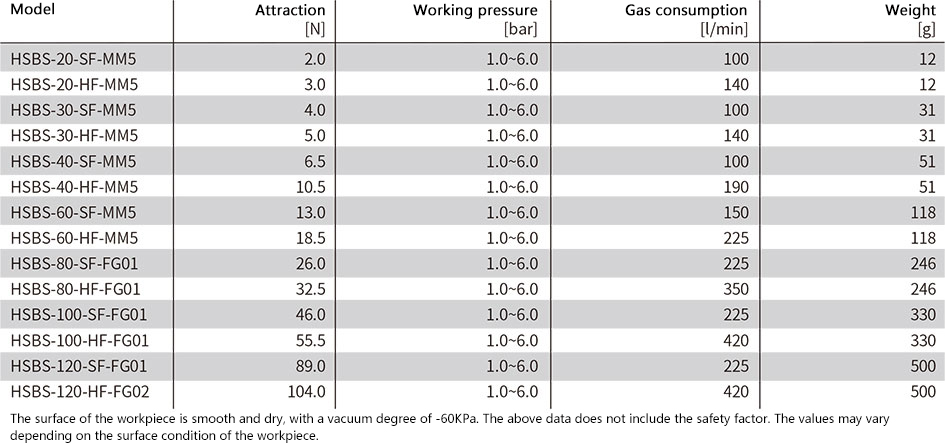

Parameter

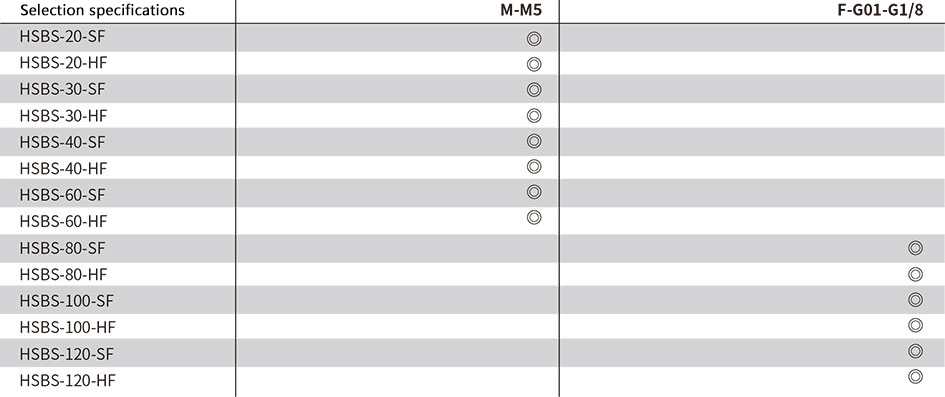

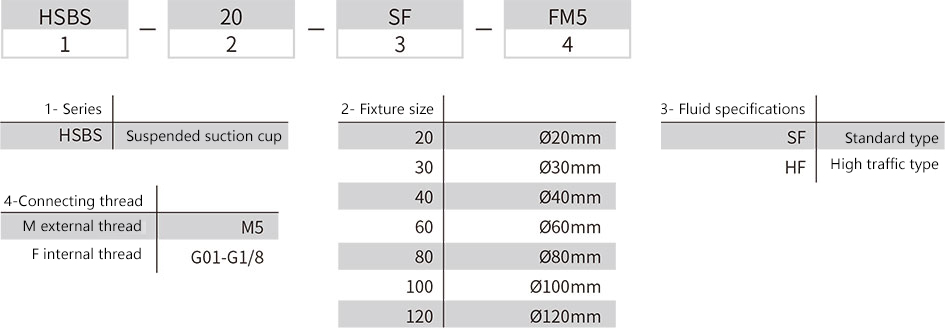

Product mix

Connect directly through the four installation threads on the upper part (1).
Vertical (2) and horizontal compressed air connections (with plugs closed).
Anodized aluminum body, integrated Bernoulli nozzle (3).
The airflow component (4) is divided into two versions: standard flow is used for airtight workpieces, and high flow has higher leakage compensation for porous workpieces.
Suction cup (5) bottom seamless rubber buffer made of special material HT1.
Optional center support.
Vacuum (A), exhaust (B).

Product advantages
