• Flexible ball joint

  • * Flexible joint in conjunction with large suction cups for handling workpieces with sloping surfaces.
    * Large plates (e.g. wooden boards or metal plates) that can get stuck during transport and lifting (flexible joints prevent the plates from falling off due to unilateral force) can be used in conjunction with spring buffer rods to compensate for differences in workpiece height and uneven surfaces.
    * Automatic reset.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Flexible joint in conjunction with large suction cups for handling workpieces with sloping surfaces.
    Large plates (e.g. wooden boards or metal plates) that can get stuck during transport and lifting (flexible joints prevent the plates from falling off due to unilateral force) can be used in conjunction with spring buffer rods to compensate for differences in workpiece height and uneven surfaces.
    Automatic reset.

    Product mix
    Ball and base are made of galvanized steel (hkb...) or stainless steel (hkb... A2).
    Ball and bushing (2) are equipped with o-rings to prevent vacuum leakage.
    Provide several sizes of upper (1) and lower (3) threads.
    Maximum rotation: 15°.

    Product advantages
    Flexible connection of vacuum cleaners
    Ball and bush with O-ring seals
    The pivot point of the curved part is low

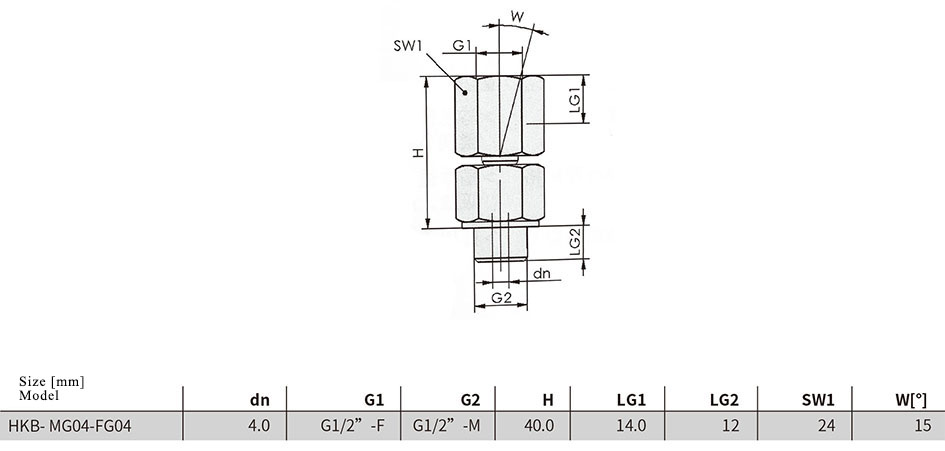

    Installation example for HKB ball joint

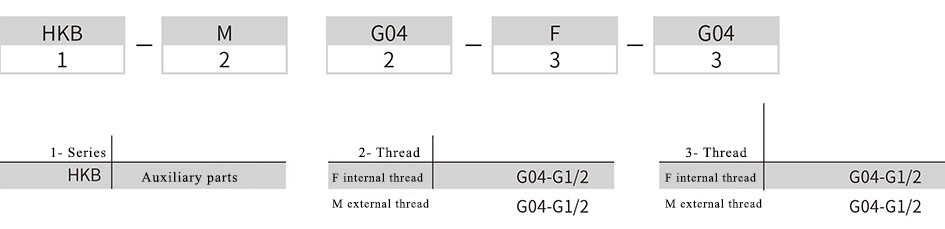

    Ordering no
