  • Special suction cups for slender workpieces

  • * 1.5 fold elliptical corrugated pipe suction cup, used for cardboard boxes and pallet racks.
    * Handle cardboard, hard packaging, or soft packaging.
    * Used for palletizing and unloading.
    * HBX suction cups have excellent sealing and low wear.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter

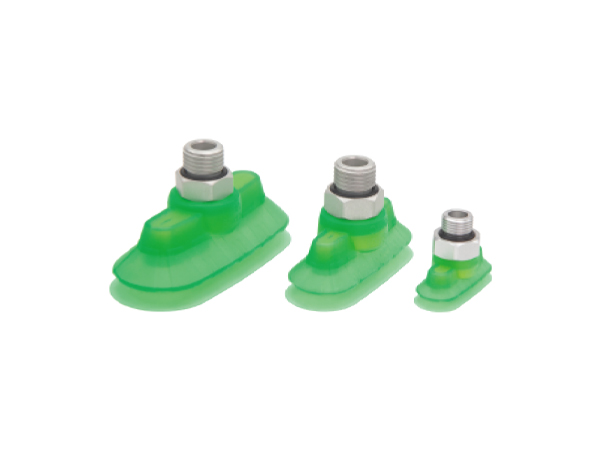

    1.5 fold elliptical corrugated pipe suction cup, used for cardboard boxes and pallet racks.
    Handle cardboard, hard packaging, or soft packaging.
    Used for palletizing and unloading.
    HBX suction cups have excellent sealing and low wear.


    Product mix
    1.5 fold oval corrugated pipe suction cup (1)
    Machine side components (2) and suction side components (3) are composed of
    Additional suction cup inserts (4)

    Product advantages
    Silicone material that meets FDA standards
    Extremely flexible suction bellows and sealing lips
    Anti rotation protective cover ensures accurate positioning
    Large diameter can achieve high flow rate within short cycle time

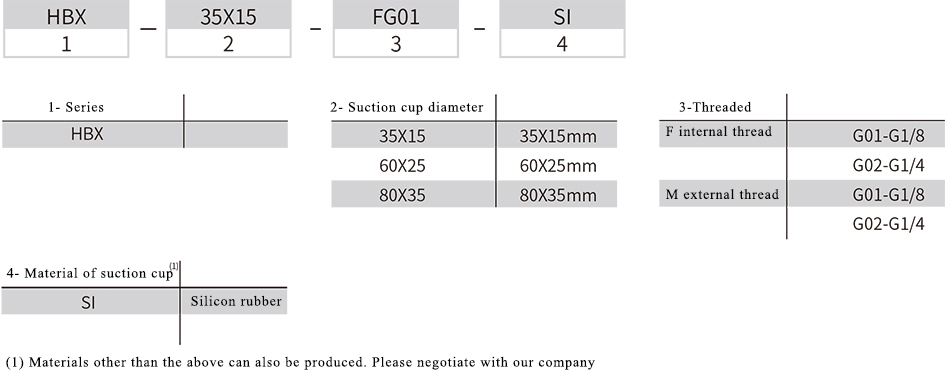

    Ordering no


    Selection specifications

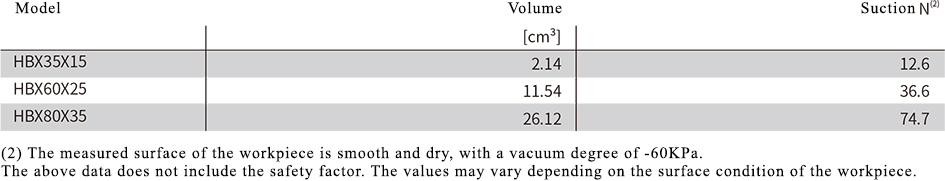

    Technical data

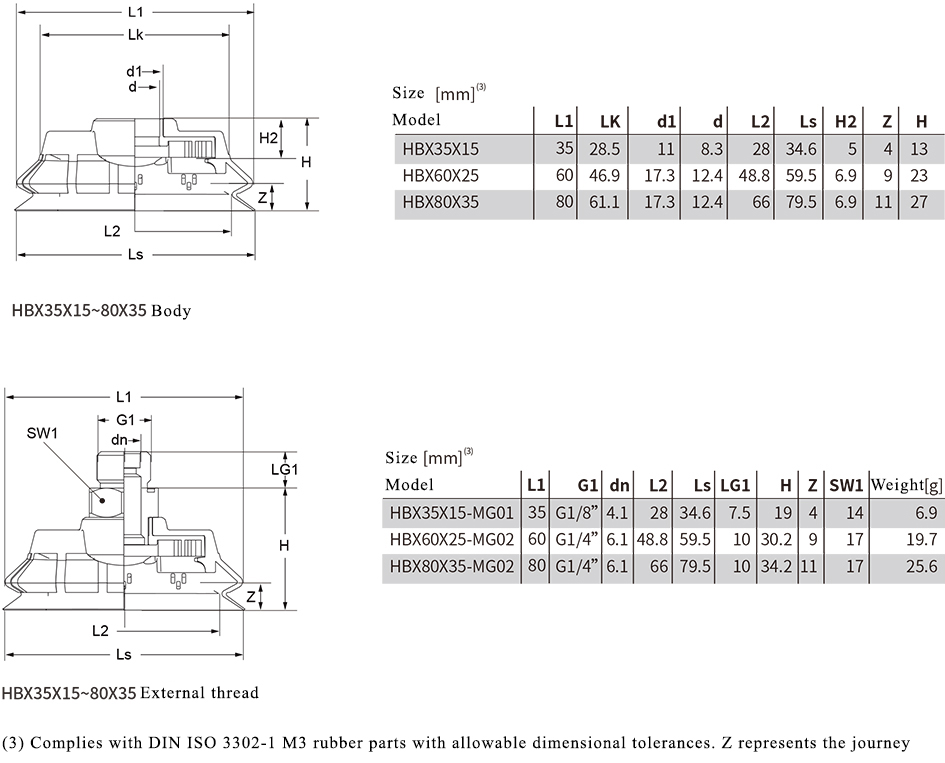

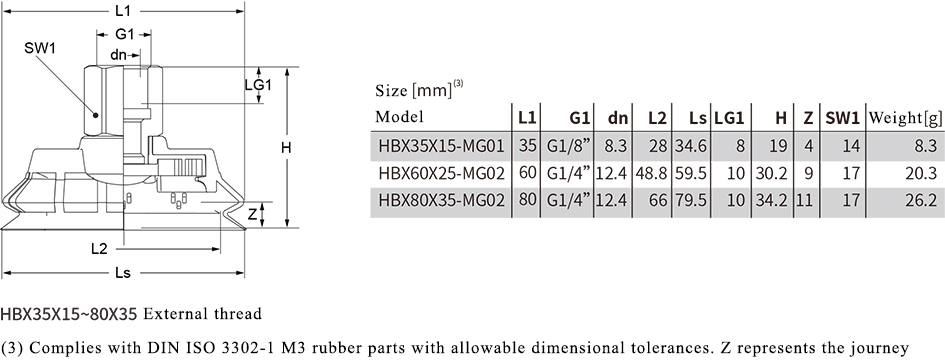

    Design data
