  • Valve body joint

  • * Built-in bearings for 360° high speed rotation around the central axis
    * Base material: copper
    * Maximum operating pressure: 1.0Mpa, can be used for vacuum systems (vacuum degree below 100kPa)
    * Suitable hose materials: nylon and PU
    * Standard type with sealant, M thread with sealant

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Built-in bearings for 360° high speed rotation around the central axis
    Base material: copper
    Maximum operating pressure: 1.0Mpa, can be used for vacuum systems (vacuum degree below 100kPa)
    Suitable hose materials: nylon and PU
    Standard type with sealant, M thread with sealant

    Product mix
    As accessories for vacuum sensors
    Applicable tube diameter (1)
    Hexagonal opposite side (2)
    Connection thread (3)

    Product advantages
    Can be connected directly to the vacuum connection of the generator
    Small size and light weight

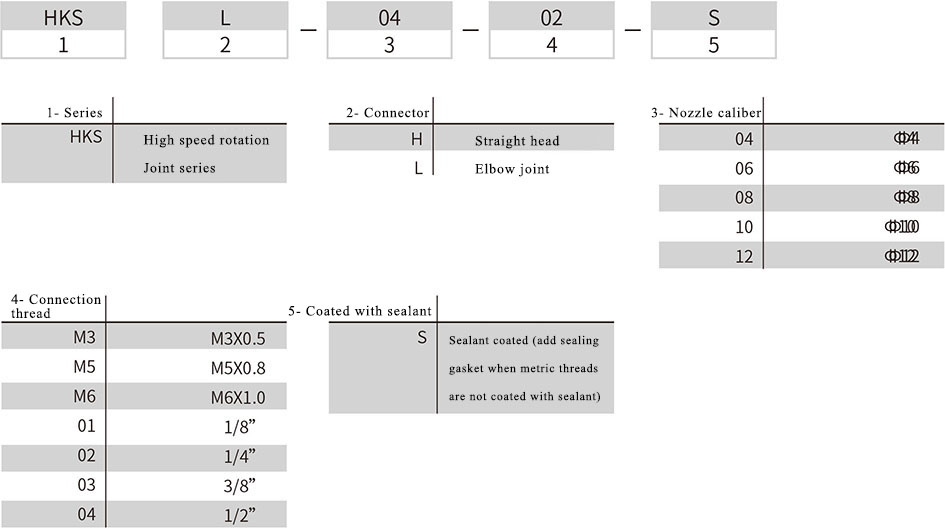

    Ordering no

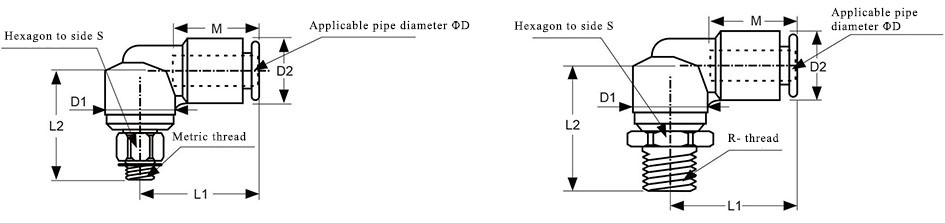

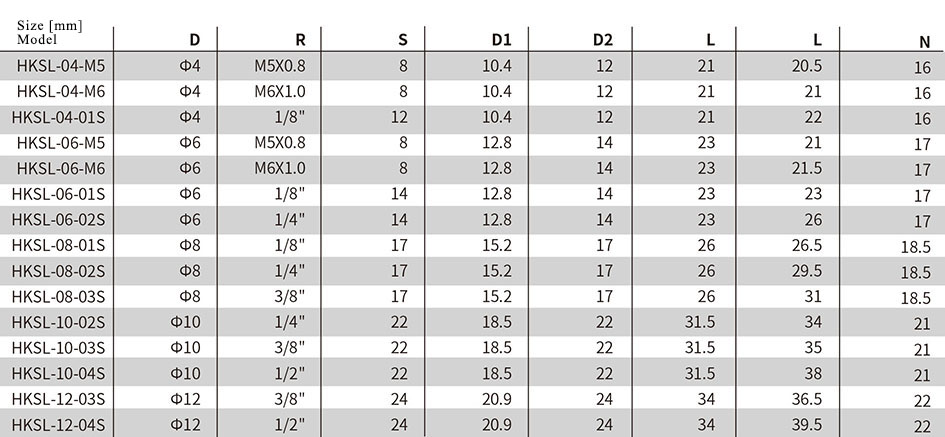

    Design data
