Product

  • Three way pilot operated valve body

  • * Small and light.
    * Sliding column structure, good sealing performance and sensitive reaction.
    * Sliding column structure, good sealing performance and sensitive reaction. The inner hole adopts special processing technology, with low friction resistance, low pneumatic pressure and long service life.
    * No oil lubrication required.
    * Equipped with manual printing, convenient for installation and debugging.
    * There are several standard voltage levels to choose from.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Small and light.
    Sliding column structure, good sealing performance and sensitive reaction.
    The inner hole adopts special processing technology, with low friction resistance, low pneumatic pressure and long service life.
    No oil lubrication required.
    Equipped with manual printing, convenient for installation and debugging.
    There are several standard voltage levels to choose from.

    Product mix
    1. Product Name: Valve Body: NAME: BODY Material: AL6061
    2. Product Name: Valve Core NAME: SPOOL Material: AL6061
    3.Product Name: Valve Core Gasket Ring NAME: SPOOL P/K Material: NBR
    4.Product Name: Guide Body NAME: PILOT Material: AL6061 NOTE: Black Spray Color
    5. Product Name: Electromagnetic Coil NAME: COIL
    6.Product Name: Leading Combination NAME: CORE Material: JL45 NOTE: 430FR Soft Magnet
    7. Product Name: Base NAME: SEAT Material: PBT
    8.Product Name: Reset Spring NAME: SPRING Material: SUS304

    Product advantages
    The opening and closing time is extremely short
    Suitable for high traffic applications
    Avoid on/off vacuum or ventilation function
    Can be integrated into the base valve group to save space

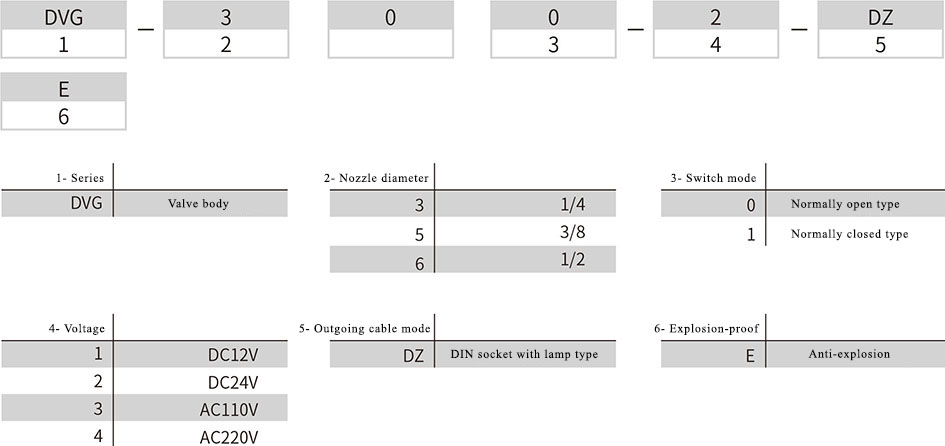

    Ordering no

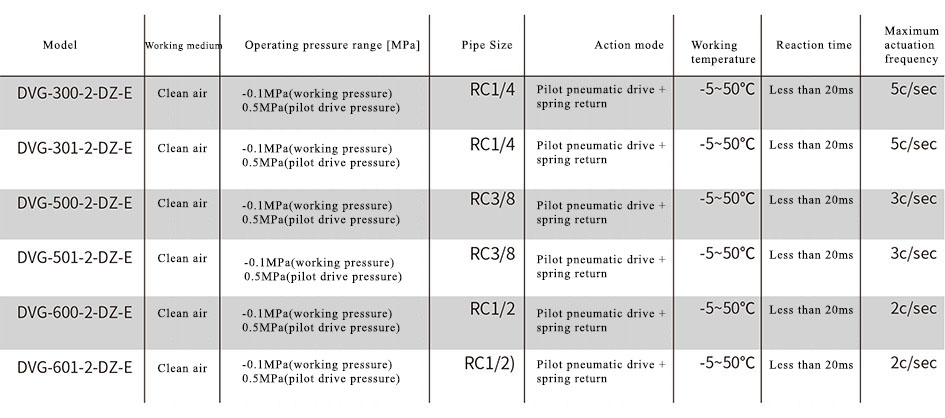

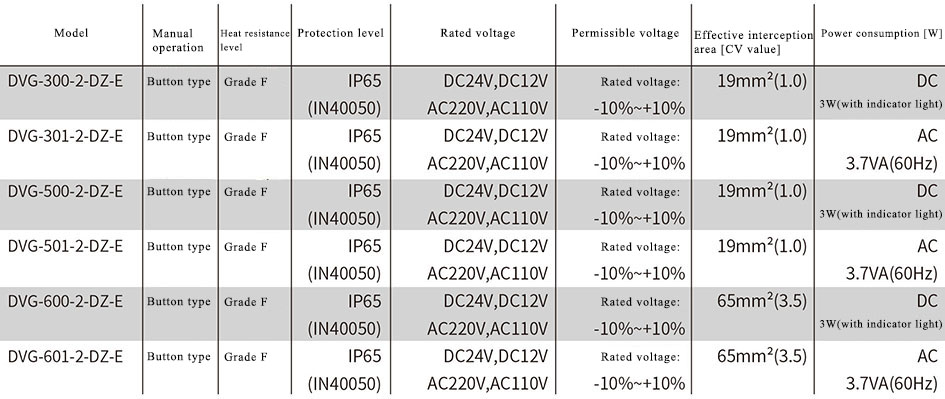

    Technical data

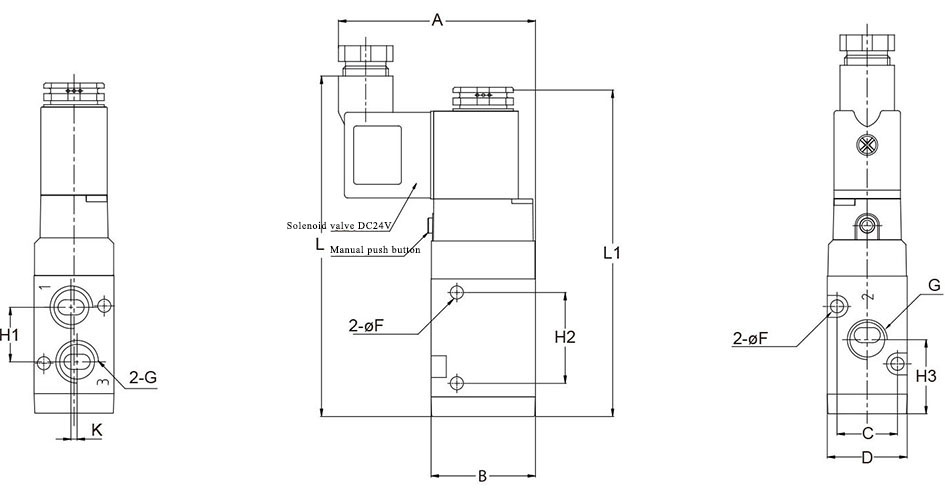

    Design data
