• Universal vacuum filter

  • * Small in size, light in weight, with mounting brackets.
    * Fast connection, convenient and fast configuration.
    * Fast connection, convenient and fast configuration. By adopting a fast assembly and disassembly structure, the filter element can be replaced without tools.
    * Direct type, import and export on the same line, easy to install.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Small in size, light in weight, with mounting brackets.
    Fast connection, convenient and fast configuration.
    By adopting a fast assembly and disassembly structure, the filter element can be replaced without tools.
    Direct type, import and export on the same line, easy to install.

    Product mix
    (1) Shell material (PC)
    (2) Back material (PBT)
    (3) Filter element material (PE)
    (4) O-ring material (NBR)
    (5) Front cover material (PBT)
    (6) Quick connection
    (7) Support material (PBT)

    Product advantages

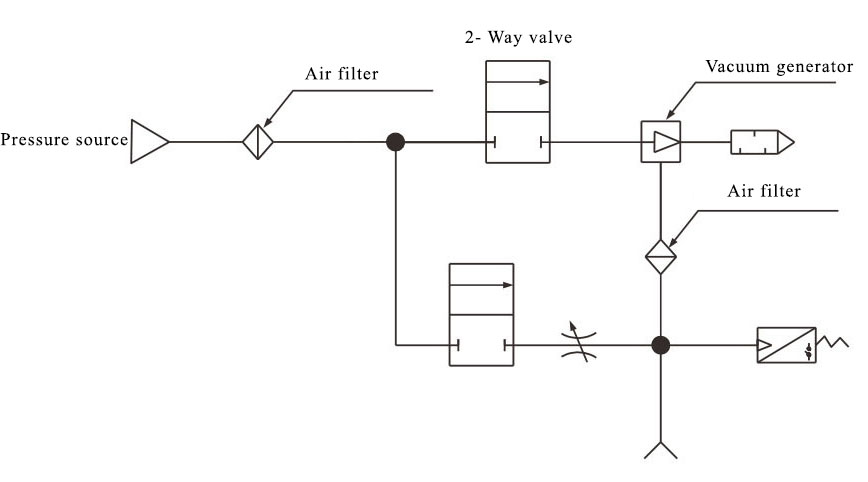

    Suitable for overpressure and vacuum systems with moderate to light contamination.
    The transparent shell has arrows that indicate the direction of the airflow, which can visually indicate the degree of contamination of the filter.

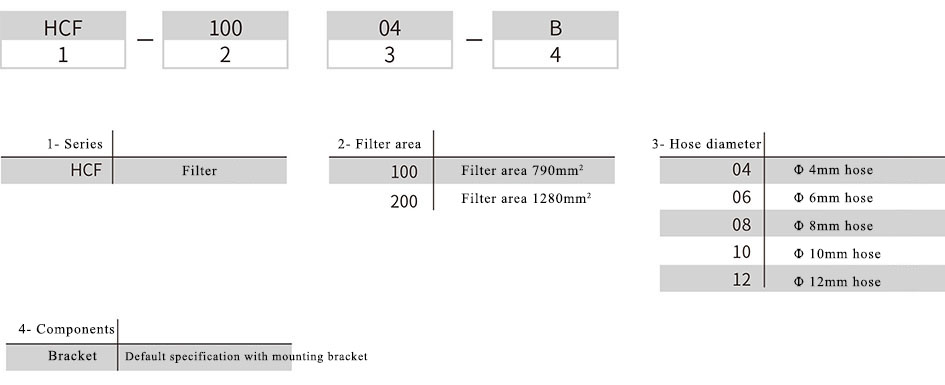

    Ordering no

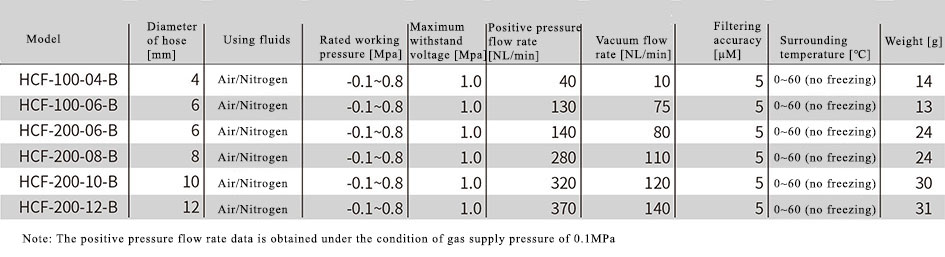

    Technical data

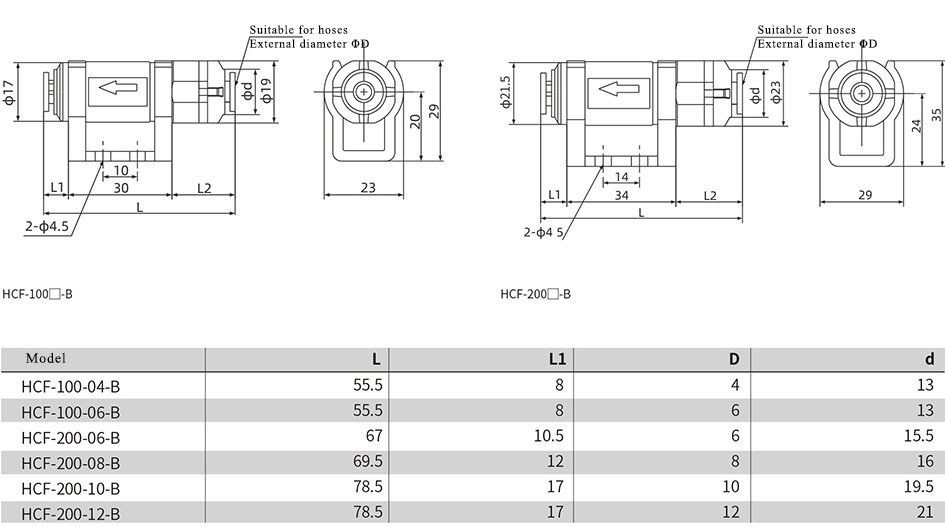

    Design data
