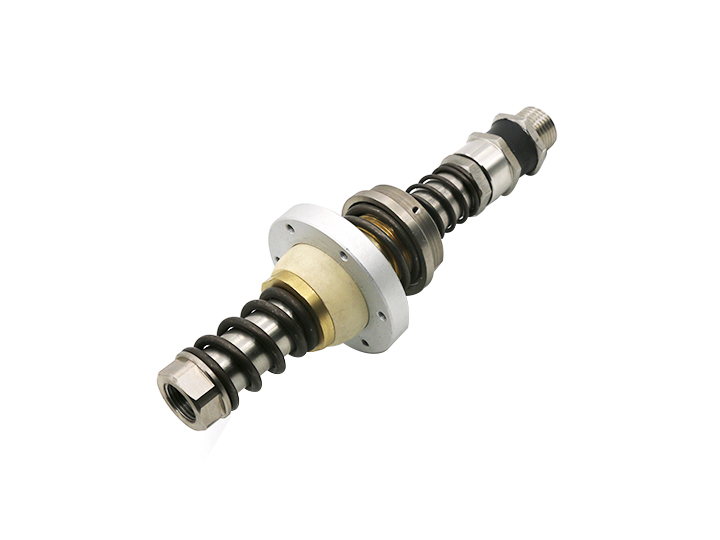

• Suspension type spring buffer rod

  • * No additional control is required for handling extremely sensitive components (e.g. glass plates), so that the workpiece is placed gently.
    * No additional technical inspection is required to handle very curved or naturally growing materials (such as dry wood).
    * Can be used in harsh environments.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    No additional control is required for handling extremely sensitive components (e.g. glass plates), so that the workpiece is placed gently.
    No additional technical inspection is required to handle very curved or naturally growing materials (such as dry wood).
    Can be used in harsh environments.

    Product mix

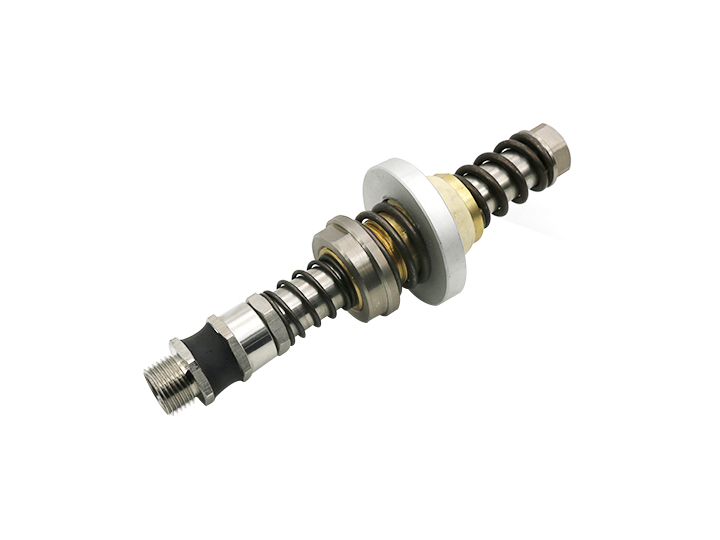

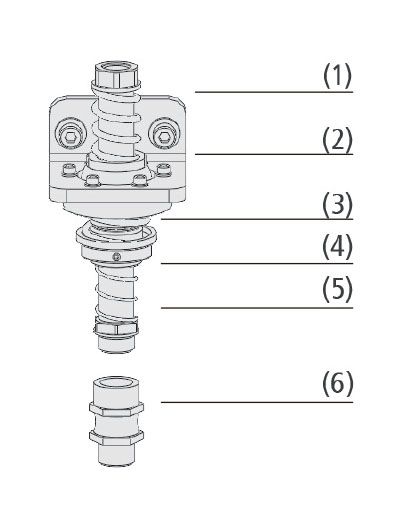

    Equipped with a stainless steel piston rod for spring buffer support, both the lower (5) and the upper (1) buffer springs are equipped with brass guides, which are integrated with sliding sleeves.
    The curved flange (2) serves as attachment to the aluminum profile and holds an automatic centring device consisting of a centring spring (3) and a spring seat nut (4); the medium voltage (3) can be adjusted by the locking screw on the spring seat nut (4).
    The flexible connector (6) is made of high quality steel and is equipped with vulcanized adhesive rubber buffer connectors that can reach large rotation angles (optional).

    Product advantages
    Used for short-term, highly dynamic handling tasks.
    Spherical spring buffer support, equipped with two buffer springs, centring springs and universal ball joints, used for handling workpieces of different heights.

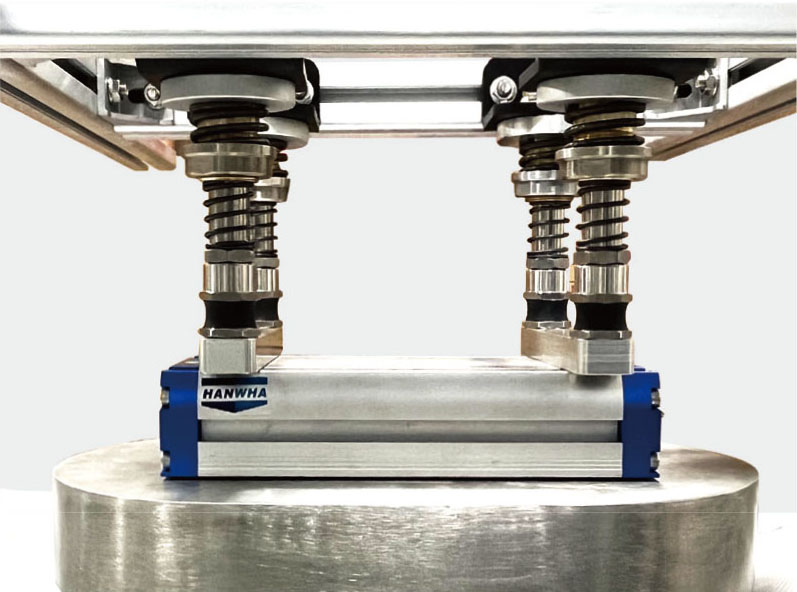

    Installation example for spring buffer rod HSH of type suspension

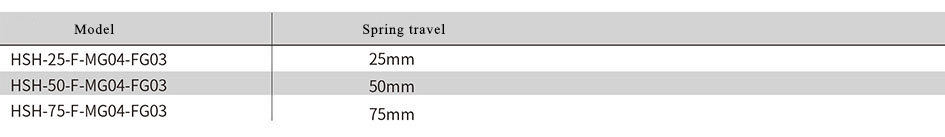

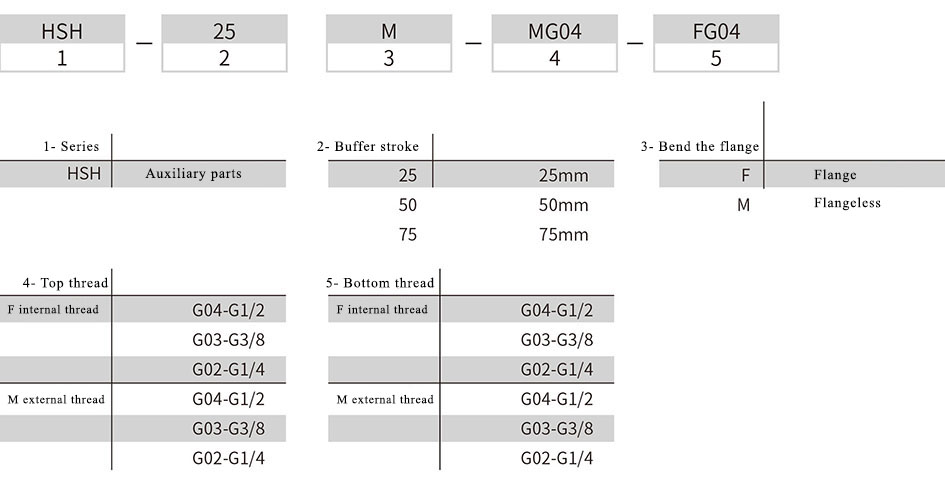

    Ordering no

    Technical data

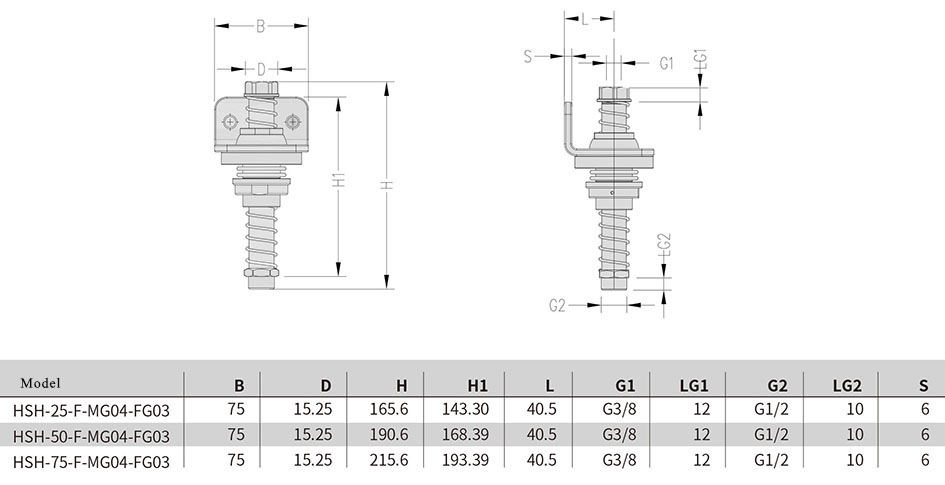

    Design data
