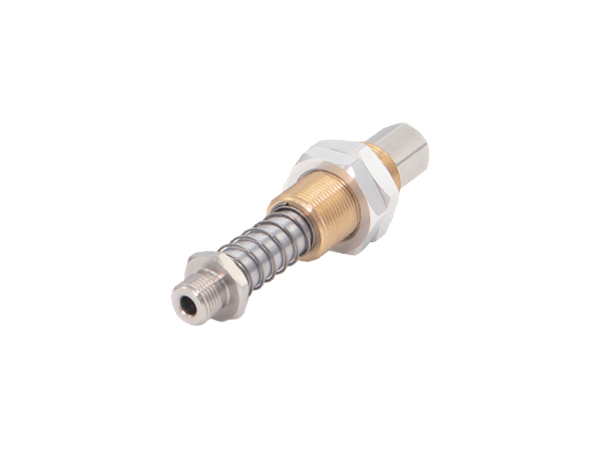

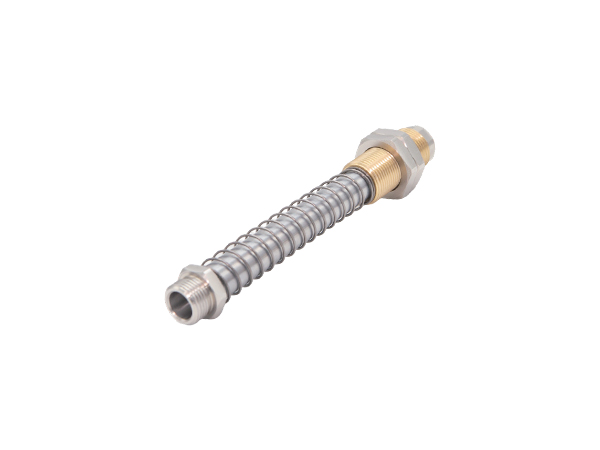

  • Spring buffer rod HSPE

  • *Bottom with buffer spring.
    *Multiple optional specifications for connecting threads and buffering stroke.
    *Equipped with models with anti rotation function.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    *Bottom with buffer spring.
    *Multiple optional specifications for connecting threads and buffering stroke.
    *Equipped with models with anti rotation function.

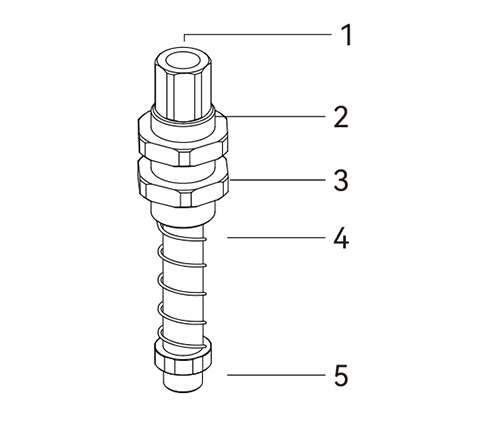

    Product mix
    (1) Integrated vacuum supply pipeline plunger rod, all connected with internal threads.
    (2) Spring buffer support rod, galvanized steel high-strength rod, guide shaft sleeve.
    (3) Two self-locking nuts.
    (4) Lower buffer spring.
    (5) M5 internal thread connection suction cup, other specifications are external thread.

    Product advantages

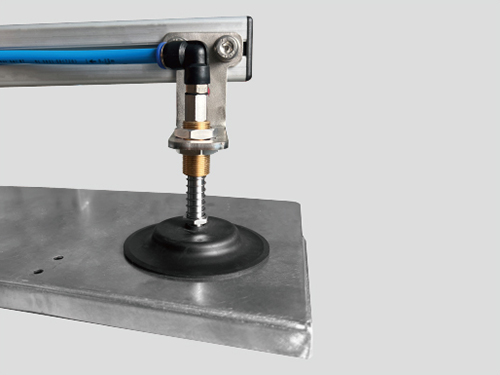

    Flexible contact with vulnerable workpieces, compensating for height differences in workpieces.
    Suitable for all standard sizes of suction cups, with a wide range of applications.

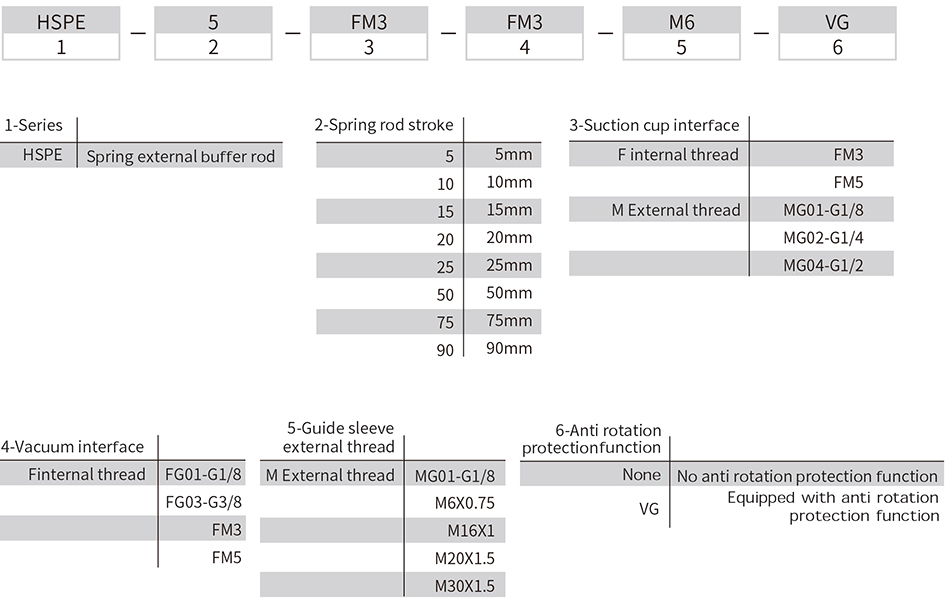

    Ordering no

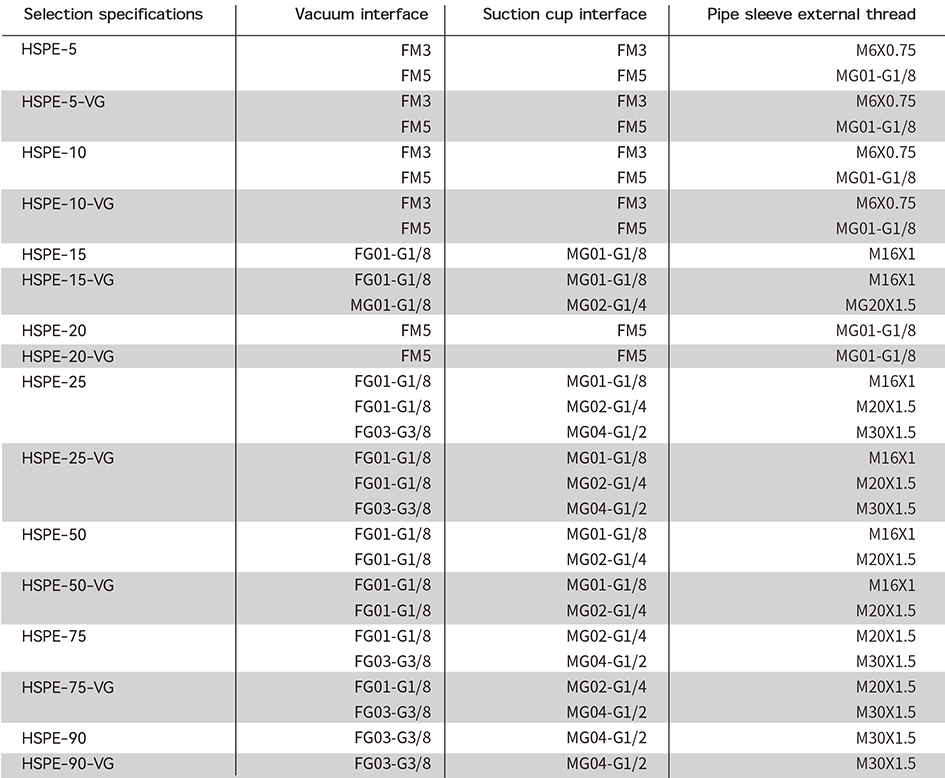

    Selection specifications

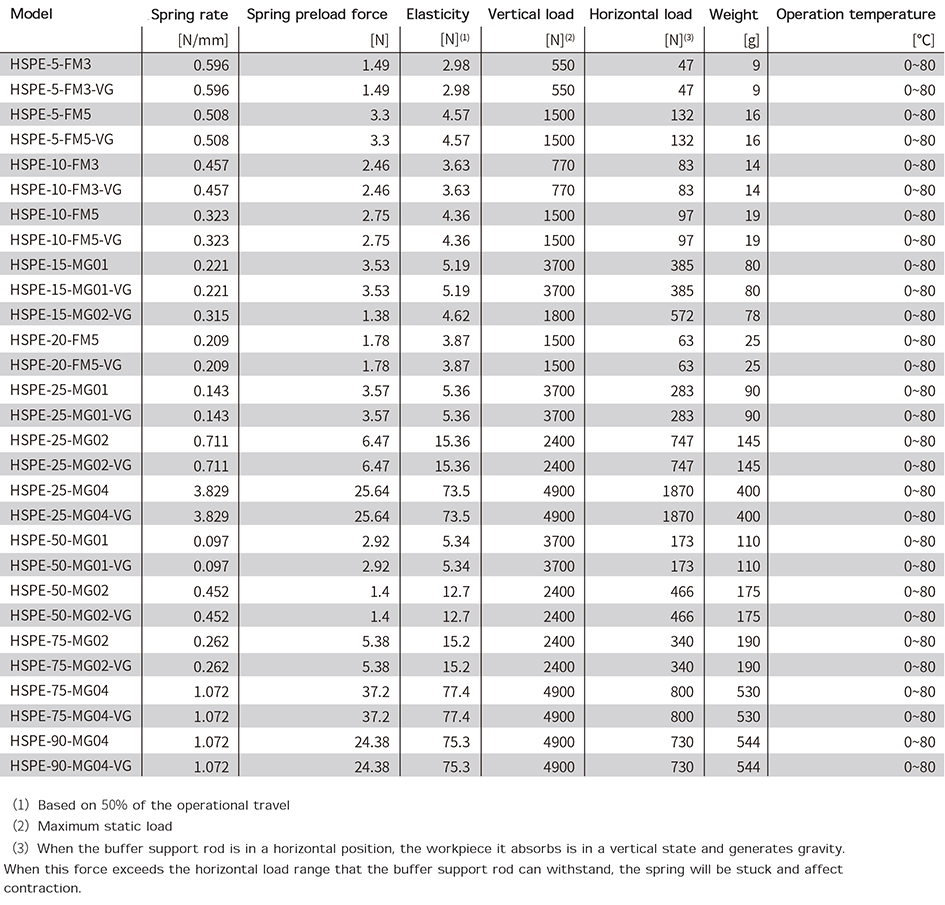

    Technical data

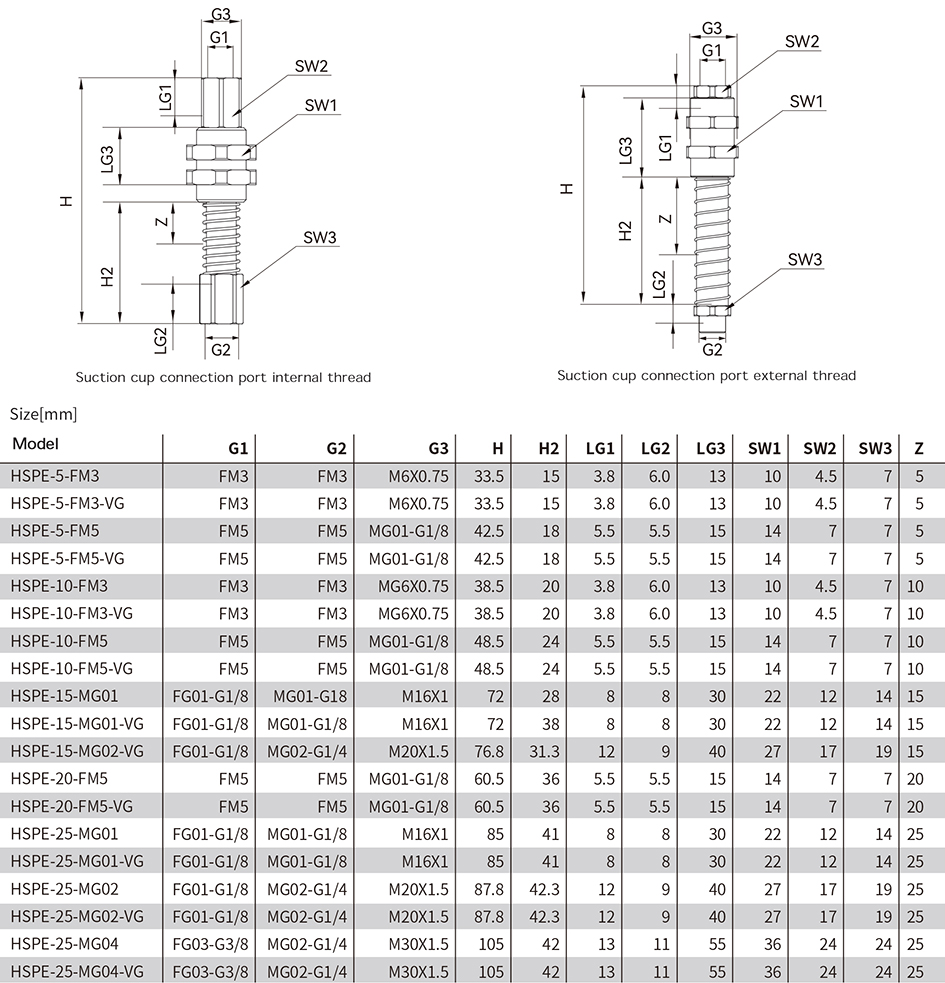

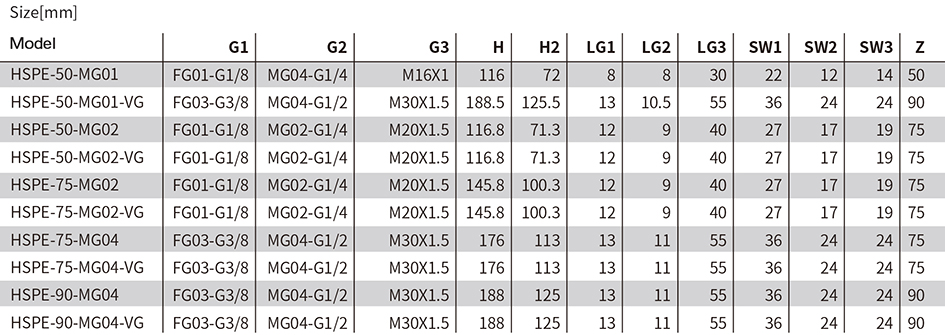

    Design data



Prev：Spring buffer rod HSPD
Next：Spring buffer rod HSPF
