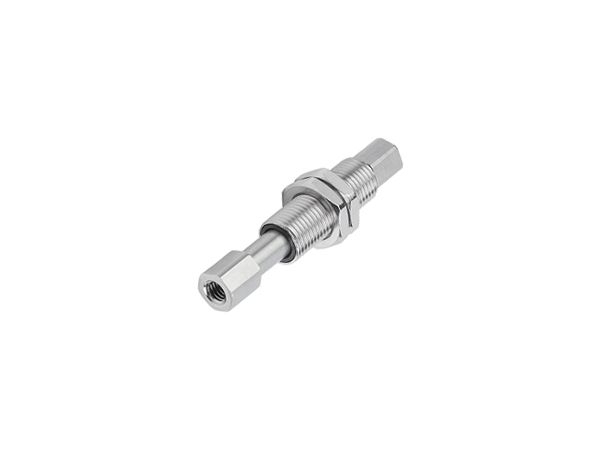

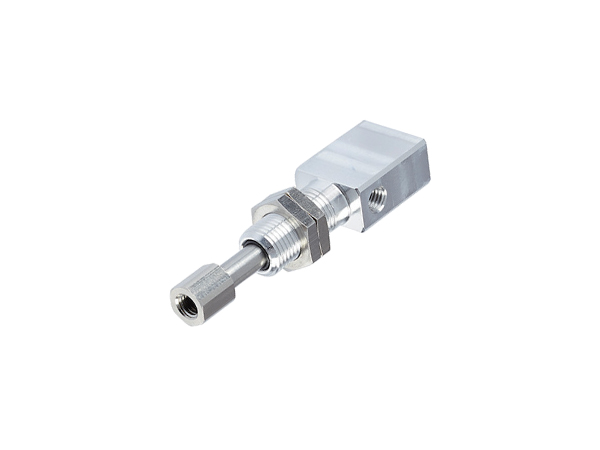

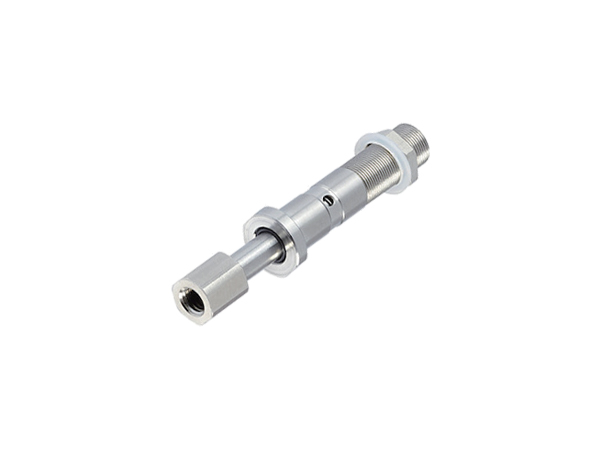

  • Spring buffer rod HSPF

  • *Low spring force, can gently transport very fragile workpieces.
    *Suitable for the narrowest space and highest dynamics.
    *Equipped with internal resistance nylon spring and high compensation.
    *Prevent spring dirt and mechanical influence.
    *High process reliability.
    *No stress movement throughout the entire stroke.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    *Low spring force, can gently transport very fragile workpieces.
    *Suitable for the narrowest space and highest dynamics.
    *Equipped with internal resistance nylon spring and high compensation.
    *Prevent spring dirt and mechanical influence.
    *High process reliability.
    *No stress movement throughout the entire stroke.

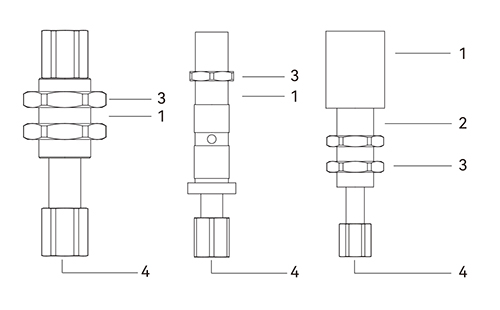

    Product mix
    (1) Vacuum conductive profiles
    (2) M10 thread
    (3) Self-locking nut
    (4) Suction cup threaded sleeve
    (5) Vacuum connection thread

    Product advantages
    Very smooth plunger movement.
    Vacuum connection through vacuum guided profiles or rigid hose connections.

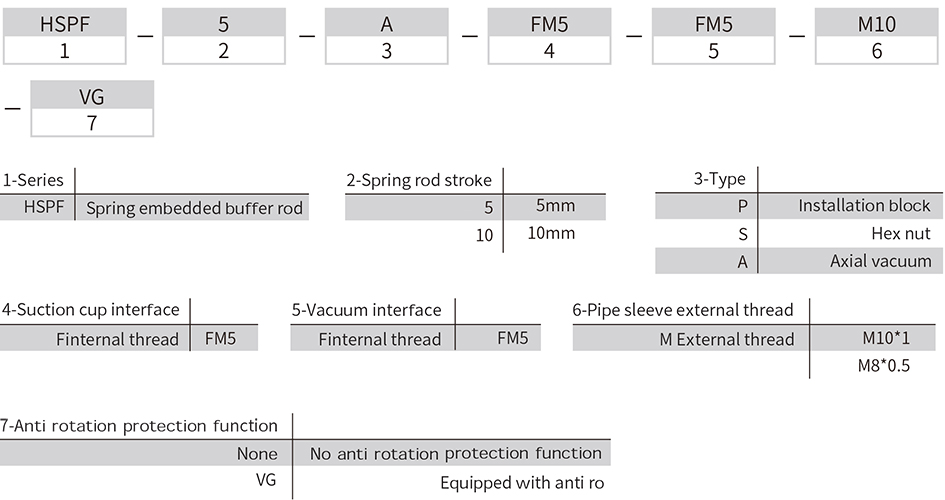

    Ordering no

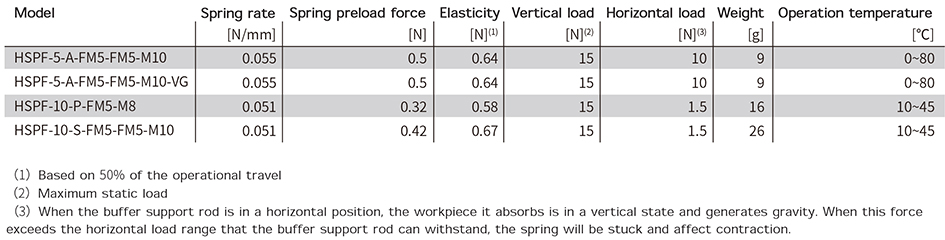

    Technical data

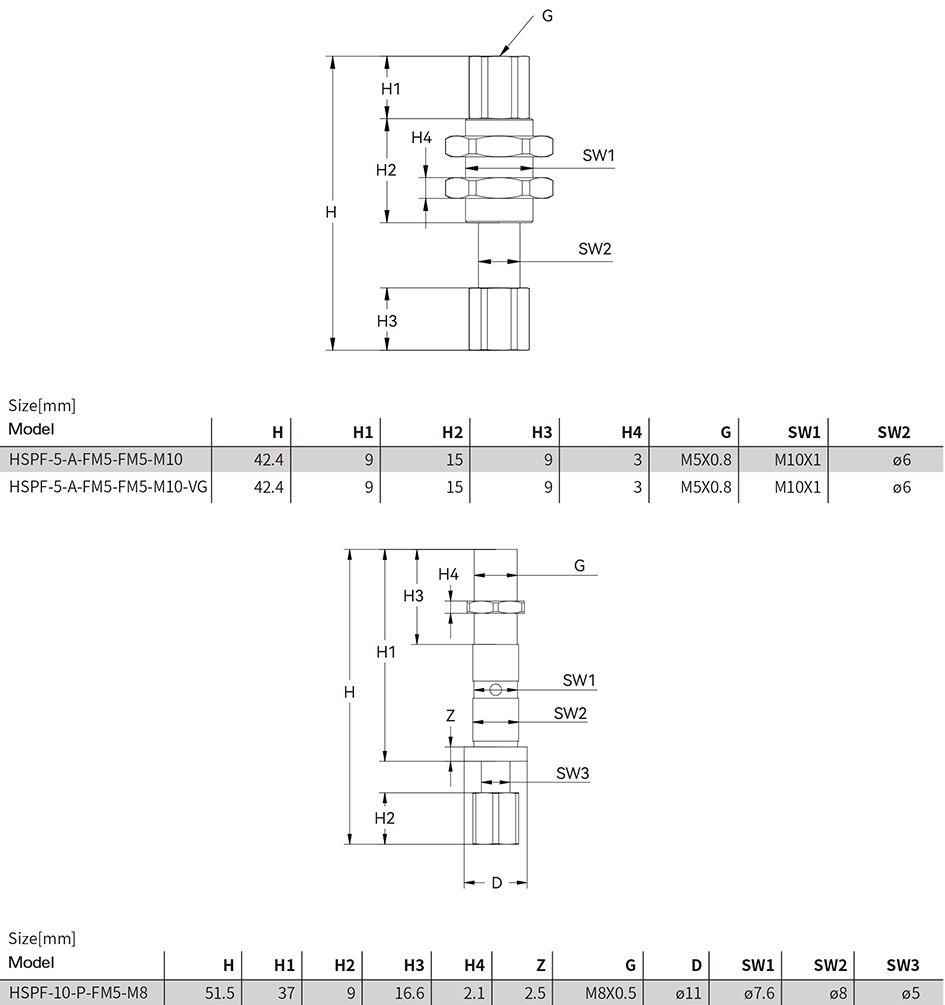

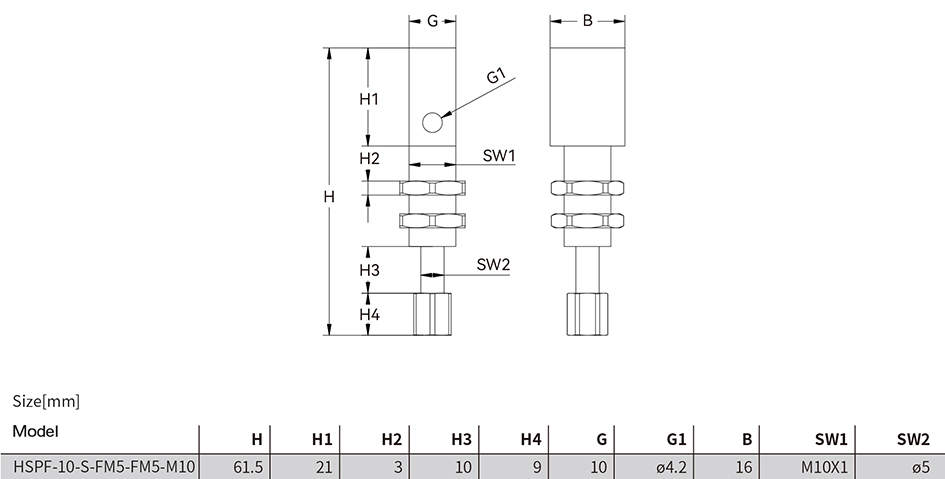

    Design data
