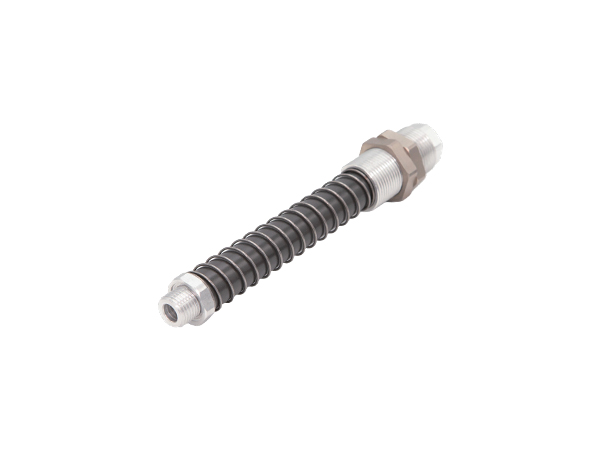

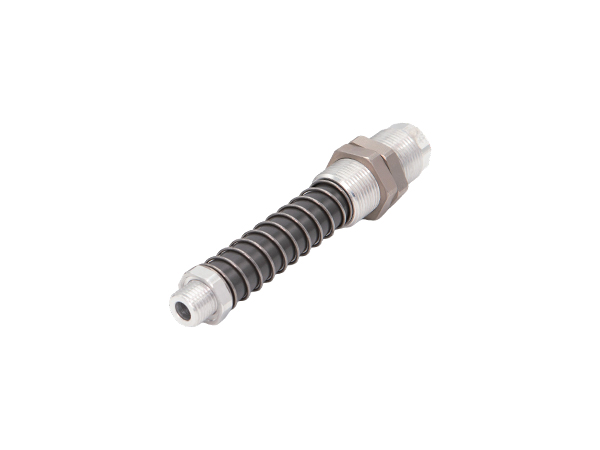

  • Spring buffer rod HSPD

  • *Spring buffer support rod with high-quality sliding bearings.
    *Smooth operation and anti rotation design.
    *Long screw, secured with two self-locking nuts.
    *Lightweight, suitable for lightweight chemical equipment.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    *Spring buffer support rod with high-quality sliding bearings.
    *Smooth operation and anti rotation design.
    *Long screw, secured with two self-locking nuts.
    *Lightweight, suitable for lightweight chemical equipment.

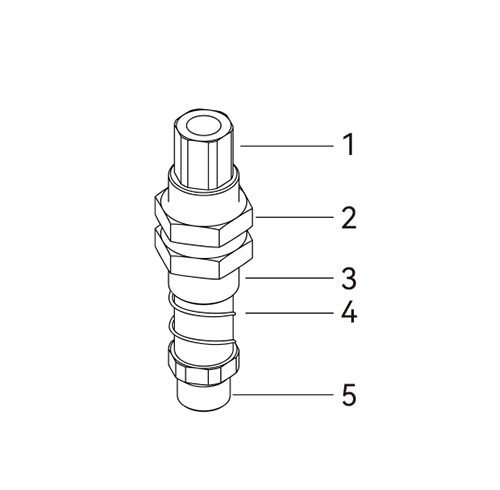

    Product mix
    (1) Integrated vacuum supply pipeline plunger rod, all connected with internal threads.
    (2) Spring buffer support rod, aluminum alloy ultra lightweight rod, guide shaft sleeve.
    (3) Two self-locking nuts.
    (4) Lower buffer spring.
    (5) Connecting suction cup threads includes external threads and internal threads.

    Product advantages
    No maintenance required, extremely long operating life; Suitable for short cycle times.
    Ensure gentle placement on vulnerable workpieces to absorb impact and vibration.
    Capable of handling suction cups in various application fields and all standard series.

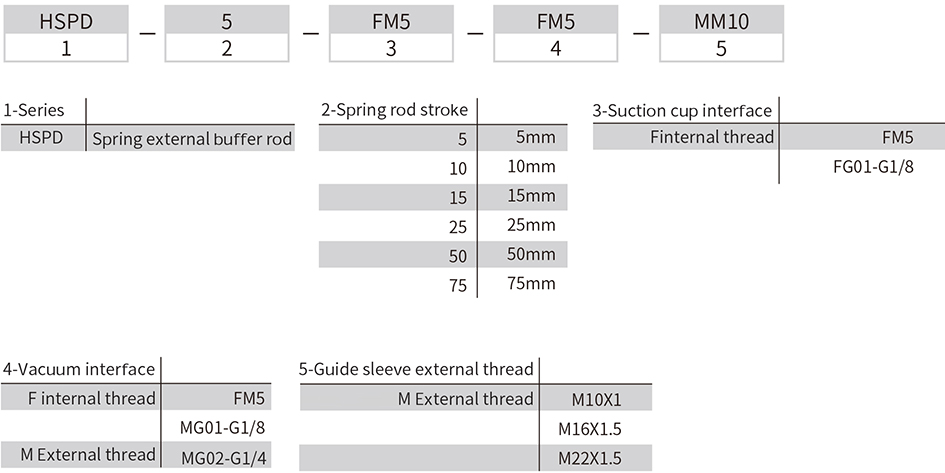

    Ordering no

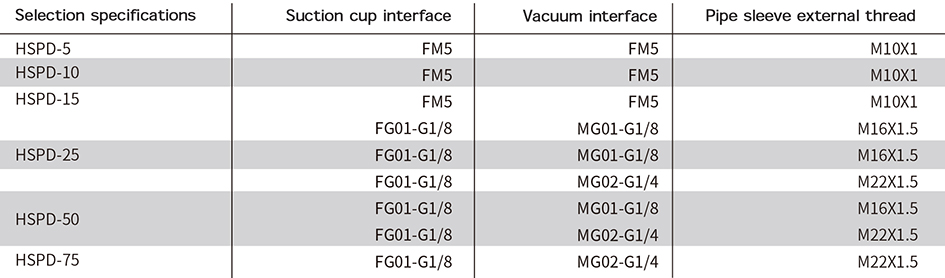

    Selection specifications

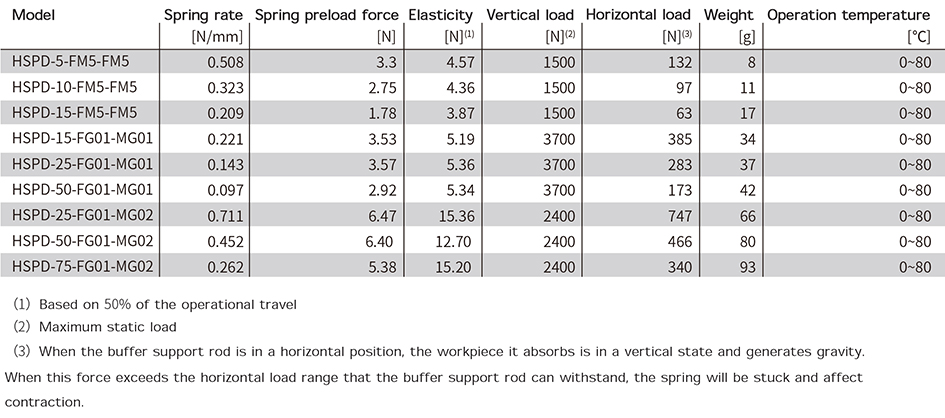

    Technical data

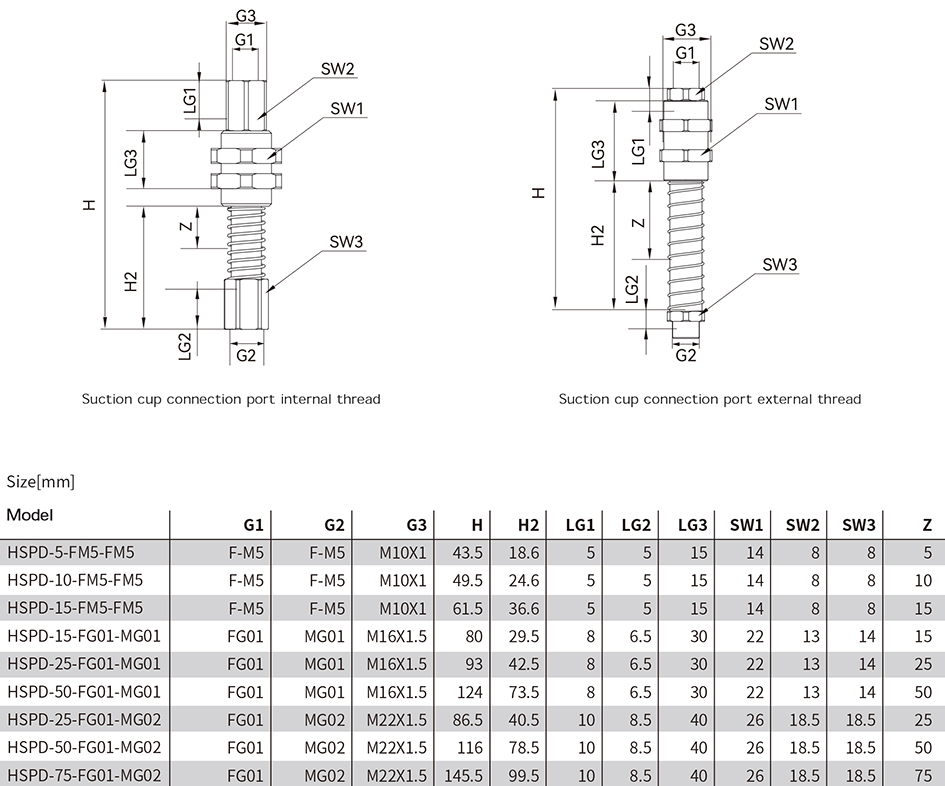

    Design data
