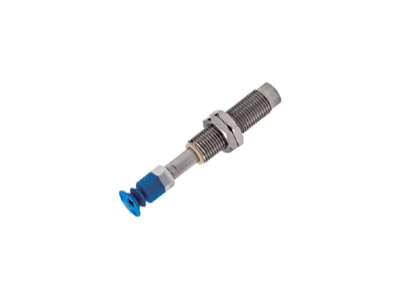

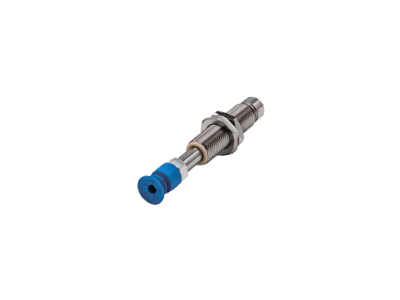

  • Lightweight Buffer Rod HSPL

  • *Spring embedded buffer support rod, with very low elasticity.
    *Small size, light weight.
    *The guide rod adopts special surface treatment.
    *Guide sleeve with built-in resin lining.
    *Design of Internal Shrinkage Structure.

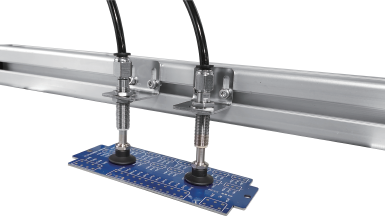

    *Suitable for the electronics industry.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    *Spring embedded buffer support rod, with very low elasticity.
    *Small size, light weight.
    *The guide rod adopts special surface treatment.
    *Guide sleeve with built-in resin lining.
    *Design of Internal Shrinkage Structure.
    *Suitable for the electronics industry.

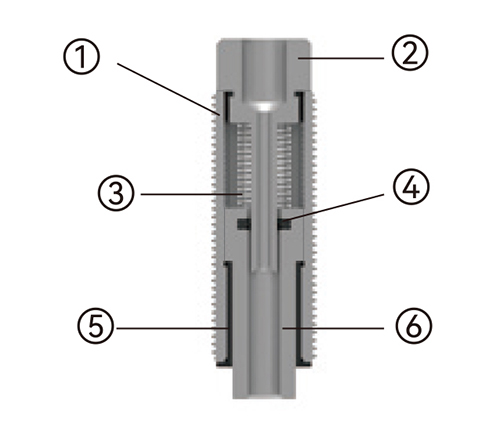

    Product mix
    (1) Install thread
    (2) Vacuum interface
    (3) Buffer spring
    (4) Sealing ring
    (5) Lining
    (6) Activity pole

    Product advantages
    Adopting a brand new structural component design can minimize metal friction and chip shedding to the greatest extent possible.
    Adopting a special anti eccentricity structure design for smoother sliding.

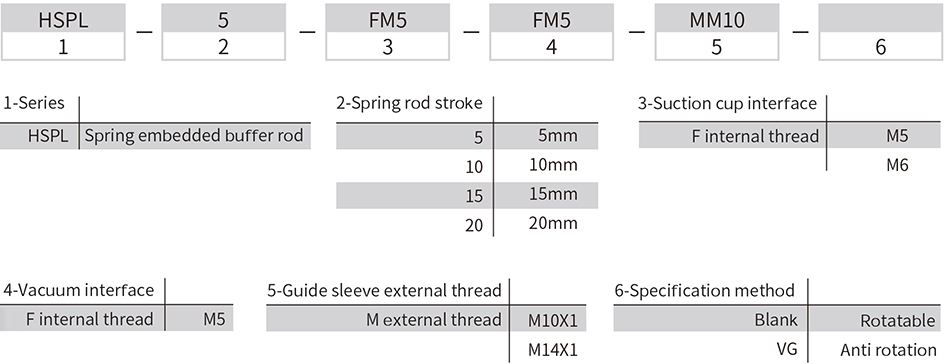

    Ordering no

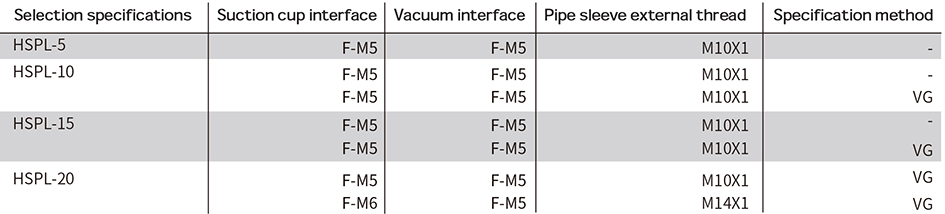

    Selection specifications

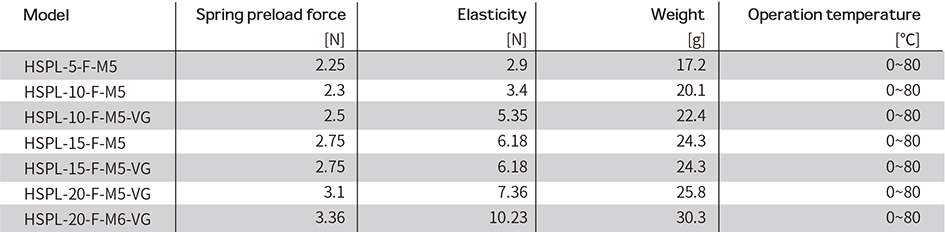

    Technical data

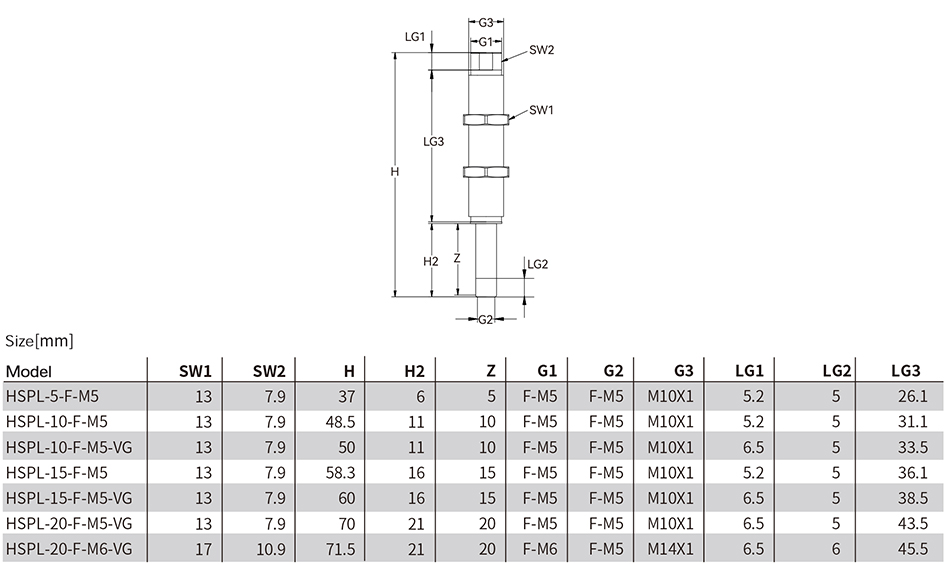

    Design data
