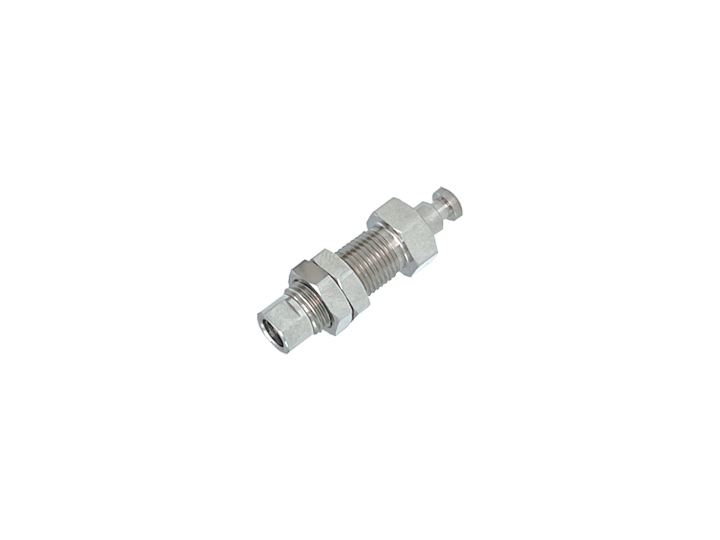

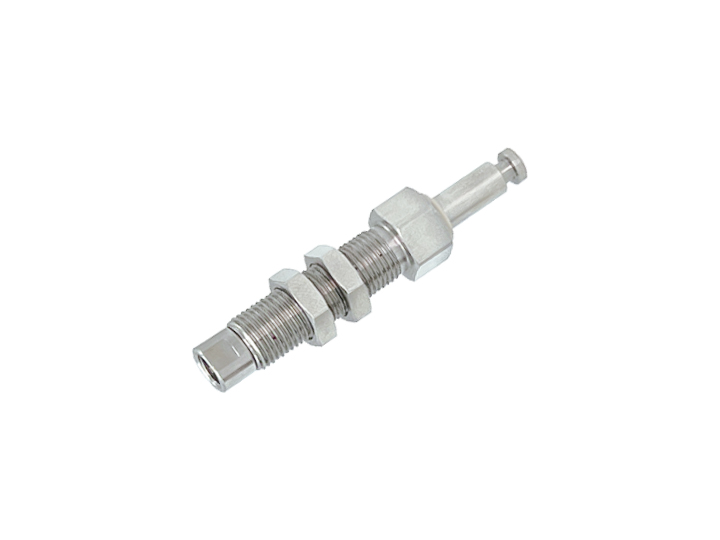

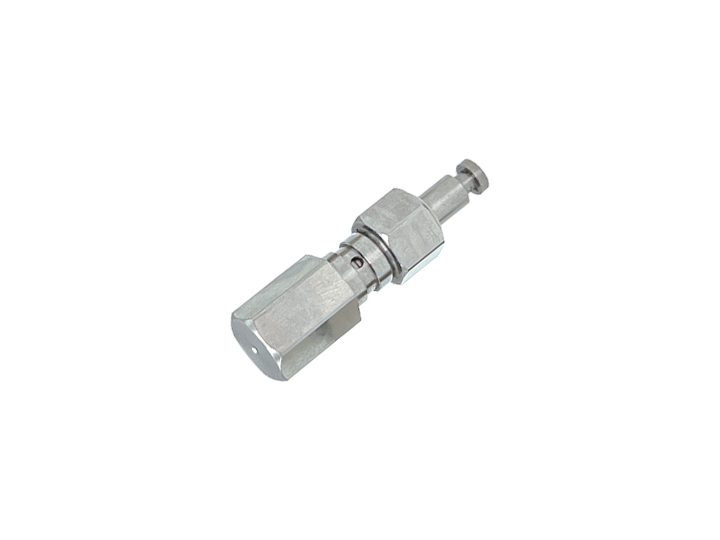

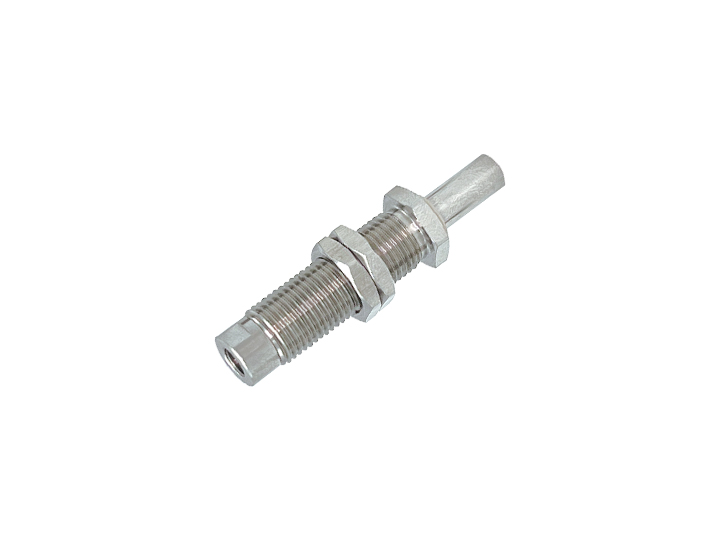

  • Spring Buffer Rod HSPS

  • *Spring embedded buffer support rod, with very low elasticity.
    *Guide sleeve with built-in resin lining.
    *Vertical and horizontal vacuum extraction increases installation flexibility.
    *Suitable for fast handling situations with limited space.
    *Corrosion and wear resistance reduce dust generation.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    *Spring embedded buffer support rod, with very low elasticity.
    *Guide sleeve with built-in resin lining.
    *Vertical and horizontal vacuum extraction increases installation flexibility.
    *Suitable for fast handling situations with limited space.
    *Corrosion and wear resistance reduce dust generation.

    Product mix
    (1) Upper thread
    (2) Guide shaft sleeve
    (3) Self-locking nut
    (4) Suction cup connection

    Product advantages

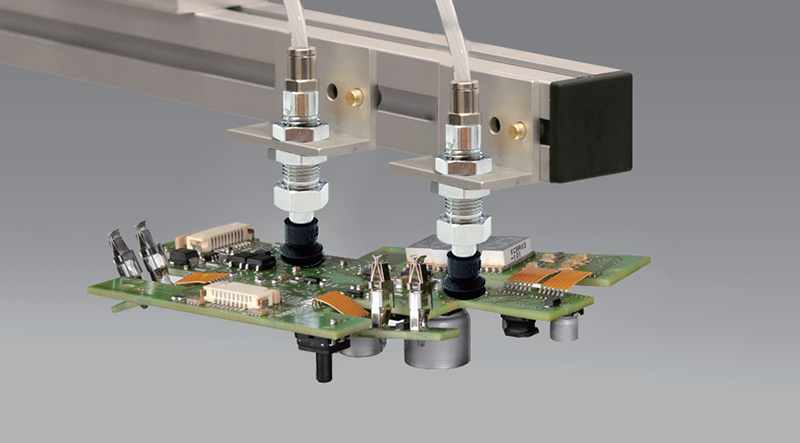

    Suitable for the electronics industry.
    Suitable for handling lightweight and small workpieces that require flexible contact, suitable for handling on site.
    Workpieces with height differences.
    Suitable for environments that require dust-free working conditions.

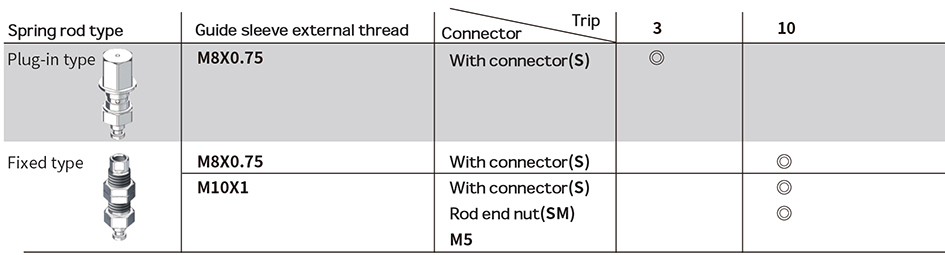

    Ordering no


    Individual shape

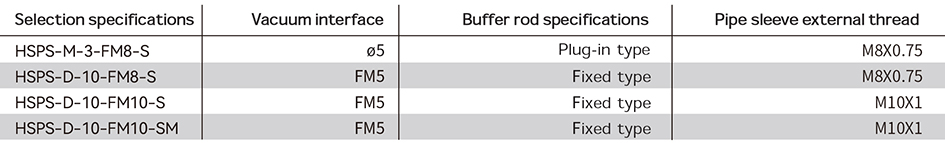

    Selection specifications

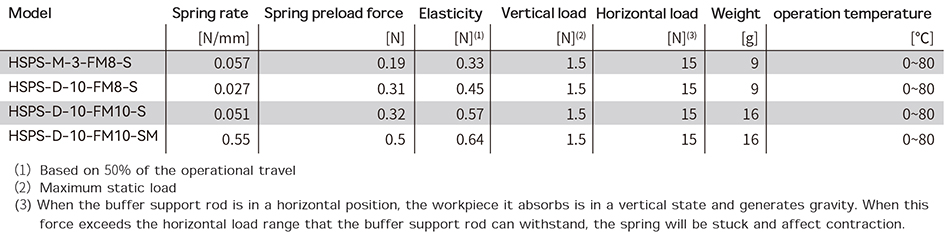

    Technical data

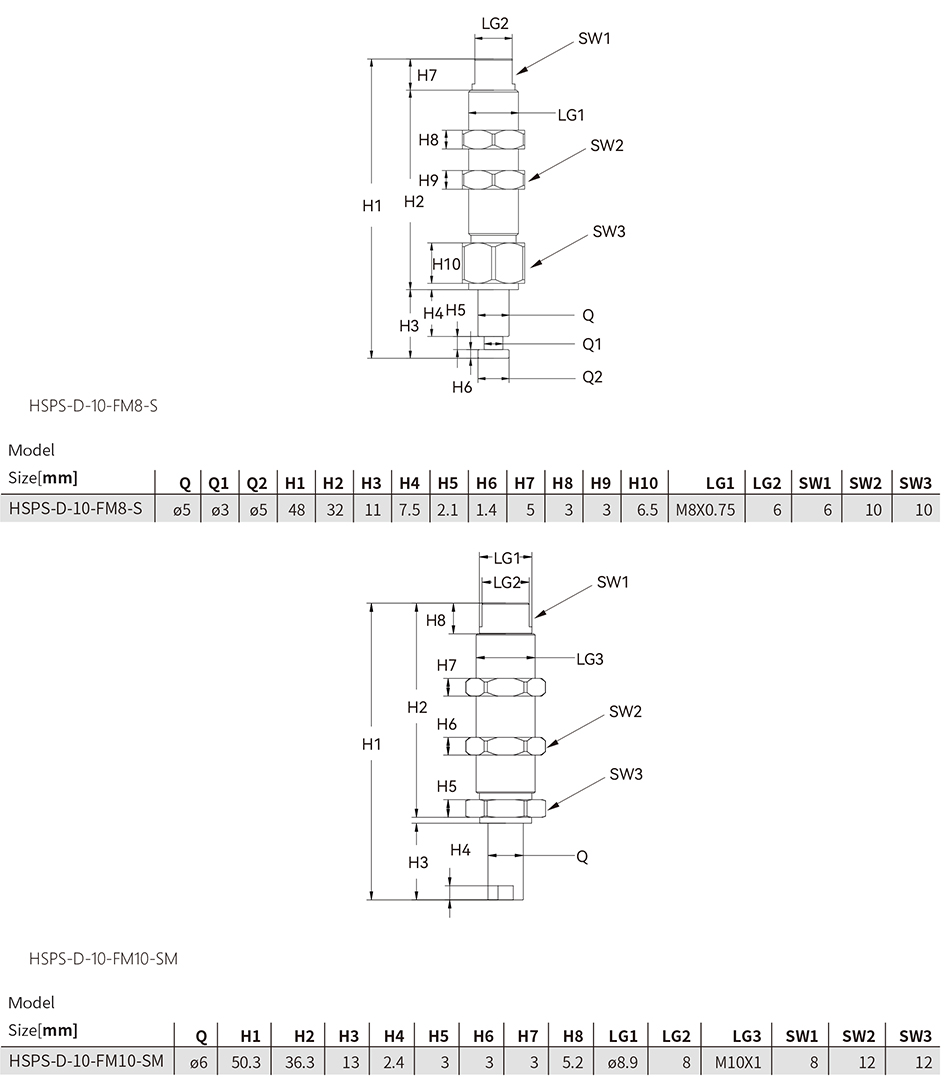

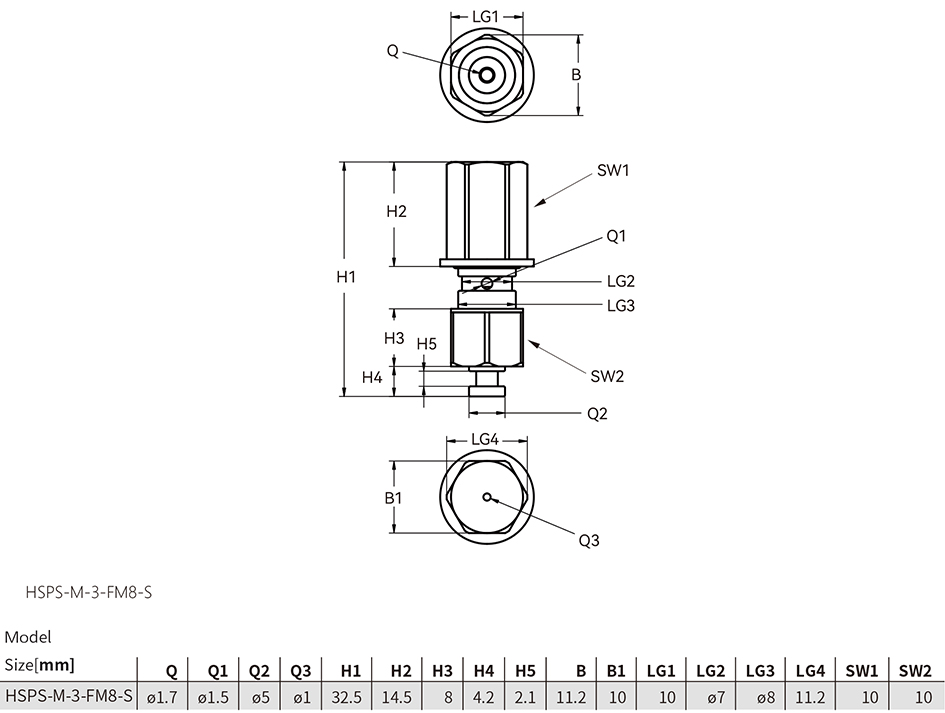

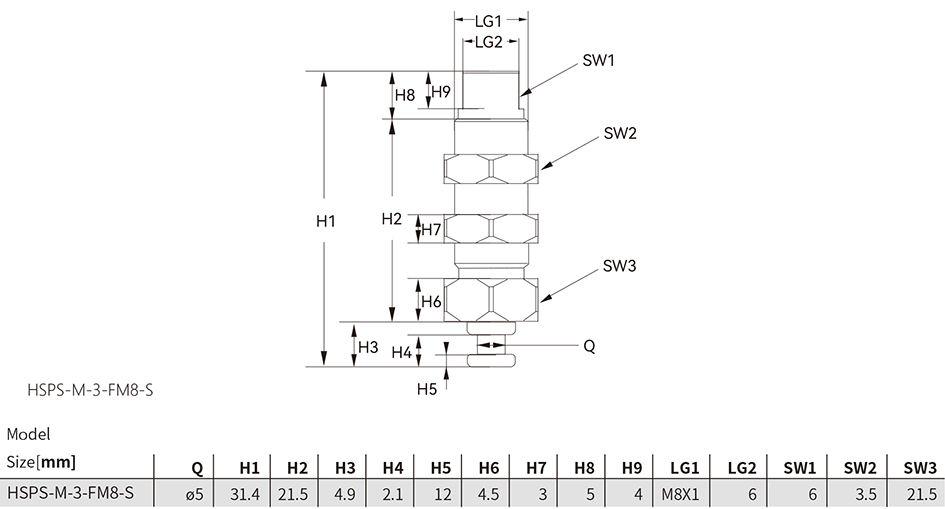

    Design data
