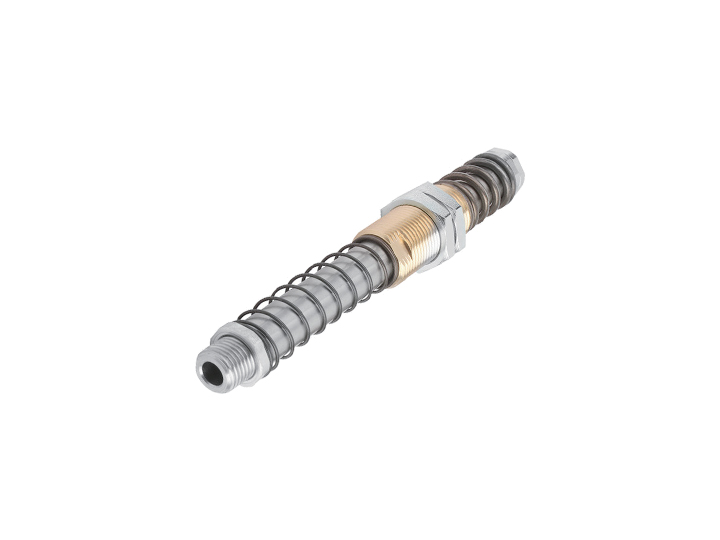

  • Spring buffer rod HSPZ

  • *Spring buffer support rod with high-quality sliding bearings.
    *Smooth operation and anti rotation design.
    *Long screw, secured with two self-locking nuts.
    *Lightweight, suitable for lightweight chemical equipment.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    *Spring buffer support rod with high-quality sliding bearings.
    *Smooth operation and anti rotation design.
    *Long screw, secured with two self-locking nuts.
    *Lightweight, suitable for lightweight chemical equipment.

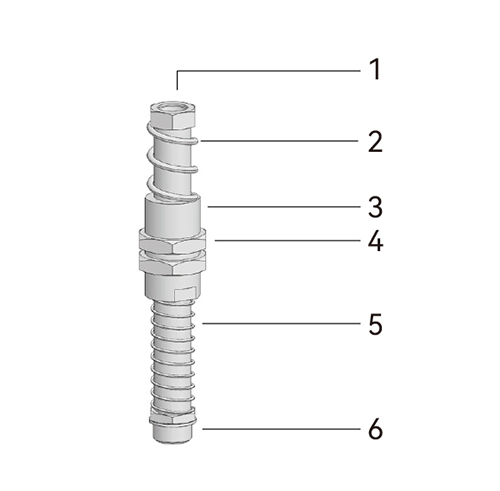

    Product mix
    (1) Integrated vacuum supply pipeline plunger rod, all connected with internal threads.
    (2) Upper buffer spring.
    (3) Guide shaft sleeve.
    (4) Two self-locking nuts for securing.
    (5) Lower buffer spring.
    (6) The connecting suction cup threads are all external threads.

    Product advantages
    No maintenance required, operational lifespan of the airport; Suitable for short cycle times.
    Ensure gentle placement on vulnerable workpieces to absorb impact and vibration. Prevent overtravel phenomenon.
    Capable of handling suction cups in various application fields and all standard series.
    Can be used in conjunction with elliptical suction cups.

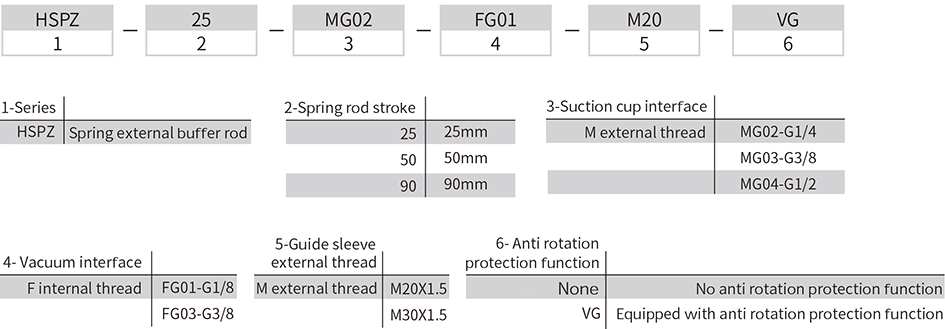

    Ordering no

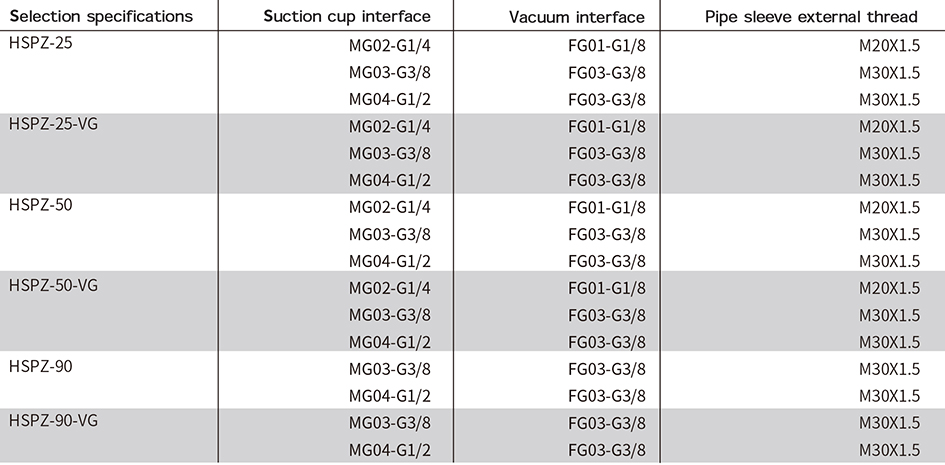

    Selection specifications

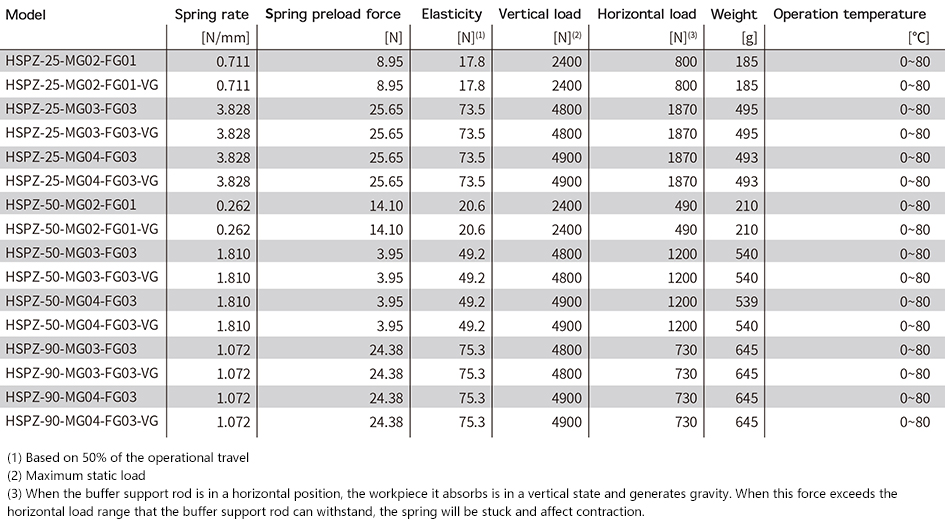

    Technical data

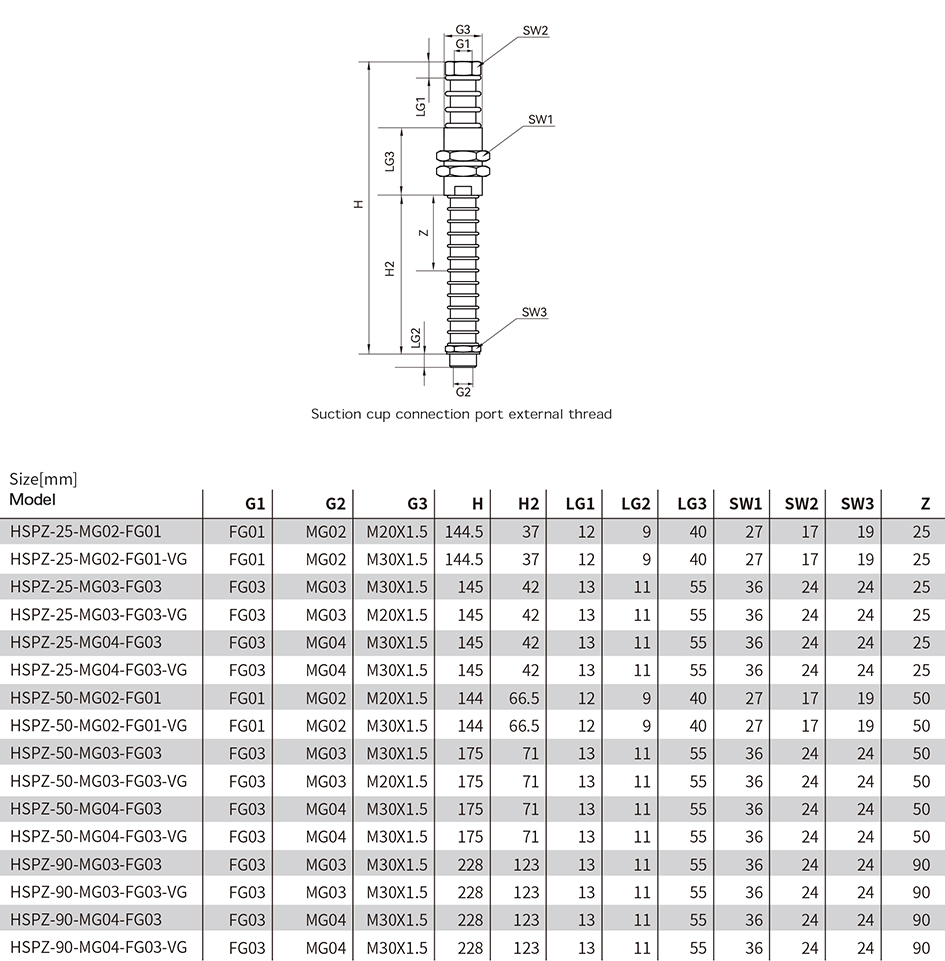

    Design data
