Product

  • HVGW120

  • * Highly modular design, simple structure, lightweight.
    * Easy to install and maintain.
    * Using high-strength aluminum profiles, it is sturdy, durable, and easy to maintain.
    * Lightweight and compact size.
    * High performance imported materials with longer service life.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Highly modular design, simple structure, lightweight.
    Easy to install and maintain.
    Using high-strength aluminum profiles, it is sturdy, durable, and easy to maintain.
    Lightweight and compact size.
    High performance imported materials with longer service life.

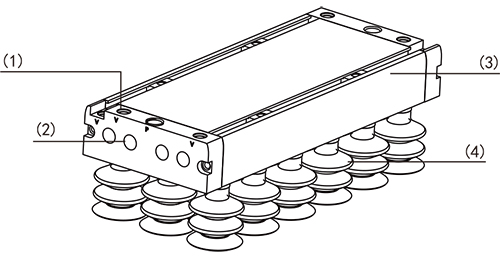

    Product mix
    (1) Compressed air intake.
    (2) Exhaust hole with noise reduction function.
    (3) Aluminum profiles, customizable.
    (4) A sturdy and wear-resistant 2.5-fold suction cup, made of flexible and adaptable material that is easy to adhere to workpieces.

    Product advantages
    Compact pace, easy to install and use.
    Suitable for cardboard boxes, wooden boards, glass, plastic and other workpieces.
    Handling and picking up workpieces without fixed positions.
    Lightweight, ideal for robot applications.

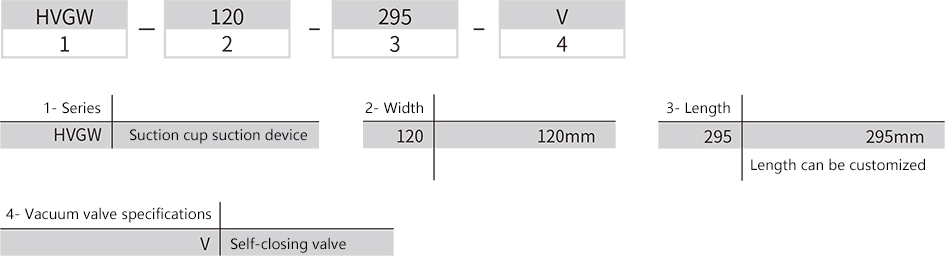

    Ordering no



    Selection specifications

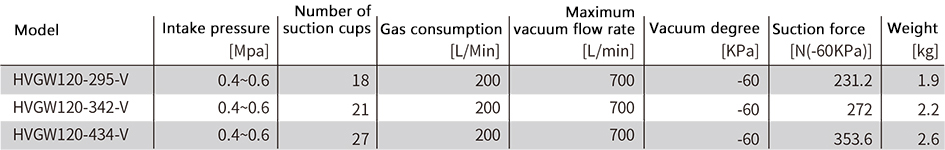

    Technical data

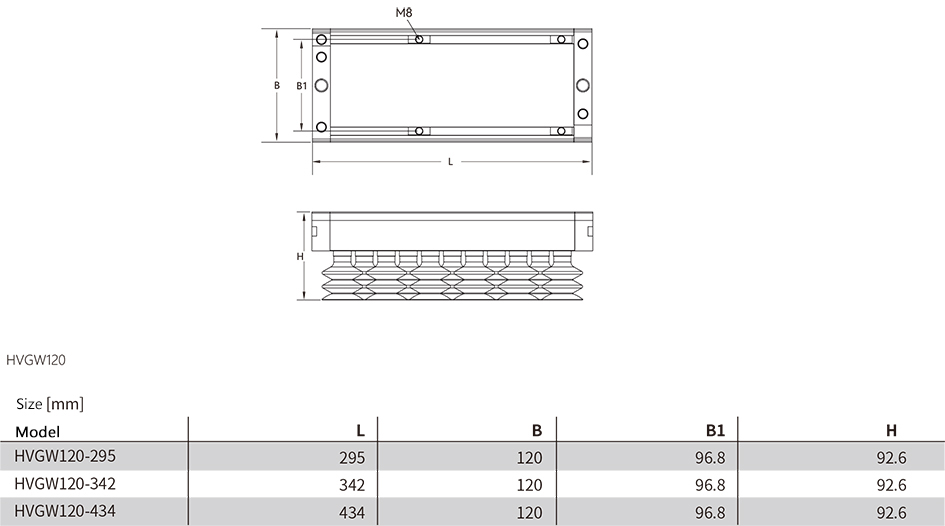

    Design data
