  • HVGW

  • *Highly modular design.
    *Easy to install and maintain.
    *Adopting high-strength aluminum profiles and lightweight design.
    *Two size specifications are suitable for various workpieces.
    *High performance imported materials with longer service life.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Highly modular design.
    Easy to install and maintain.
    Adopting high-strength aluminum profiles and lightweight design.
    Two size specifications are suitable for various workpieces.
    High performance imported materials with longer service life.

    Product mix
    (1) Install thread M6
    (2) P: Inlet G1/4
    (3) Drop detection
    (4) M18 * 1 reserved thread
    (5) V: Testing port G1/8
    (6) Electric control interface (built-in control)

    Product advantages
    Lightweight, compact in pace, easy to install and use.
    Suitable for cardboard boxes, wooden boards, glass, plastic and other workpieces.
    Built in control module: No need for additional components such as high flow solenoid valves.

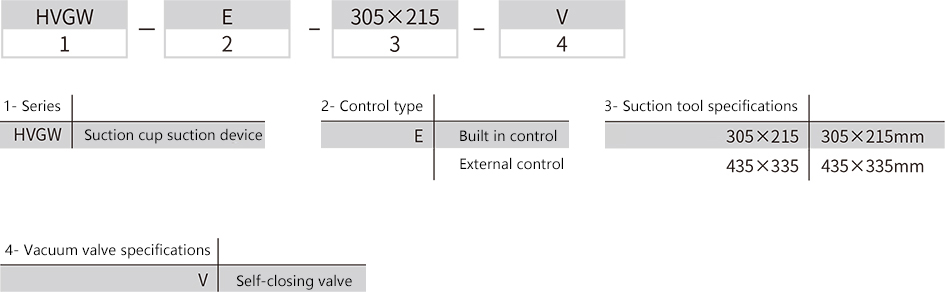

    Ordering no

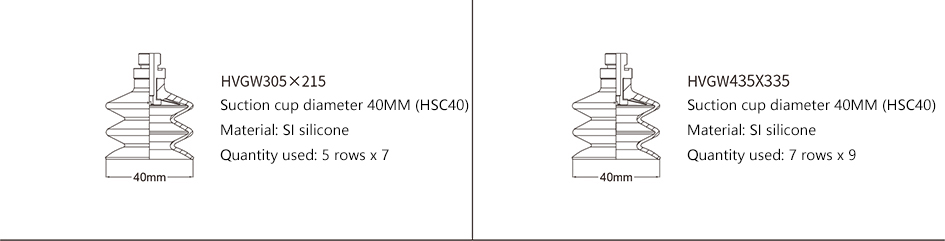

    Selection specifications

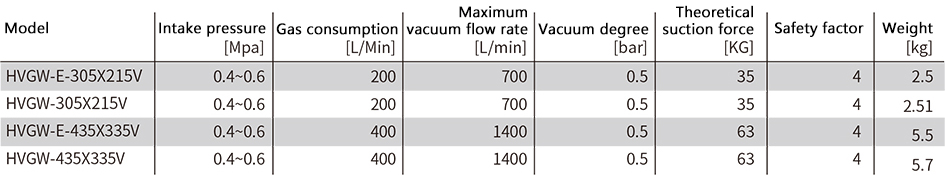

    Technical data

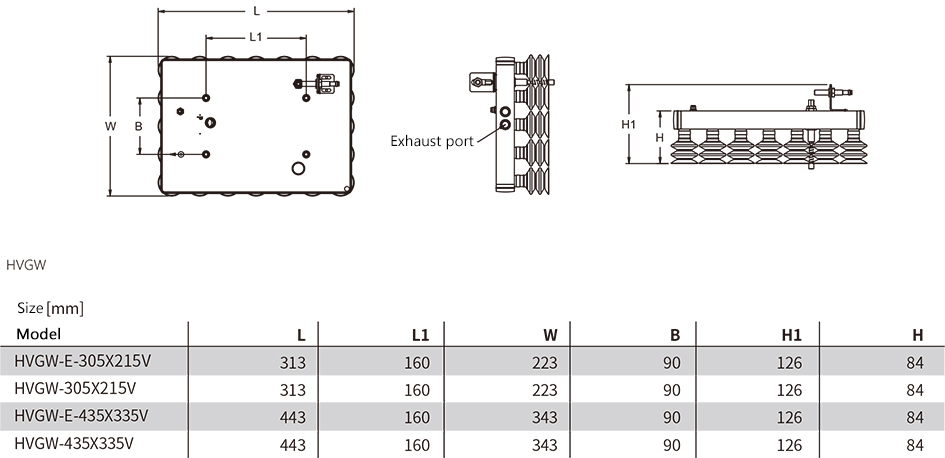

    Design data

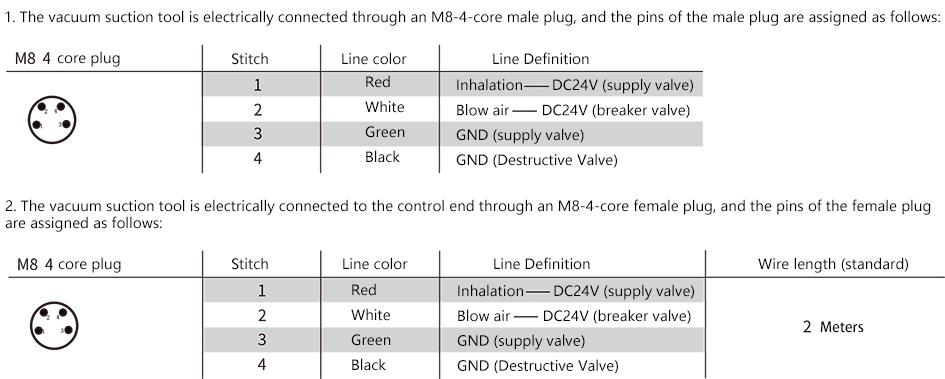

    Electrical connection pins

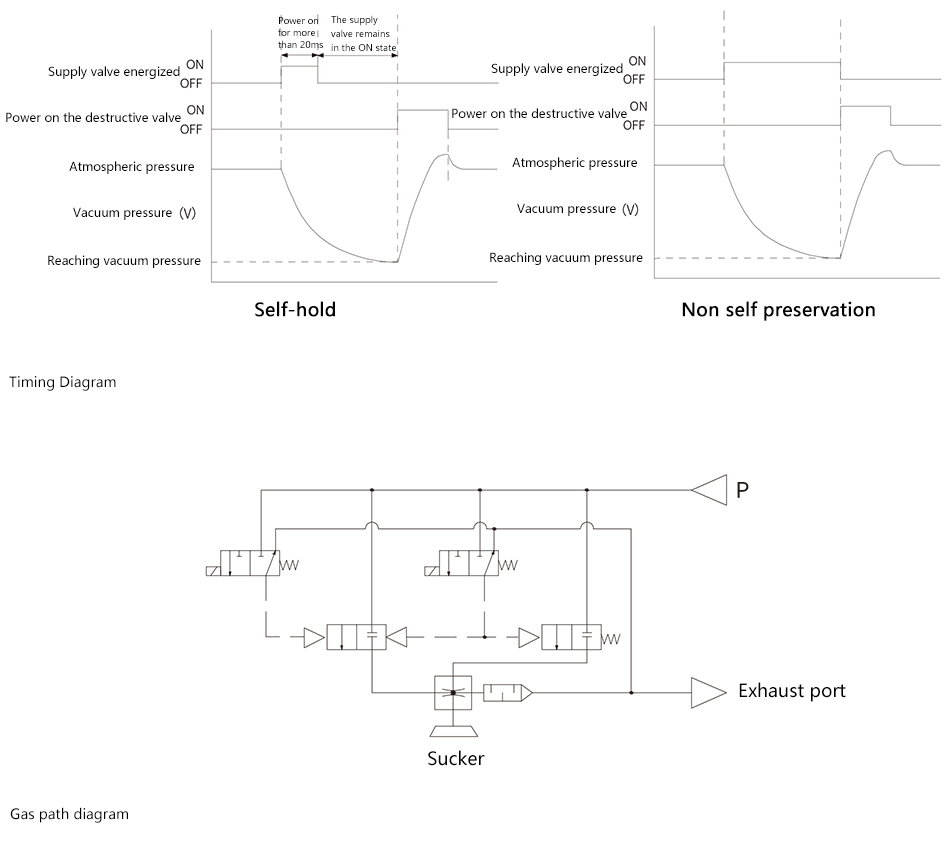

    Time sequence diagram/gas path diagram


Prev：HVGW120
Next：HVGP60-SA
