Product

HVGP200-FE
* Medium sized standardized design.
* Convenient and simple maintenance and repair.
* Using lightweight and tough high-strength aluminum profiles.
* External vacuum source design.
* Adopting HANWHA's unique valve body technology.
* Different hole techniques are suitable for a wider range of workpiece applications.
* European original imported sealing sponge pad, with a longer service life.

Contact: +491727628103

Introduce
Design
Parameter

Handling rigid workpieces.

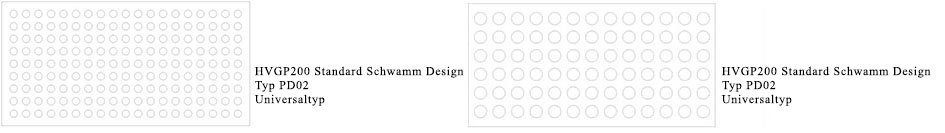

Standard sponge is used for handling wooden boards, pallets, aluminum profiles, and patterned steel plates.
Different sealing gaskets can absorb and transport different types of workpieces.

Product mix
(1) P: Thread g1/4, air inlet
(2) V: G1/8 helical teeth, reverse blowing/vacuum detection
(3) Aluminium profiles, adjustable
(4) A robust and wear-resistant 2.5x suction cup with a flexible and flexible material that fits easily on the workpiece
(5) Fan pump

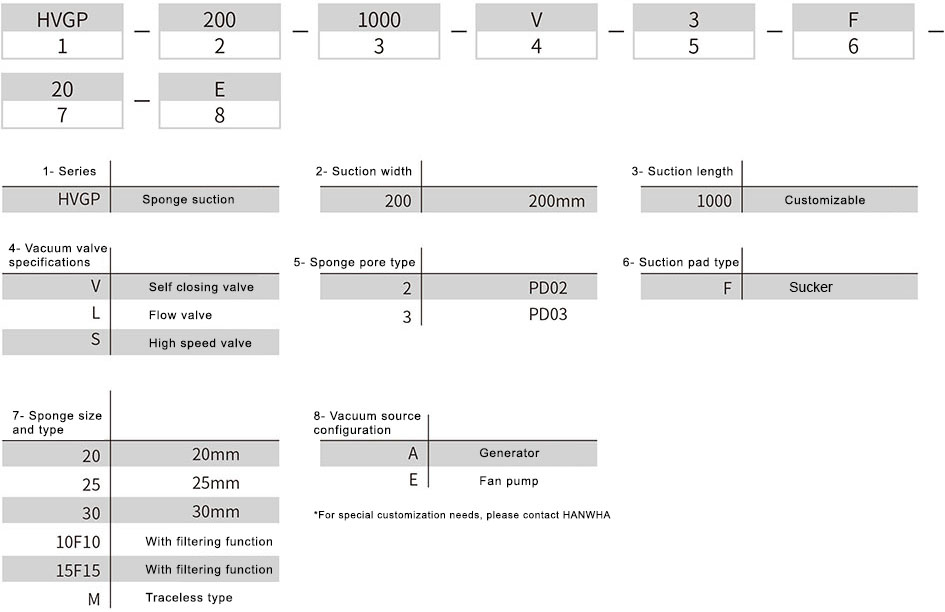

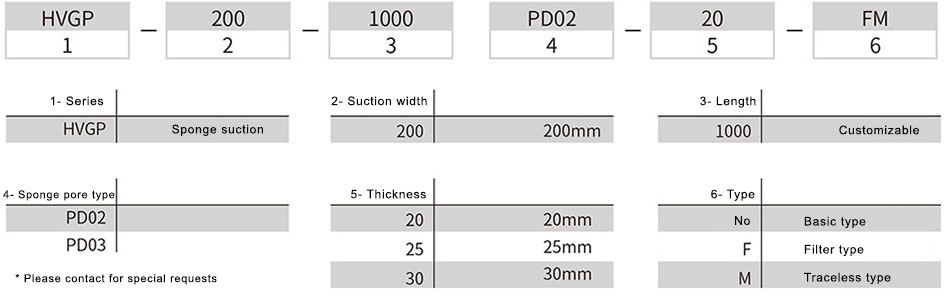

Ordering no

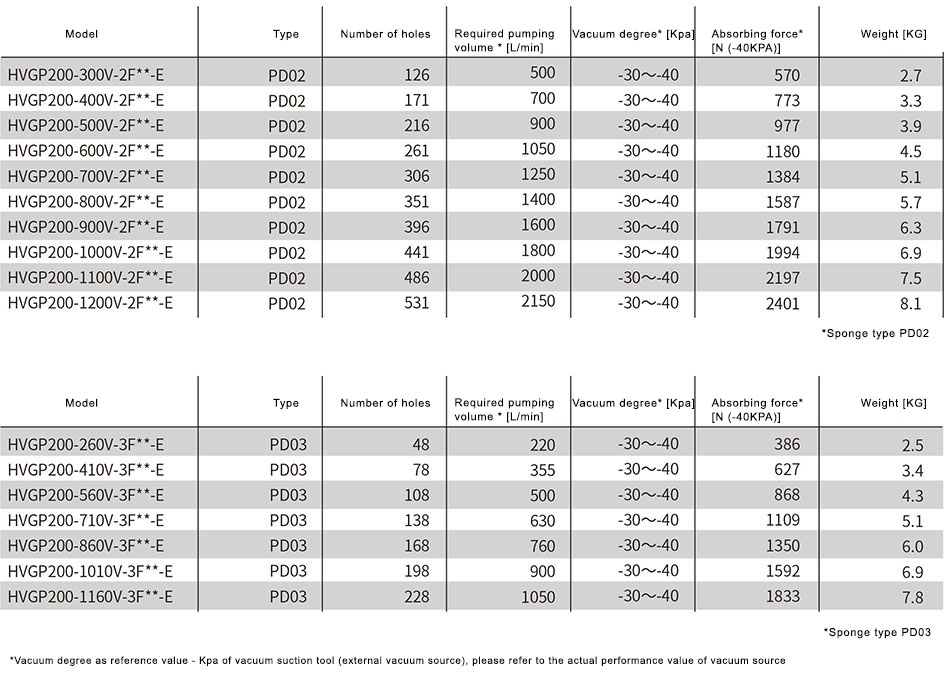

Technical data

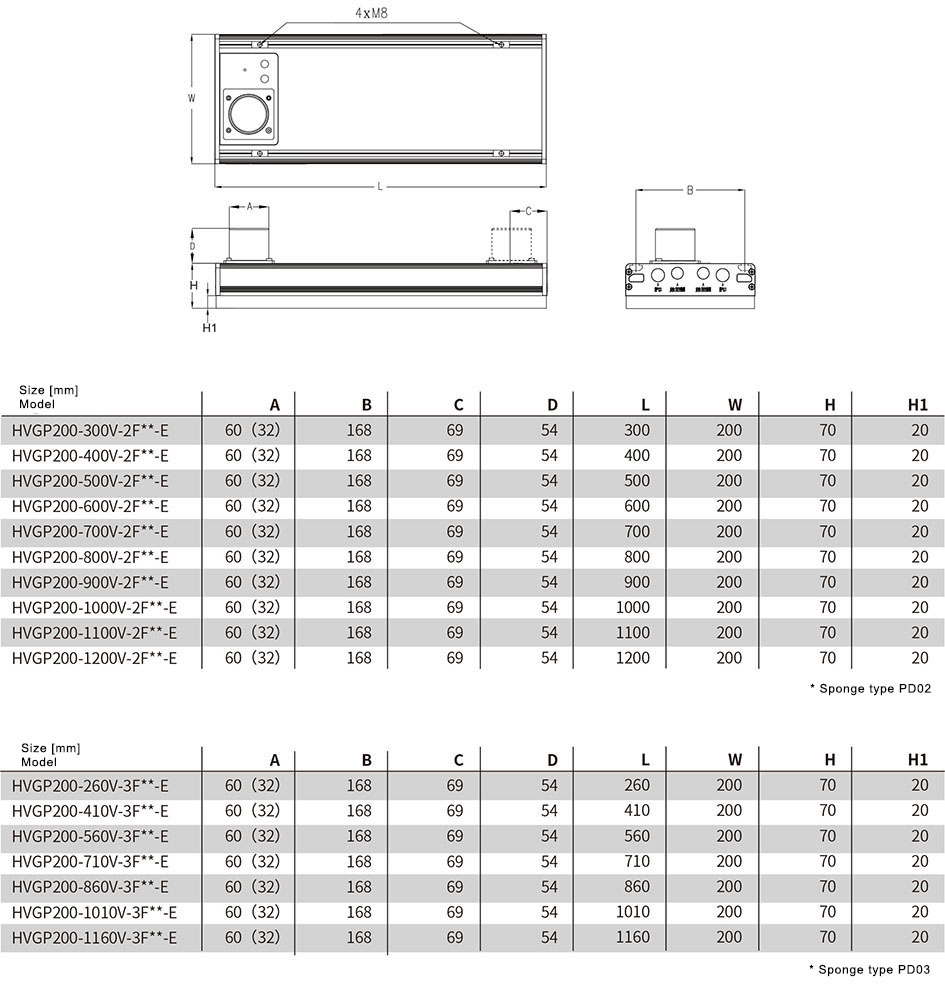

Design data

Prev：HVGP130-FE

Next：HVGP60-SA
