• HVGP60-SA

  • * High strength and light weight.
    * Fast response time.
    * Suitable for grabbing products from different industries.
    * Can meet the requirements of grabbing products of various specifications.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Medium sized standardized design.
    Convenient and simple maintenance.
    Made of lightweight and tough high-strength aluminum profiles.
    Built in multi-stage vacuum generator module.
    Adopting HANWHA's unique valve body technology.
    Different suction cup specifications are suitable for a wider range of workpiece applications.
    High performance imported materials with longer service life.

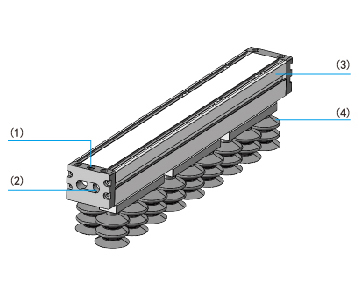

    Product mix
    (1) Compressed air intake.
    (2) Exhaust hole with noise reduction function.
    (3) Aluminum profiles, customizable.
    (4) The sturdy and wear-resistant 25 fold suction cup is made of flexible and flexible material, making it easy to fit the workpiece.

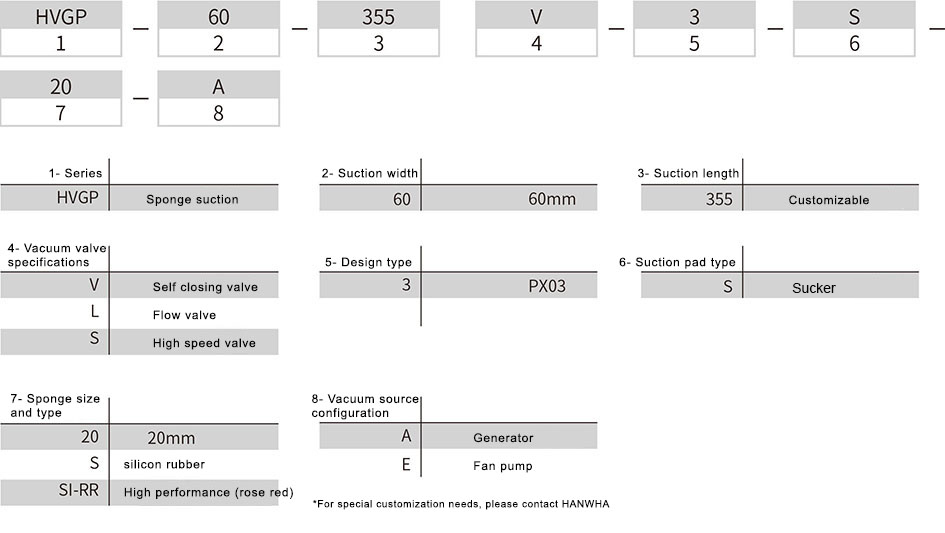

    Ordering no

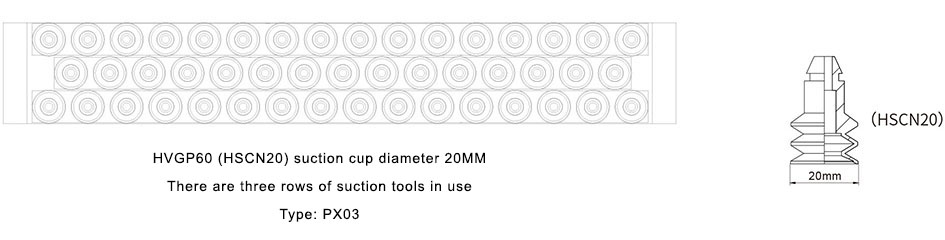

    Selection specifications

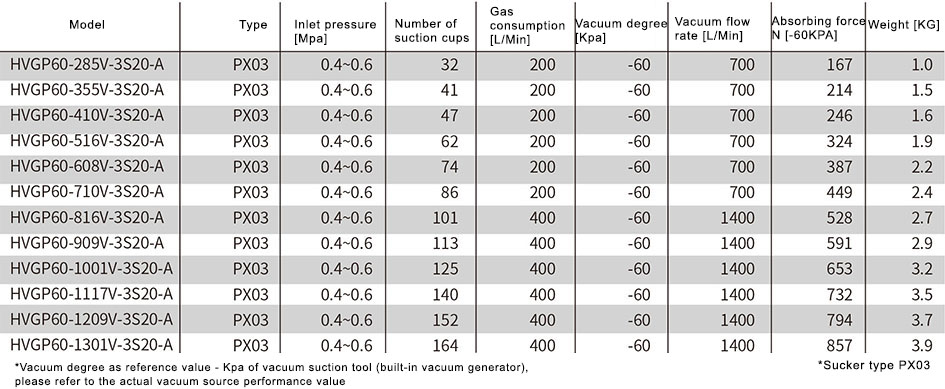

    Technische daten

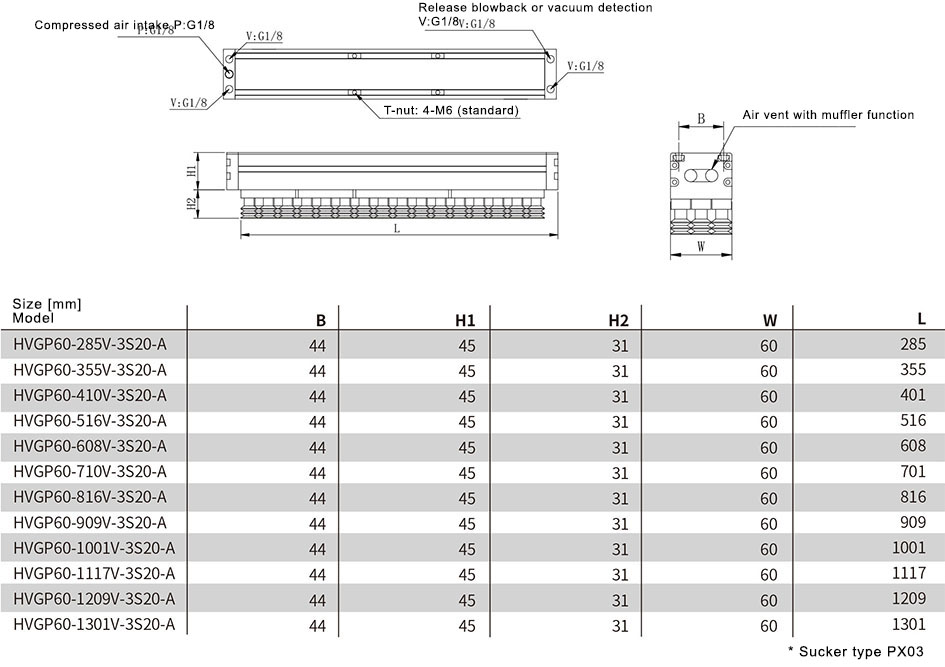

    Design data
