HSXA series
* The adaptable sealing lip provides optimal sealing for cardboard boxes and hard packaging.
* The high internal stability of suction cups during dynamic processes.
* Due to the high suction force of the support ribs on the suction area, the maximum effective diameter can be achieved.
* The elastic HX material minimizes wear to the greatest extent possible (with a service life approximately three times longer than NBR).

Contact: +491727628103

Introduce
Design
Parameter

Product mix

Circular flat suction cup HSXA (2) with soft and flexible sealing lip and support screw on suction surface made of wear-resistant material elastic HX.
Models with a diameter of up to 30mm have plug-in connection components that allow for quick replacement of suction cups.
Starting from a diameter of 40mm, with a 2-piece connecting element consisting of a machine side component (1) and a suction side component (3).
Clip on filter (4) as a pre filter (filter aperture 250 μ m).
All connecting components with external threads are equipped with integrated sealing devices on the fastening threads.

Product advantages

Ordering no

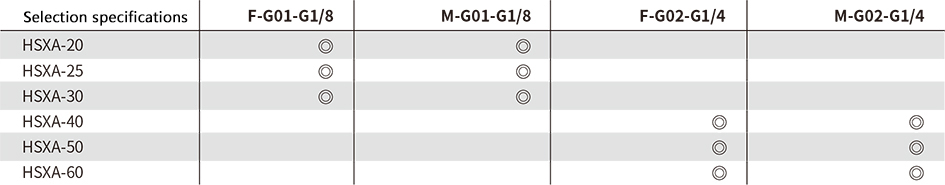

Selection specifications

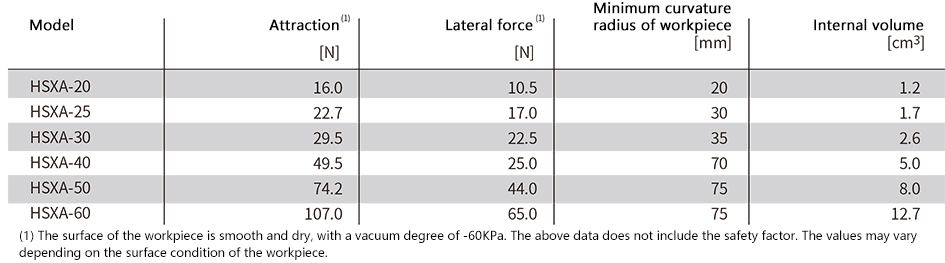

Technical data

Design data
