Product

HVGP200-SE
* Medium sized standardized design.
* Convenient and simple maintenance.
* Adopting lightweight and tough high-strength aluminum profiles.
* Built-in multi-stage vacuum generator module.

Contact: +491727628103

Introduce
Design
Parameter

Adopting HANWHA's unique valve body technology.
Different suction cup specifications are suitable for a wider range of workpiece applications.
High performance imported materials with longer service life.
Suitable for corrugated cardboard, plywood, iron sheet, and other general workpieces.

Product mix
(1) P: G1/4 screw thread, air inlet
(2) V: G1/8 screw thread, back blowing/vacuum detection
(3) Aluminum profiles, customizable

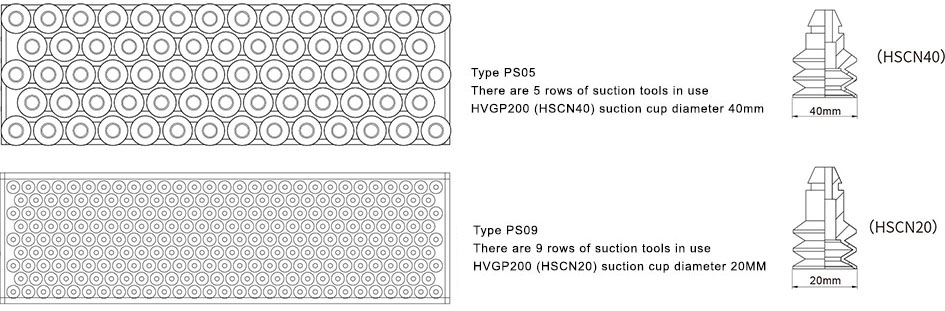

(4) The sturdy and wear-resistant 25 fold suction cup is made of flexible and flexible material, making it easy to fit the workpiece
(5) Fan pump

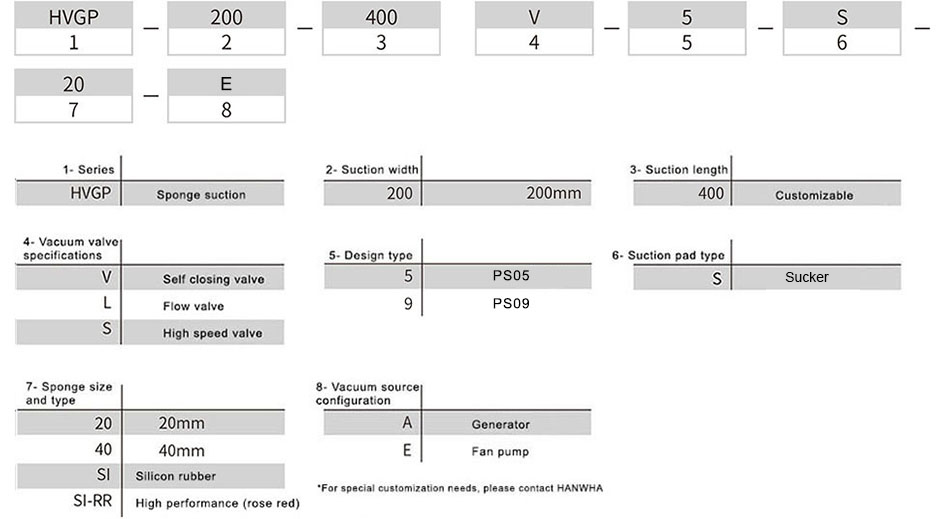

Ordering no

Selection specifications

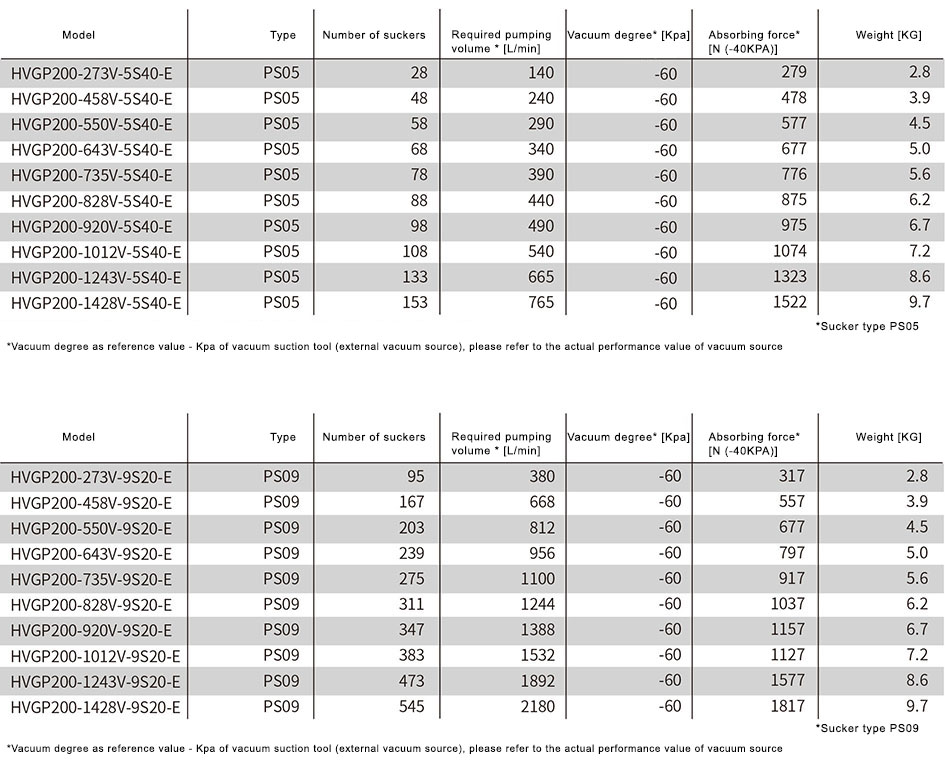

Technical data

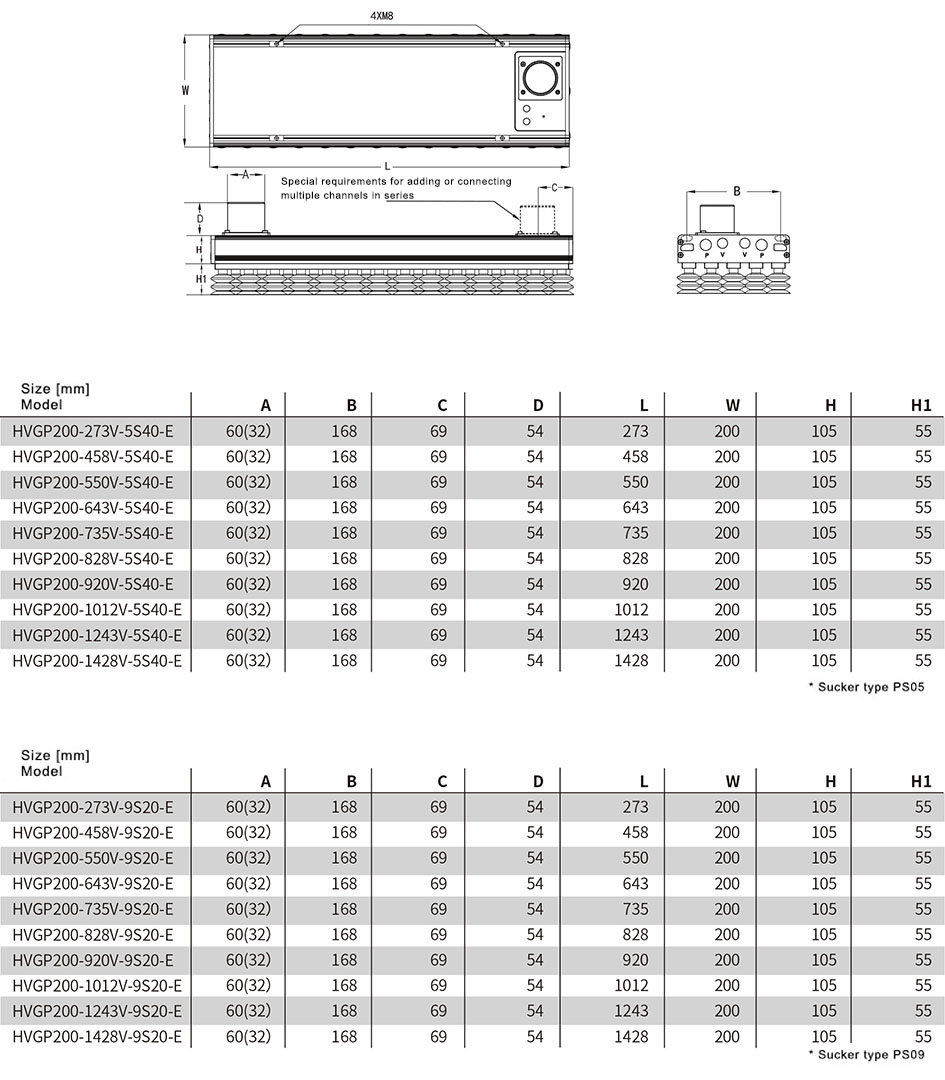

Design data

Prev：HVGP130-SE

Next：Flat suction cup (circular)
