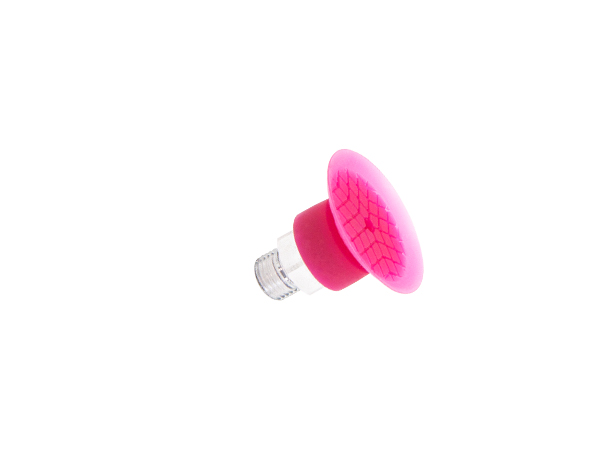

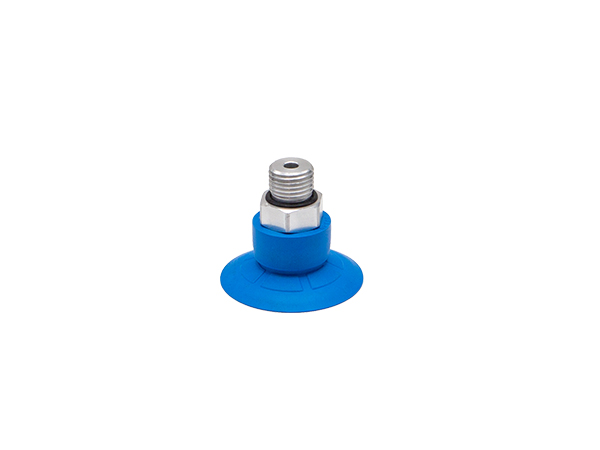

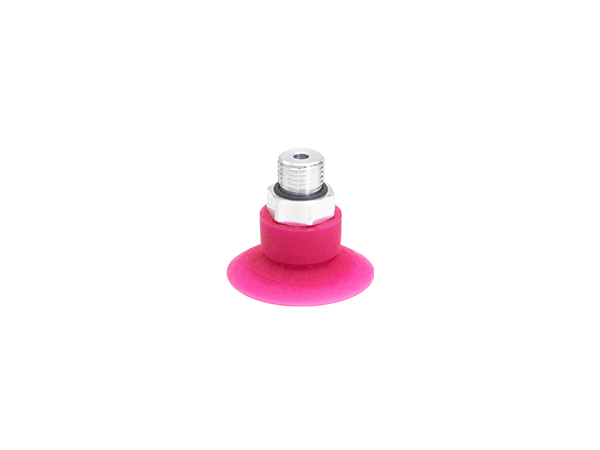

• Flat suction cup (circular)

  • * Thin, large conical shaft vacuum cleaner with apron edge and slit blades.
    * Extremely soft and flexible apron edge sealing.
    * Structure and shaft reinforcement.
    * Increase vacuum throughput with larger diameter.
    * Made of FDA-compliant silicone and equipped with suction cup fixing pads.
    * Built-in suction cup fixing seal (yellow).

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Thin, large conical shaft vacuum cleaner with apron edge and slit blades
    Extremely soft and flexible apron edge sealing
    Structure and shaft reinforcement
    Increase vacuum throughput with larger diameter
    Made of FDA-compliant silicone and equipped with suction cup fixing pads
    Built-in suction cup fixing seal (yellow)

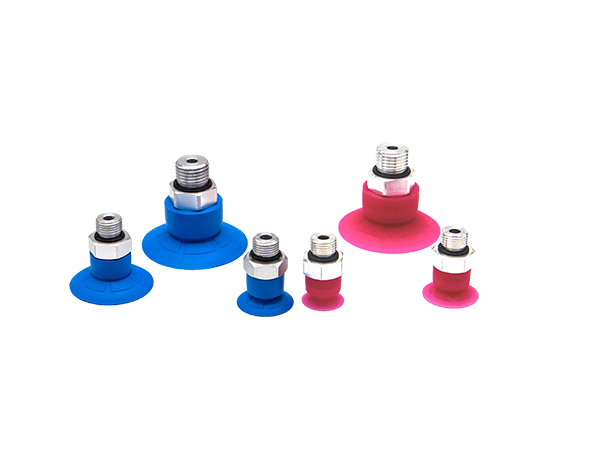

    Product mix
    The suction cup and the thin and flexible sealing lip comprise a flat suction HFA (1) or a corrugated suction HFA 1.5 fold (2) and a connecting element (3).
    The inner support surface has a honeycomb structure and excellent vacuum distribution.
    The suction area (+) ranges from 10 millimeters to 40 millimeters.

    Product advantages
    Balance the internal and external pressure of the vacuum gripper and release the product quickly.
    Energy saving effect when handling non-breathable workpieces.
    Any installation position, suitable for tight spaces.

    HFA suction cup handling mobile screen
    Ordering no

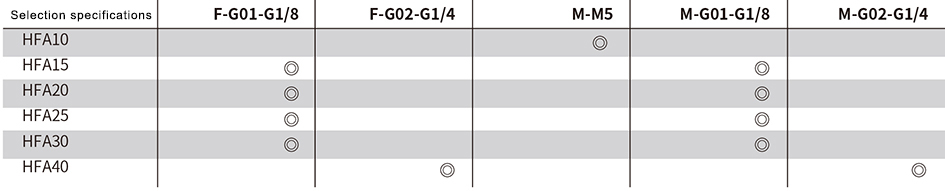

    Selection specifications

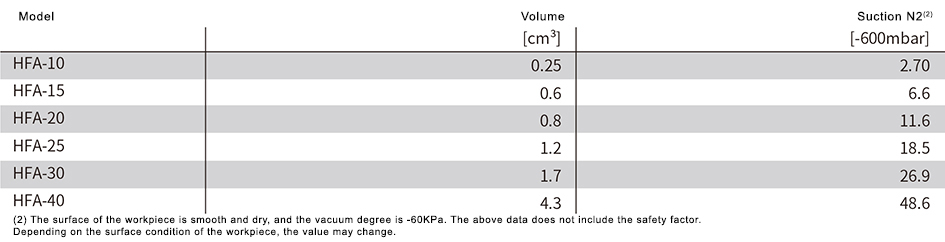

    Technical data

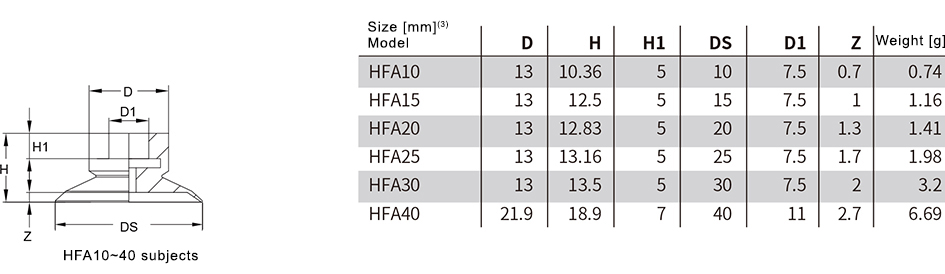

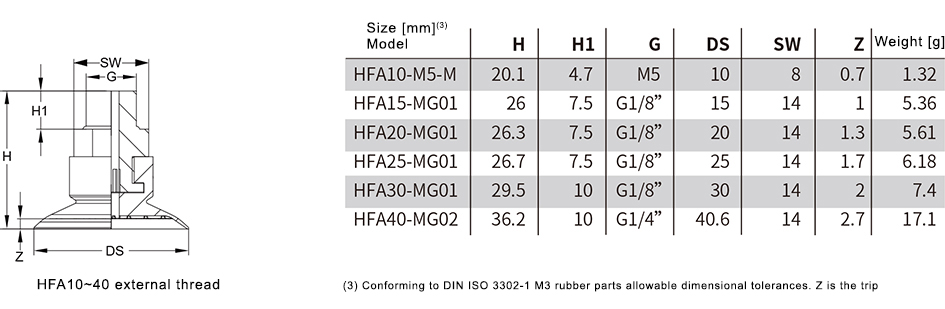

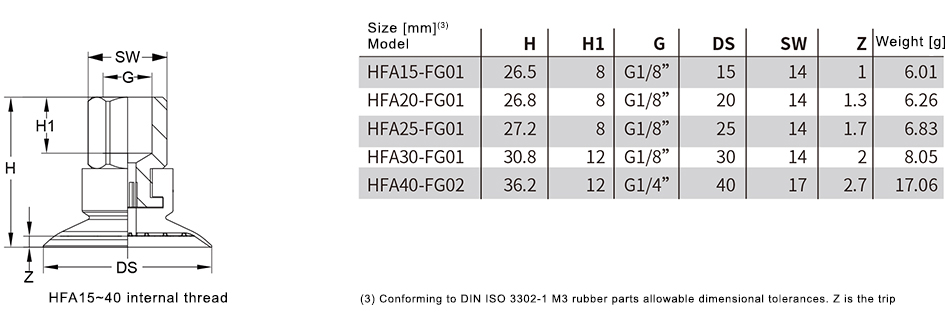

    Design data
