Product

  • HP2 series

  • *Thin lips, smooth suction cup surface, and small stroke.
    *The bottom has a supporting structure.
    *Complete size specifications.
    *Good sealing performance, suitable for handling lightweight and flat workpieces.
    *Prevent wrinkles from forming when adsorbing paper and film.
    *Suitable for workpieces of various sizes and shapes.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Thin lips, smooth suction cup surface, and small stroke.
    The bottom has a supporting structure.
    Complete size specifications.
    Good sealing performance, suitable for handling lightweight and flat workpieces.
    Prevent wrinkles from forming when adsorbing paper and film.
    Suitable for workpieces of various sizes and shapes.

    Product mix
    (1) Internal connector
    (2) External connector
    (3) Suction cup body

    Product advantages
    Suitable for occasions where there are high requirements for product surface marks during transportation, such as paper, plastic film, aluminum foil and copper foil, electronic screens, etc.

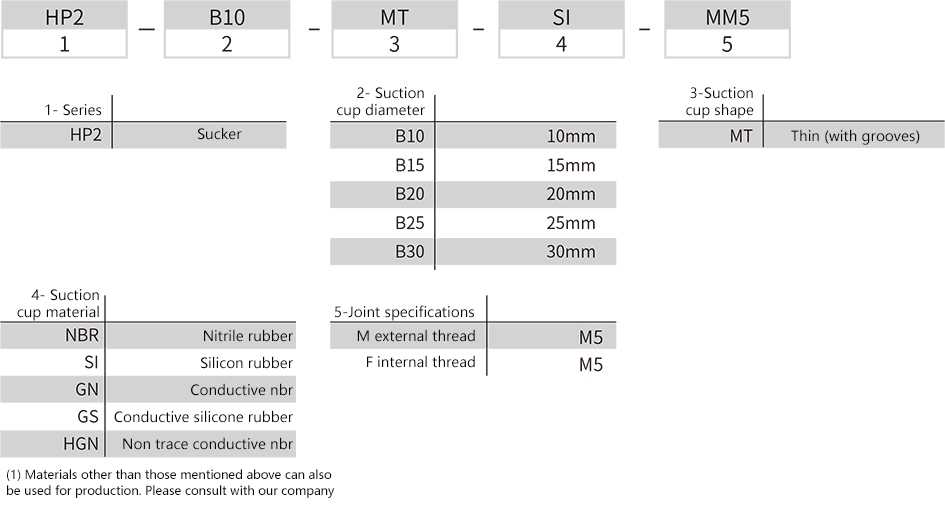

    Ordering no

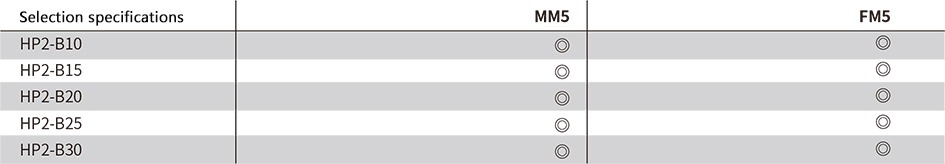

    Selection specifications

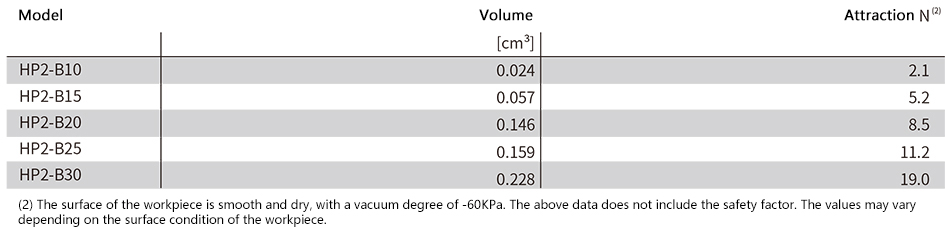

    Technical data

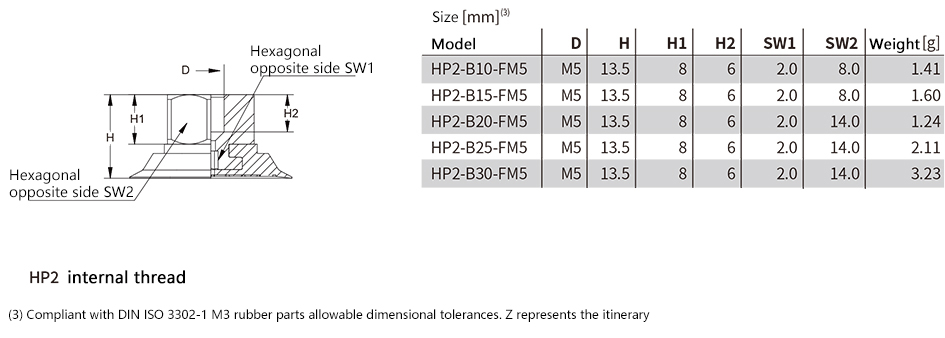

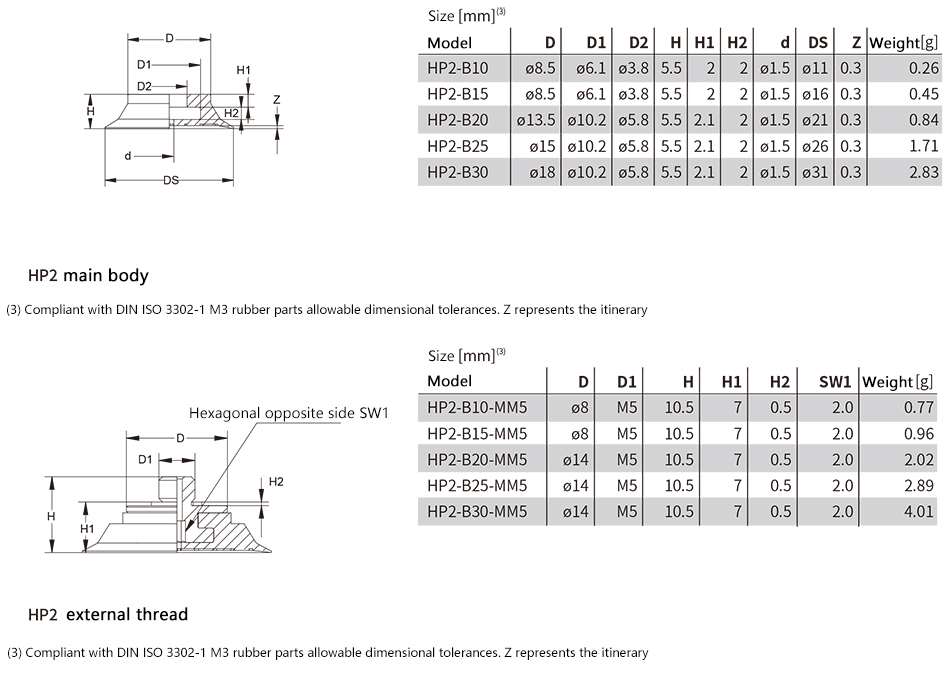

    Design data
