  • HHT series

  • *The stainless steel body has a stable structure and can adapt to various complex environments.
    *The seal is made of high-temperature material.
    *High temperature resistance, with temperatures up to 1200 ℃.
    *Seals can be quickly and easily replaced.
    *Widely used for material handling and positioning in high-temperature environments such as steel, metallurgy, heat treatment, and glass processing.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    The stainless steel body has a stable structure and can adapt to various complex environments.
    The seal is made of high-temperature material.
    High temperature resistance, with temperatures up to 1200 ℃.
    Seals can be quickly and easily replaced.
    Widely used for material handling and positioning in high-temperature environments such as steel, metallurgy, heat treatment, and glass processing.

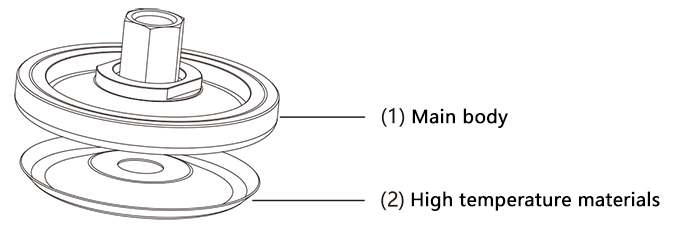

    Product mix
    (1) Stainless steel material main body.
    (2) Made of special high-temperature resistant fabric material.

    Product advantages
    Excellent temperature resistance (can withstand temperatures for a long time).
    Safe and gentle vacuum gripping of high-temperature workpieces.
    After the seal is worn or damaged, it can be replaced separately.

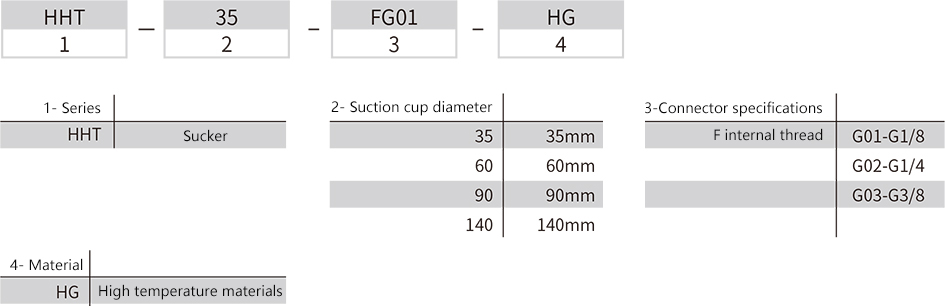

    Ordering no

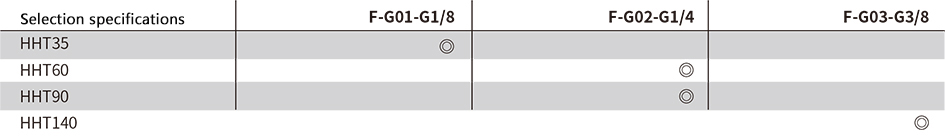

    Selection specifications

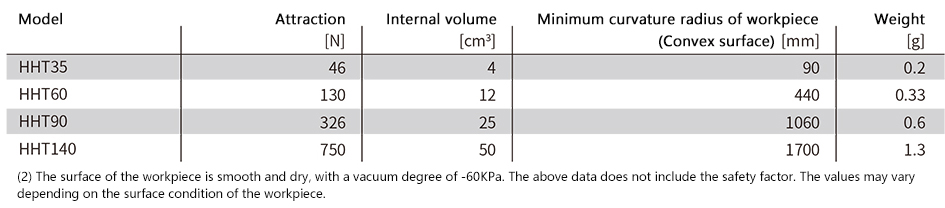

    Technical data

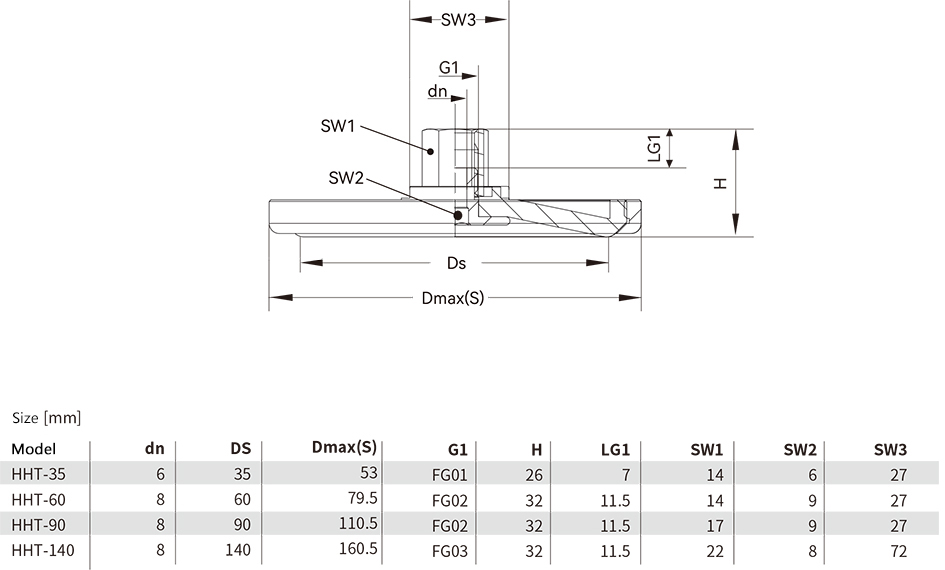

    Design data
