• HP3 series

  • *Transport workpieces with height differences in the suction plane.
    *Adopting an internal contraction structure, there will be no jamming phenomenon due to uneven force distribution.
    *Adsorption can suppress the deformation of the workpiece plane.
    *Simultaneously connected to the vacuum chamber, eliminating the need for pipelines.
    *Made entirely of stainless steel material, it expands its range of use and improves its service life.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Transport workpieces with height differences in the suction plane.
    Adopting an internal contraction structure, there will be no jamming phenomenon due to uneven force distribution.
    Adsorption can suppress the deformation of the workpiece plane.
    Simultaneously connected to the vacuum chamber, eliminating the need for pipelines.
    Made entirely of stainless steel material, it expands its range of use and improves its service life.

    Product mix
    (1) Connecting thread
    (2) Main body
    (3) Suction cup connection end

    Product advantages

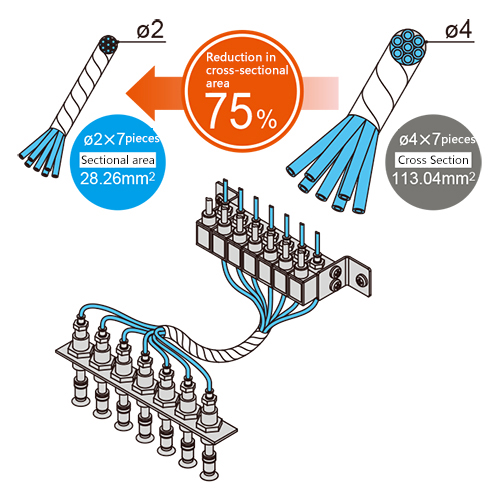

    Space saving/using 02 piping can reduce installation space.
    Can be used to adsorb small components.
    Radial inclined ribs ensure all-round grasping.
    Prevent the workpiece from sliding laterally.

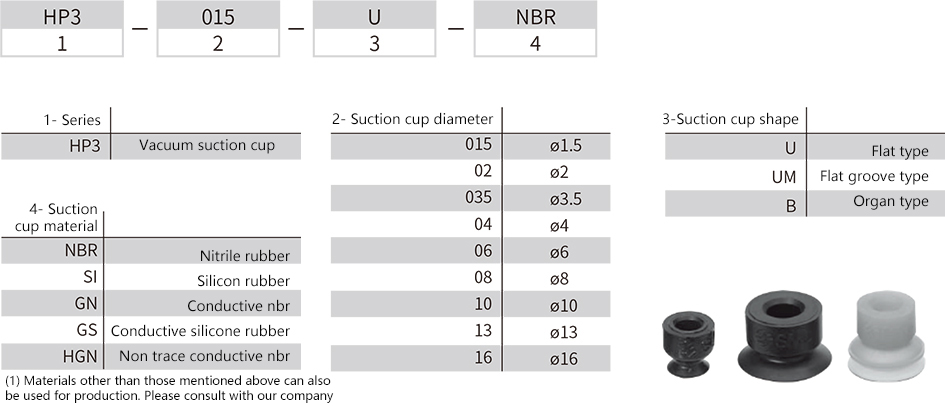

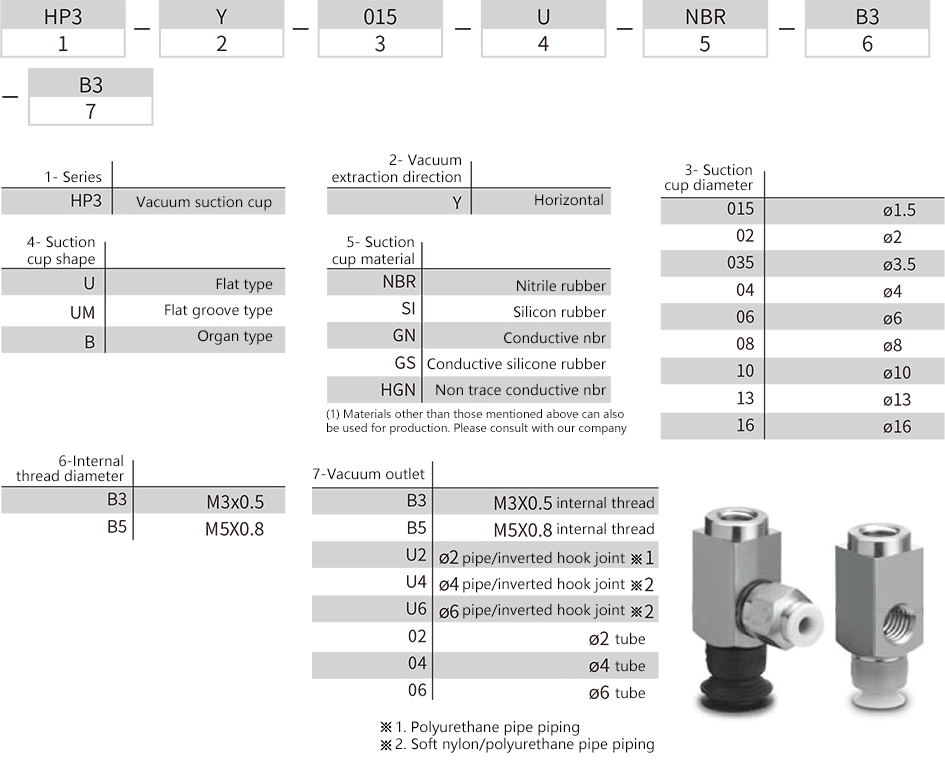

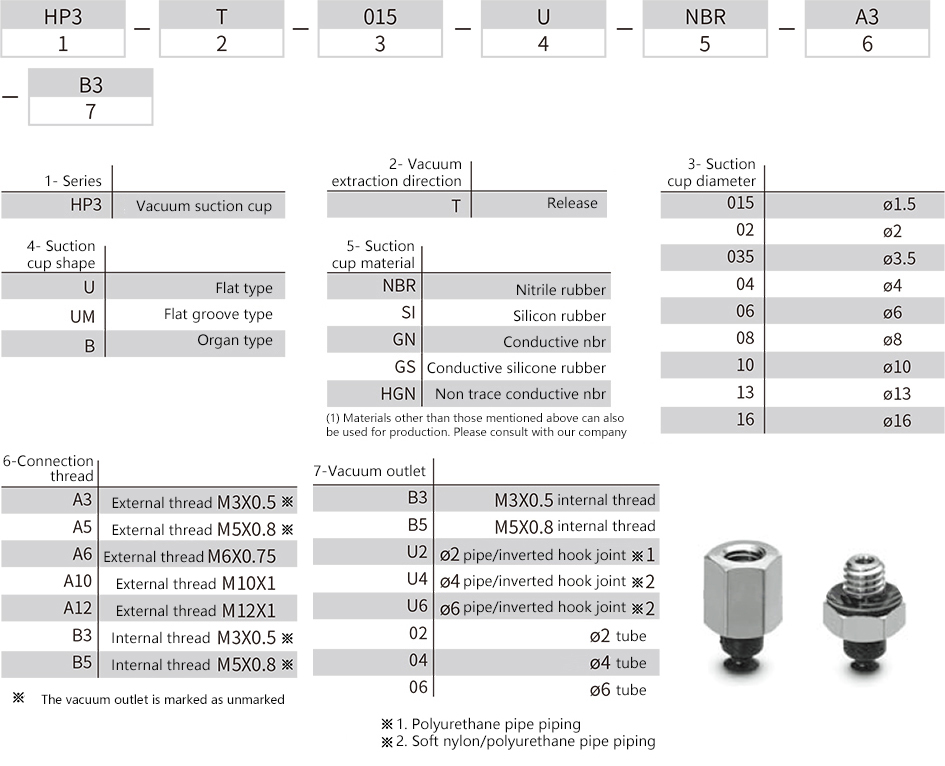

    Single suction cup HP3 ordering code

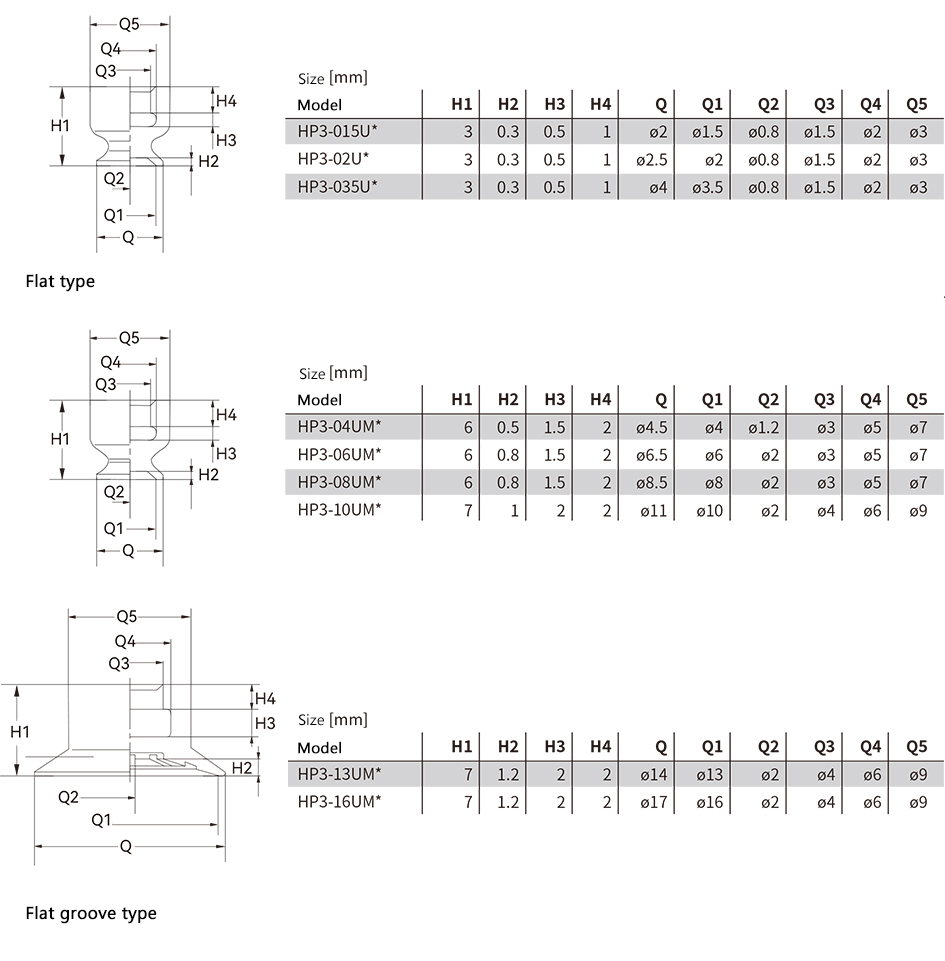

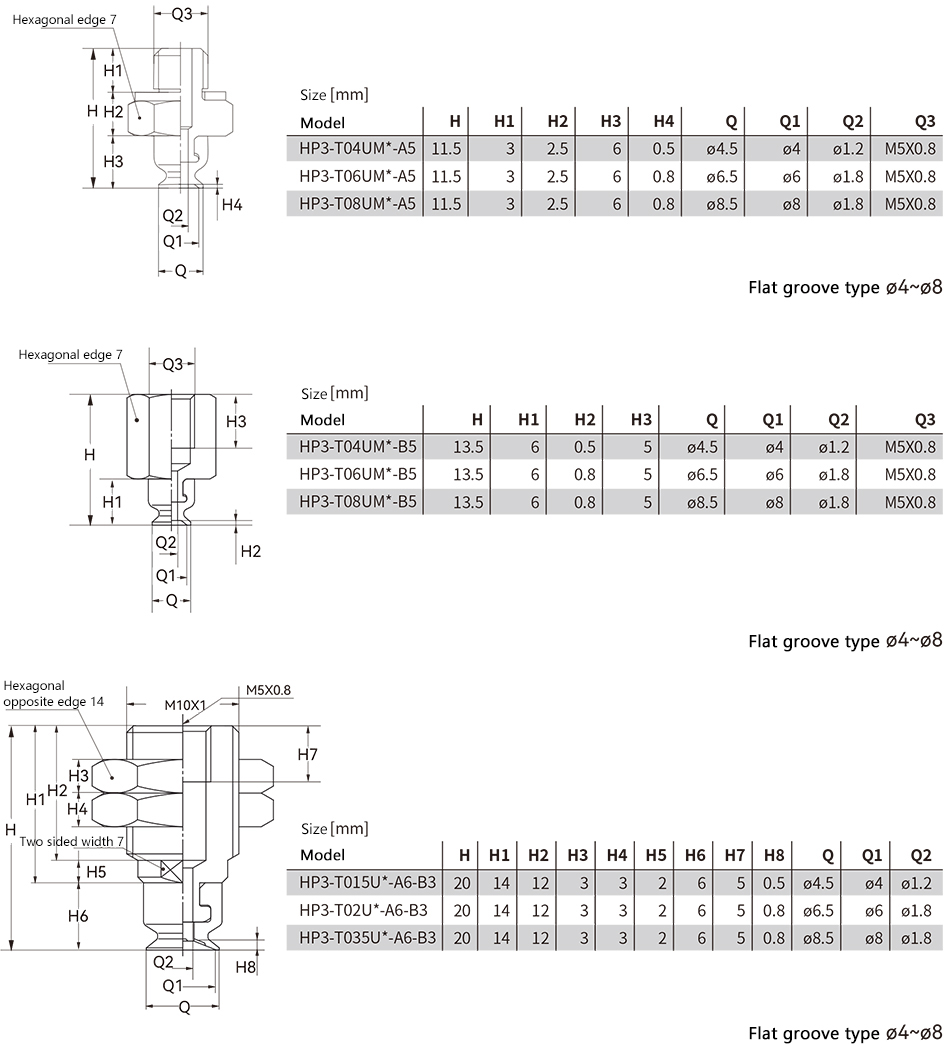

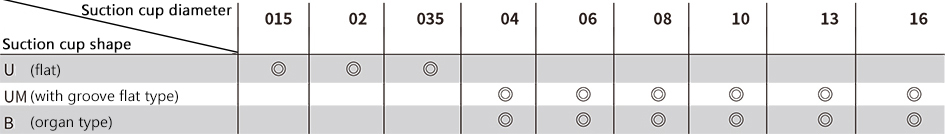

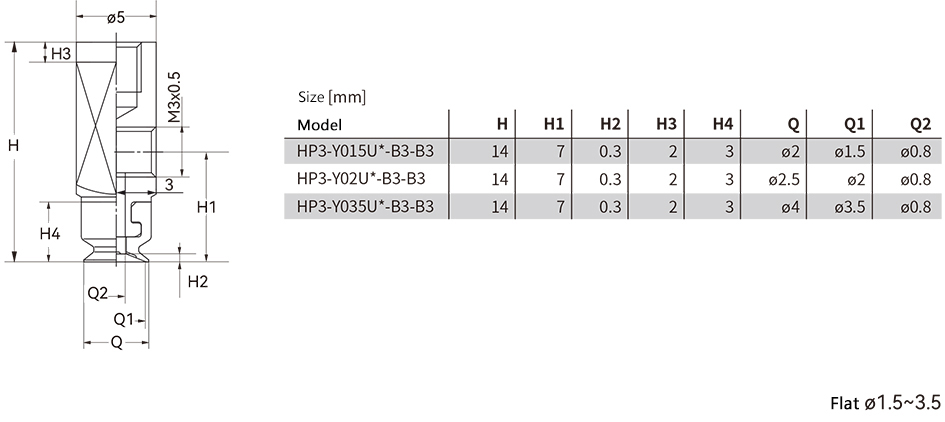

    Single suction cup HP3 suction cup diameter and suction cup shape selection

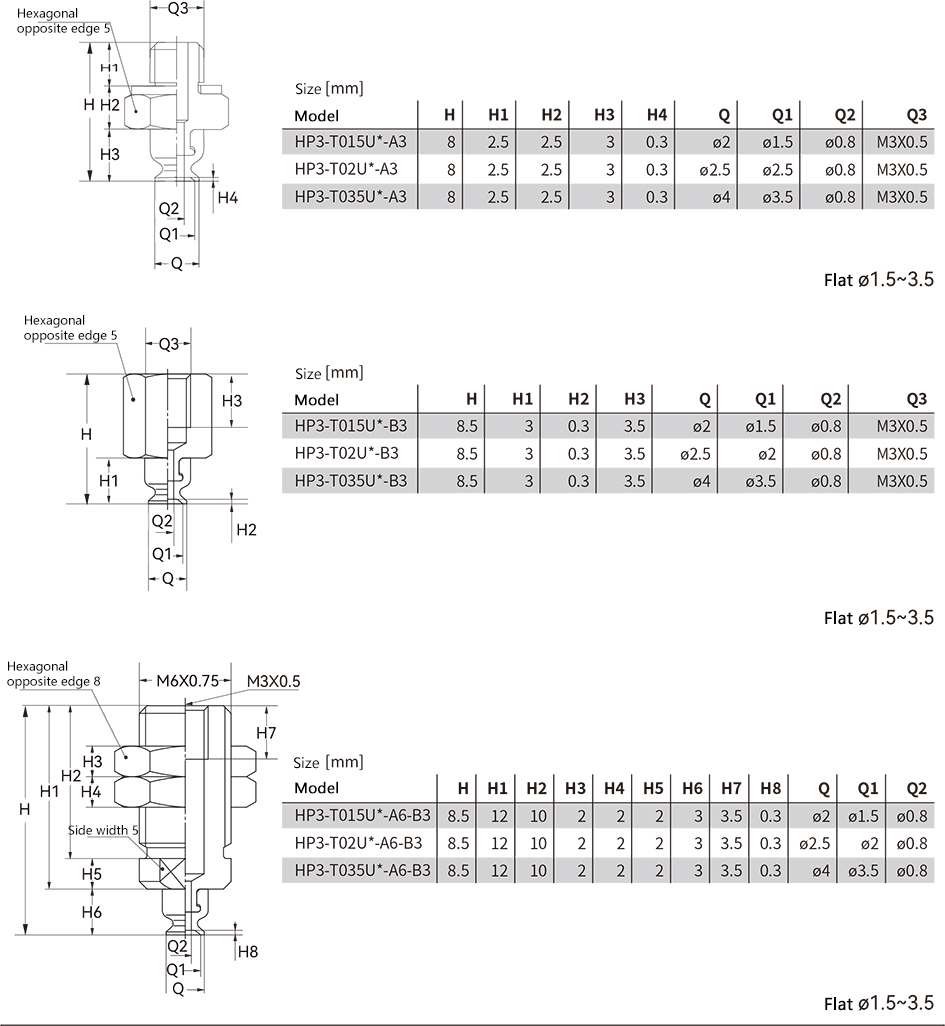

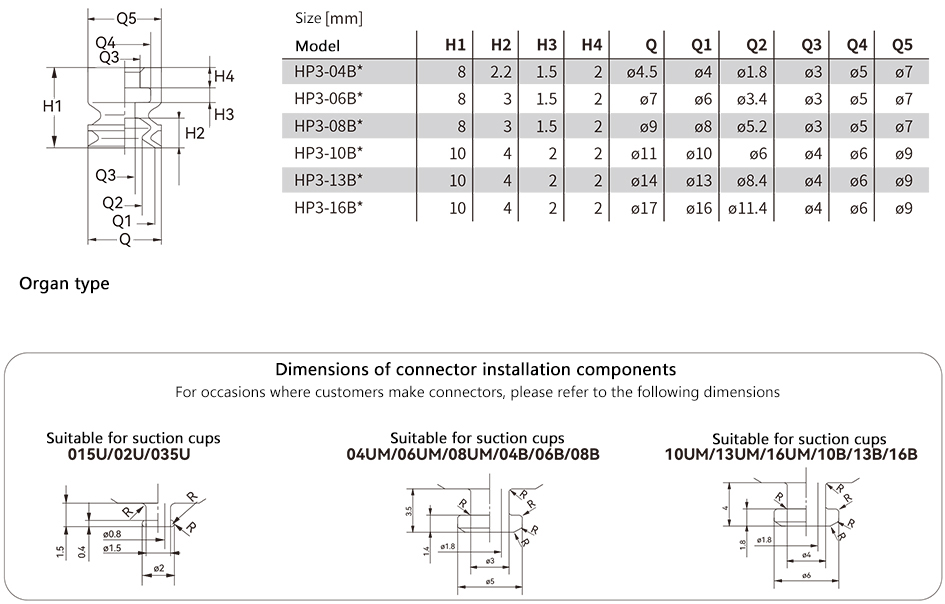

    Single suction cup HP3 design parameters

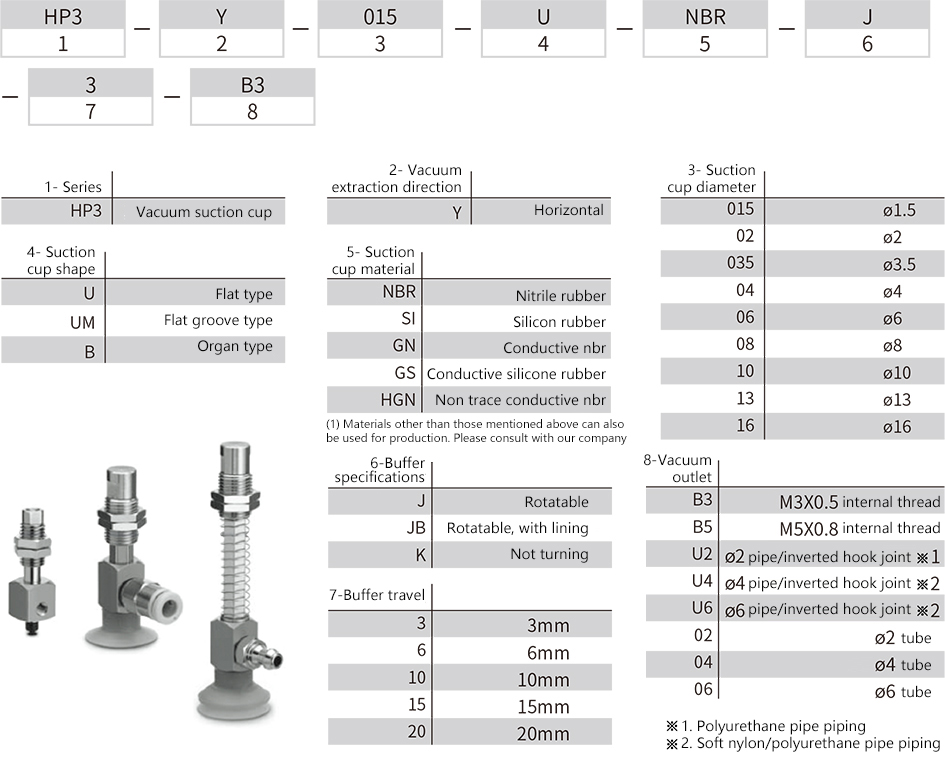

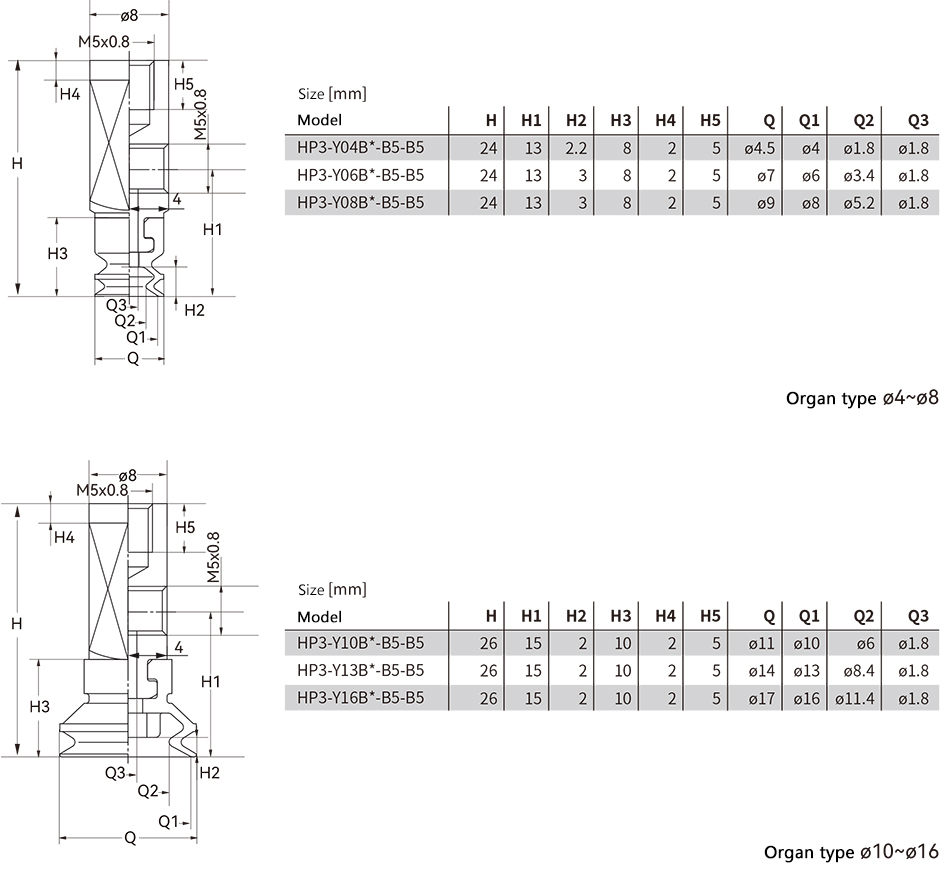

    Vertical vacuum lead out type/with connector HP3 ordering code

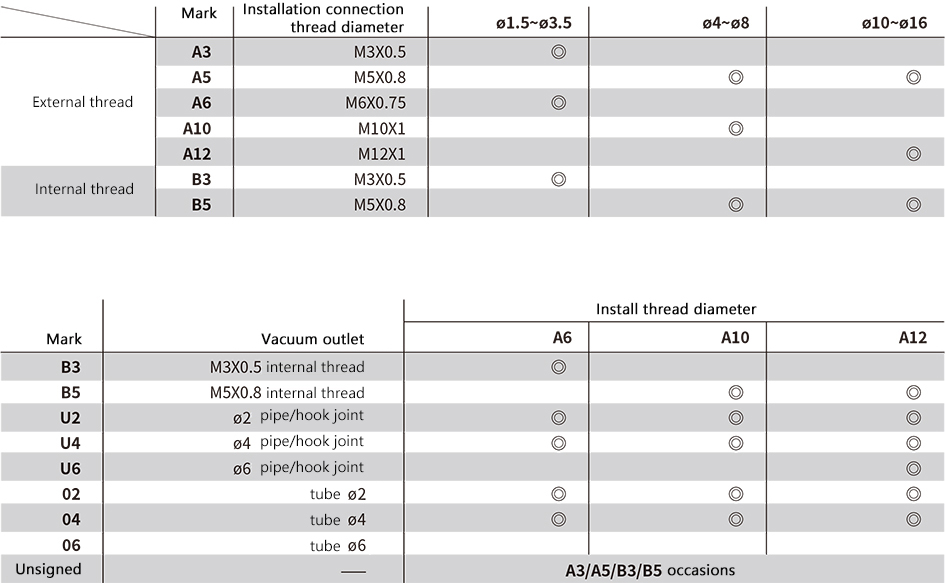

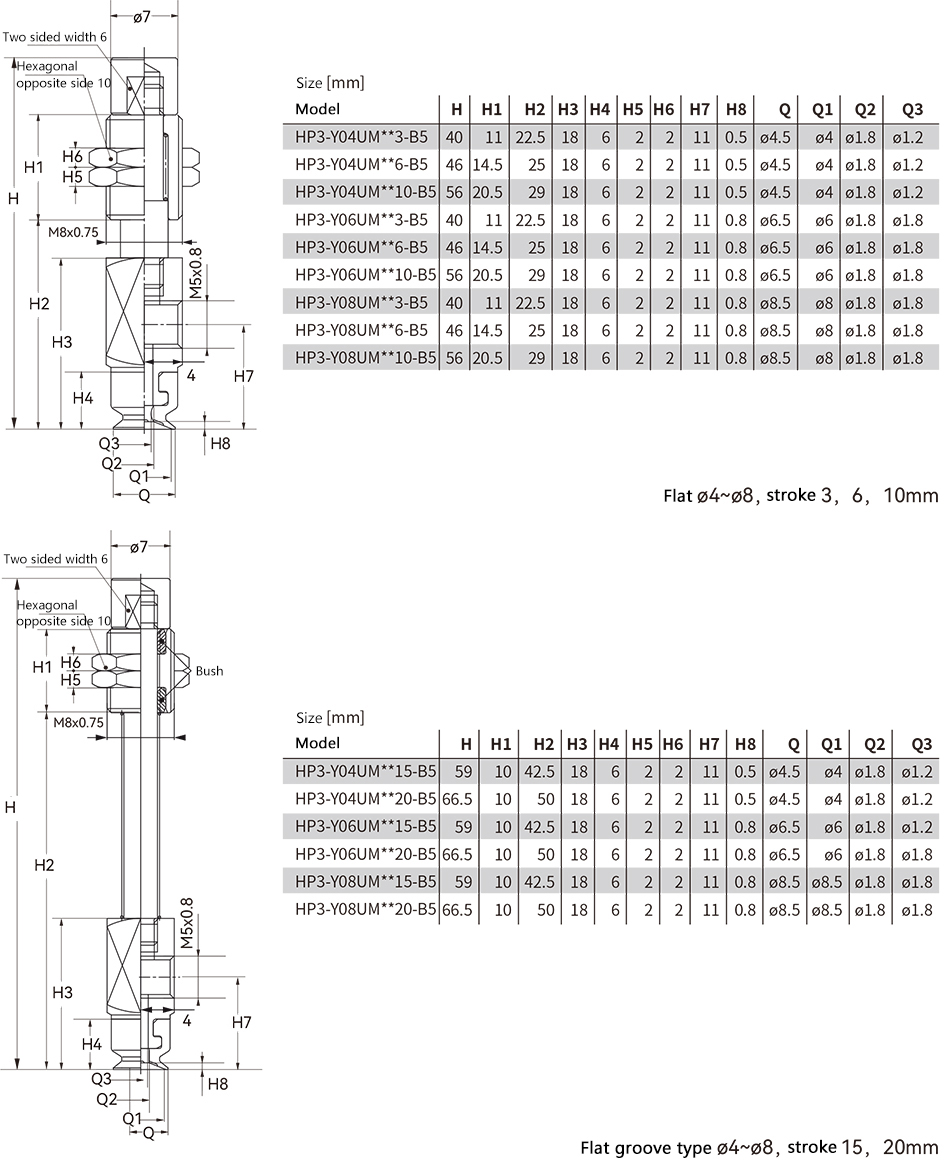

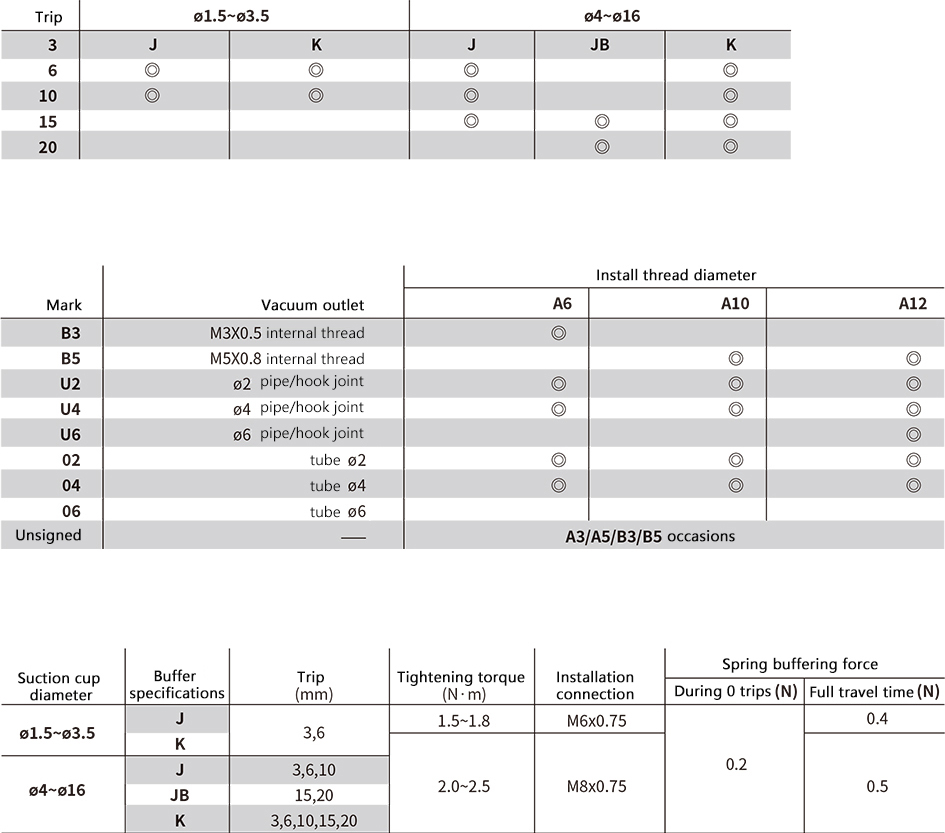

    Vertical vacuum extraction type/with connector HP3 suction cup diameter, shape and connection thread selection

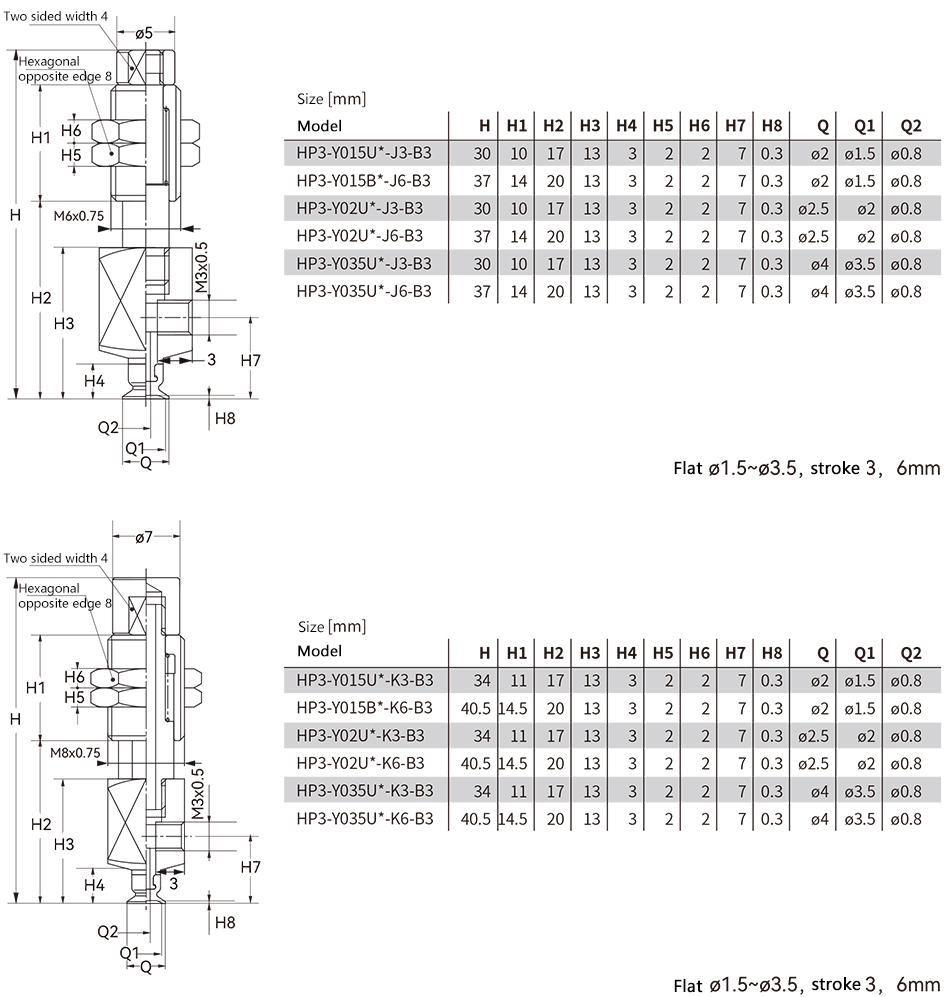

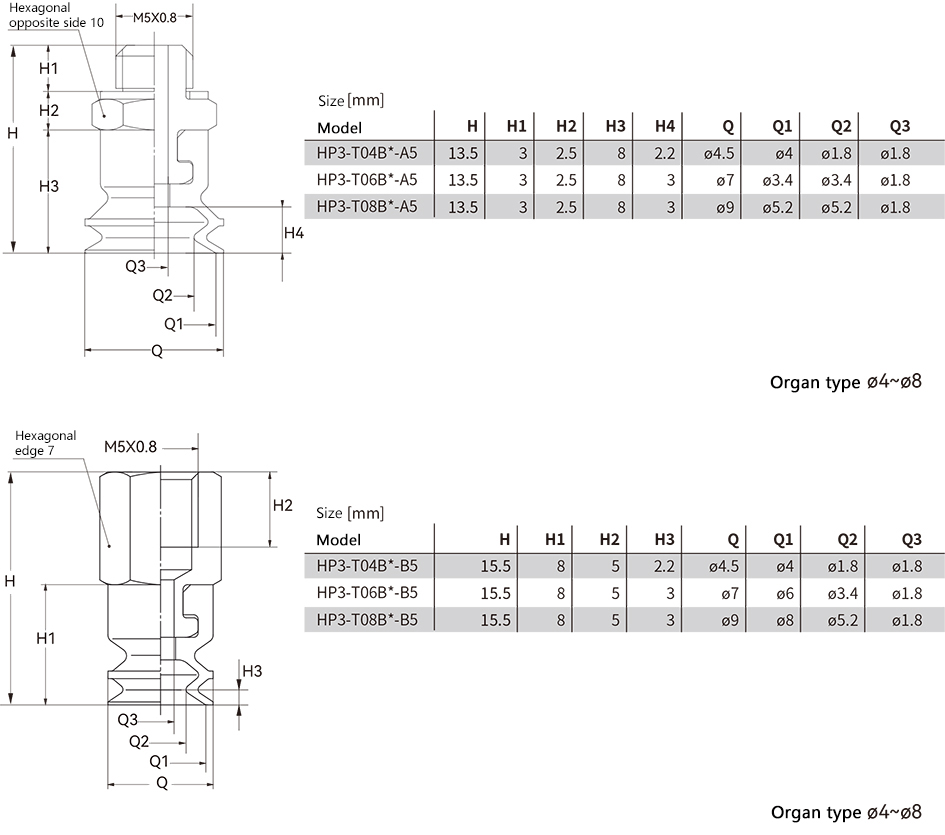

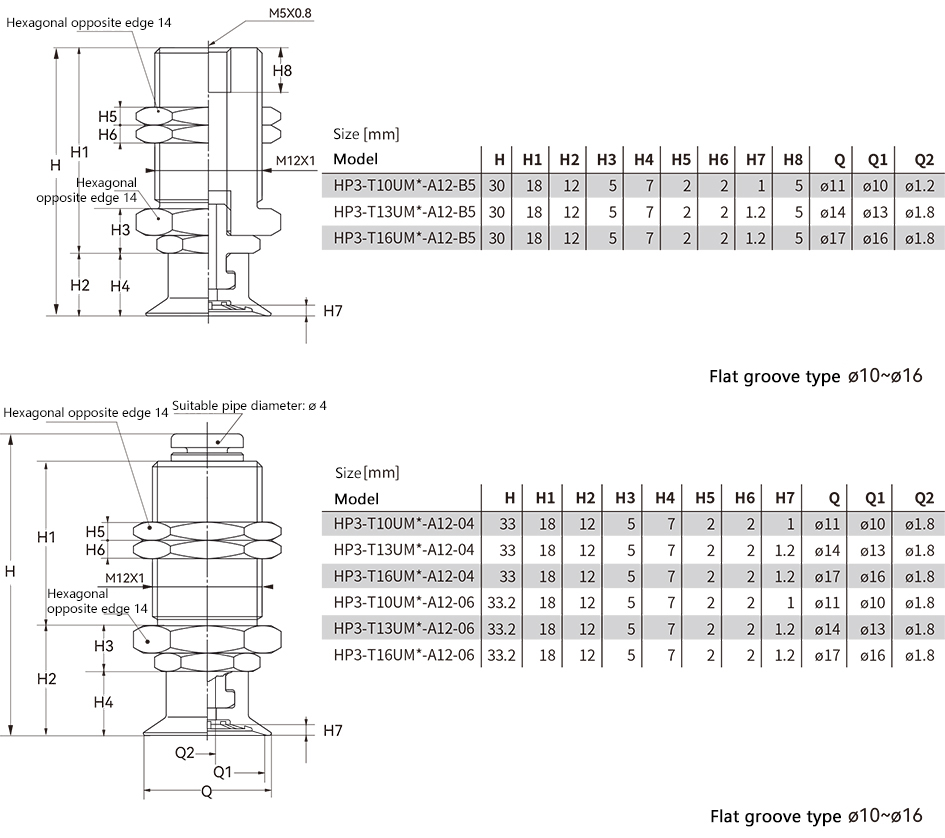

    Design parameters for longitudinal vacuum extraction type/with connector HP3

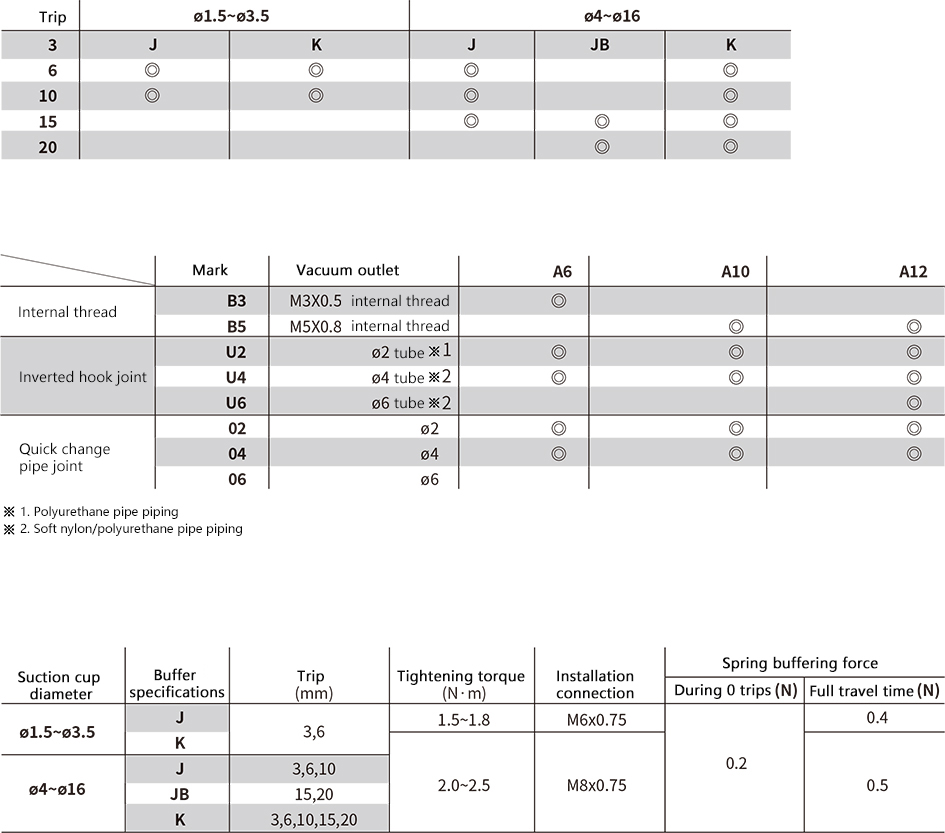

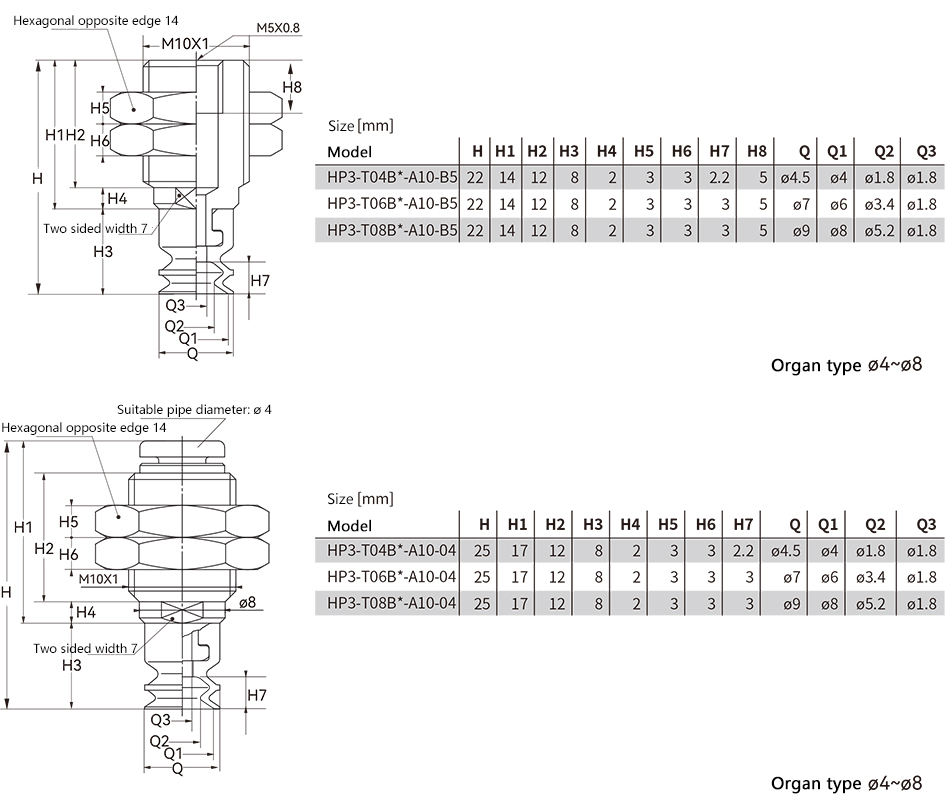

    Vertical vacuum extraction type/with buffer HP3 ordering code

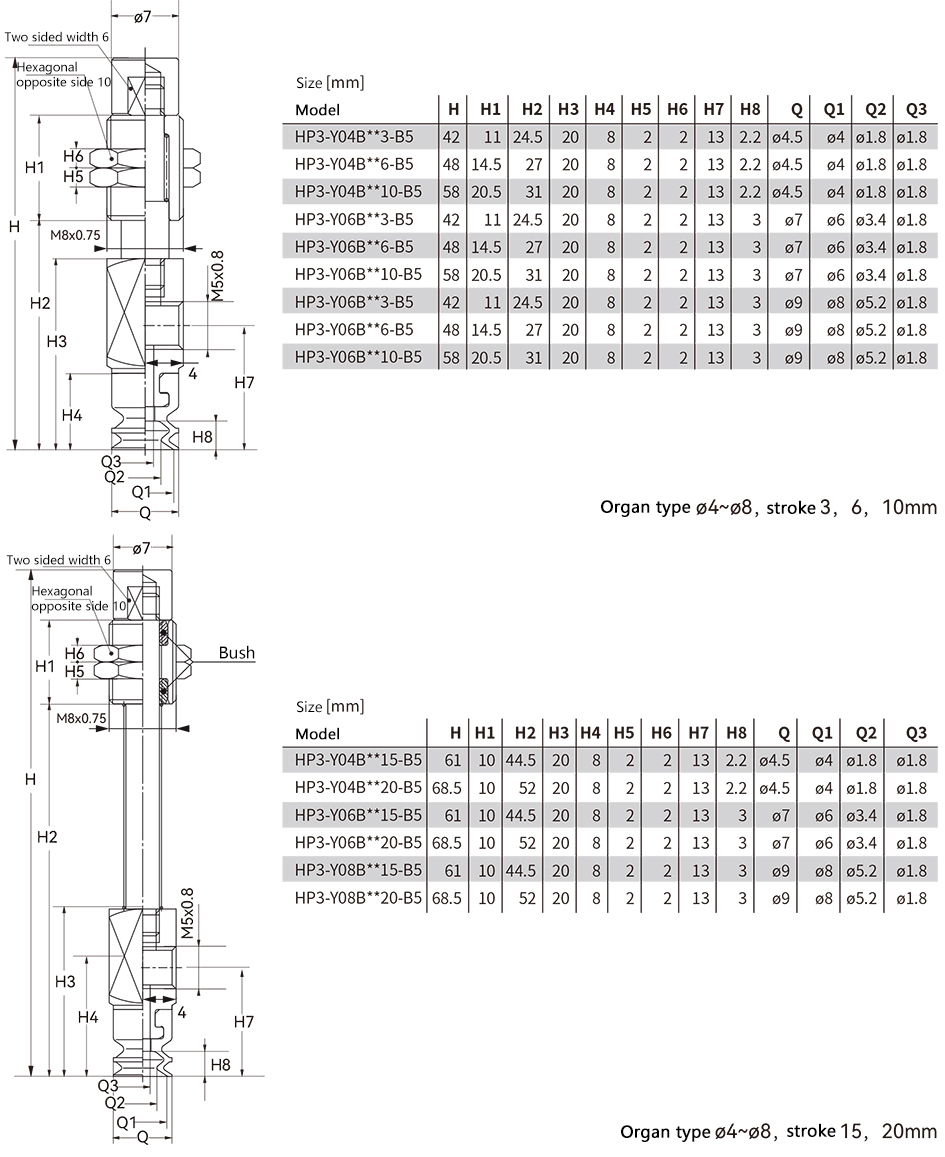

    Vertical vacuum extraction type/with buffer HP3 suction cup diameter, shape, buffer specifications and vacuum extraction port





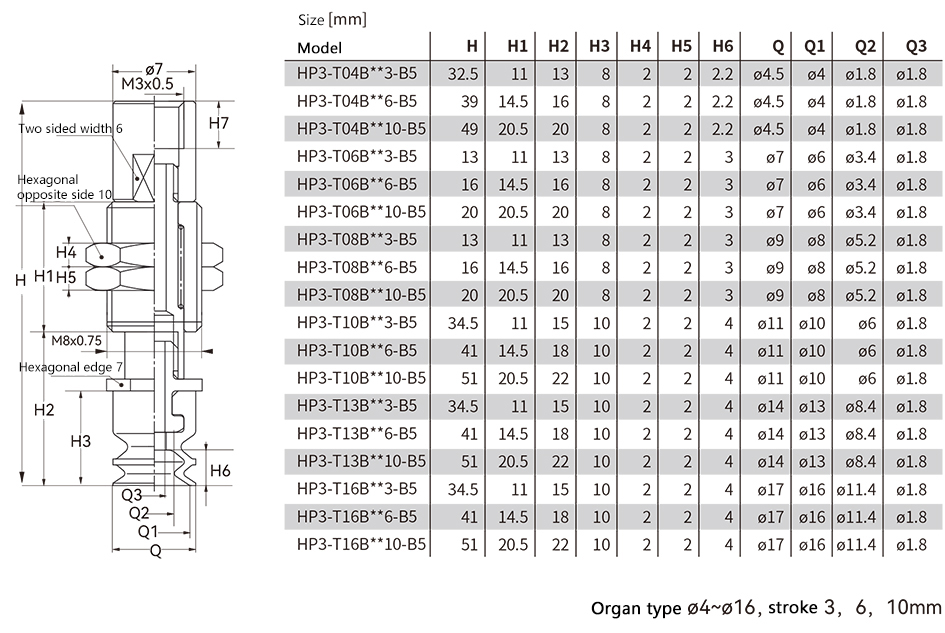

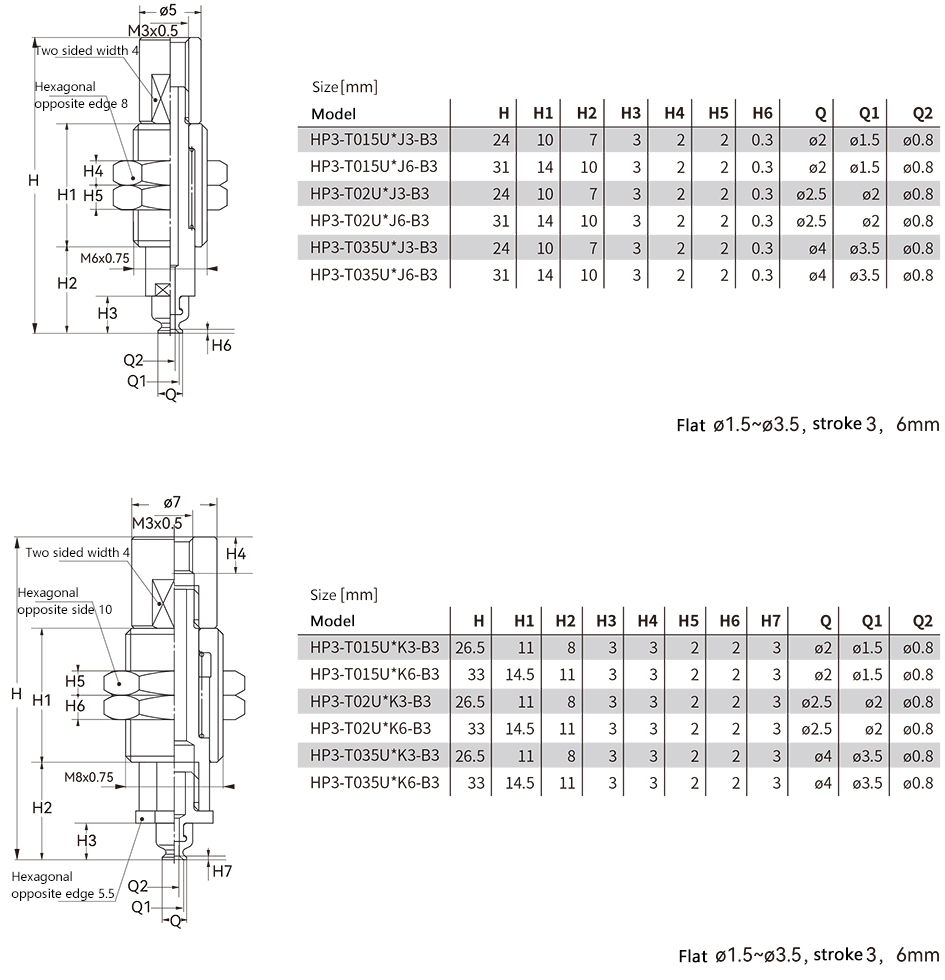

    Vertical vacuum extraction type/with buffer HP3 design parameters

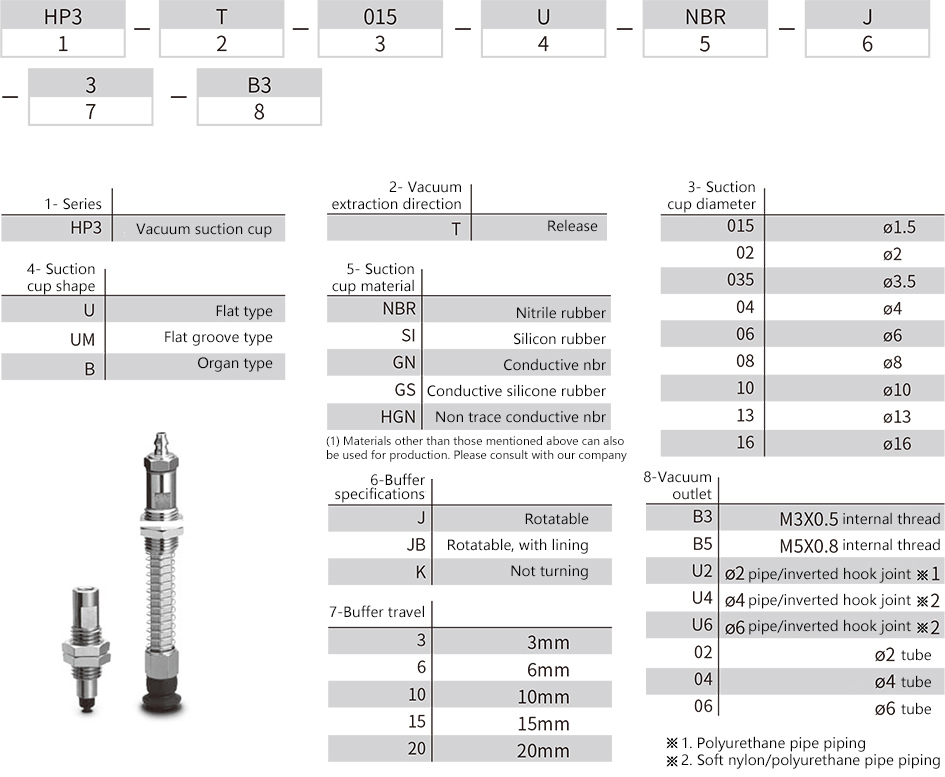

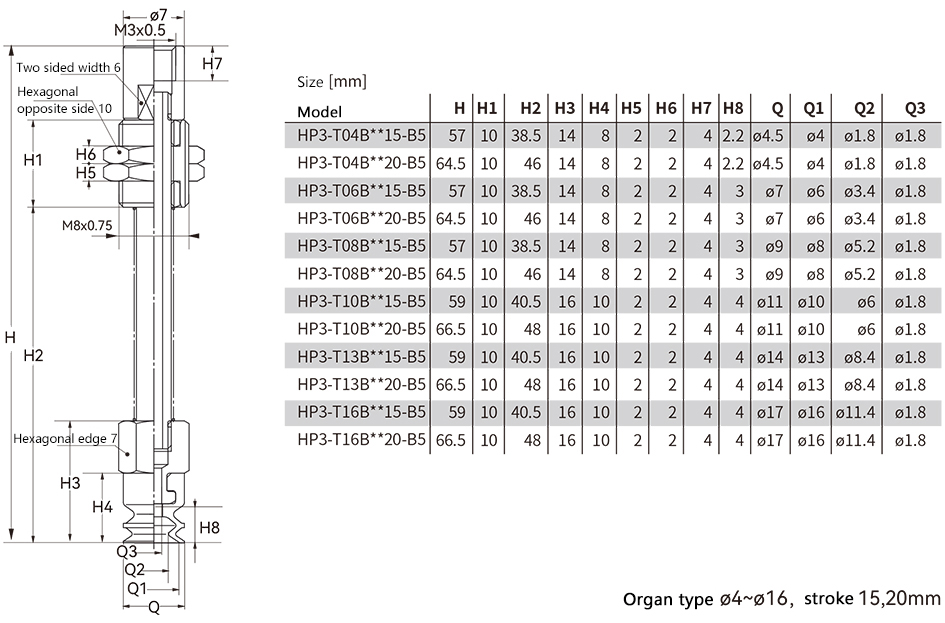

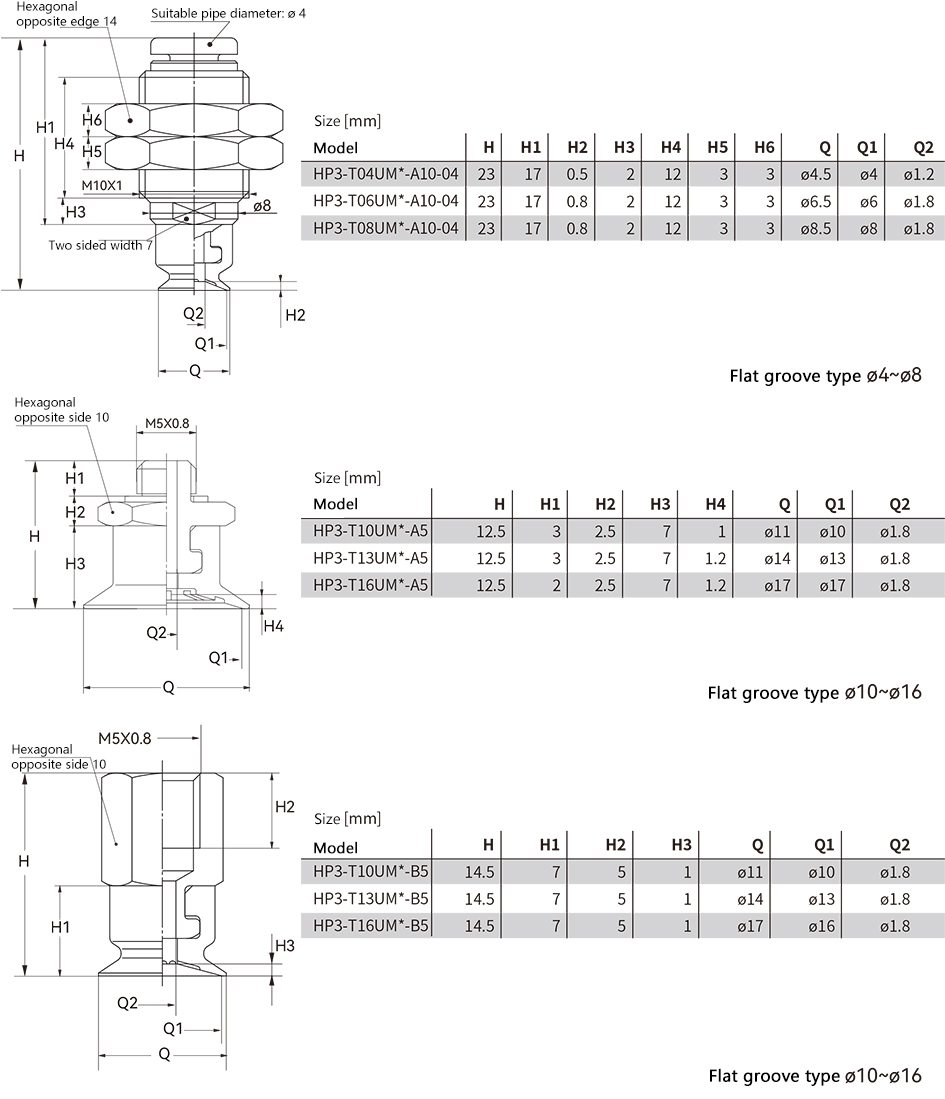

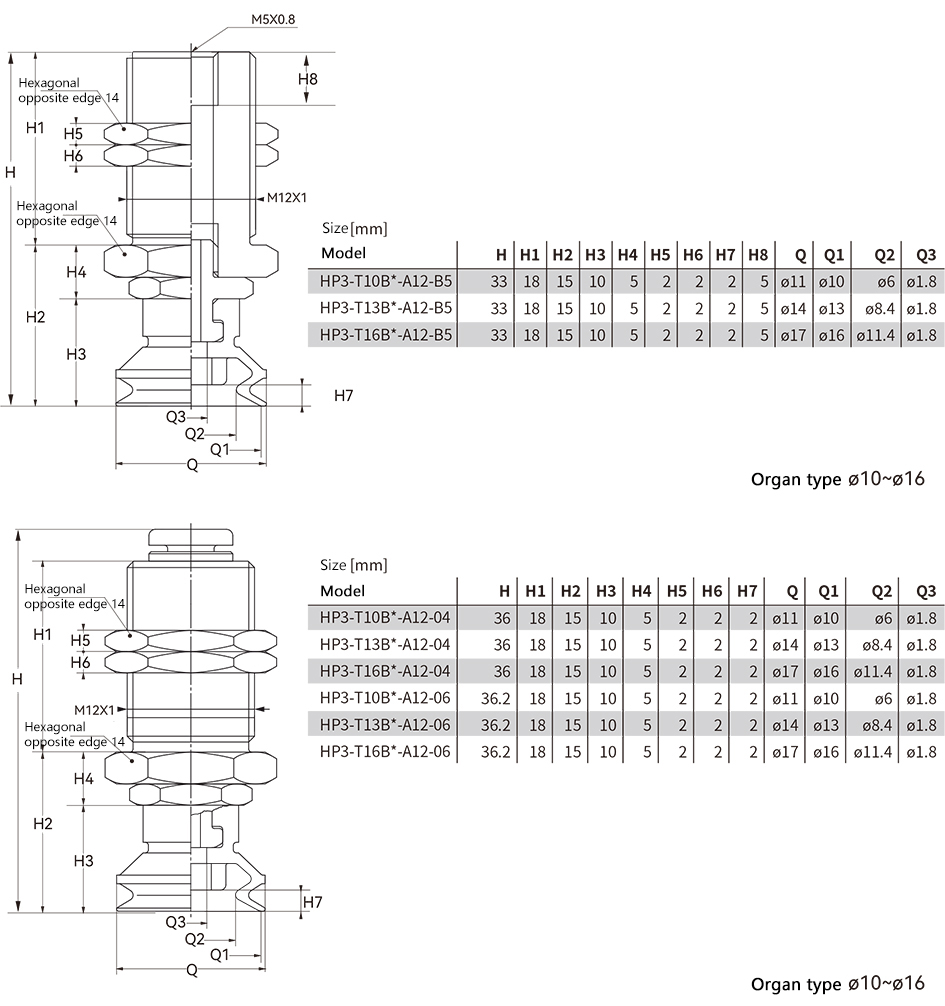

    Horizontal vacuum lead out type/with connector HP3 ordering code

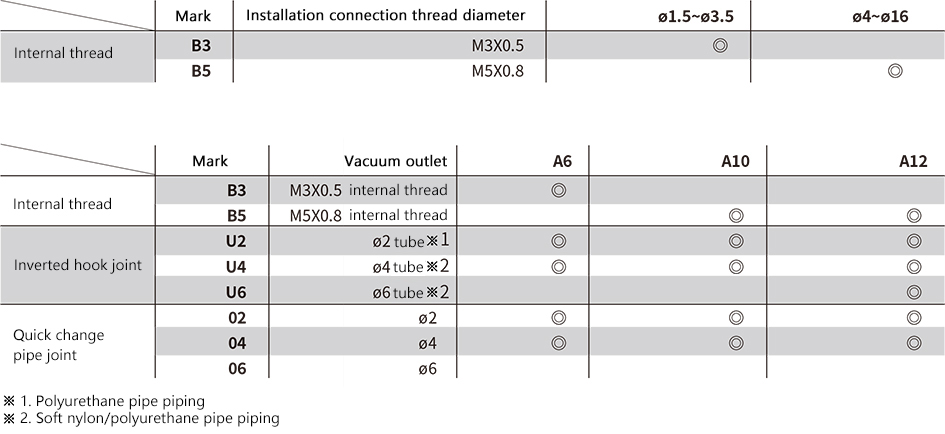

    Horizontal vacuum extraction type/with connector HP3 suction cup diameter, shape, buffer specifications and vacuum extraction port





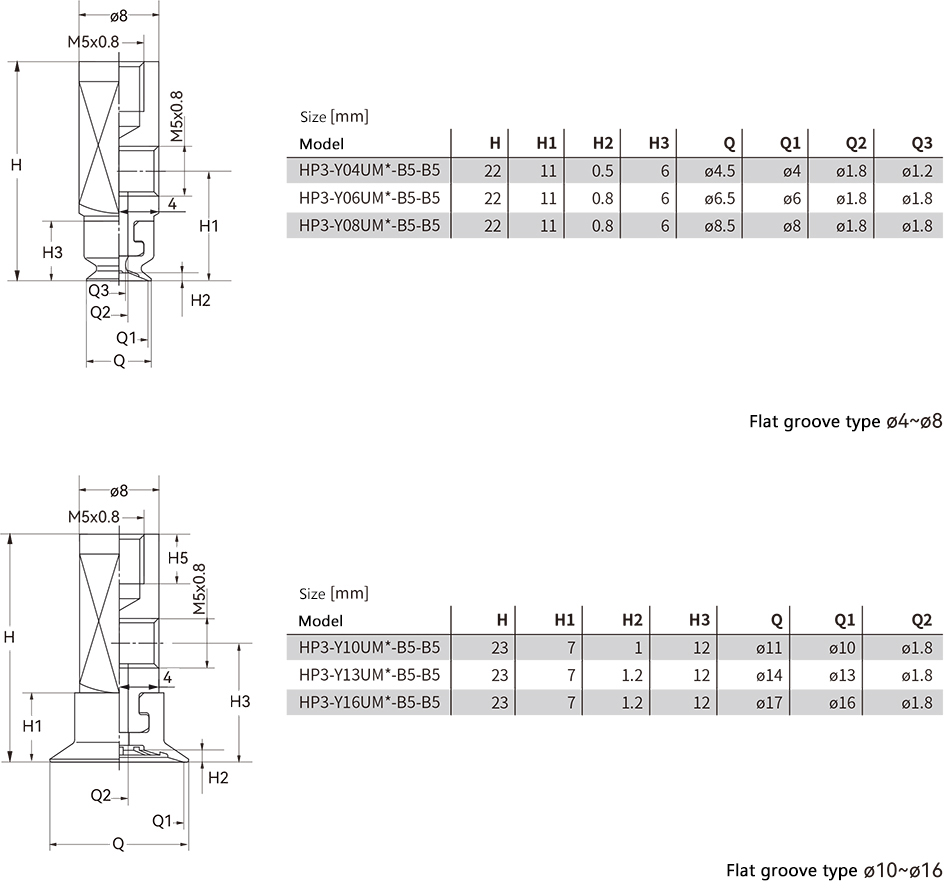

    Horizontal vacuum extraction type/with buffer HP3 design parameters

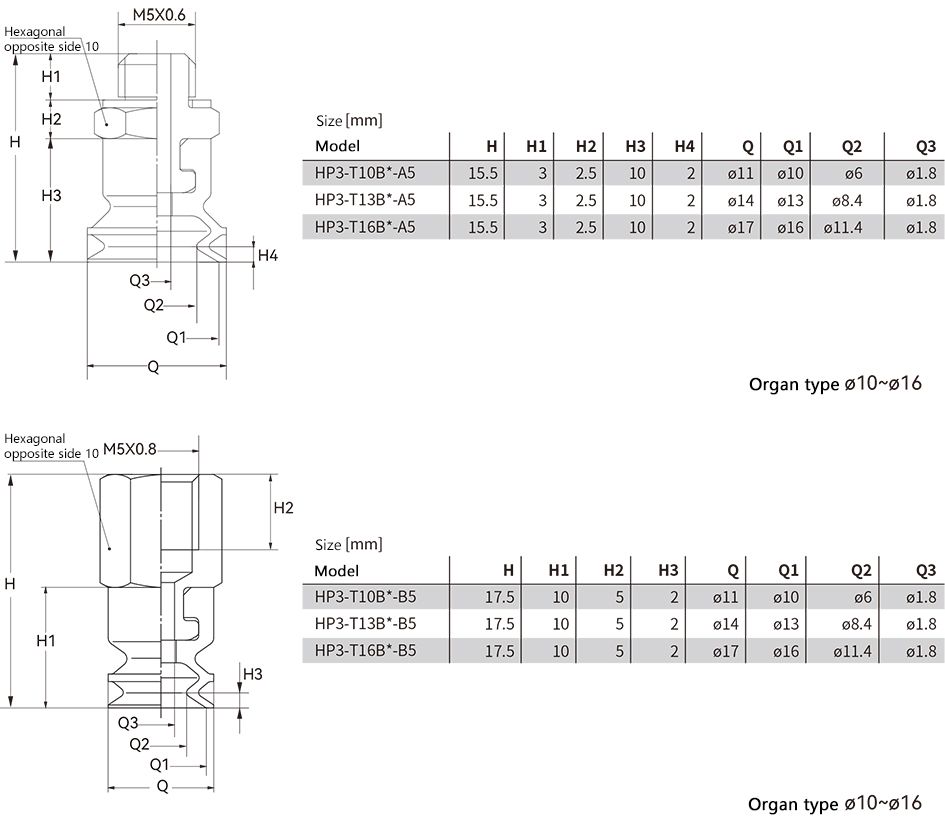

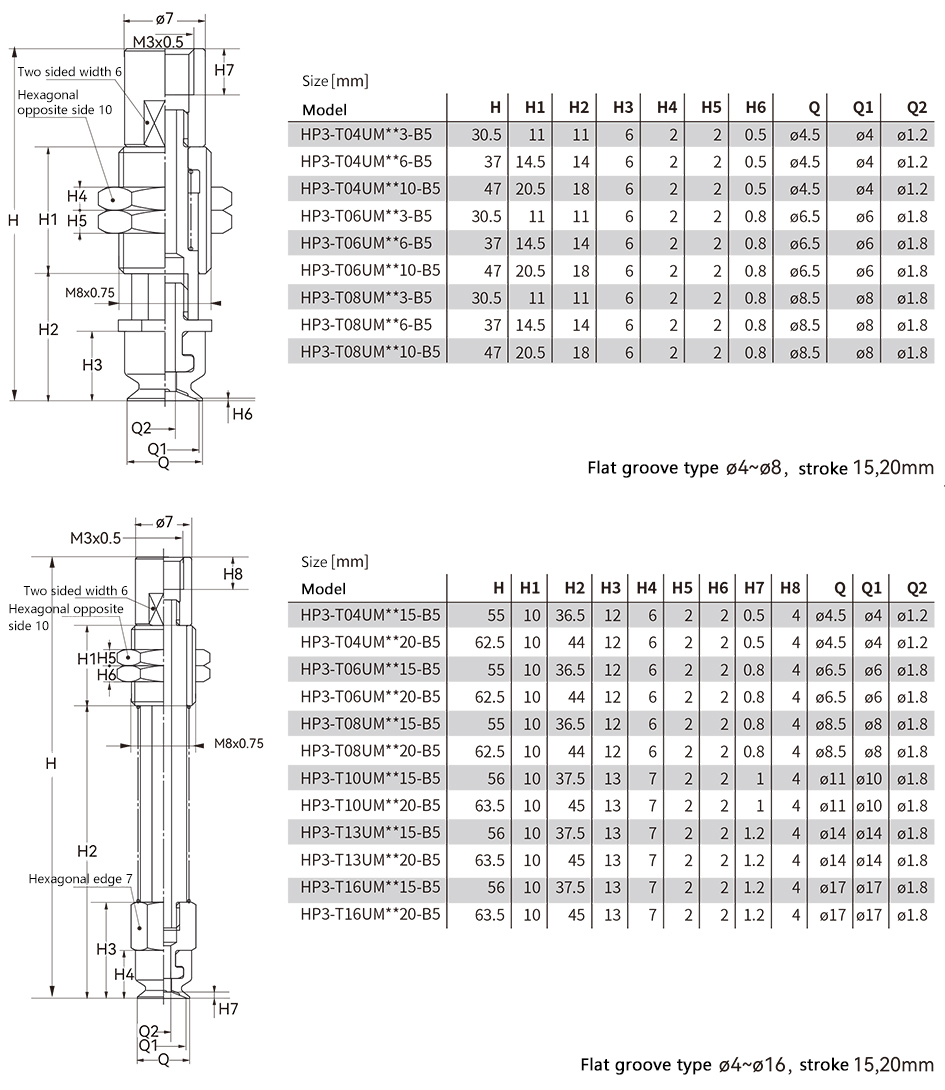

    Horizontal vacuum extraction type/with buffer HP3 ordering code


    Horizontal vacuum extraction type/with buffer HP3 suction cup diameter, shape, buffer specifications and vacuum extraction port





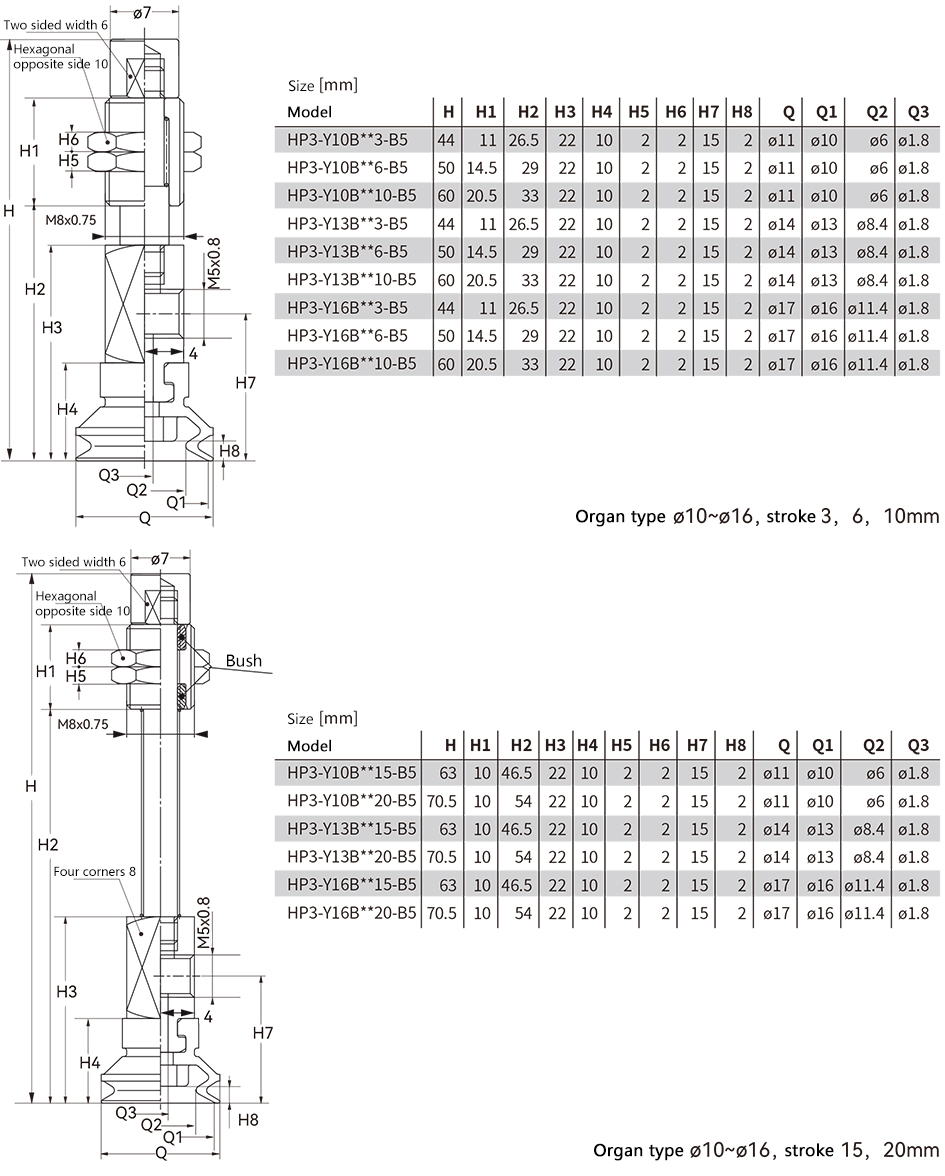

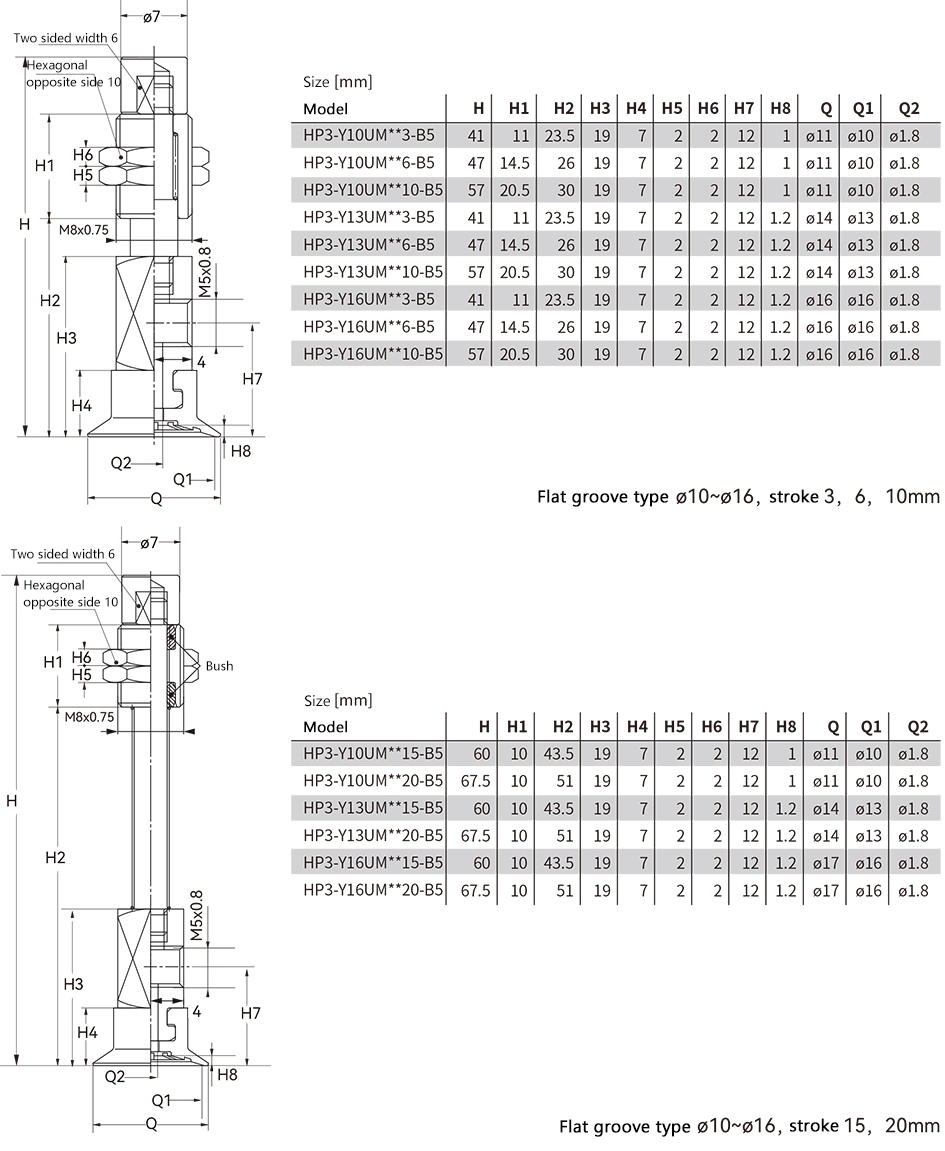

    Horizontal vacuum extraction type/with buffer HP3 design parameters
