  • HSXB Elliptical Series

  • *Elliptical corrugated tube suction cup with 1.5 fold, used for cardboard box and pallet forming machines.
    *Elliptical structure.
    *There is a special structure between the suction cup sealing lip and the ripple that can lock the workpiece.
    *Highly wear-resistant material.
    *Suitable for handling cardboard and hard or soft packaging.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Elliptical corrugated tube suction cup with 1.5 fold, used for cardboard box and pallet forming machines.
    Elliptical structure.
    There is a special structure between the suction cup sealing lip and the ripple that can lock the workpiece.
    Highly wear-resistant material.
    Suitable for handling cardboard and hard or soft packaging.

    Product mix
    (1) Aluminum alloy joint
    (2) Elliptical suction cup

    Product advantages
    The elliptical design is very suitable for slender workpieces.
    The high intrinsic stability of suction cups during dynamic processes.
    The spacing element between the sealing lip and the fold can prevent the suction cup from moving.

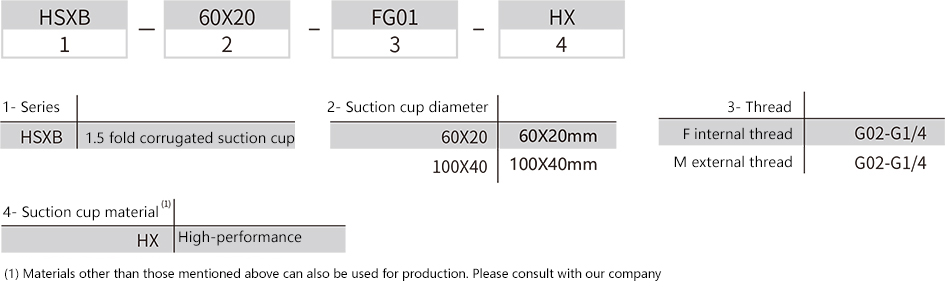

    Ordering no



    Selection specifications

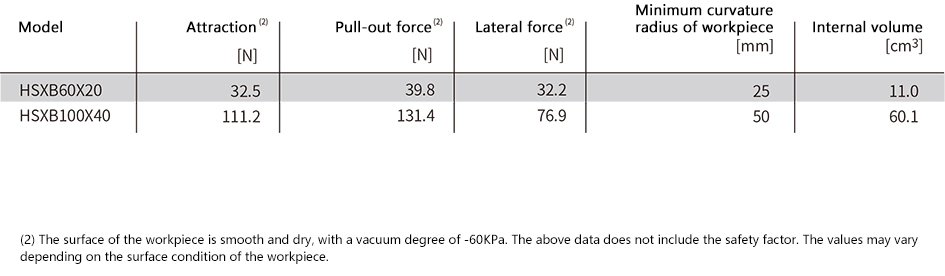

    Technical data

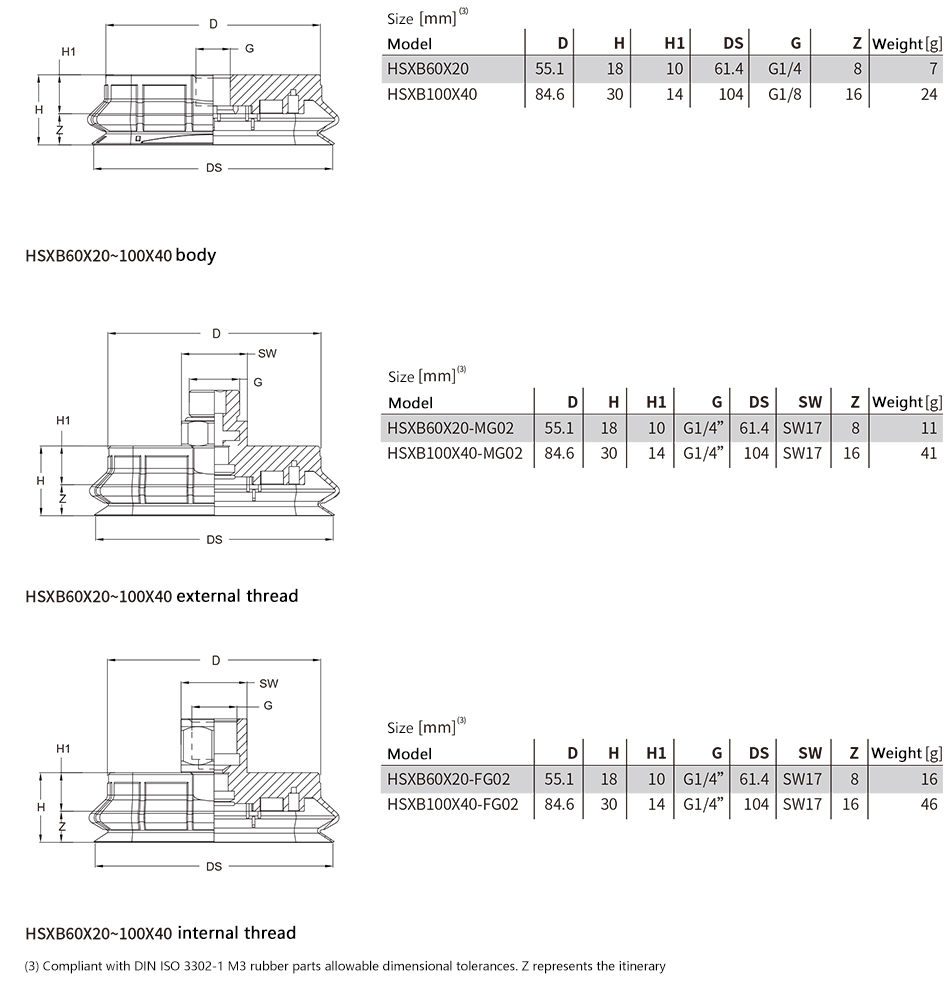

    Design data
