  • ECP-01

  • *Flange connection is suitable for ordinary collaborative robots.
    *The adsorption surface is a rubber suction cup.
    *A lightweight gripping system that integrates vacuum detection and control.
    *Equipped with automatic air replenishment function, suitable for specific materials or scenes.
    *Continuously supplement the vacuum degree during the adsorption process to ensure the stability of the adsorption force.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Flange connection is suitable for ordinary collaborative robots.
    The adsorption surface is a rubber suction cup.
    A lightweight gripping system that integrates vacuum detection and control.
    Equipped with automatic air replenishment function, suitable for specific materials or scenes.
    Continuously supplement the vacuum degree during the adsorption process to ensure the stability of the adsorption force.

    Product mix
    (1)9-M4 6
    (2) Wiring port

    Product advantages
    Applied to various situations that require precise grasping and movement of objects.
    Automated handling of lightweight robots with free matching.

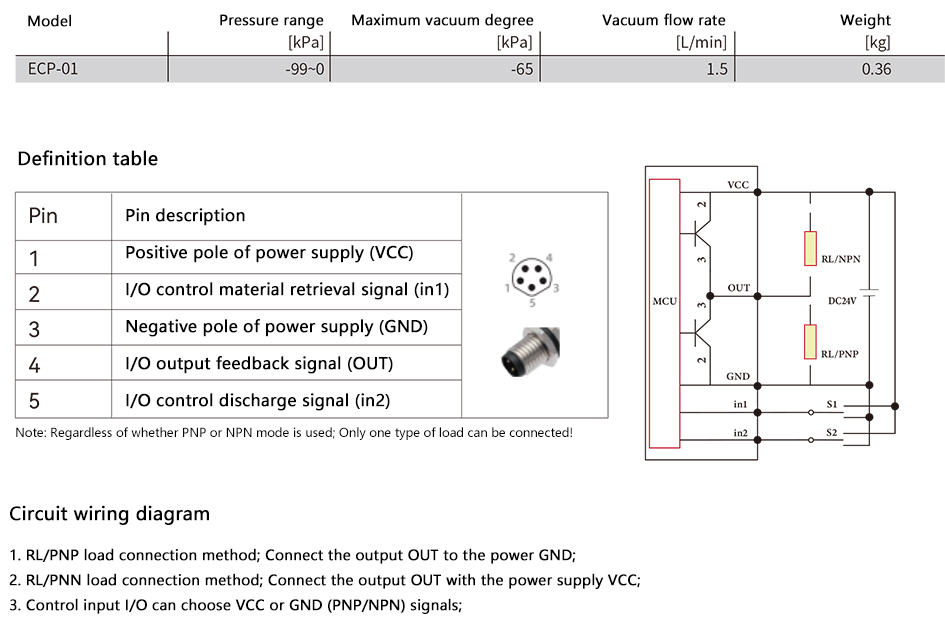

    Technical data

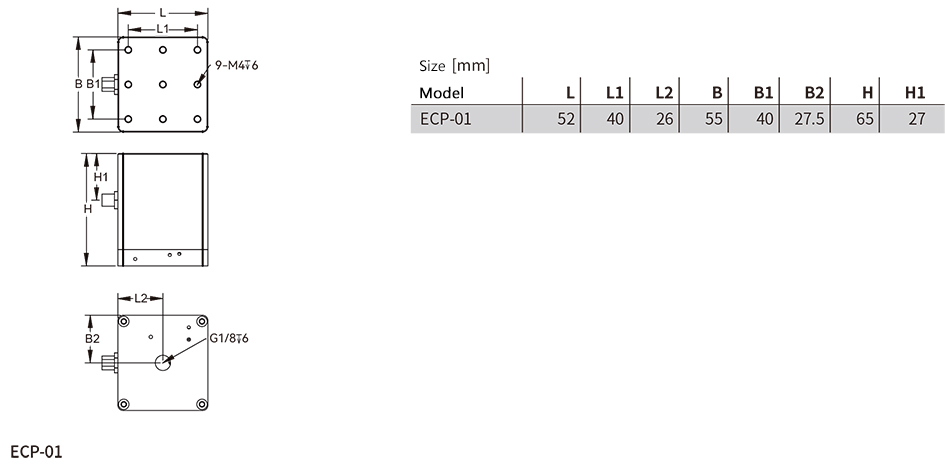

    Design data


Prev：EBM
Next：ECV-140
