  • ECV-140

  • *Suitable for use in electronics, electronic engineering, packaging technology, robotics, and the automotive industry.
    *Integrated DIN rail installation and centralized air intake.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Suitable for use in electronics, electronic engineering, packaging technology, robotics, and the automotive industry.
    Integrated DIN rail installation and centralized air intake.


    Product mix
    (1) Establish a vacuum valve
    (2) Quick release valve
    (3) Vacuum pressure switch
    (4) Air inlet P: quick plug connector
    (5) Vacuum port V: quick plug connector
    (6) Silencing tube
    (7) Installation hole
    (8) DIN rail groove
    (9) Backblowing regulation

    Product advantages
    Easy replacement of internal modules.
    A picking and placing application with extremely short cycle time.
    Used for systems that require high dynamic gripping of workpieces and have limited space.
    Usually used for fully automated small parts handling.
    The pressure switches PNP and NPN can be switched freely in their corresponding modes.
    DIN rail installation is convenient.

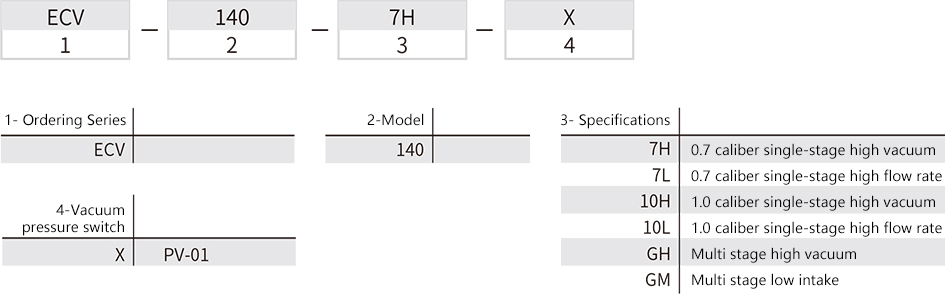

    Ordering no

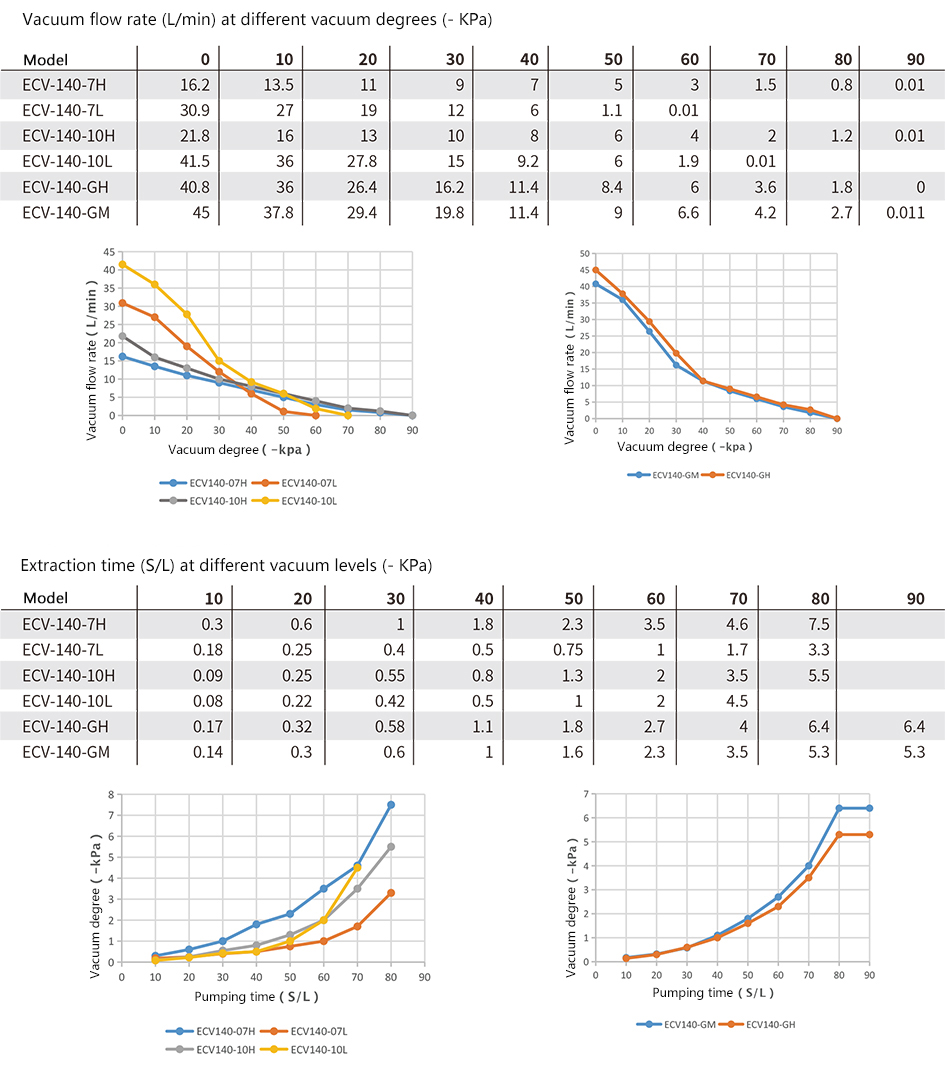

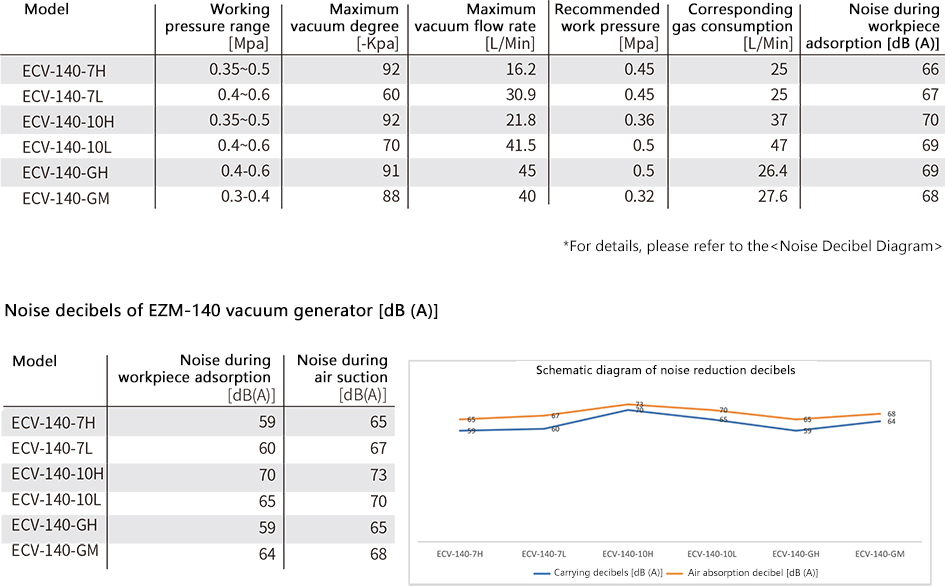

    Technical data

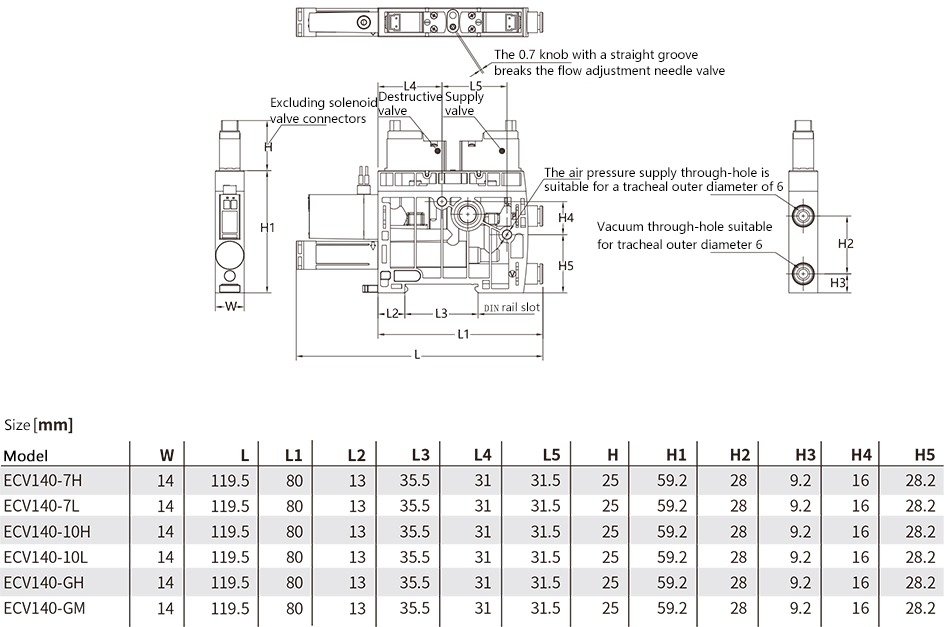

    Design data

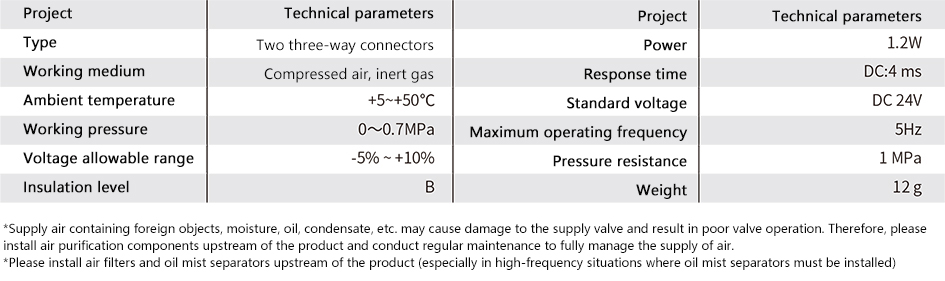

    Technical parameters of solenoid valve

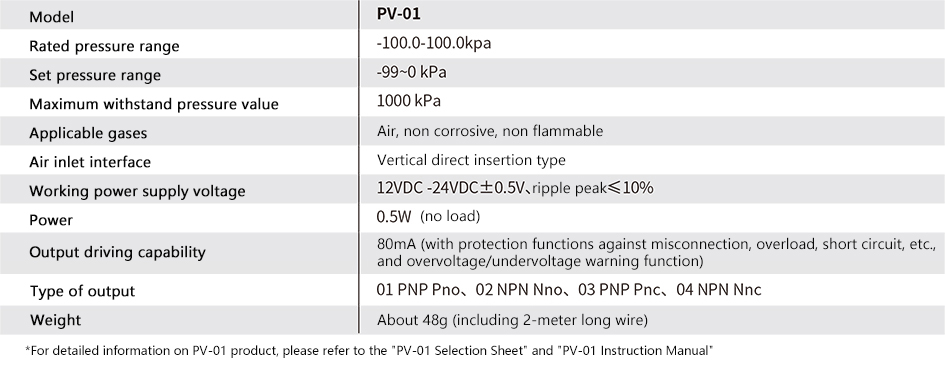

    Technical parameters of pressure switch

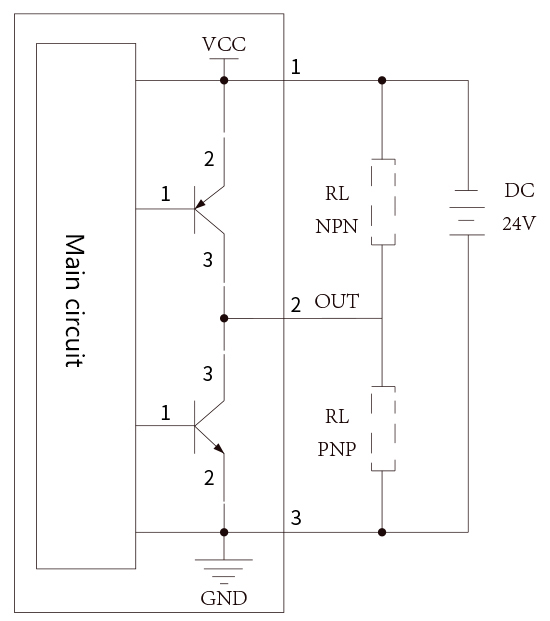

    Wiring diagram



    Pneumatic schematic diagram
