  • EBM

  • *Small size and light weight.
    *The working pressure is only 0.38MPa.
    *There are two specifications for built-in/external noise reduction.
    *Low gas consumption and high vacuum flow rate.
    *Suitable for work environments with limited installation location and weight.
    *Low decibel noise level.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Small size and light weight.
    The working pressure is only 0.38MPa.
    There are two specifications for built-in/external noise reduction.
    Low gas consumption and high vacuum flow rate.
    Suitable for work environments with limited installation location and weight.
    Low decibel noise level.

    Product mix
    (1) Compressed air inlet
    (2) Vacuum port
    (3) Exhaust port
    (4) Silencer

    Product advantages
    Suitable for handling cardboard boxes, injection molded workpieces, and industrial automation fields.
    There are two series to choose from: high flow and high vacuum.

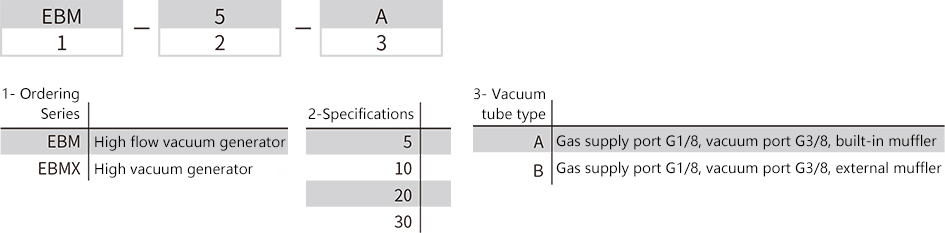

    Ordering no

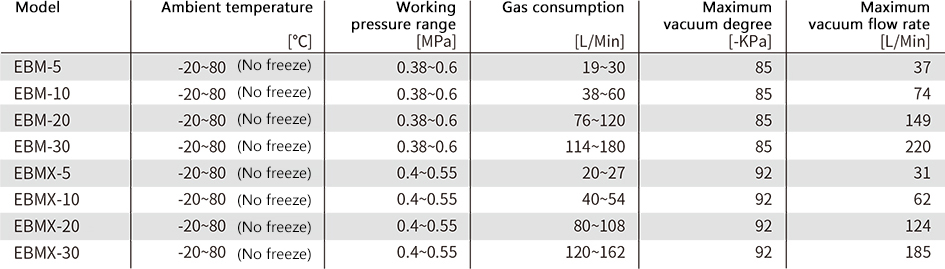

    Technical data

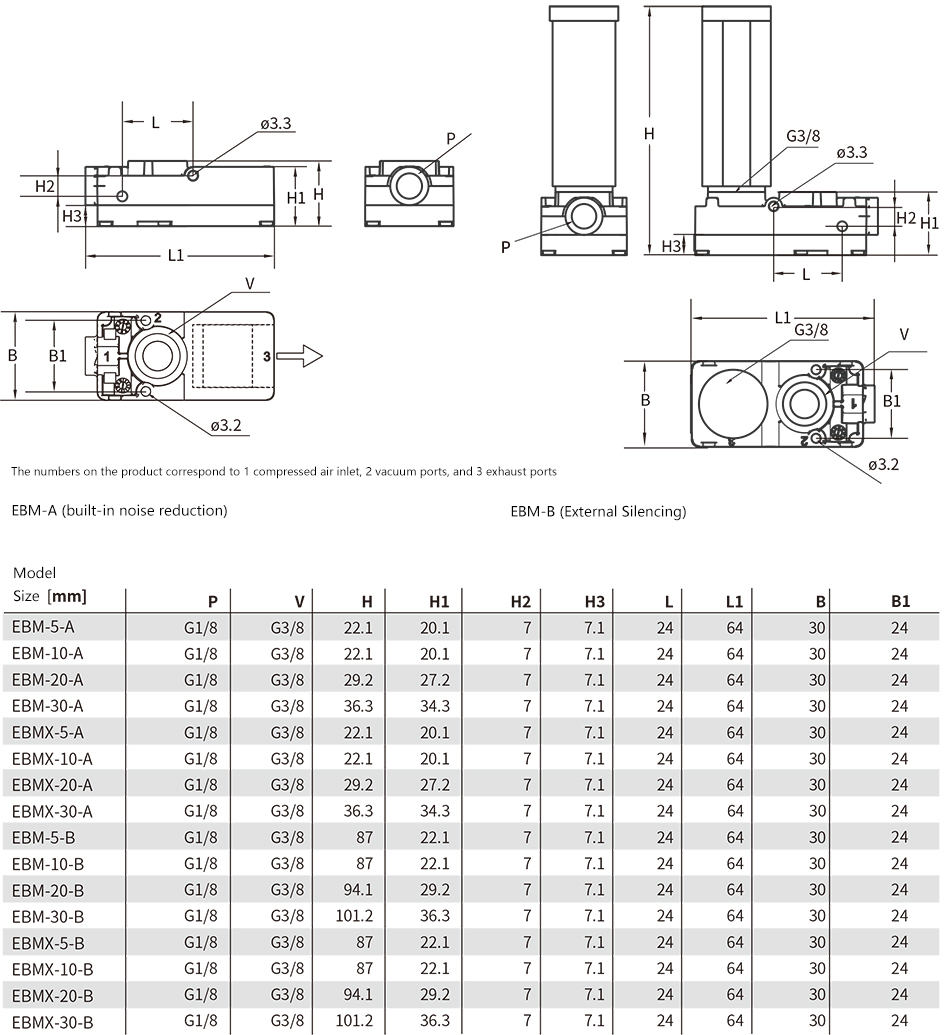

    Design data


Prev：Special suction cups for slender workpieces
Next：ECP-01
