  • ECV-140 container

  • *Mini integrated vacuum generator for handling airtight workpieces.
    *Used for high dynamic handling and high cycle applications.
    *Suitable for use in electronics, electronic engineering, packaging technology, robotics, and the automotive industry.
    *Using intelligent status monitoring for fully automated handling with shortened cycle requirements.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Mini integrated vacuum generator for handling airtight workpieces.
    Used for high dynamic handling and high cycle applications.
    Suitable for use in electronics, electronic engineering, packaging technology, robotics, and the automotive industry.
    Using intelligent status monitoring for fully automated handling with shortened cycle requirements.

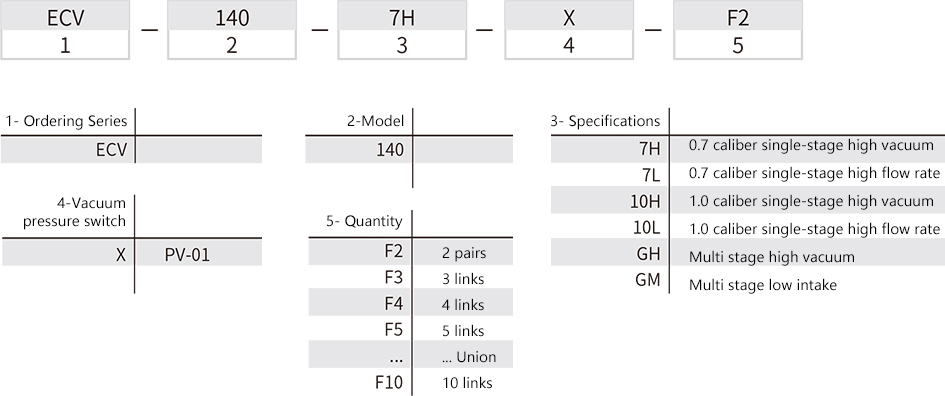

      Ordering no

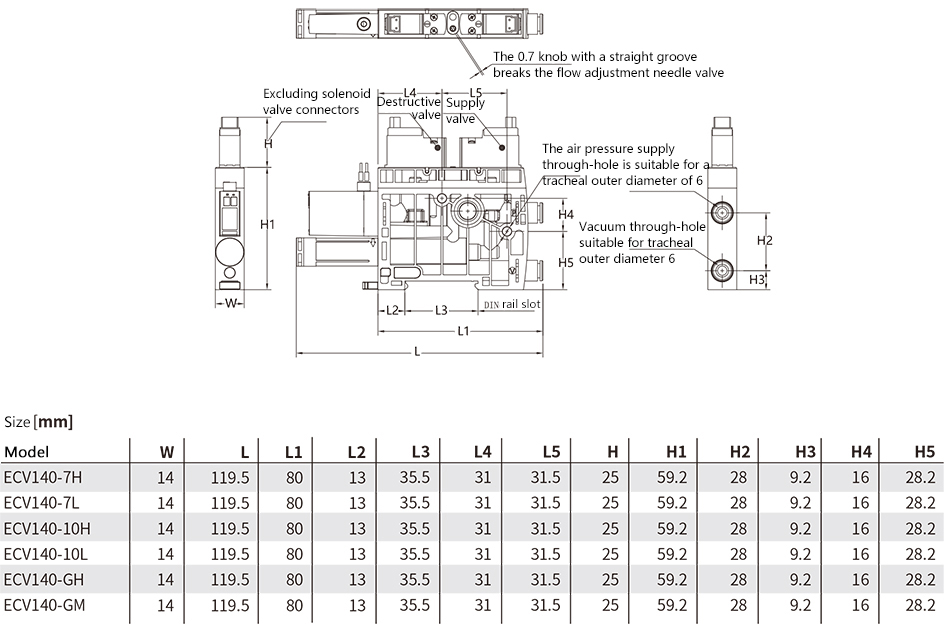

      Design parameters of vacuum generator ECV-140

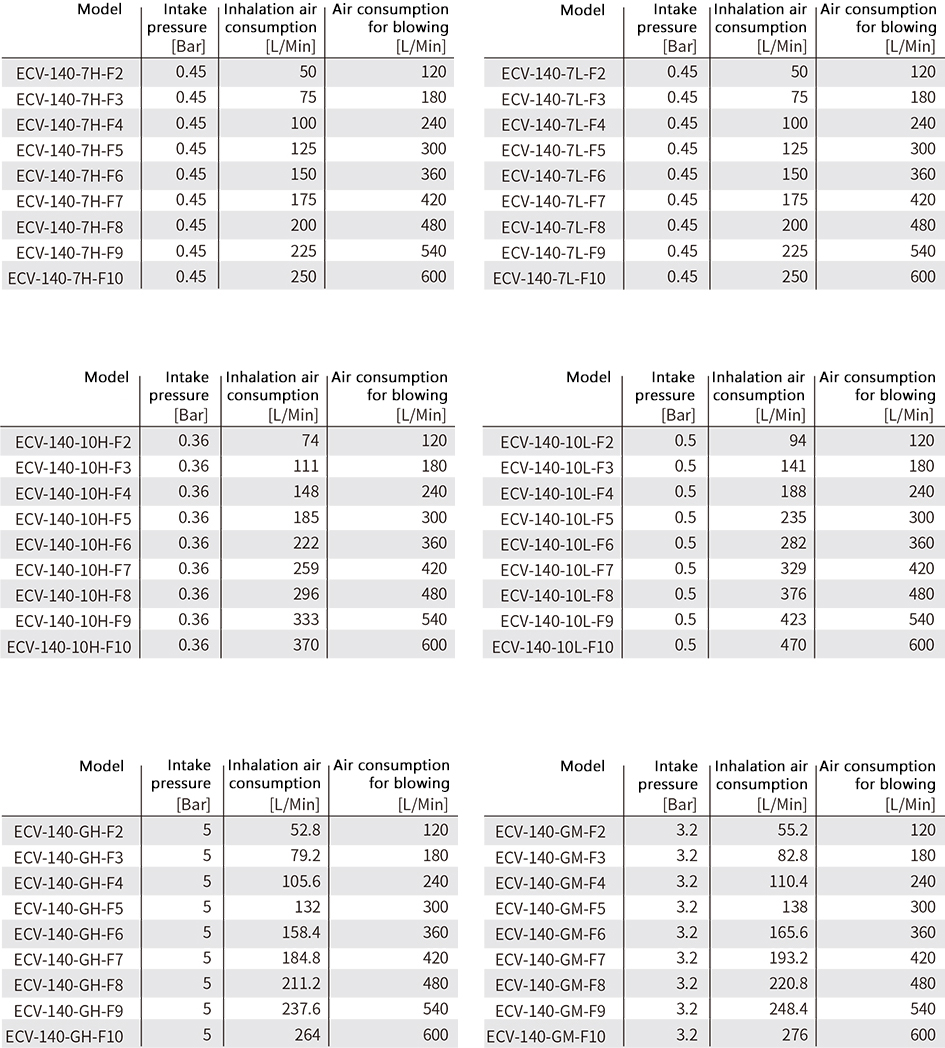

      Technical parameters of vacuum generator ECV-140 container

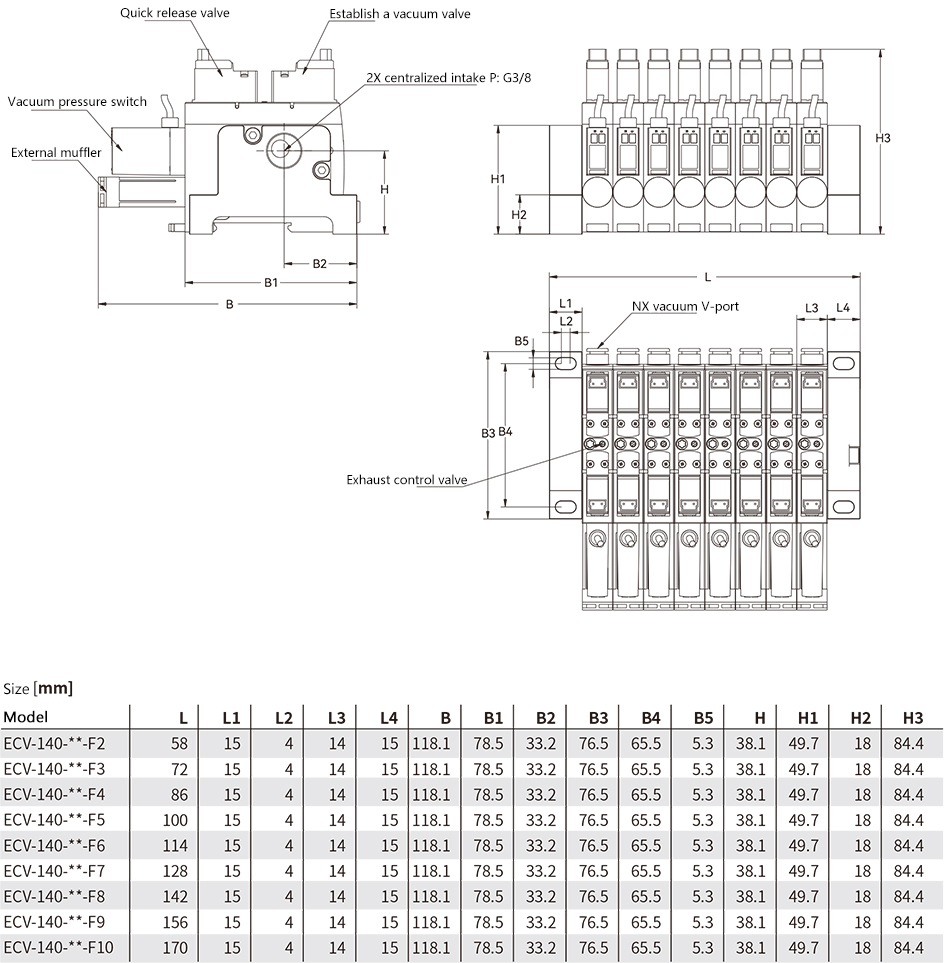

      Design parameters of vacuum generator ECV-140

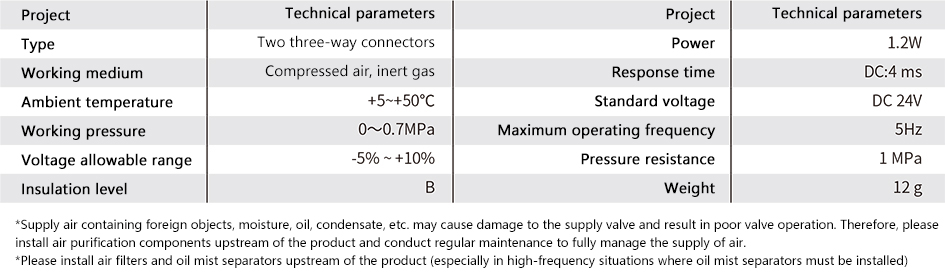

      Technical parameters of solenoid valve

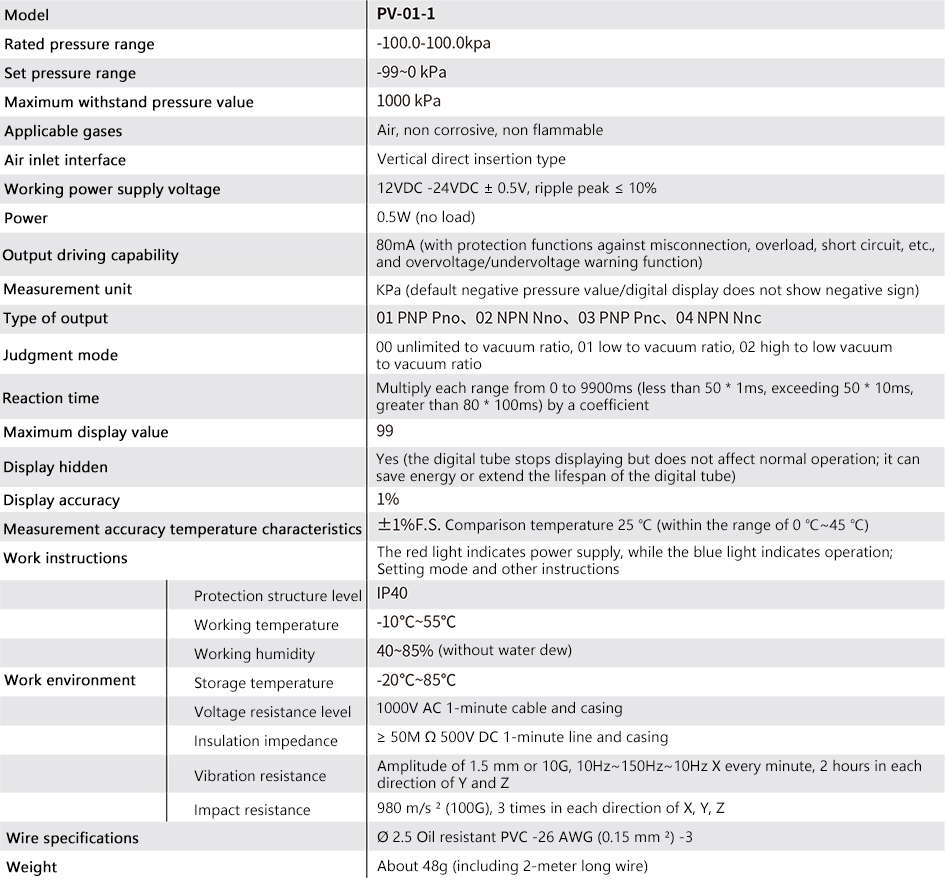

      Technical parameters of pressure switch

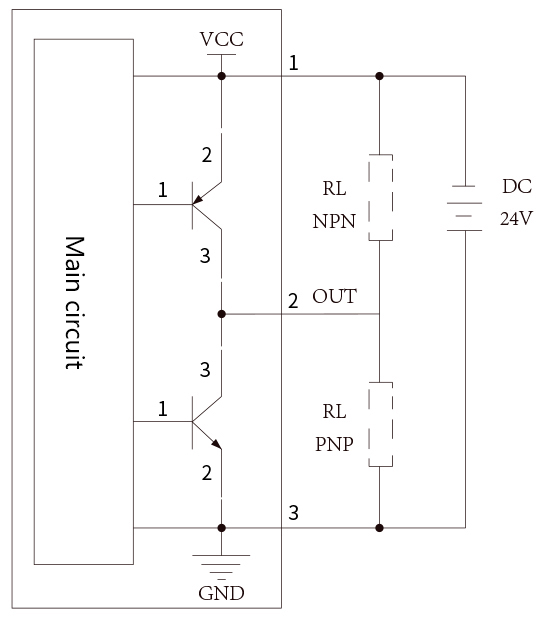

      Wiring diagram



      Pneumatic schematic diagram
