  • ECVi-221

  • *A nozzle diameter of 2.5mm can achieve optimized air consumption for extreme valves.
    *It can effectively reduce energy loss in continuous work.
    *Flexible adaptation to various occasions.
    *Easy to control, settings can be adjusted through buttons and LED displays.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    A nozzle diameter of 2.5mm can achieve optimized air consumption for extreme valves.
    It can effectively reduce energy loss in continuous work.
    Flexible adaptation to various occasions.
    Easy to control, settings can be adjusted through buttons and LED displays.

    Product mix
    (1) Air inlet
    (2) Main components
    (3) Silencing components
    (4) Vacuum pressure switch
    (5) Electromagnetic valve
    (6) Main components
    (7) Optional sensors
    (8) Vacuum port
    (9) Transparent filter box

    Product advantages
    Universal modular system design.
    It has a seasonal function.
    Digital vacuum monitoring can be achieved.

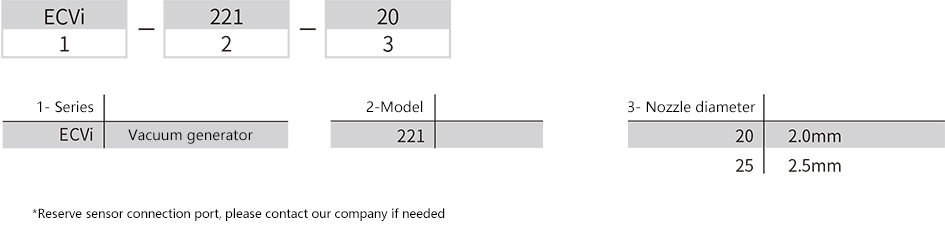

    Ordering no

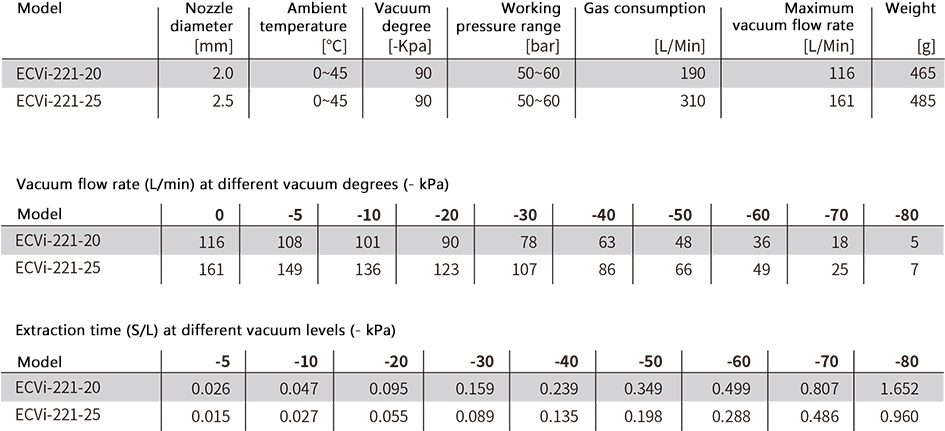

    Technical data

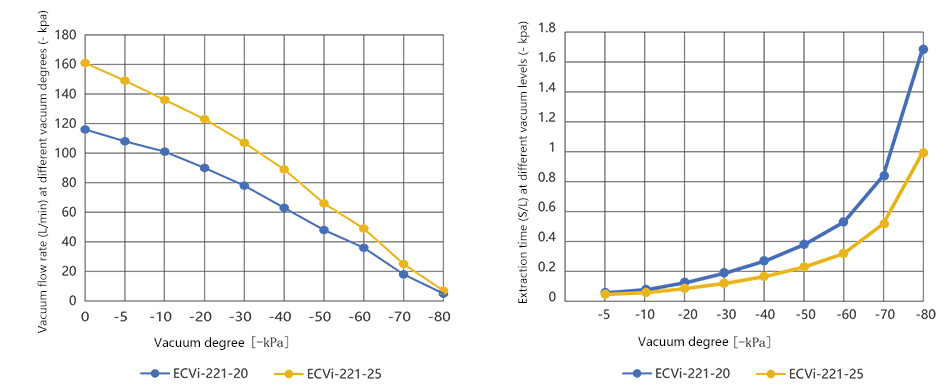

    Performance parameter

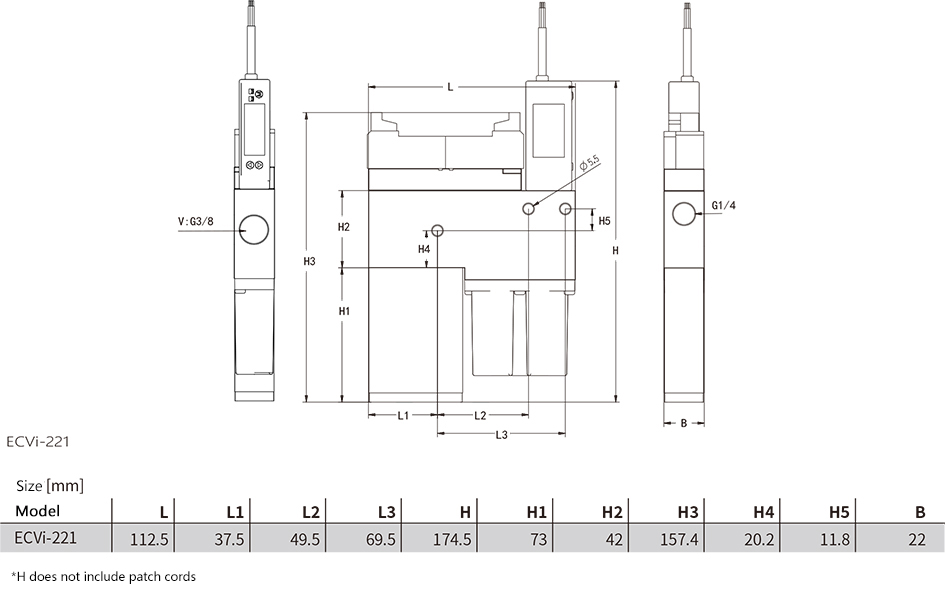

    Design data


Prev：ECV-140 container
Next：EMVi-220
