Product

  • EZQ Integration

  • *Small size and light weight.
    *Multi stage nozzle design.
    *Comes with a digital vacuum pressure switch.
    *Low gas consumption and high vacuum flow rate.
    *Suitable for work environments with limited installation location and weight.
    *Used for robot handling applications and linear axes.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Small size and light weight.
    Multi stage nozzle design.
    Comes with a digital vacuum pressure switch.
    Low gas consumption and high vacuum flow rate.
    Suitable for work environments with limited installation location and weight.
    Used for robot handling applications and linear axes.

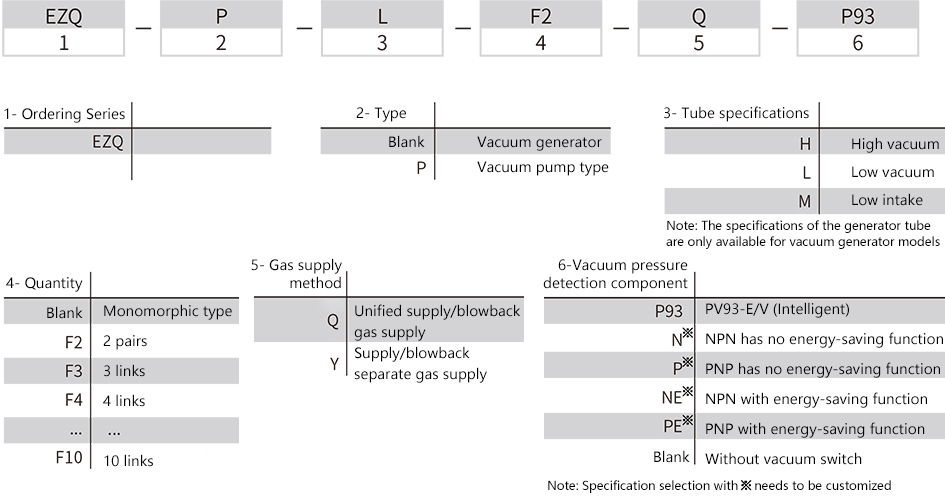

      Ordering no

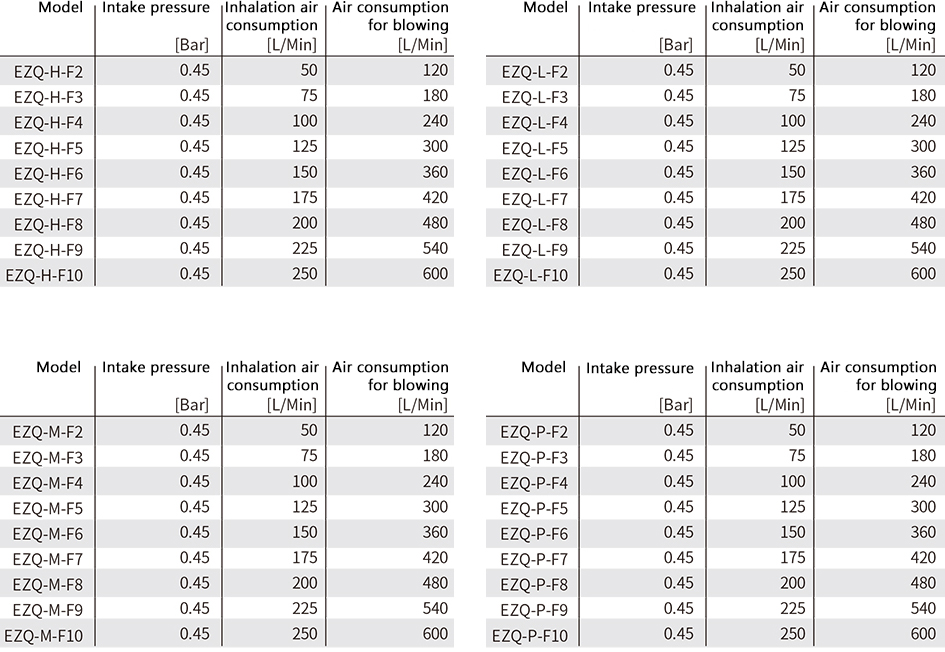

      Technical data

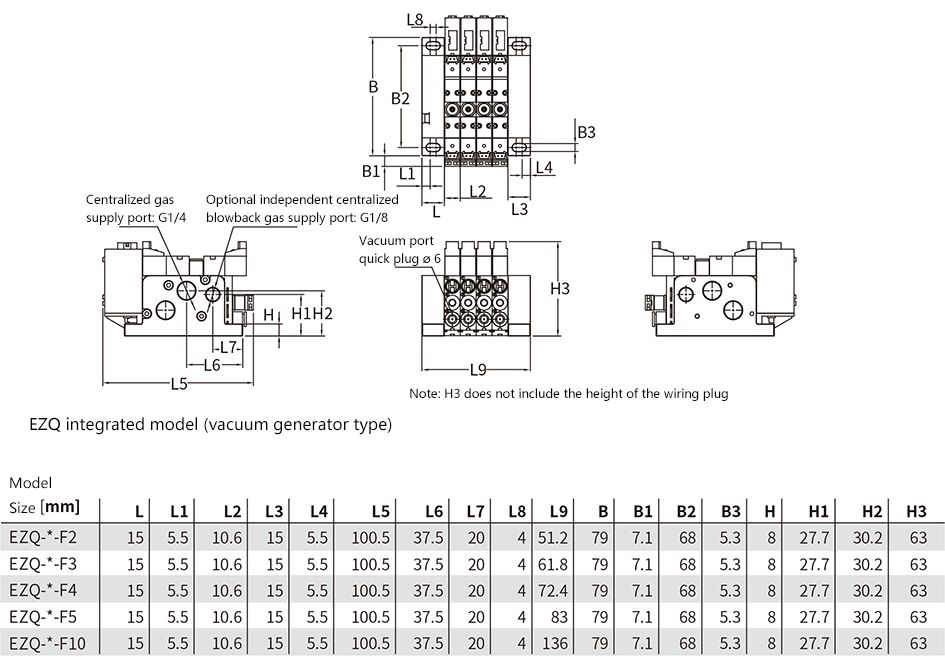

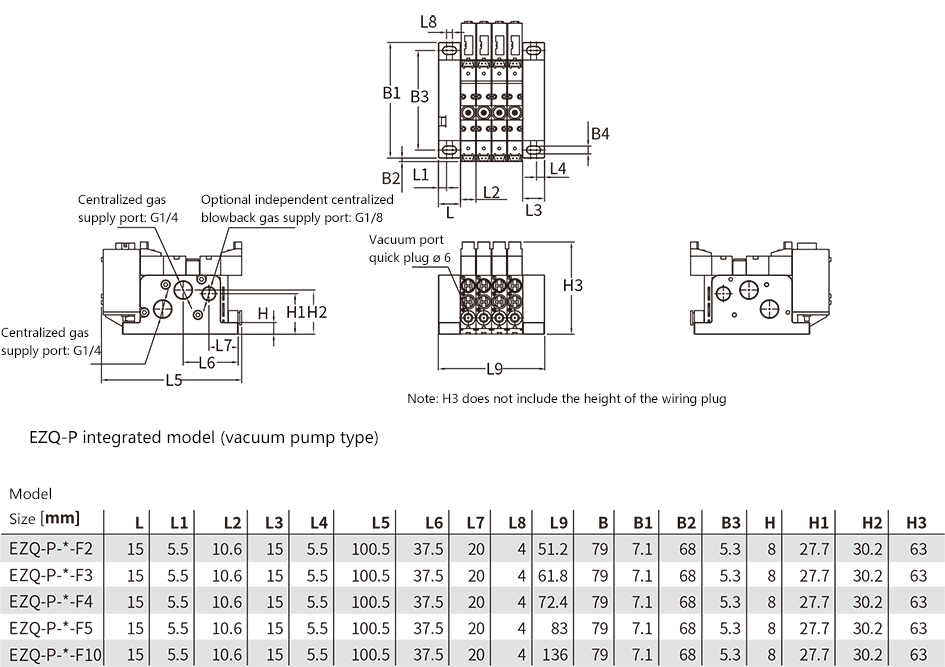

      Design data

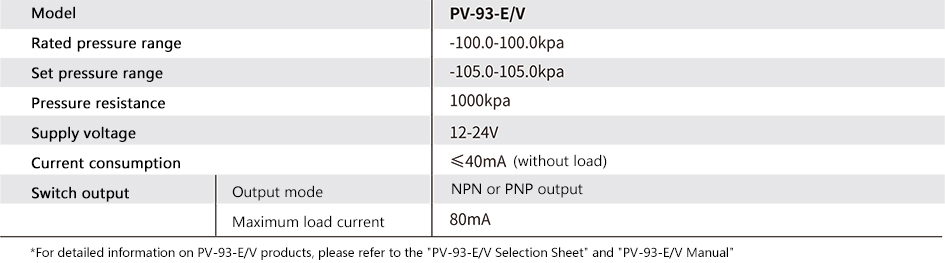

      Technical parameters of pressure switch

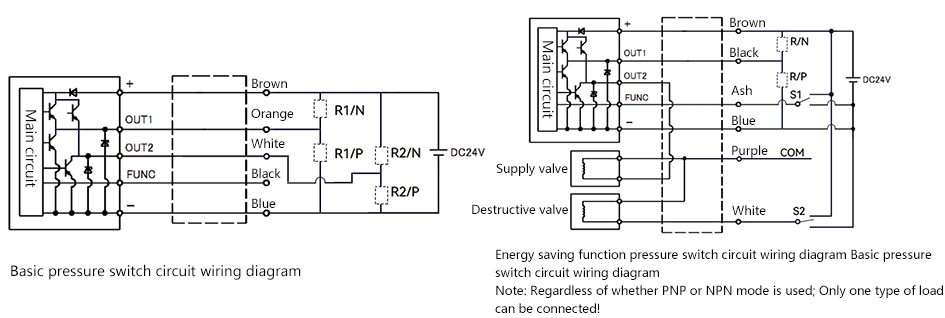

      Wiring diagram



      Pneumatic schematic diagram
