  • ECV-180M

  • * The energy-saving nozzle technology can achieve high suction rates while minimizing compressed air consumption.
    * Miniaturized, lightweight and can be installed directly on the gripping system.
    * Single L-shaped bracket, integrated slide installation, central gas supply.
    * ECV-180m-s effectively reduces noise with a minimum noise weight of 60 [db(a)].

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    The energy-saving nozzle technology can achieve high suction rates while minimizing compressed air consumption.
    Miniaturized, lightweight and can be installed directly on the gripping system.
    Single L-shaped bracket, integrated slide installation, central gas supply.

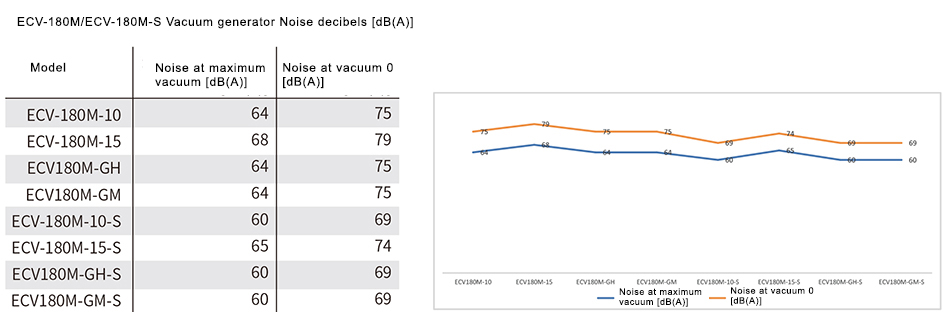

    ECV-180m-s effectively reduces noise with a minimum noise weight of 60 [db(a)].

    Product mix
    Valve "Set up vacuum" (1)
    Quick change valve (2)
    LED display vacuum pressure switch (3)
    Air inlet P: G1/8 (4)
    Air intake and silencer cover (5)
    Vacuum connection V: G1/8 (6)
    Exhaust adjustment screw (7)
    Hole (8)
    Optional guide rail installation (9)
    Reinforcement of soundproofing (10)

    Product advantages
    Use of a pressure switch with energy saving function to minimize compressed air consumption by 90% (according to the measurement conditions of our company).
    The on/off action of the supply valve can be switched automatically within the set value range.
    The exhaust noise of the vacuum generator is also reduced energy-saving.

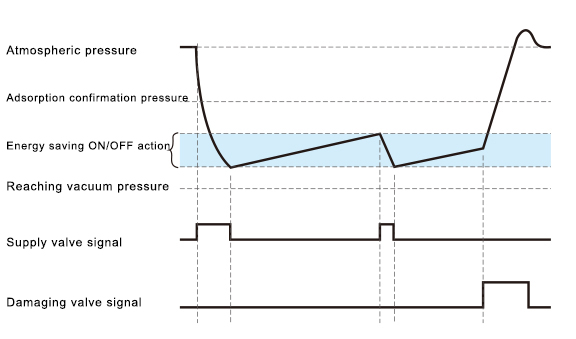

    Output action mode


    Application example of the vacuum generator ECV-180

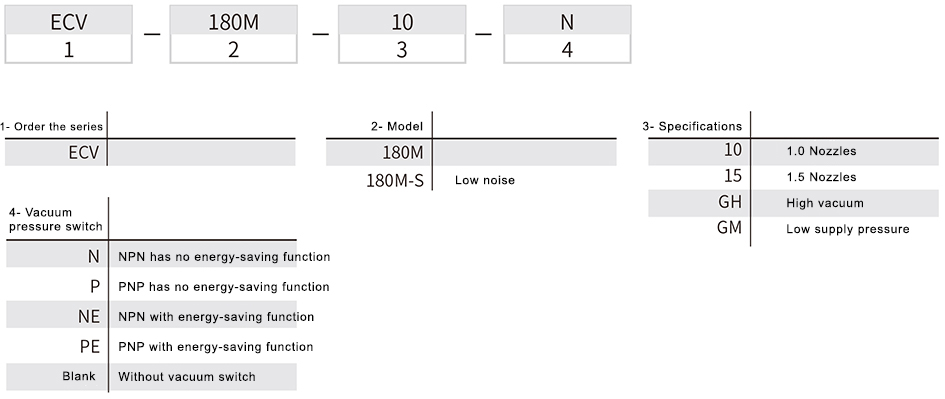

    Ordering no

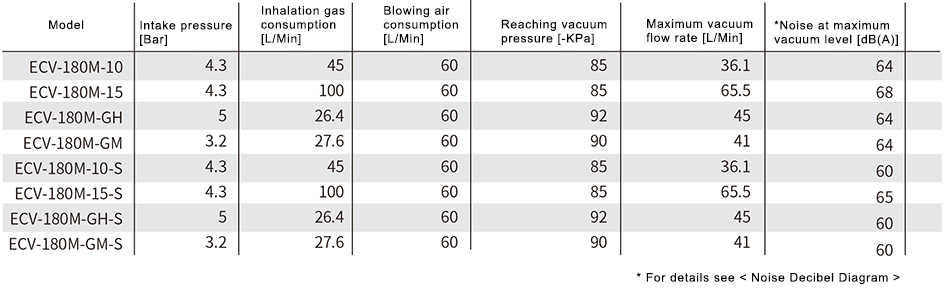

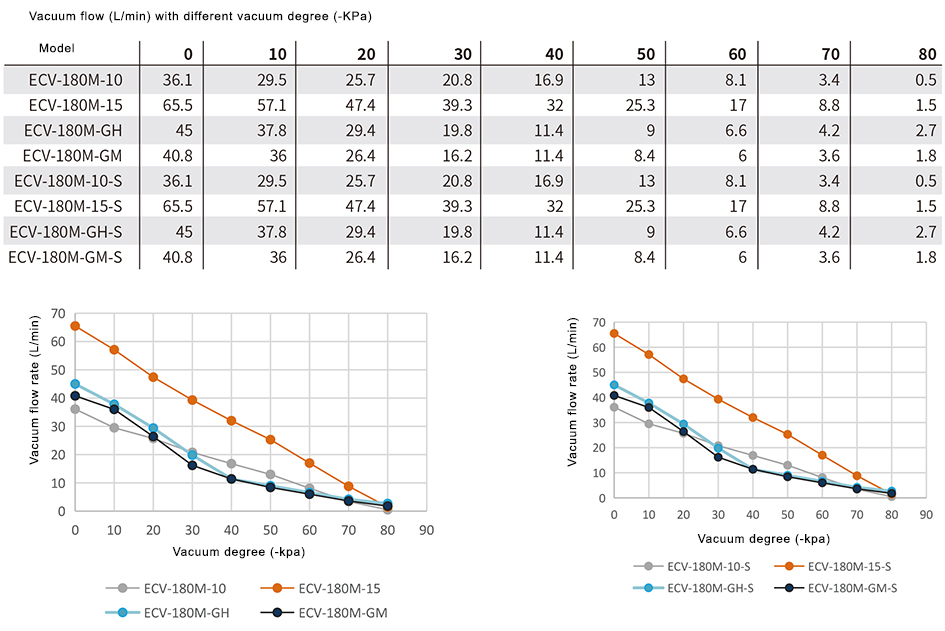

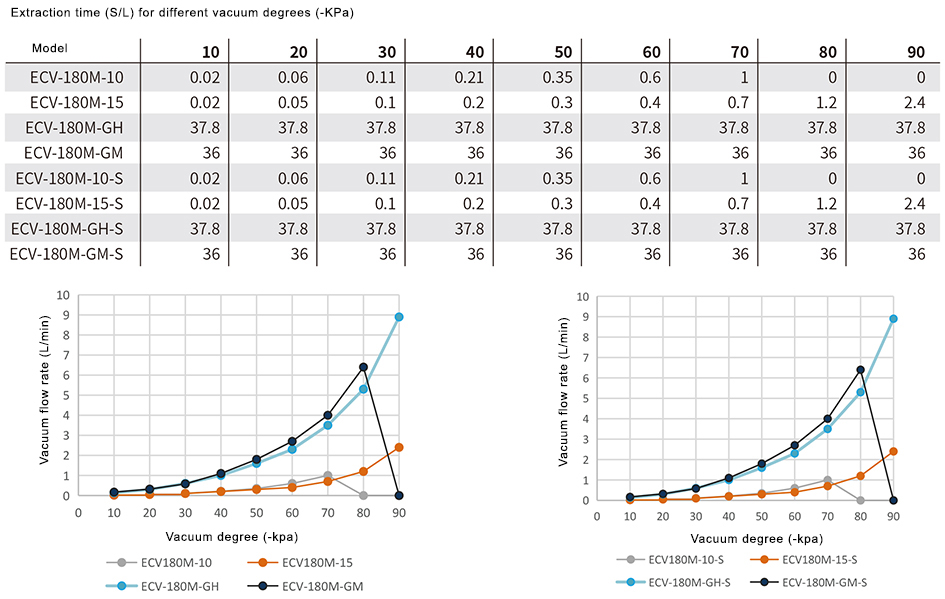

    Technical data

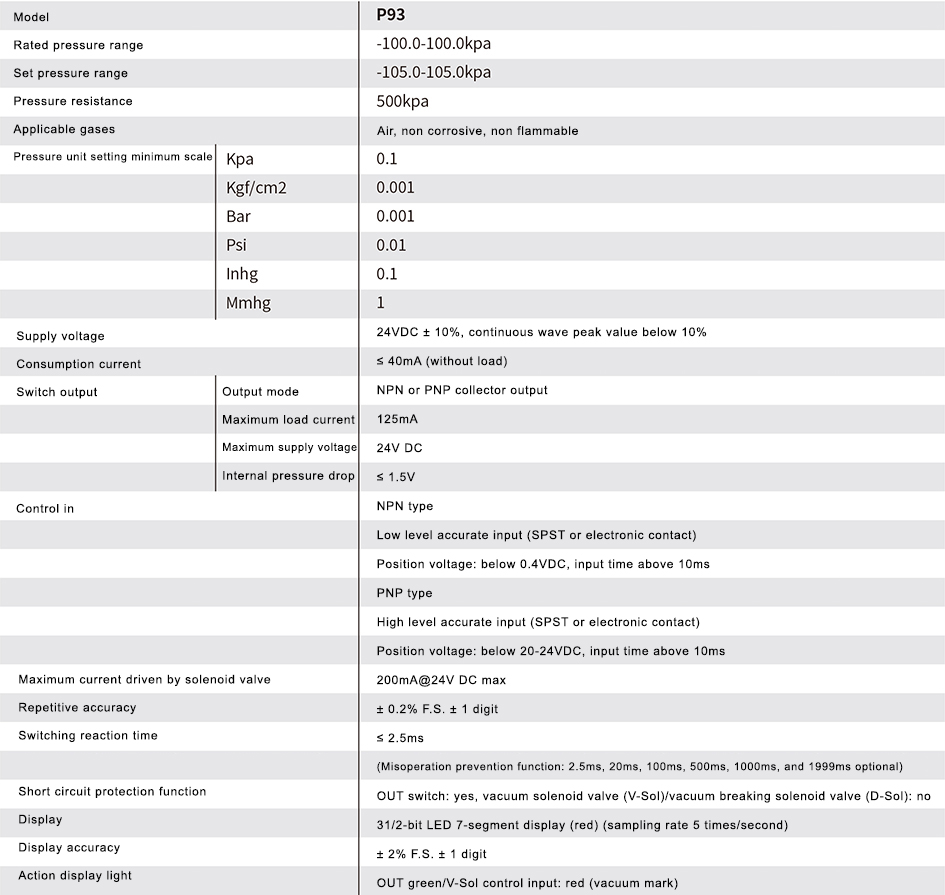

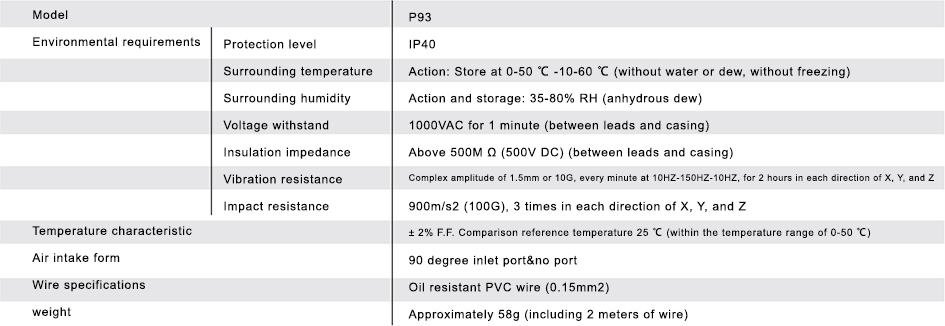

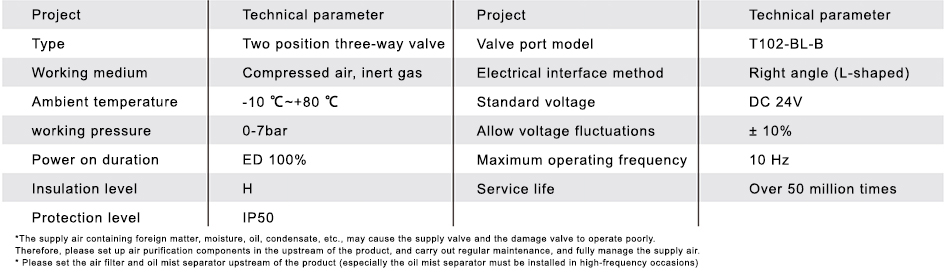

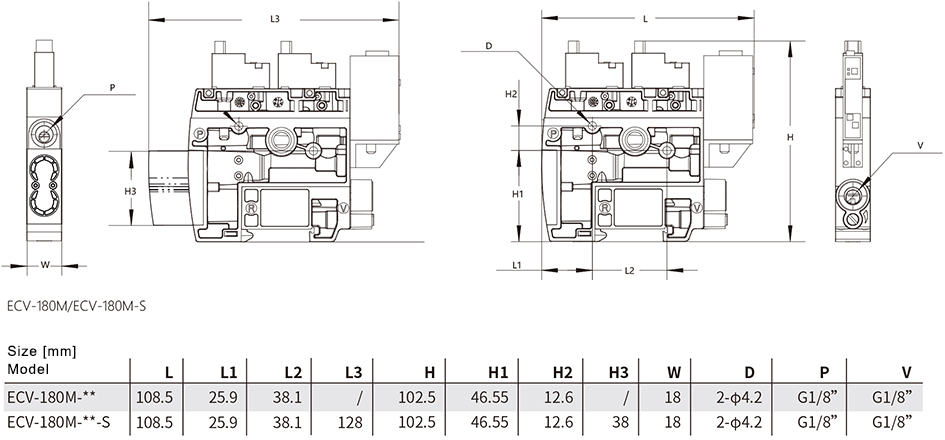

    Technical data

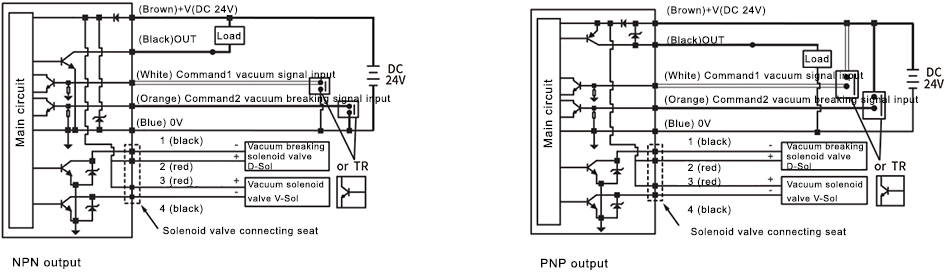

    Wiring diagram

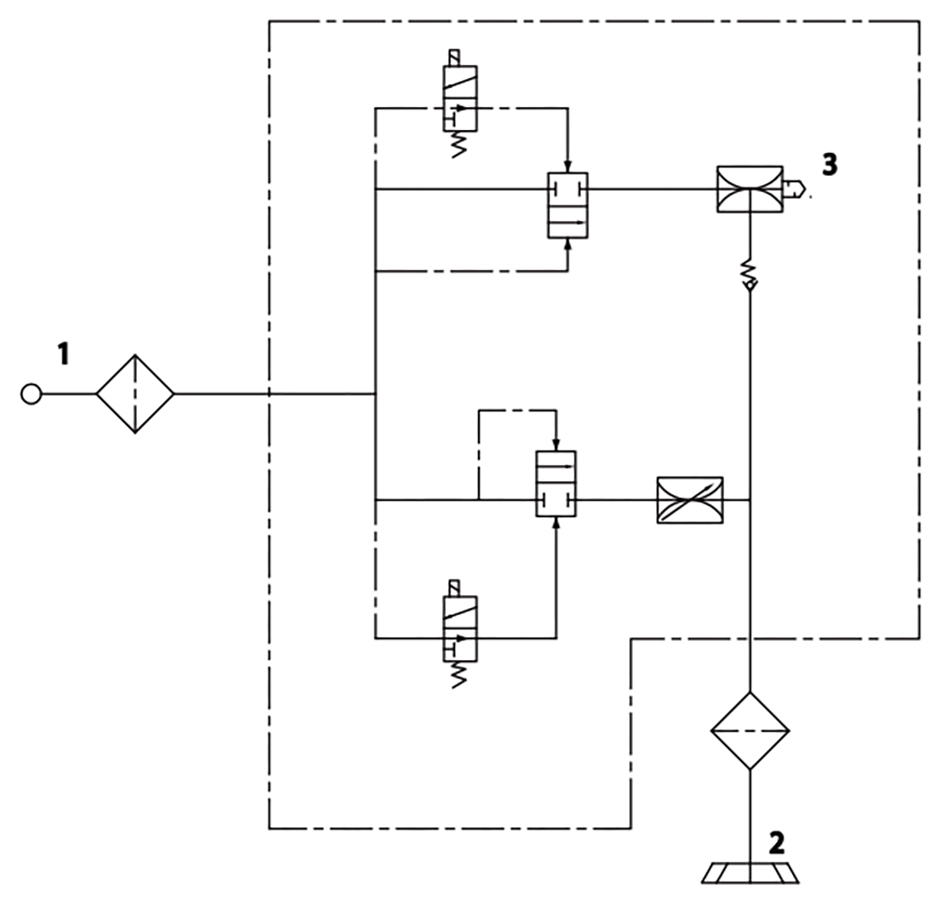

    Pneumatic schematic diagram
