Product

  • EZQ

  • *Small size and light weight.
    *Multi stage nozzle design.
    *Comes with a digital vacuum pressure switch.
    *Low gas consumption and high vacuum flow rate.
    *Suitable for work environments with limited installation location and weight.
    *Used for robot handling applications and linear axes.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Small size and light weight.
    Multi stage nozzle design.
    Comes with a digital vacuum pressure switch.
    Low gas consumption and high vacuum flow rate.
    Suitable for work environments with limited installation location and weight.
    Used for robot handling applications and linear axes.

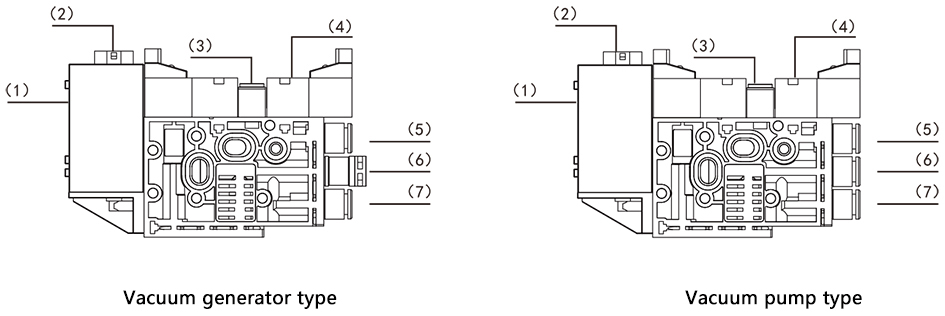

    Product mix
    (1) Vacuum digital switch.
    (2) Vacuum generation control valve.
    (3) Destroy the flow control valve.
    (4) Vacuum rupture control valve.
    (5) Compressed air inlet.
    (6) Exhaust port/vacuum inlet.
    (7) Vacuum port.

    Product advantages
    Used for systems that require high dynamic gripping of workpieces and have limited space.
    Used for fully automated small parts handling.

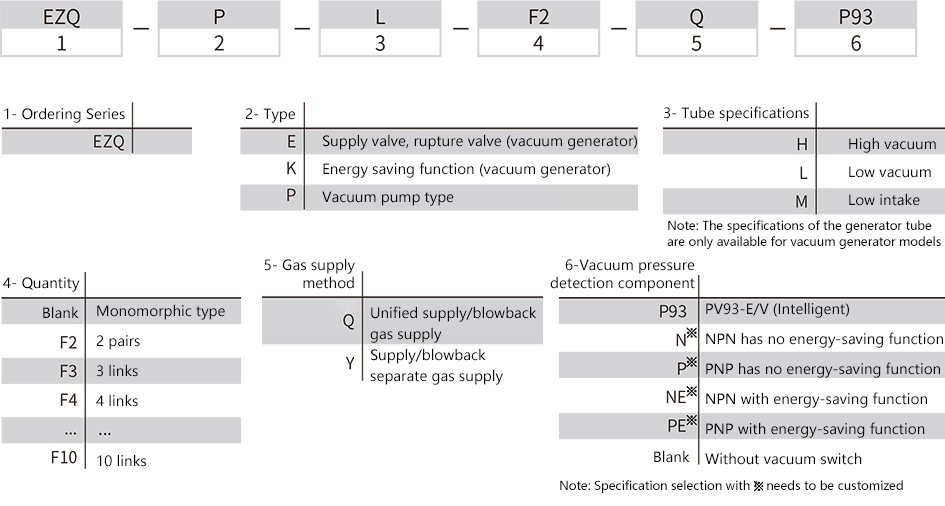

    Ordering no

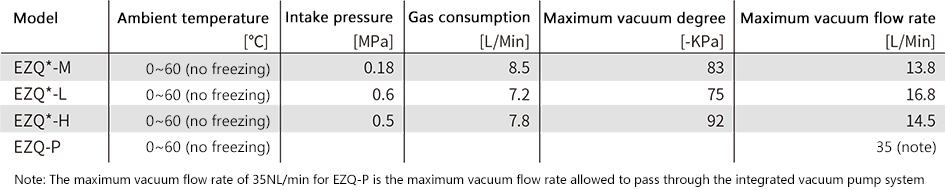

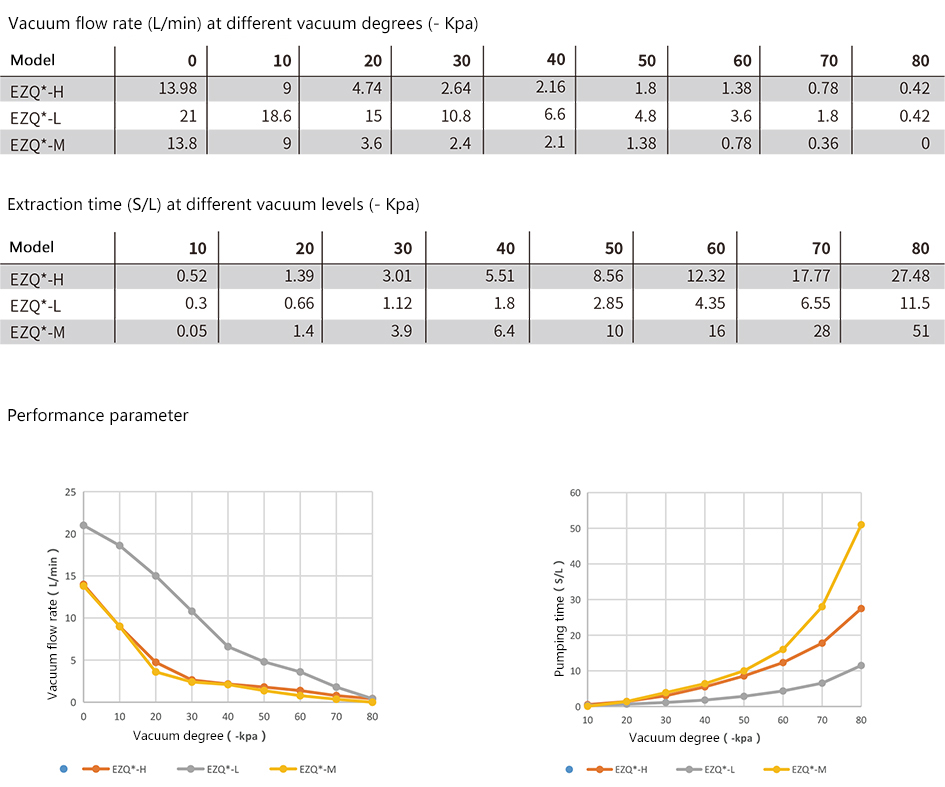

    Technical data

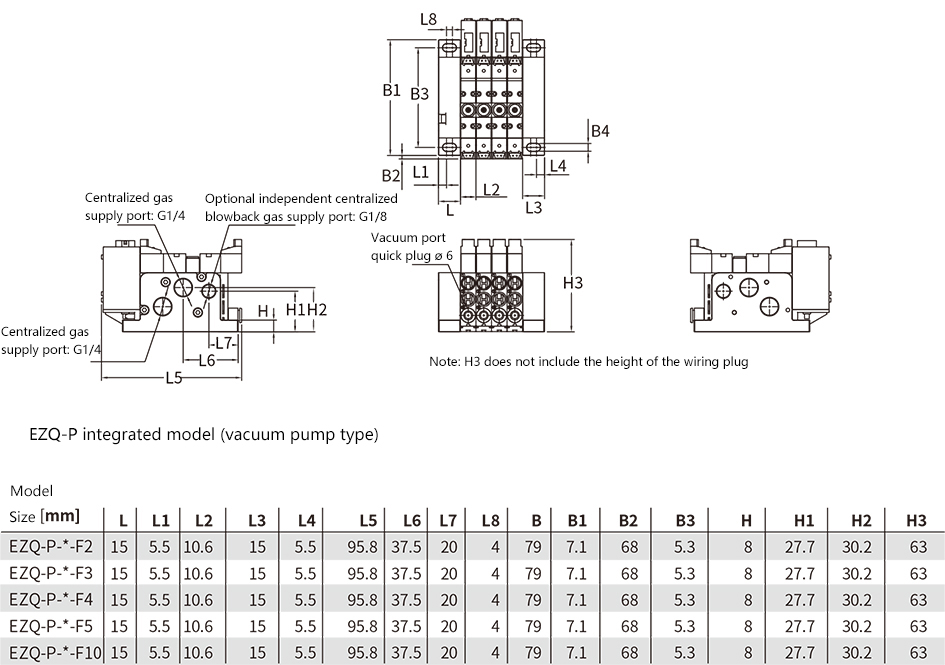

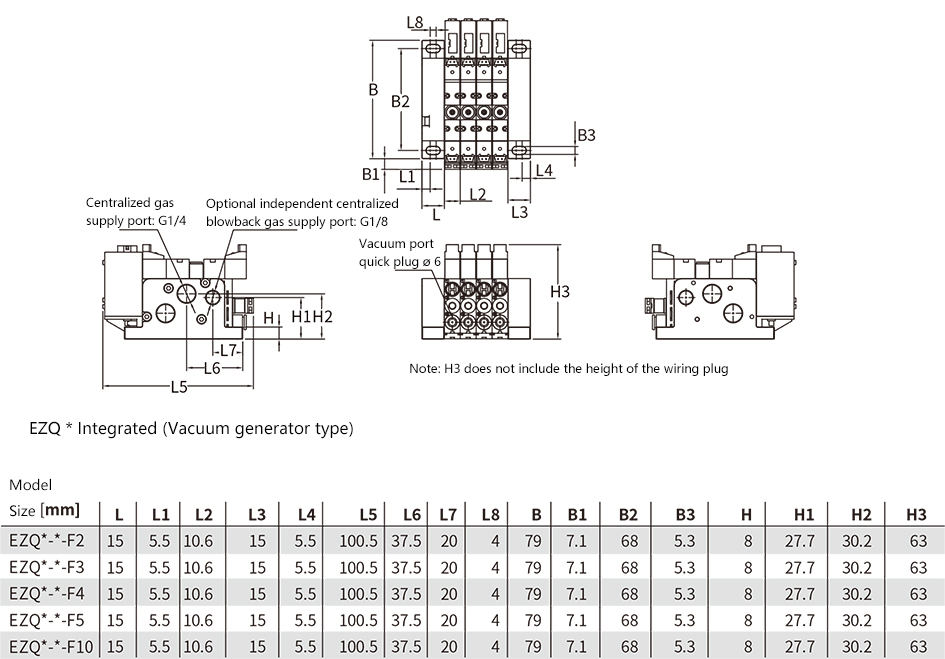

    Design data







    Technical parameters of pressure switch

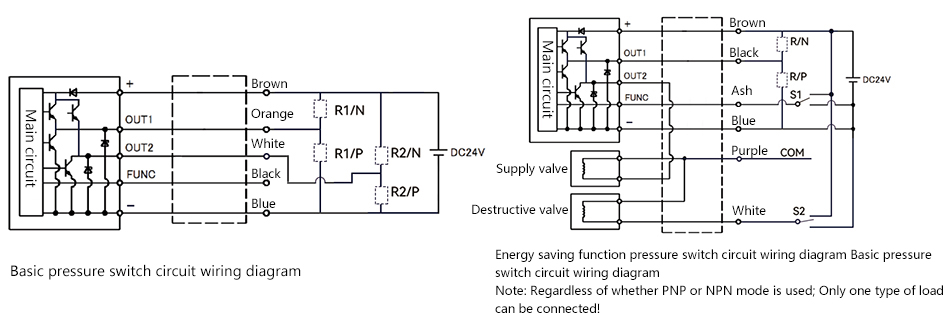

    Wiring diagram



    Pneumatic schematic diagram
