  • EZL

  • * In the field of industrial automation, it is widely used in fields such as machinery, electronics, packaging, printing, plastics, and robotics.
    * Multiple vacuum flow rate options to increase vacuum reaction time.
    * Suitable for adsorbing fragile, soft, thin non-iron, non-metallic materials or spherical objects.
    * Three types of vacuum pressure detection units.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    In the field of industrial automation, it is widely used in fields such as machinery, electronics, packaging, printing, plastics, and robotics.
    Multiple vacuum flow rate options to increase vacuum reaction time.
    Suitable for adsorbing fragile, soft, thin non-iron, non-metallic materials or spherical objects.
    Three types of vacuum pressure detection units.
    Product mix

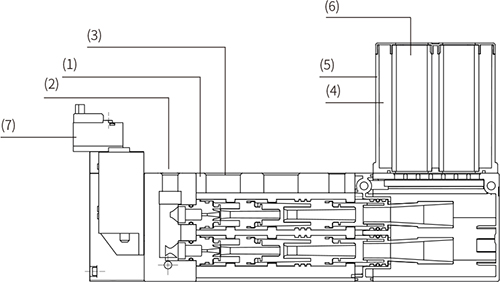

    EZLK series
    Aluminum alloy (anodized) main body (1)
    G1/8 thread (2)
    Vacuum port (energy-saving version) (3)
    Resin soundproofing material (4)
    Silencer housing (5)
    Non woven sound-absorbing material (6)
    Electric control valve (7)

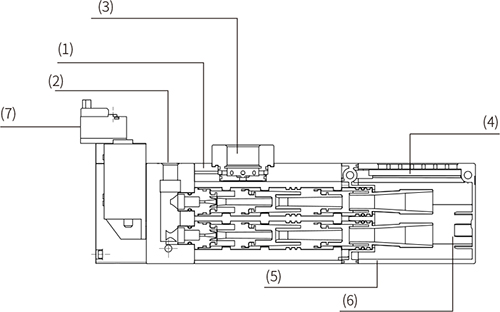

    EZLE/R series
    Aluminum alloy (anodized) main body (1)
    G1/8 thread (2)
    Vacuum port (electronic control version) (3)
    Silencer housing (4)
    Silencer cover (5)
    Non woven sound-absorbing material (6)
    Electric control valve (7)


    Product advantages



    Adopting a special multi-stage Venturi tube structure design, the nozzle and aerodynamic technology make the multi-stage vacuum pump have good performance.

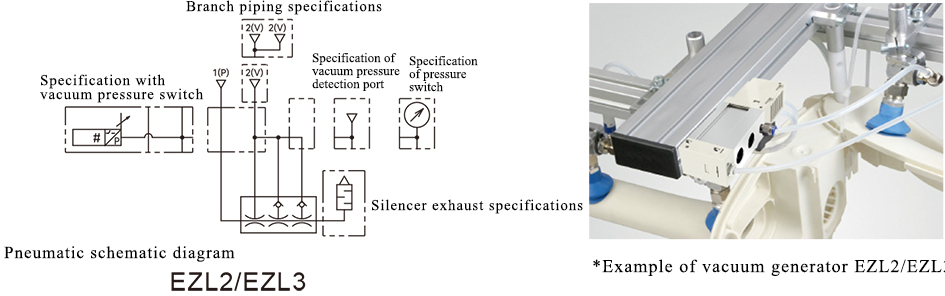

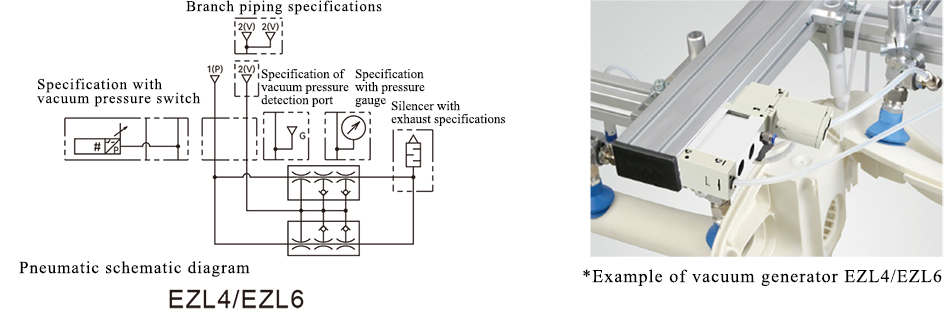

    The piping during branch piping is easier, and quick change joints can be connected without using shaft sleeves.

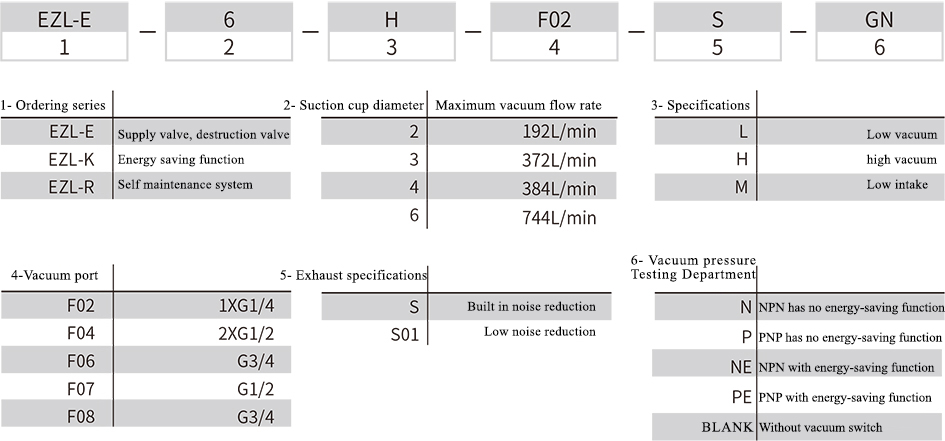

    Ordering no

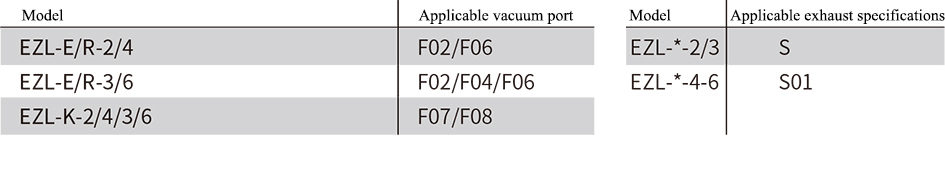

    Selection specifications

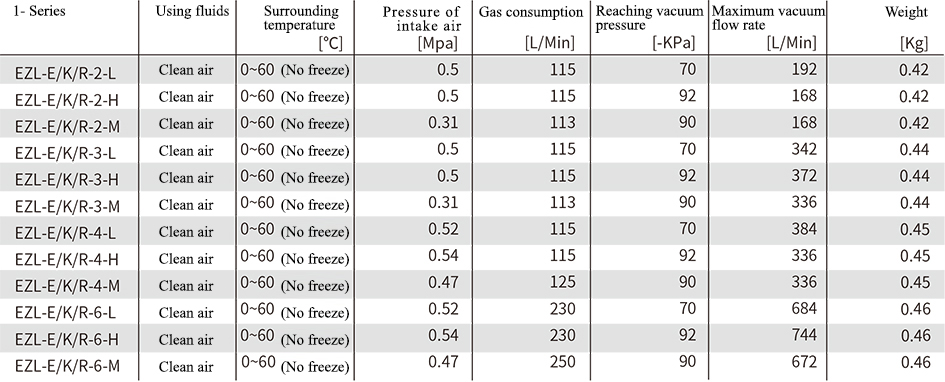

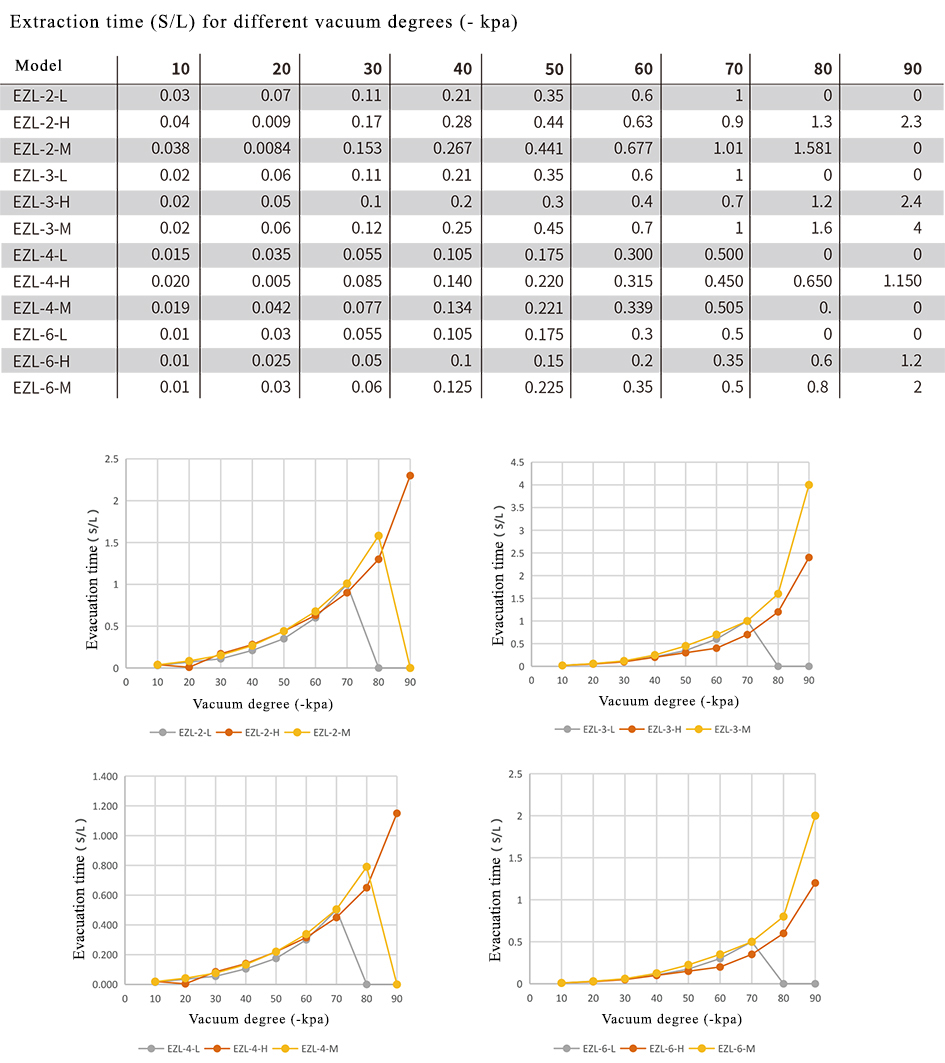

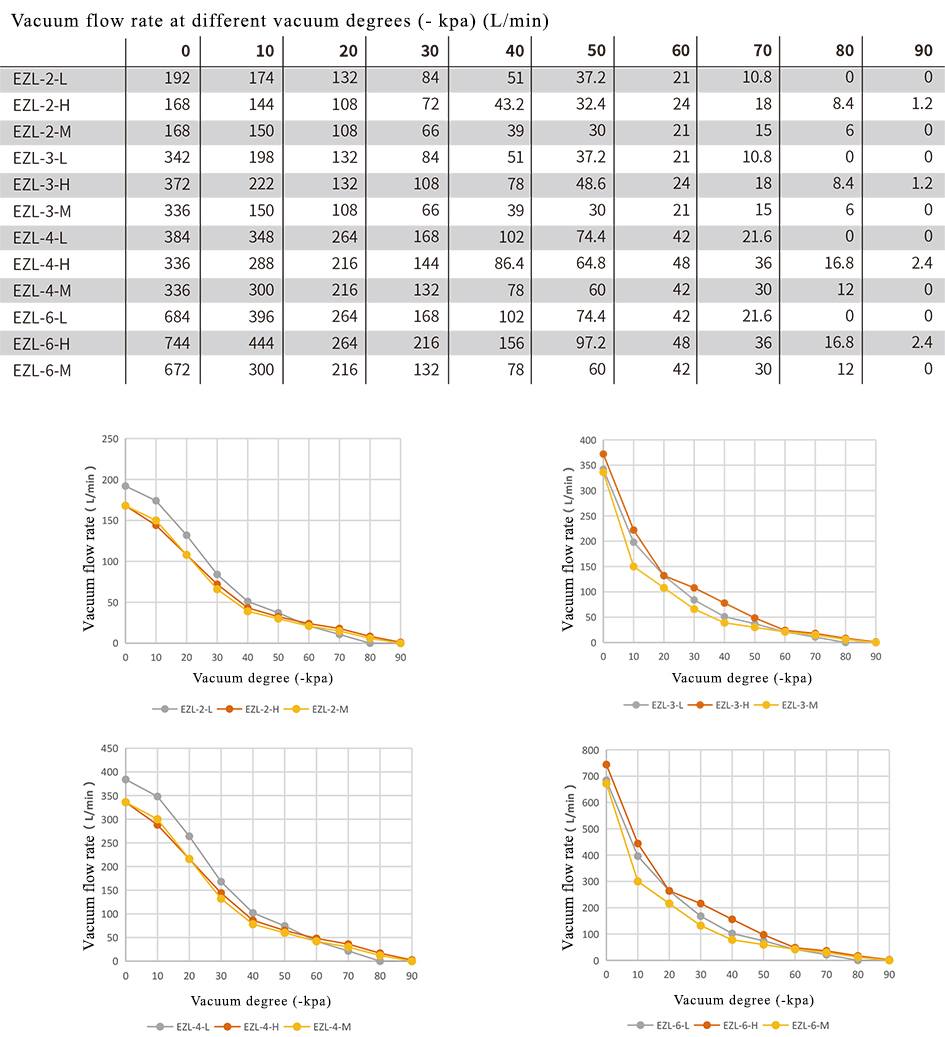

    Technical data

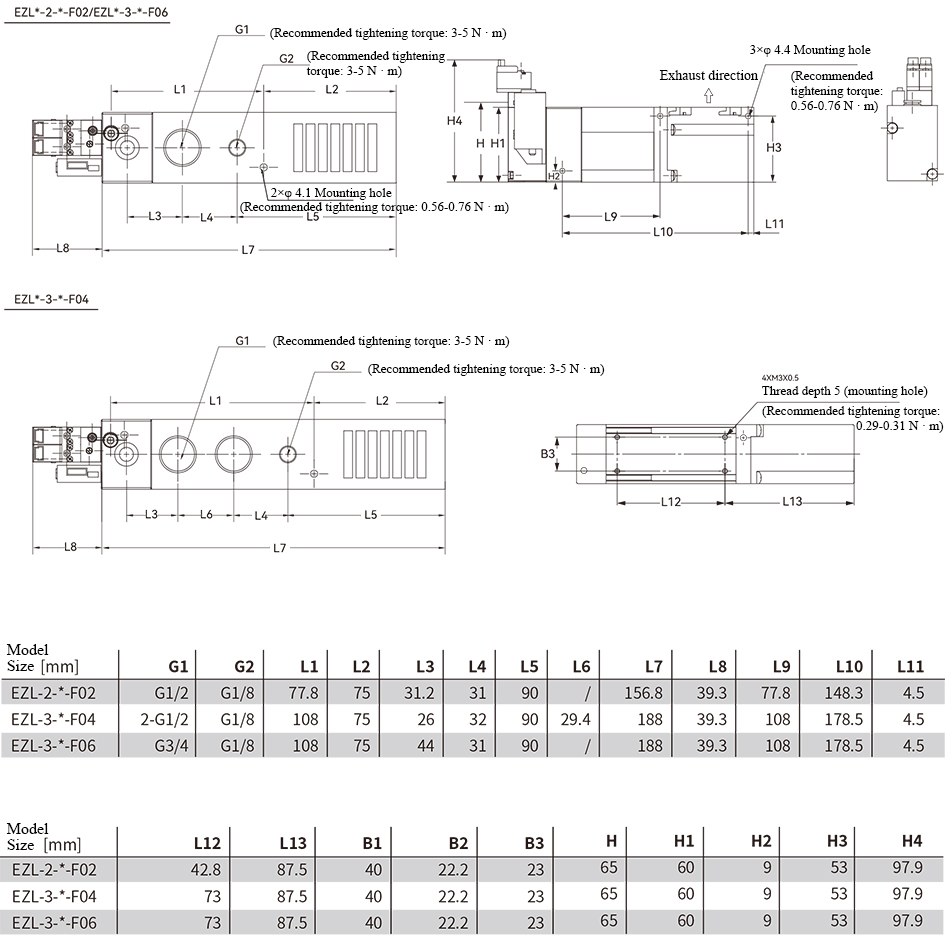

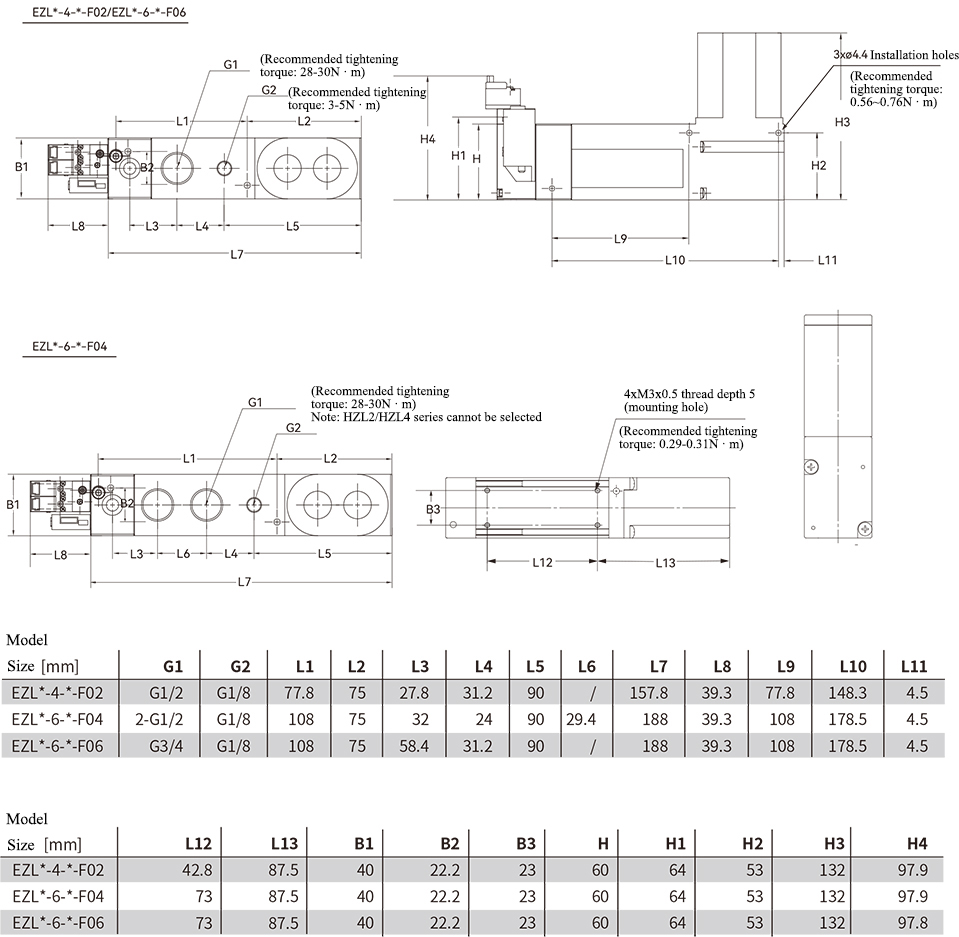

    Design parameters of EZL electronic control model

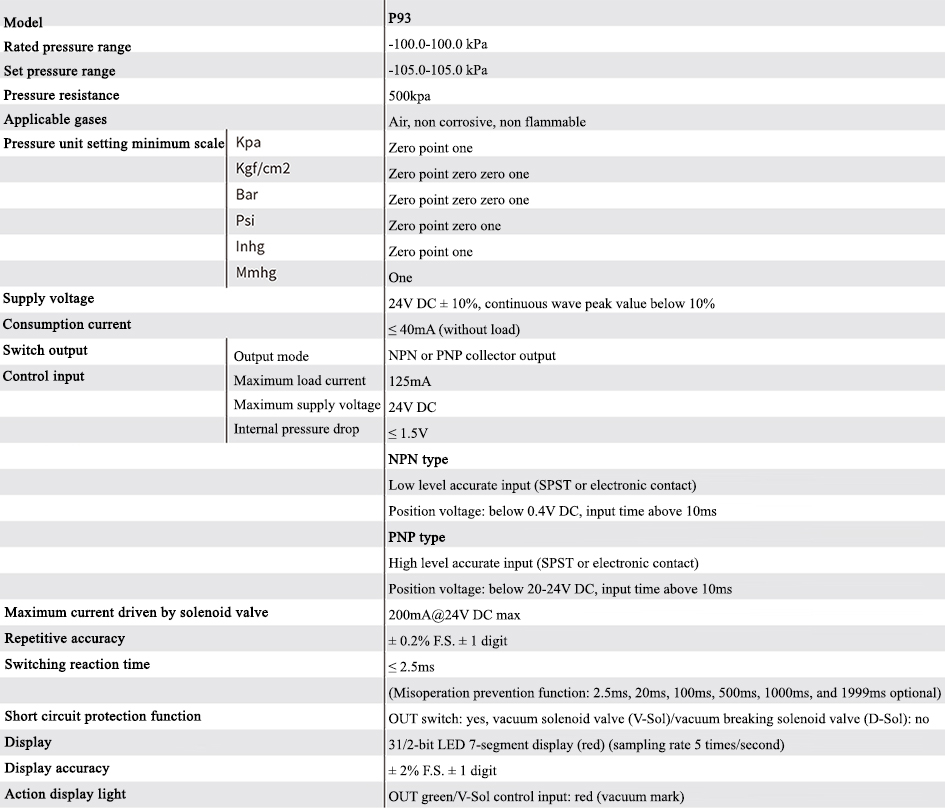

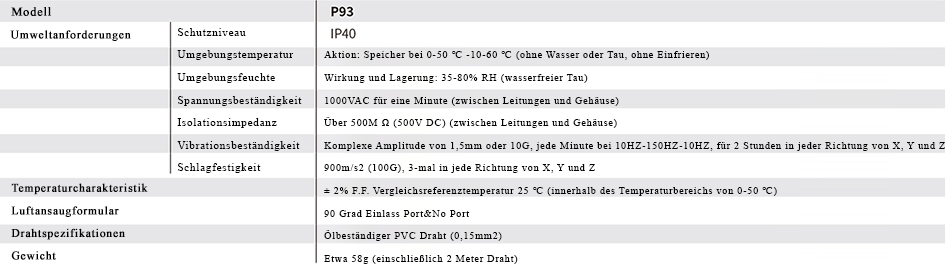

    Technical parameters of pressure switch

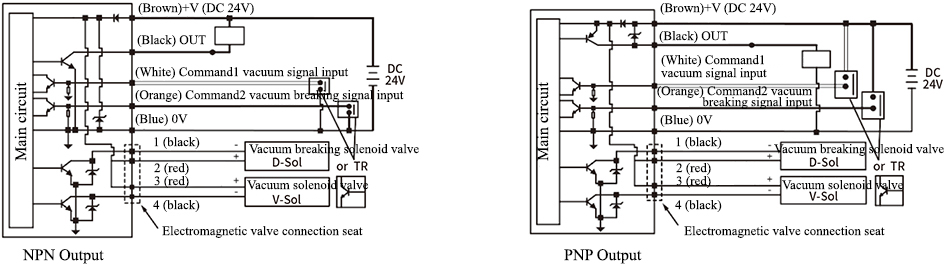

    Pressure switch circuit wiring diagram
