• ECO-H40

  • * According to the supply of compressed air, high flow blowing or vacuum generation can be carried out.
    * Can blow air at four times the amount of air supplied.
    * Can generate a vacuum flow rate that is three times the supply of air.
    * By having a large diameter, cutting chips, impurities, etc. can be sucked in.
    * No maintenance required.
    * Can come with mounting bracket.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    According to the supply of compressed air, high flow blowing or vacuum generation can be carried out.
    Can blow air at four times the amount of air supplied.
    Can generate a vacuum flow rate that is three times the supply of air.
    By having a large diameter, cutting chips, impurities, etc. can be sucked in.
    No maintenance required.
    Can come with mounting bracket.

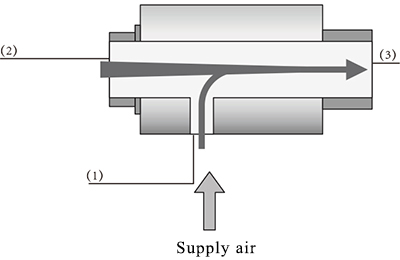

    Product mix
    Main body: made of aluminum alloy, small in size and light in weight
    (1) Joint: G-tooth internal thread for compressed air intake joint
    (2) Connection port: intake
    (3) Exhaust port: blow air

    Product advantages
    Handling highly breathable workpieces, conveying materials such as particles, powders, gases, liquids, etc.

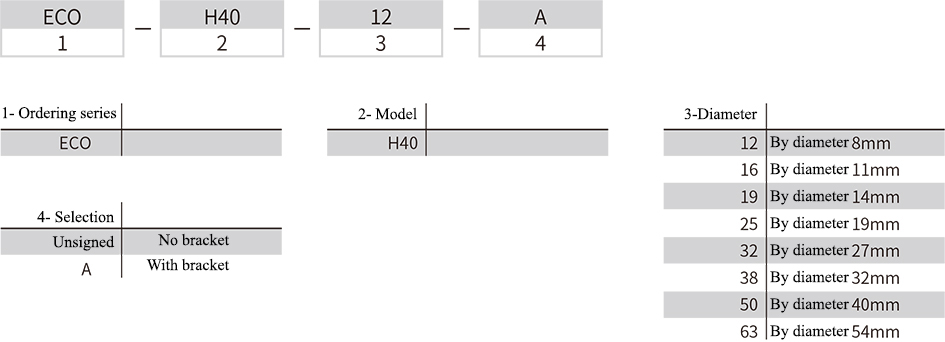

    Ordering no



    Technische daten

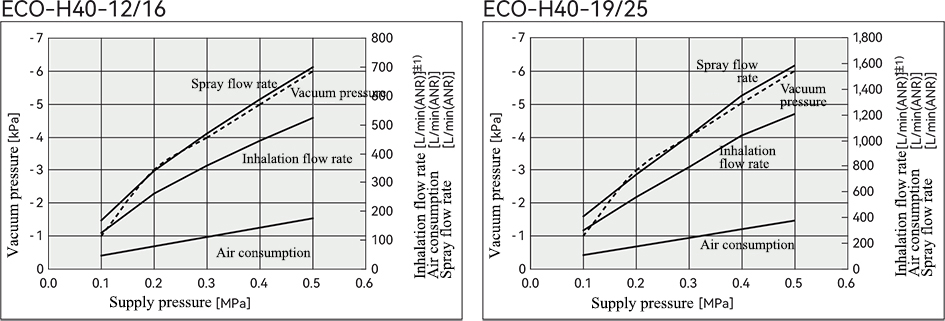

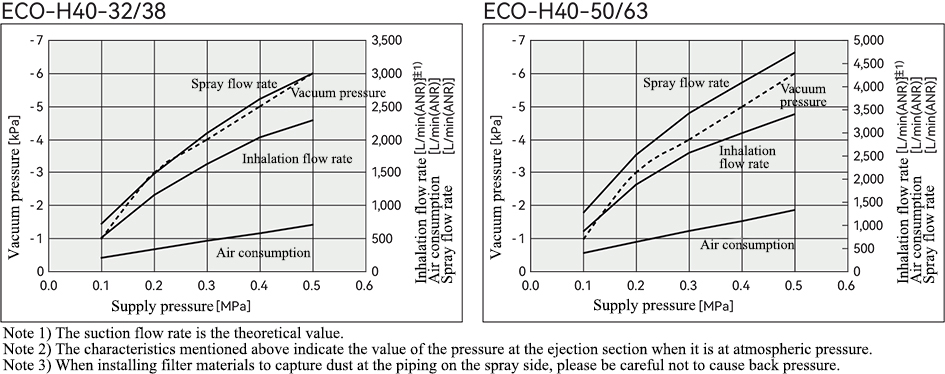

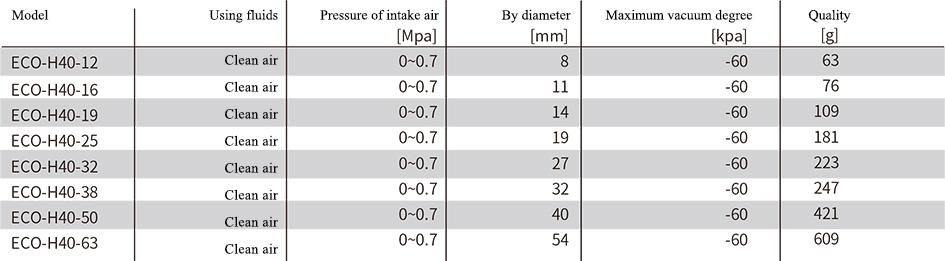

    Performance parameter

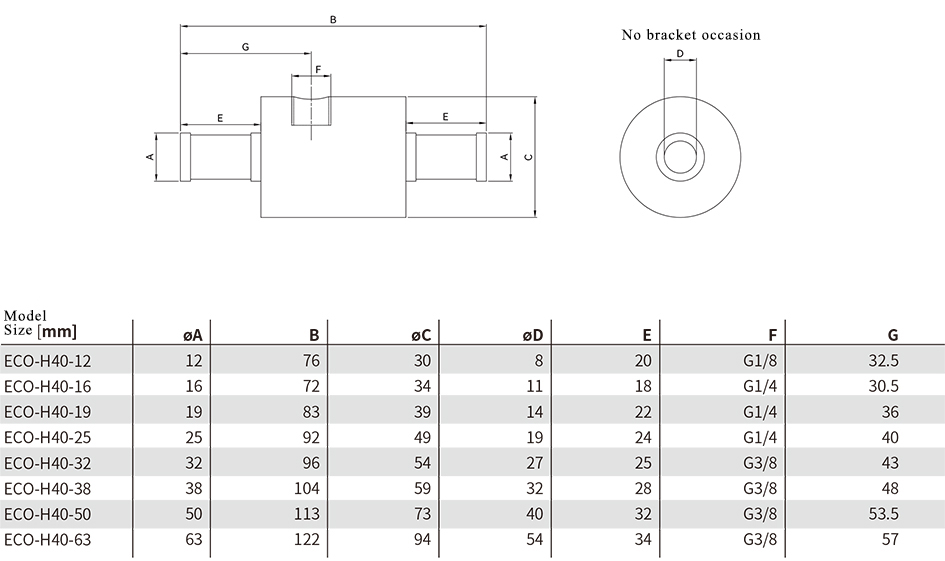

    Design data
