Product

  • HVGR-B

  • * Compact and flexible construction
    * Use of high strength aluminium profiles
    * Adoption of HANWHA's unique high-efficiency valve body technology that saves 50% air consumption
    * Suitable for rough surfaces, leaks, deformations and irregular workpieces
    * RB is suitable for bag and foil packaging workers
    * European original imported sealing sponge pad, with a longer service life

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Compact and flexible construction
    Use of high strength aluminium profiles
    Adoption of HANWHA's unique high-efficiency valve body technology that saves 50% air consumption
    Suitable for rough surfaces, leaks, deformations and irregular workpieces
    RB is suitable for bag and foil packaging workers
    European original imported sealing sponge pad, with a longer service life

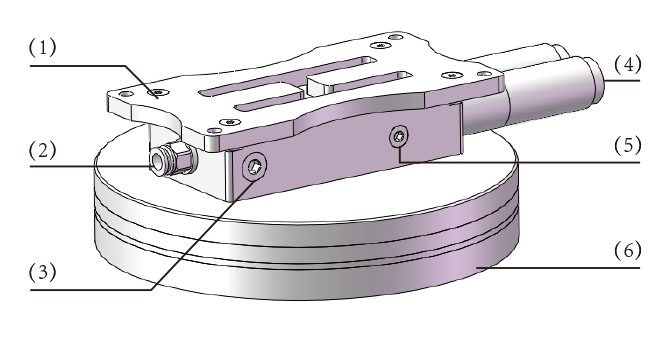

    Product mix
    Main body: made of aluminum alloy, small in size and light in weight
    (1) Install screws: tighten the screws and adjust to remove the side wall
    (2) Connection: compressed air inlet
    (3) Connection connection: 2-way inlet (both sides)
    (4) Silencer: of anodized aluminium oxide
    (5) Connection port: vacuum detection port
    (6) Sponge pad: Imported sealed sponge pad

    Product advantages
    For rigid products with irregular surfaces, the effect is better

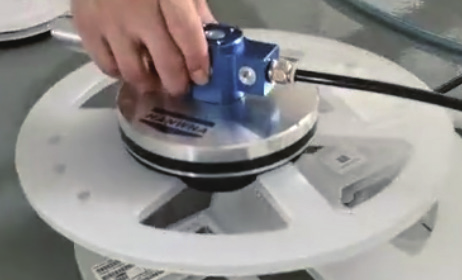

    Sponge suction tool HVGR for vacuuming irregular parts

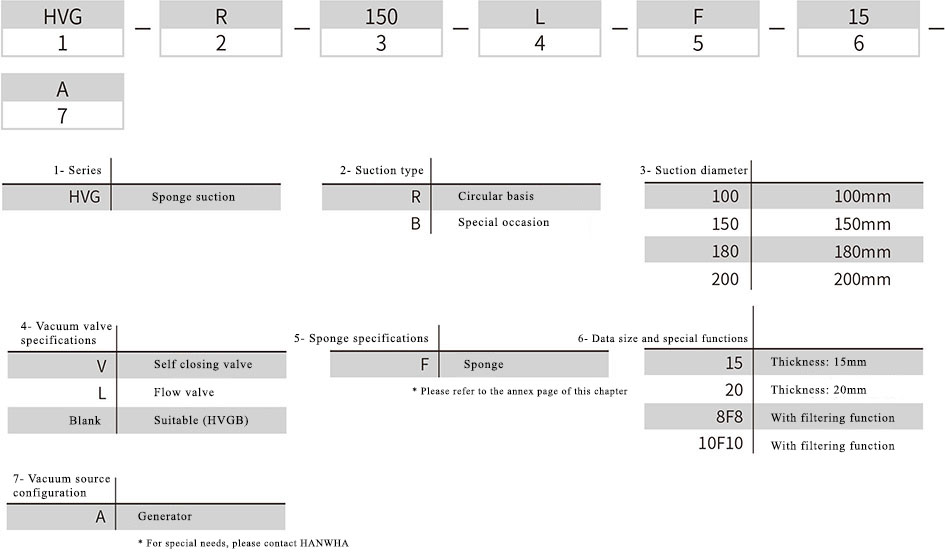

    Ordering no

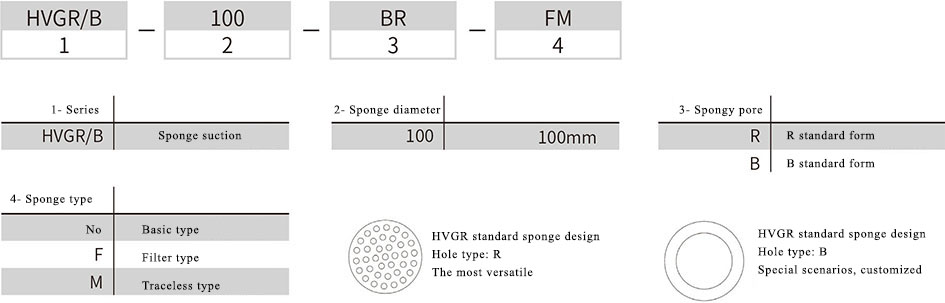

    HVGR/B ordering no

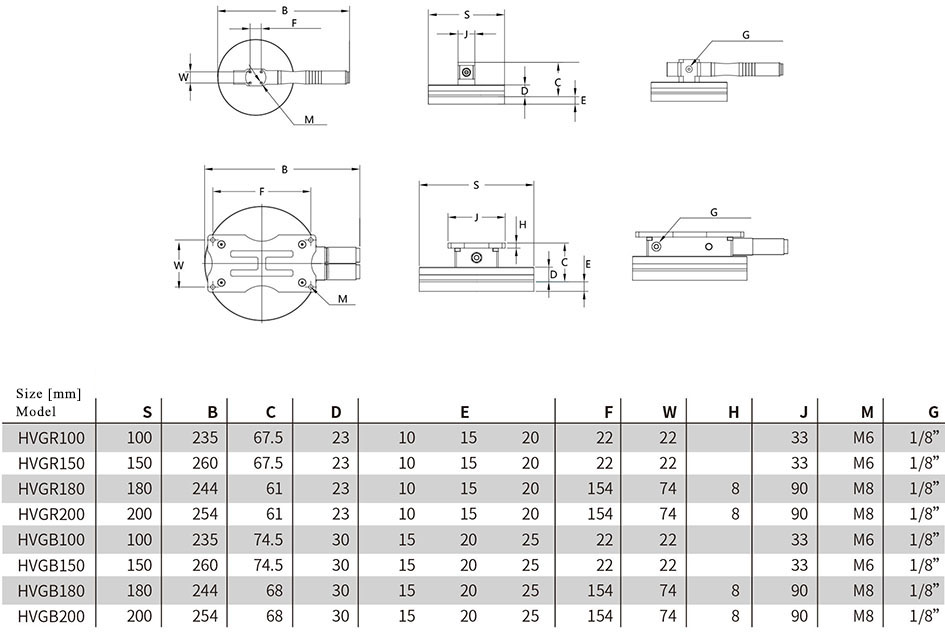

    Technical data

    Design data

Prev：EZL
Next：HVGBE
