• ECO-H7010

  • * Unique patented design and the latest technology in the industry.
    * The high-quality plastic shell is precisely manufactured with a high degree of vacuum.
    * Suitable for use in various environments and industries (workpiece extraction).
    * The overall structure adopts a sliding combination, without the need of connecting rods, which makes installation convenient.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Unique patented design and the latest technology in the industry.
    The high-quality plastic shell is precisely manufactured with a high degree of vacuum.
    Suitable for use in various environments and industries (workpiece extraction).
    The overall structure adopts a sliding combination, without the need of connecting rods, which makes installation convenient.

    Product mix
    1. Install a silencer on the G3/4 exhaust port
    2. G3/4 vacuum connection
    3. 1/8 Vacuum meter
    4. G1/4 gas supply port
    5. High quality plastic shell

    Product advantages
    Gas supply pressure range: 0.3~0.5Mpa
    Exhaust noise: 50-60dB (A)
    Maximum vacuum: -94kPa

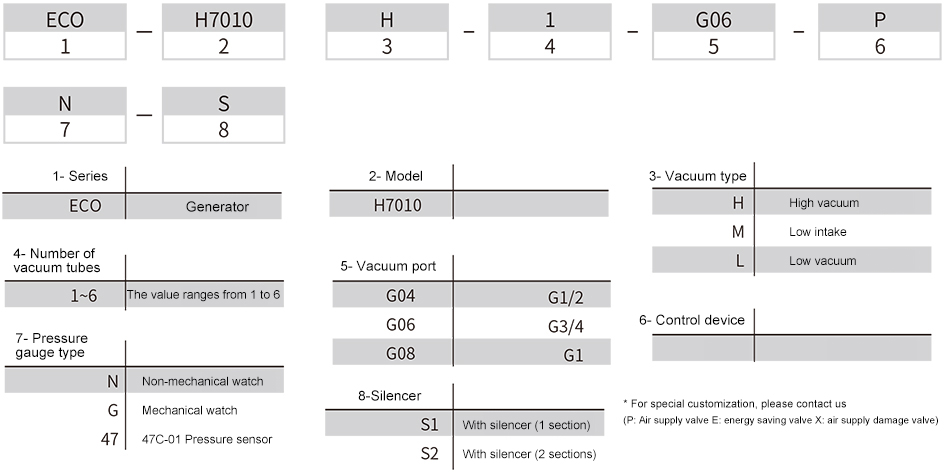

    Ordering no

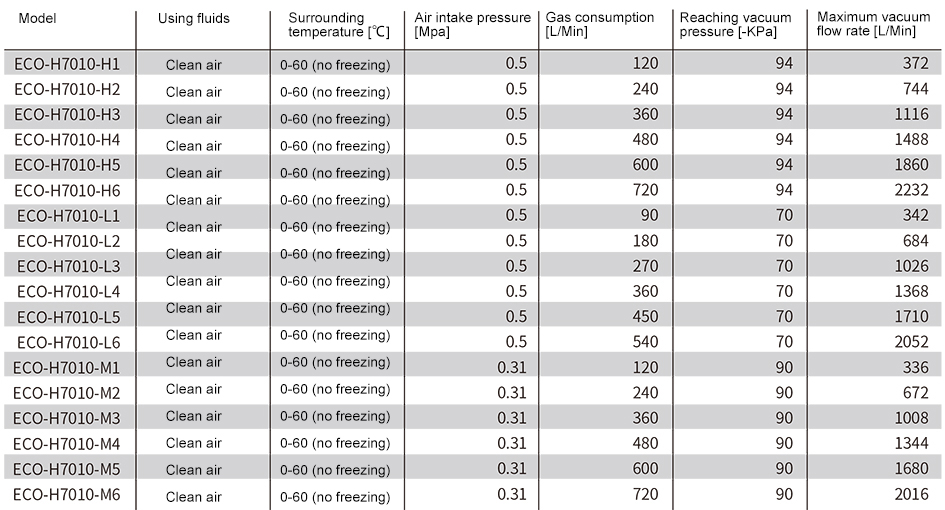

    Technical data

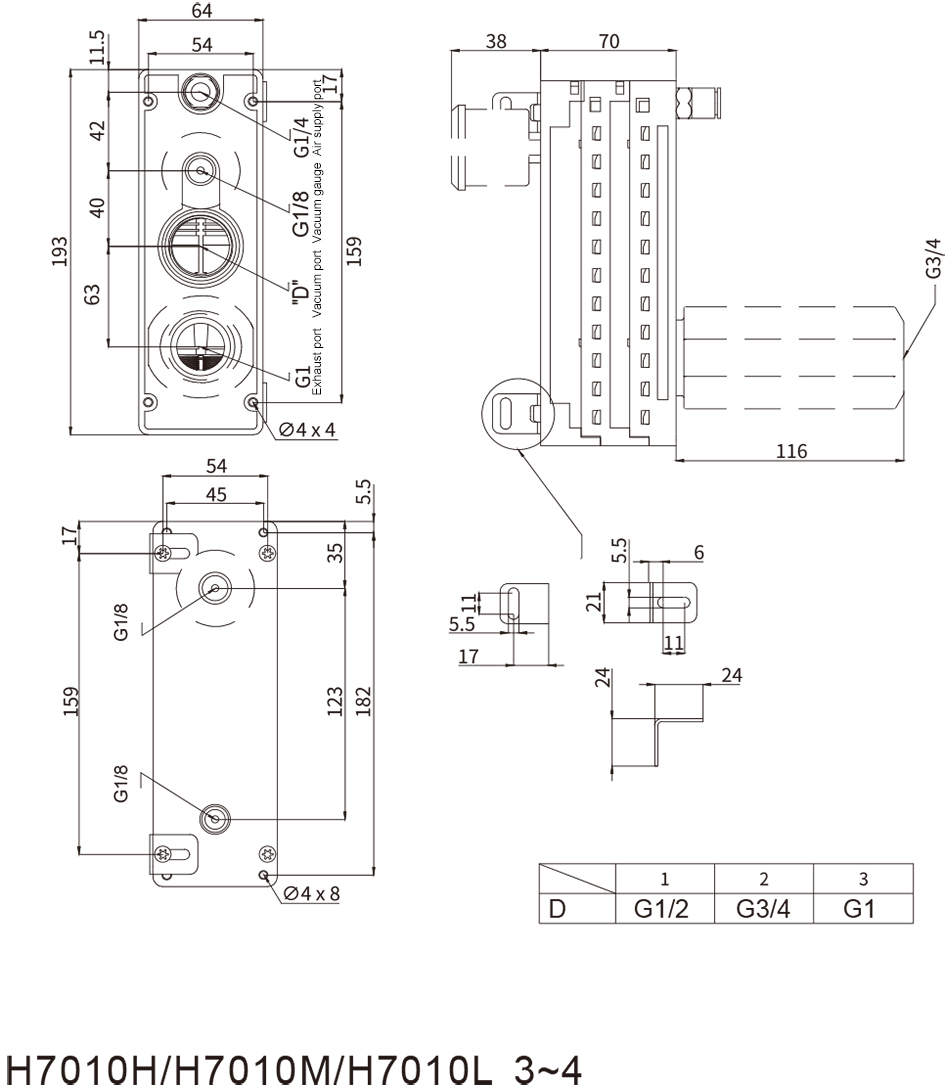

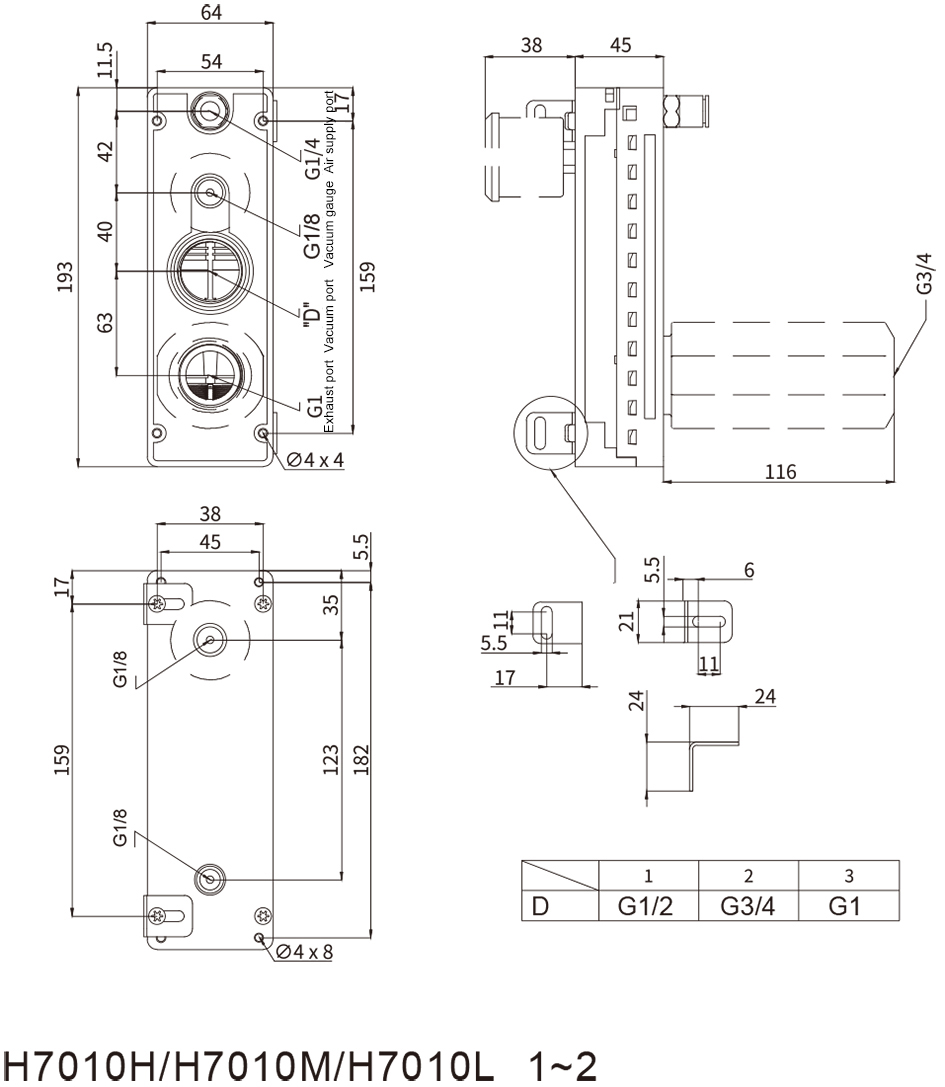

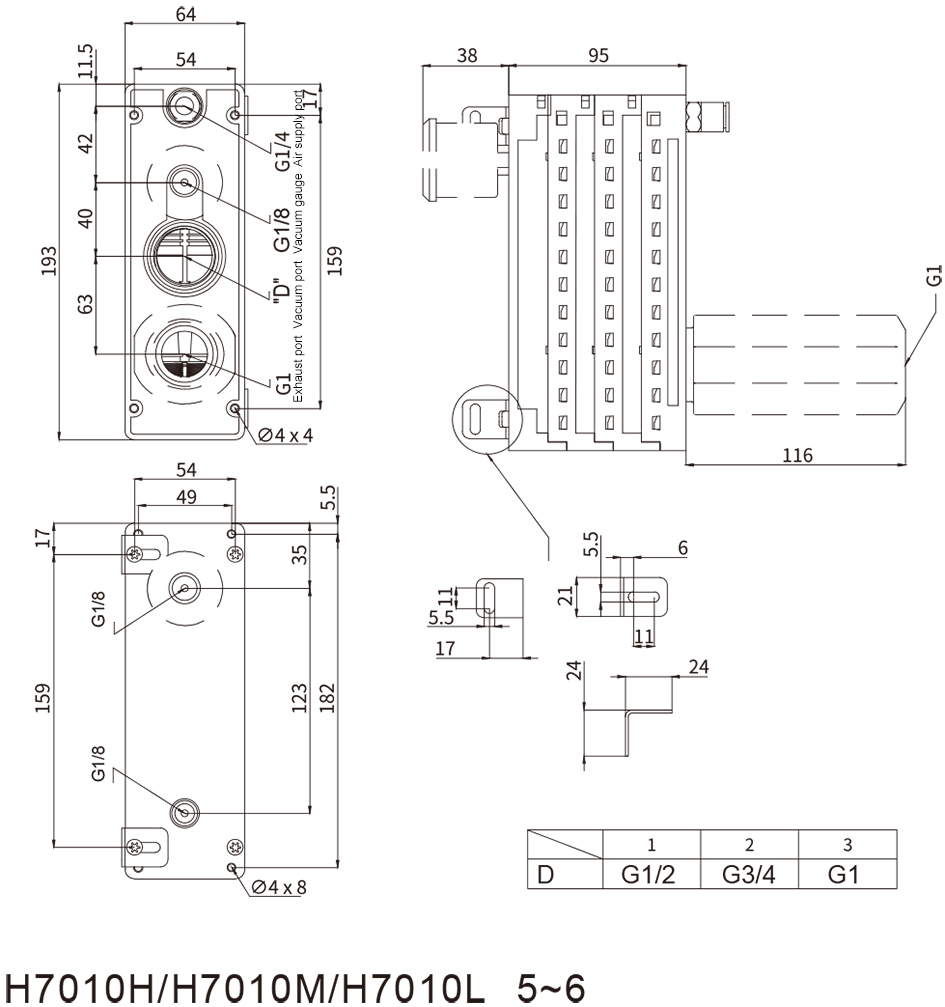

    Design data
