  • EZL

  • * In the field of industrial automation, it is widely used in fields such as machinery, electronics, packaging, printing, plastics and robotics.
    * Multiple vacuum flow rate options to increase vacuum response time.
    * Suitable for the adsorption of fragile, soft, thin ferrous, non-metallic materials or spherical objects.
    * Three types of vacuum pressure gauges.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    In the field of industrial automation, it is widely used in fields such as machinery, electronics, packaging, printing, plastics and robotics.
    Multiple vacuum flow rate options to increase vacuum response time.
    Suitable for the adsorption of fragile, soft, thin ferrous, non-metallic materials or spherical objects.
    Three types of vacuum pressure gauges.
    Product mix

    EZL2/EZL4

    Aluminium alloy (anodized) main body (1)
    Ø 8 quick insert (2)
    Vacuum connection (3)
    Resin sound insulation material (4)
    Silencer housing (5)
    Sound absorbing fleece (6)

    EZL3/EZL6
    Aluminium alloy (anodized) main body (1)
    Ø 8 quick insert (2)
    Vacuum connection (3)
    Silencer housing (4)
    Silencer Cover (5)
    Sound absorbing fleece (6)

    Product advantages

    EZL2/EZL3
    Adopting special multi-stage venturi tube structure design, nozzle and aerodynamic technology, the multi-stage vacuum pump has good performance.

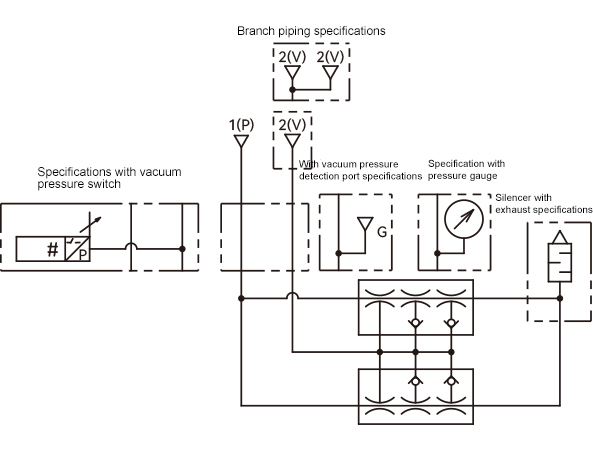

    Pneumatic schematic diagram
    Example of vacuum generator EZL2/EZL3

    EZL4/EZL6
    The pipeline during the branch pipeline is easier and quick-change connections can be connected without shaft sleeves.
    Pneumatic schematic diagram
    Example of vacuum generator EZL4/EZL6

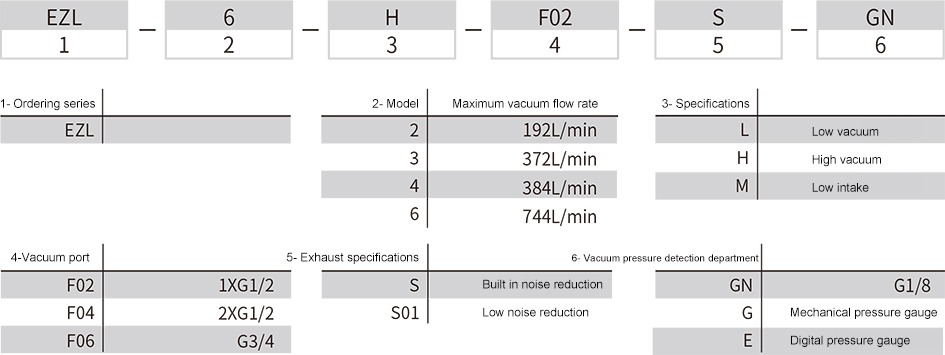

    Ordering no

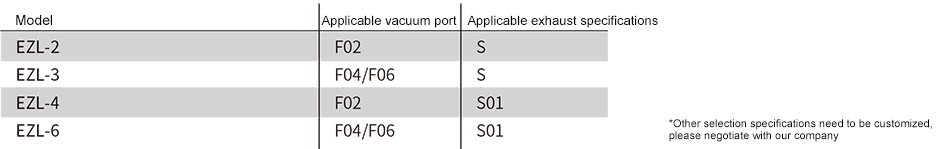

    Selection specifications

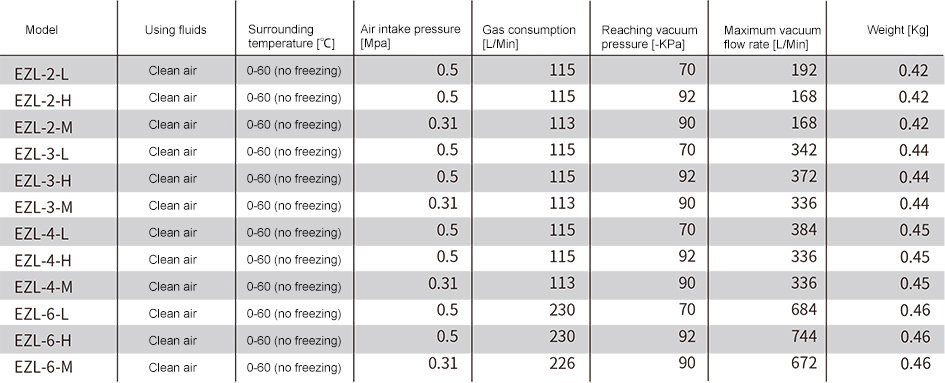

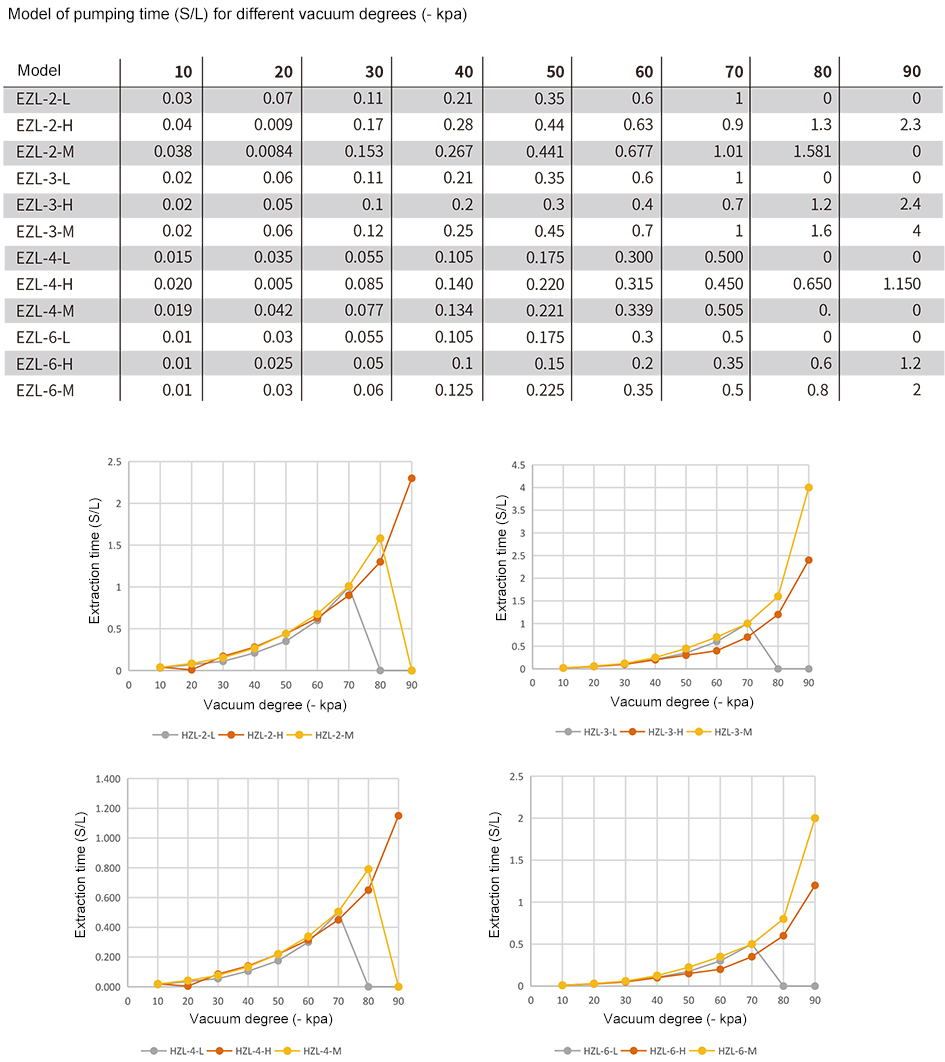

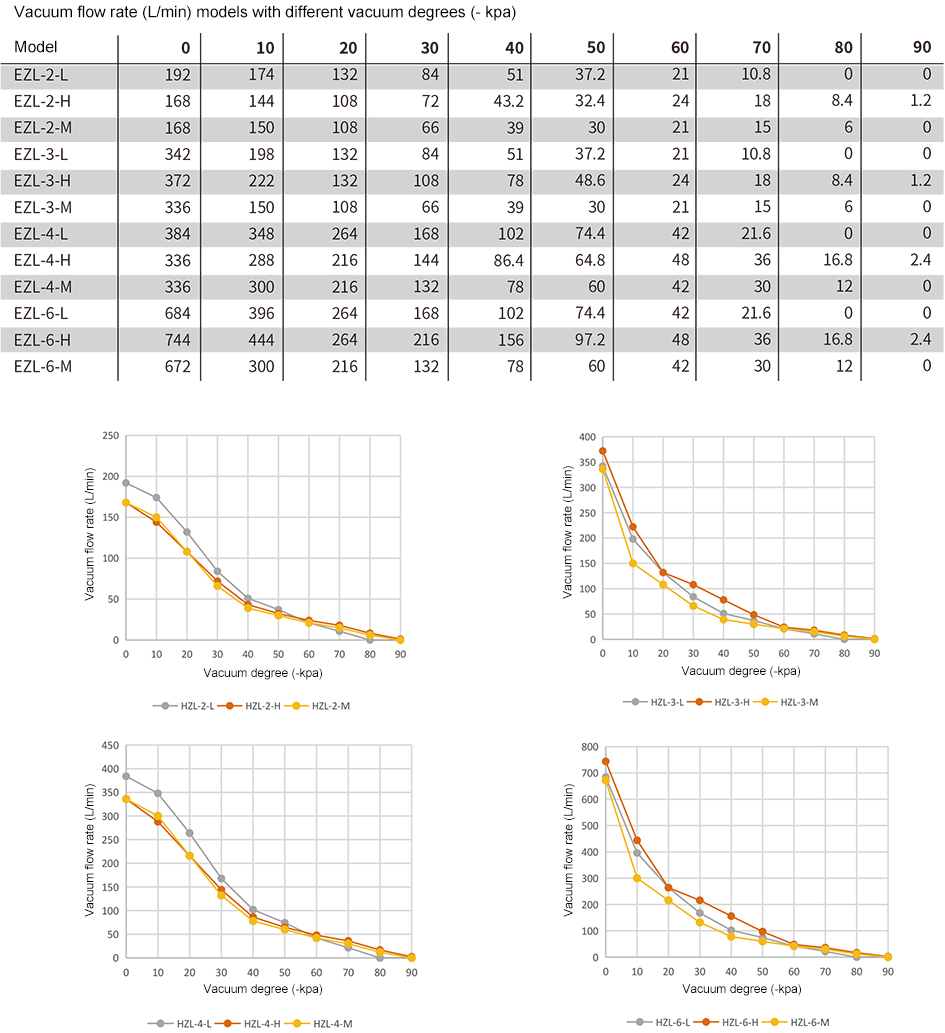

    Technical data

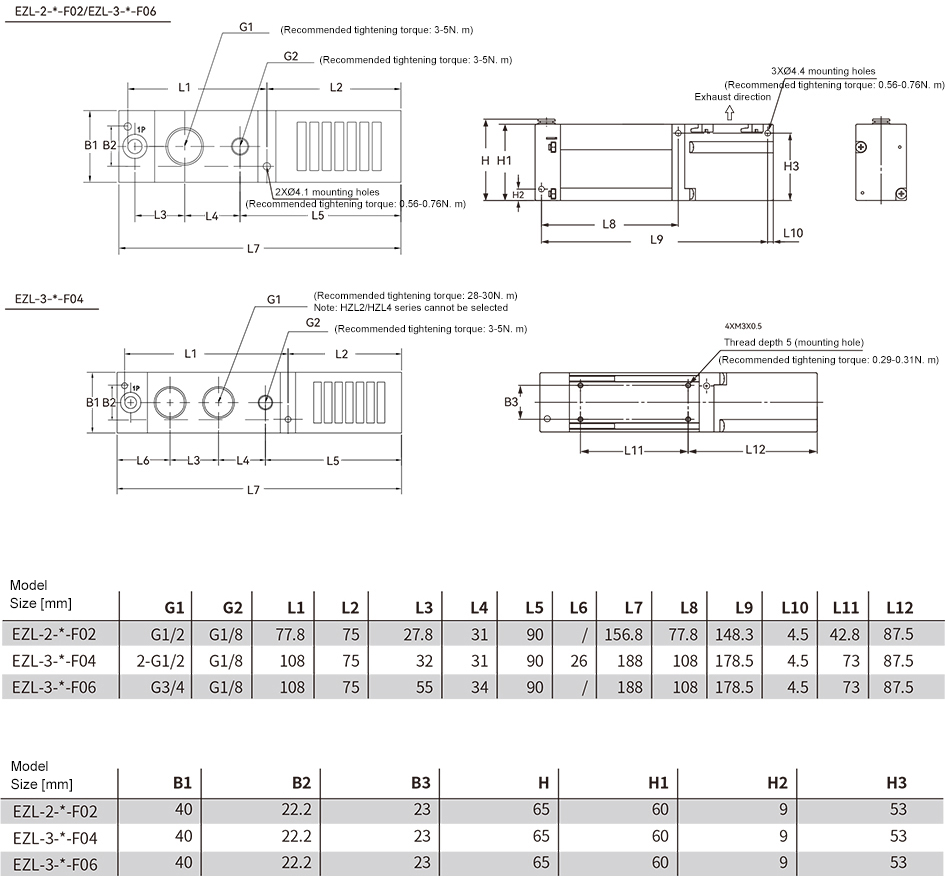

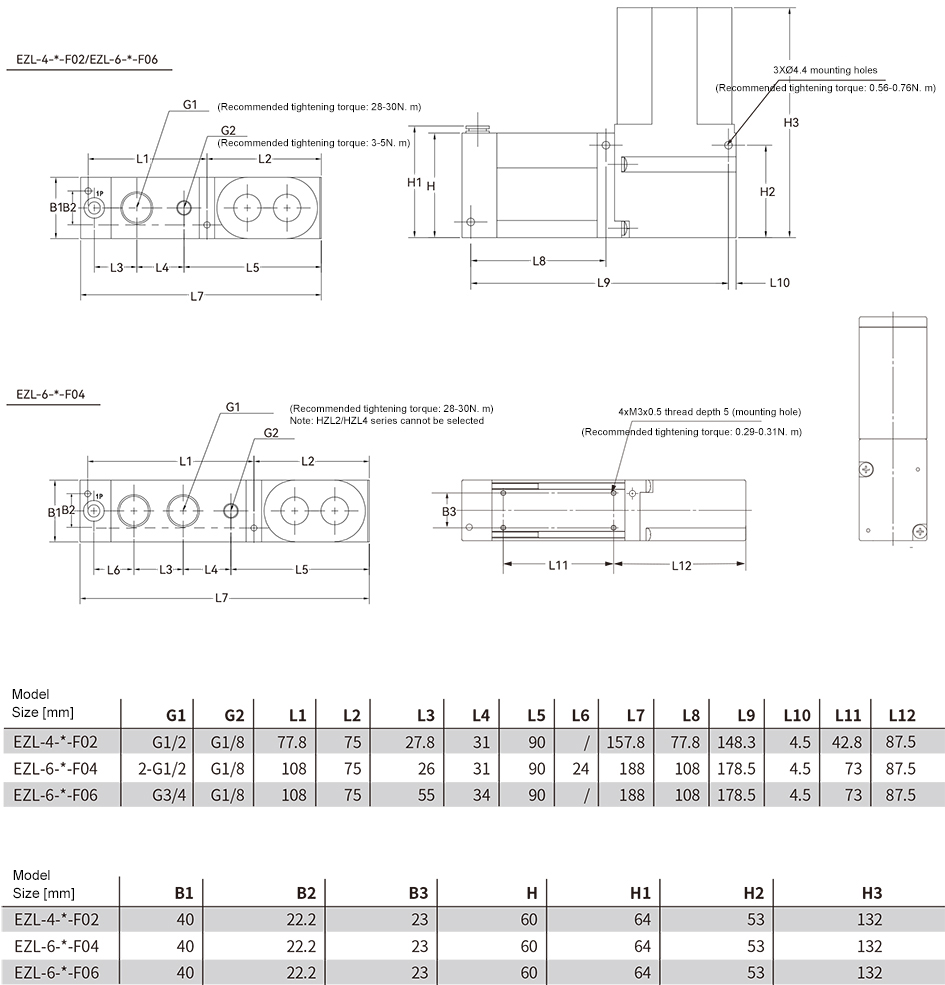

    Design data
