• ECG-10S

  • * The adsorption surface borders on the suction connection with integrated vacuum generation function, high suction performance, low air consumption and controlled exhaust gas.
    * Prevent workpieces from being sucked in or damaged, compact suction system, direct connection, safe picking of porous materials, low operating costs and no contamination of the process area.
    * Special suction cups made of composite materials are used for handling sensitive plastic parts, conductor plate.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    The adsorption surface borders on the suction connection with integrated vacuum generation function, high suction performance, low air consumption and controlled exhaust gas.
    Prevent workpieces from being sucked in or damaged, compact suction system, direct connection, safe picking of porous materials, low operating costs and no contamination of the process area.
    Special suction cups made of composite materials are used for handling sensitive plastic parts, circuit boards, textiles or fiber composites.
    Handling of printed circuit boards with holes; high process reliability, low contact area and low contact pressure.
    Dealing with boards.

    Product mix
    (1) Silencer tube
    (2) Compressed air inlet
    (3) M20 threaded hole
    (4) With a diameter of 26,6
    (5) Install G1/4 screws
    (6) Vacuum detection or backflushing

    Product advantages
    Special suction cups made of composite materials are used for handling sensitive plastic parts, circuit boards, textiles or fiber composites.

    Ordering no


    Technical data

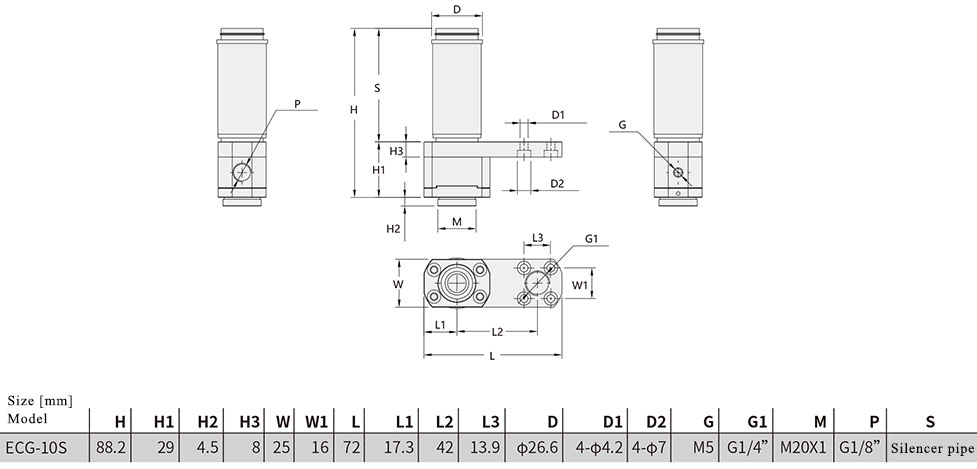

    Design data
