Hanwa Vacuum Technology (Wuxi)

ECO-H3020
* Eco-pumps are characterized by excellent vacuum properties even at low power fluctuation pressures. Optimize the overall size of the pipeline design. The aluminum body provides high-strength threads in the vacuum connection, allowing direct repair of the connection cup, avoiding additional pipes or fittings.
* Linear installation method.
* Slim shell, compact and compact in size.
* Best lateral direct exhaust design.

Contact: +491727628103

Introduce
Design
Parameter

Eco-pumps are characterized by excellent vacuum properties even at low power fluctuation pressures. Optimize the overall size of the pipeline design. The aluminum body provides high-strength threads in the vacuum connection, allowing direct repair of the connection cup, avoiding additional pipes or fittings.
Linear installation method.
Slim shell, compact and compact in size.
Best lateral direct exhaust design.

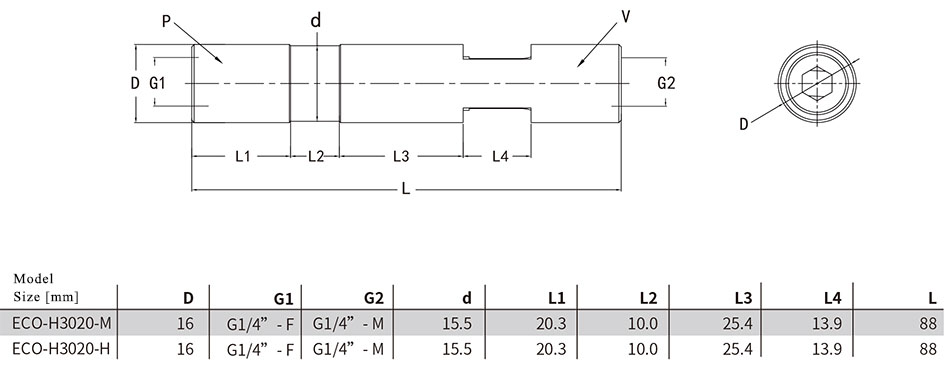

Product mix

(1) P: compressed air inlet
(2) V: vacuum connection
(3) Exhaust gas connection
Offer multiple sizes of upper (1) lower (2) connection female thread.

Product advantages
Inline design, optimization of overall dimensions
Suitable for installation in small rooms
Easy to connect, no need to add installation accessories
Maximum reduction of product noise

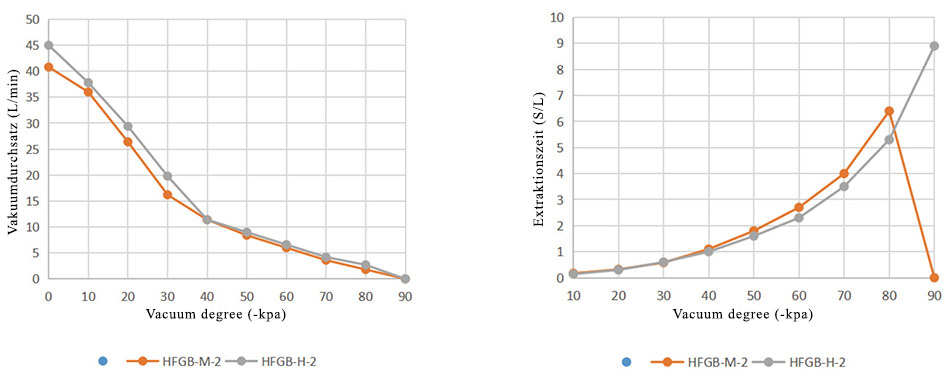

Example of vacuum generator ECO-H3020 suction

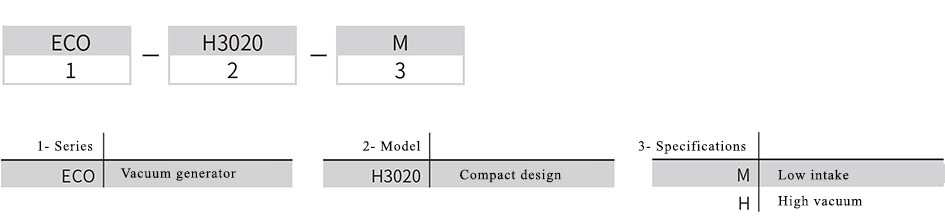

Ordering no

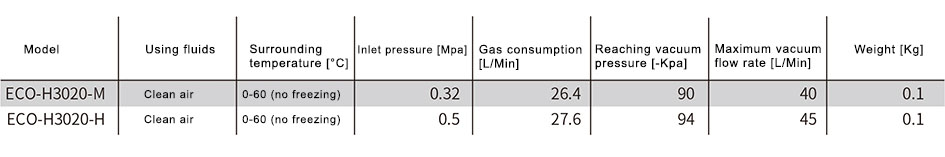

Technical data

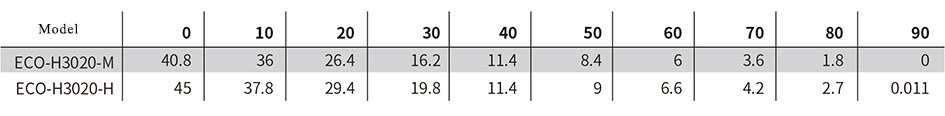

Performance parameter

Bemessungsparameter

Prev：ECO-H3010

Next：ECO-H4005
