  • ECO-H4005

  • * Equipped with a plastic housing and a lightweight vacuum generator.
    * The ECO-H4005 series generator is suitable for extremely harsh environments and meets high dust and moisture requirements.
    * Suitable for applications that require less vacuum, such as packaging/bag handling, etc.
    * Integrated silencer reduces the noise level.
    * The ECO-H4005 series generator is compatible with any HANWHA G3/8 suction cup.
    * Among generators of the same type with the same parameters, the size is the shortest.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Equipped with a plastic housing and a lightweight vacuum generator.
    The ECO-H4005 series generator is suitable for extremely harsh environments and meets high dust and moisture requirements.
    Suitable for applications that require less vacuum, such as packaging/bag handling, etc.
    Integrated silencer reduces the noise level.
    The ECO-H4005 series generator is compatible with any HANWHA G3/8 suction cup.
    Among generators of the same type with the same parameters, the size is the shortest.

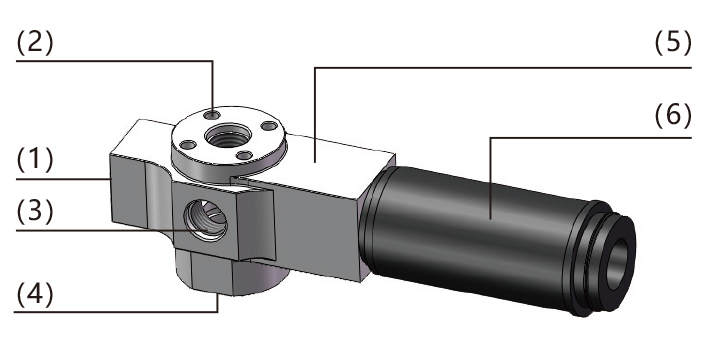

    Product mix
    Main body: made of aluminum alloy, small in size and light in weight
    (1) Connector: used for air intake connector G1/8
    (2) Mounting screw: 4XM4
    (3) Connection connector: vacuum detection port G1/8
    (4) Connection: vacuum connection G3/8
    (5) Silencers: of anodized aluminium oxide
    (6) Silencer tube

    Product advantages
    Efficient and energy saving vacuum generator, which can reach the maximum vacuum degree quickly
    Corresponding generators can be selected according to different operating conditions
    The installation structure is simple and can be installed quickly
    Reduction of product noise

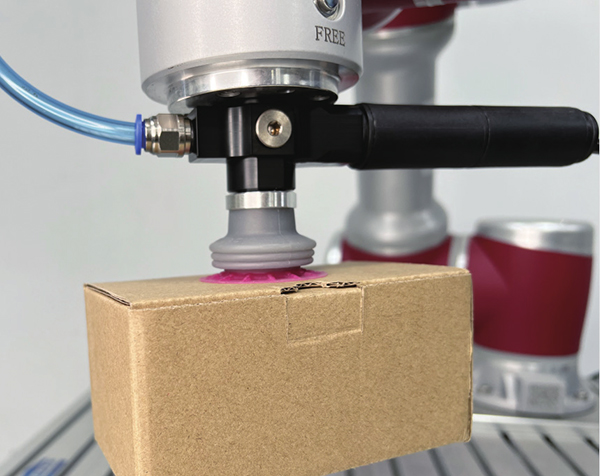

    Application of ECO-H4005 generator in handling and packaging example

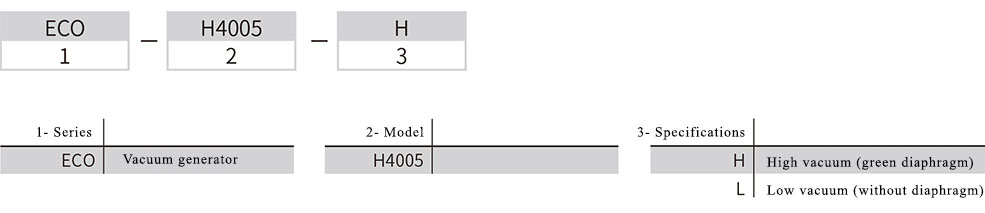

    Ordering no

    Technical data

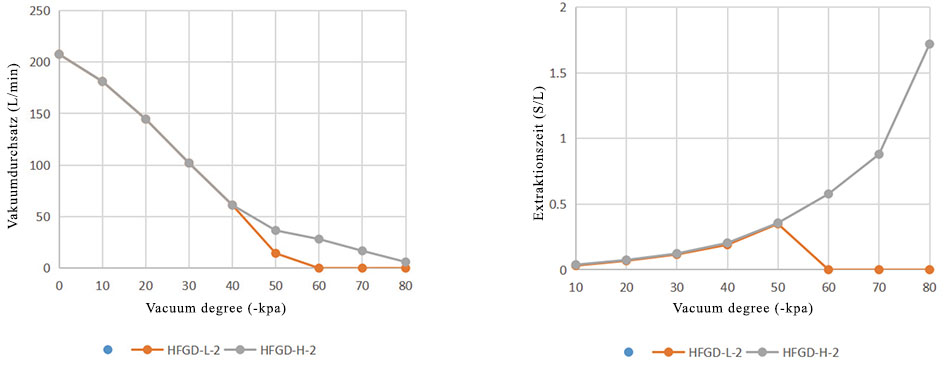

    Vacuum throughput (L/min) for different vacuum degrees (-kpa)

    Suction time (S/L) for different vacuum degrees (-kpa)


    Performance parameter

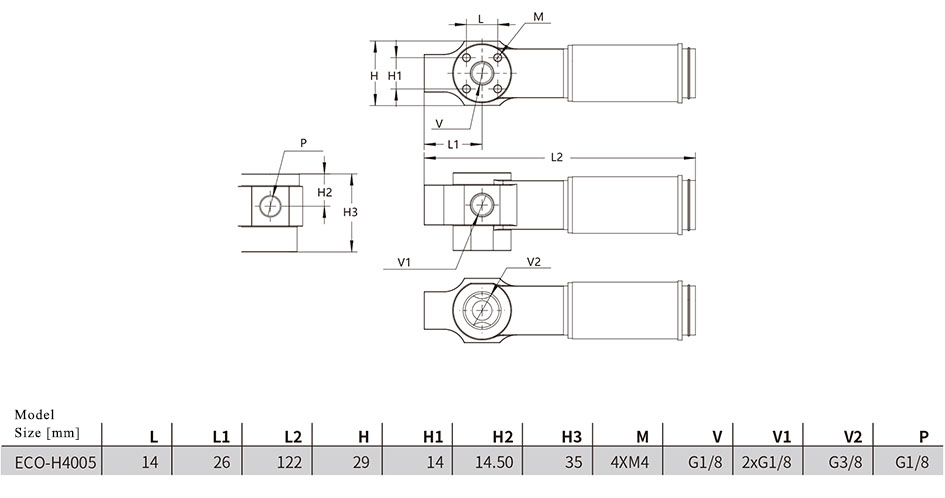

    Design data
