• ECO-H3010

  • * Can integrate different kinds of suction cups and modular design together.
    * Reduce installation costs by half, such as solenoid valves, hoses, etc.
    * Suitable for general end effectors, there is no need to adjust the bracket when replacing the vacuum generator.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Can integrate different kinds of suction cups and modular design together.
    Reduce installation costs by half, such as solenoid valves, hoses, etc.
    Suitable for general end effectors, there is no need to adjust the bracket when replacing the vacuum generator.

    Product mix
    (1) The main body is made of aluminum profiles, with small volume and light weight
    (2) The air outlet is made of aluminium oxide
    (3) P: G1/8 2-position air inlet (both sides)
    (4) V: G1/8 2-position vacuum detection (both sides)
    (5) Compressed air inlet
    (6) Vacuum connection
    (7) V: Vacuum detection G1/8
    (8) 4 Mounting holes for mounting and fixing

    Product advantages
    Reduce energy consumption by more than 50%, and release them quickly and precisely without consuming compressed air.
    No maintenance required and reduces maintenance and spare part costs.

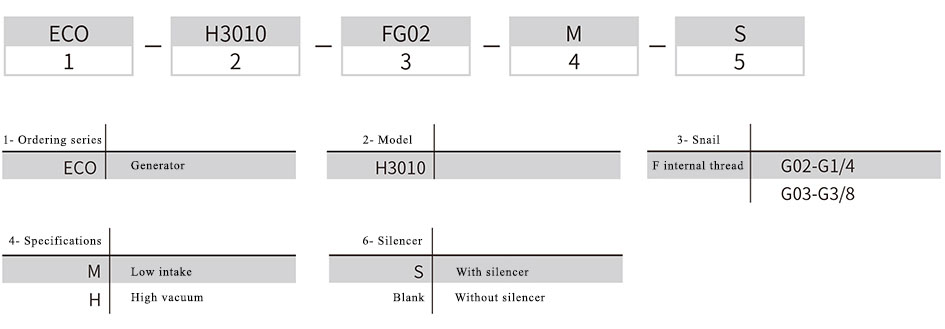

    Ordering no

    Technical data

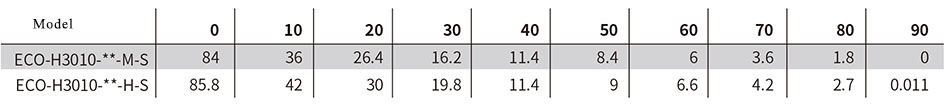

    Vacuum throughput (L/min) for different vacuum degrees (-kpa)

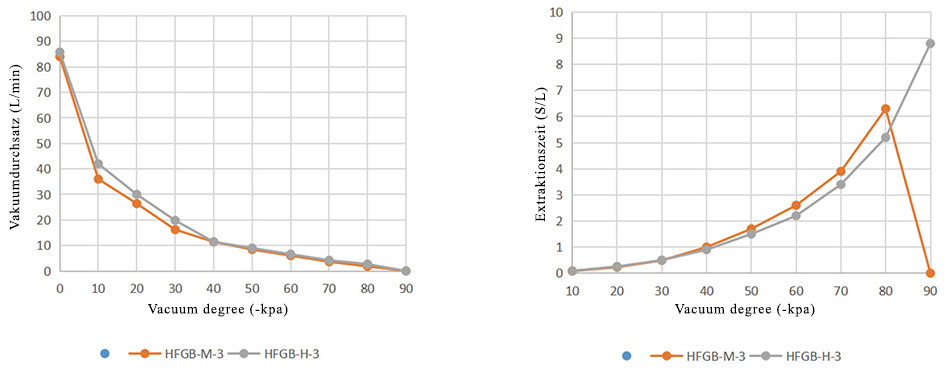

    Suction time (S/L) for different vacuum degrees (-kpa)

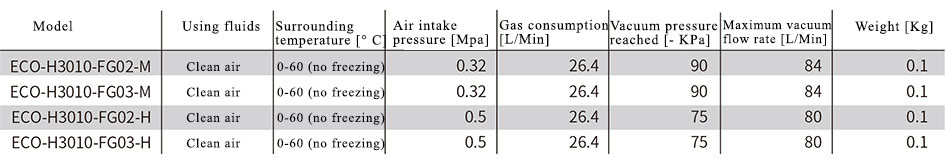

    Performance parameter

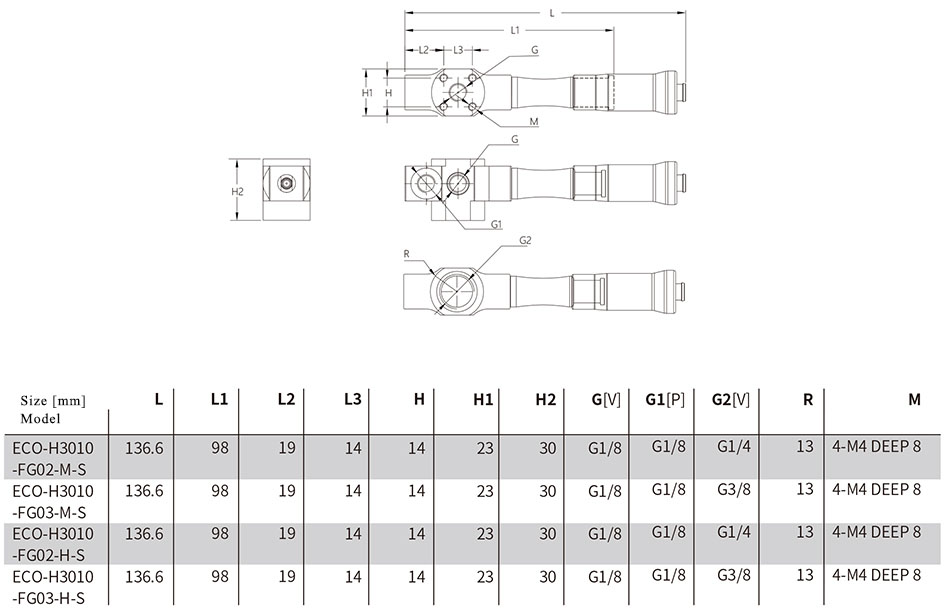

    Design data
