• ECO-H4010

  • * Equipped with a plastic housing and a lightweight vacuum generator.
    * The generator of the eco-h4010 series is suitable for extremely harsh environments and meets high dust and humidity requirements.
    * Suitable for applications that require less vacuum, such as packaging/bag handling, etc.
    * Integrated silencer reduces the noise level.
    * The generator of the eco-h4010 series is compatible with any hanwha g3/8 suction cup.
    * Among generators of the same type with the same parameters, the size is the shortest.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Equipped with a plastic housing and a lightweight vacuum generator.
    The generator of the eco-h4010 series is suitable for extremely harsh environments and meets high dust and humidity requirements.
    Suitable for applications that require less vacuum, such as packaging/bag handling, etc.
    Integrated silencer reduces the noise level.
    The generator of the eco-h4010 series is compatible with any hanwha g3/8 suction cup.
    Among generators of the same type with the same parameters, the size is the shortest.

    Product mix
    Main body: Made of aluminum alloy, small in size and light in weight
    (1) plug: Used for compressed air intake connector g1/8
    (2) mounting screw: 4xm4
    (3) Connection port: Vacuum detection port g1/8
    (4) connection connection: vacuum connection g3/8
    (5) Silencer: Made of anodised aluminium oxide
    (6) silencer tube

    Product advantages
    Efficient and energy saving vacuum generator, which can quickly reach maximum vacuum degree.
    Corresponding generators can be selected according to operating conditions.
    The installation structure is simple and can be installed quickly.
    Reduction of product noise.

    Application of generator ECO-H4010 in handling and packaging example

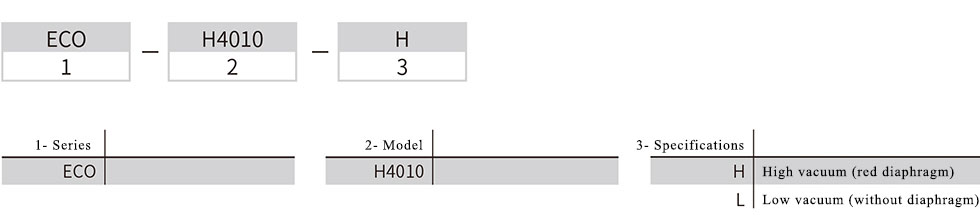

    Ordering no


    Technical data

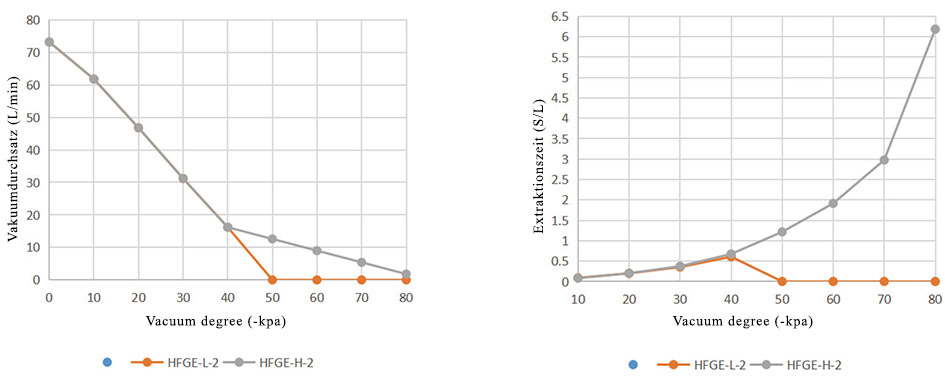

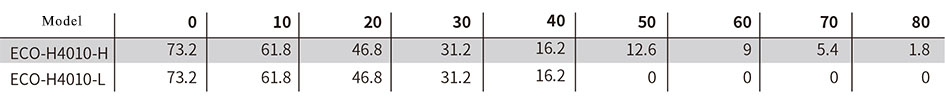

    Vacuum throughput (L/min) for different vacuum degrees (-kpa)

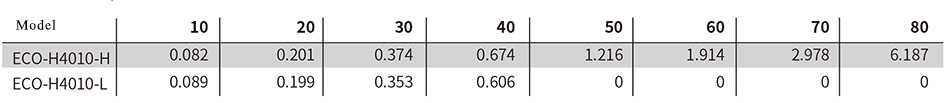

    Suction time (S/L) for different vacuum degrees (-kpa)

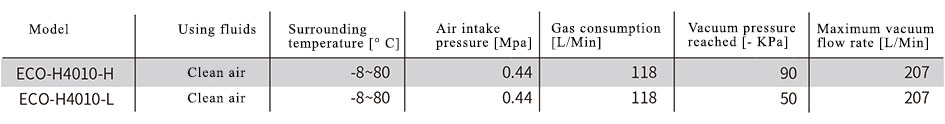

    Performance parameter

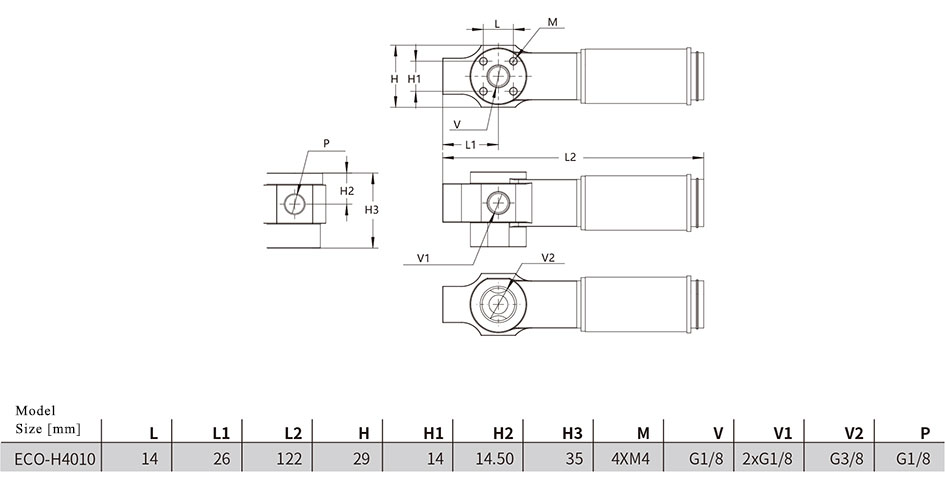

    Design data
