  • Introduce
  • Design
  • Parameter
    Can integrate various types of suction cups and modular design together. This vacuum gripping system greatly simplifies the selection and installation of vacuum systems. Take you on a tour of the wonders of a more energy-efficient, efficient, and reliable distributed vacuum system.
    Modular, fast and convenient installation design, vacuum system with advantages such as economic efficiency and reliable operation, can greatly simplify the selection and work of vacuum systems, and provide more convenience for customers.


    Product mix
    Main body: Made of aluminum alloy, small in size and light in weight
    (1) Connector: Used for compressed air intake connector
    (2) Connection port: 2-position vacuum detection port
    (3) Installation screw: M6x4
    (4) Connection port: 2-position intake (both sides)
    (5) Connection port: 2-position vacuum detection port
    (6) Silencer: Made of anodized aluminum oxide

    Product advantages
    Energy saving, high efficiency and low noise generation. High vacuum, high flow rate, easy to maintain.

    Example of vacuum generator combination suction of plastic parts

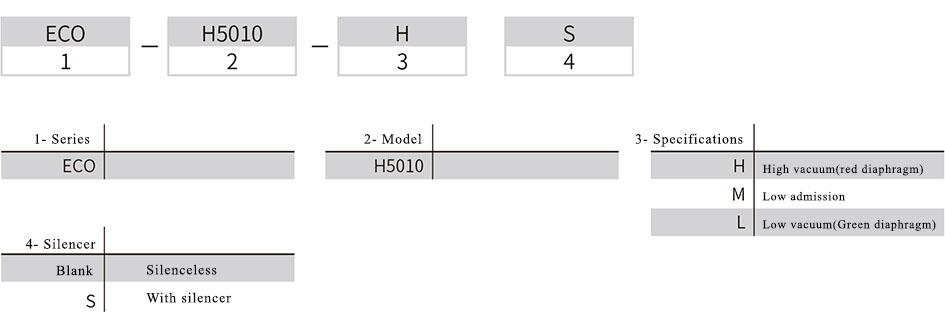

    Ordering no

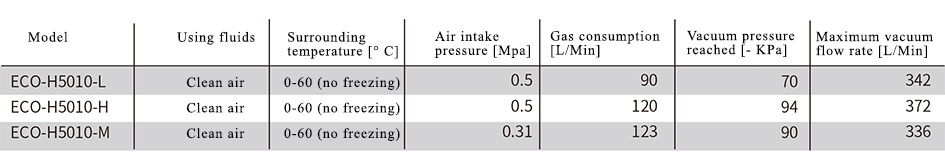

    Technical data

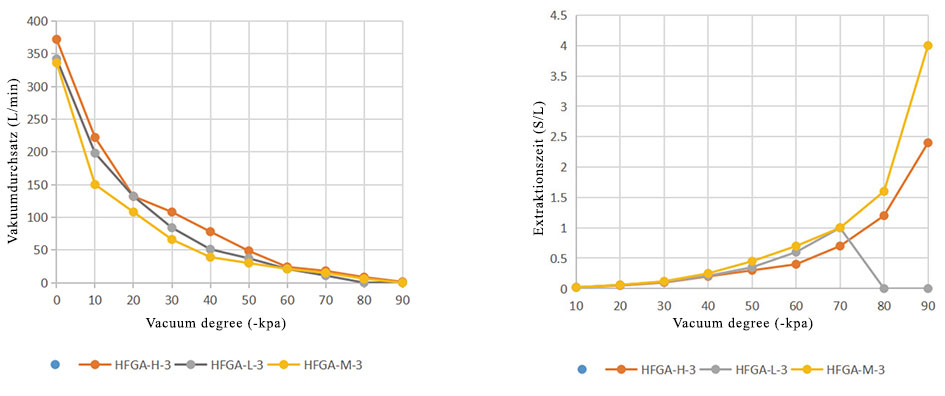

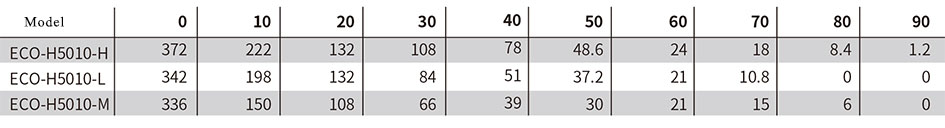

    Vacuum throughput (L/min) for different vacuum degrees (-kpa)

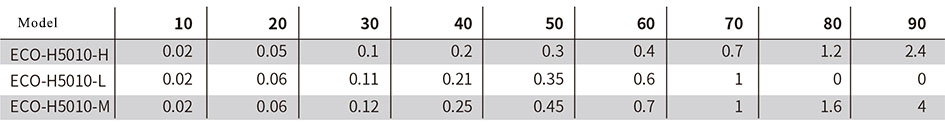

    Suction time (S/L) for different vacuum degrees (-kpa)


    Technical data

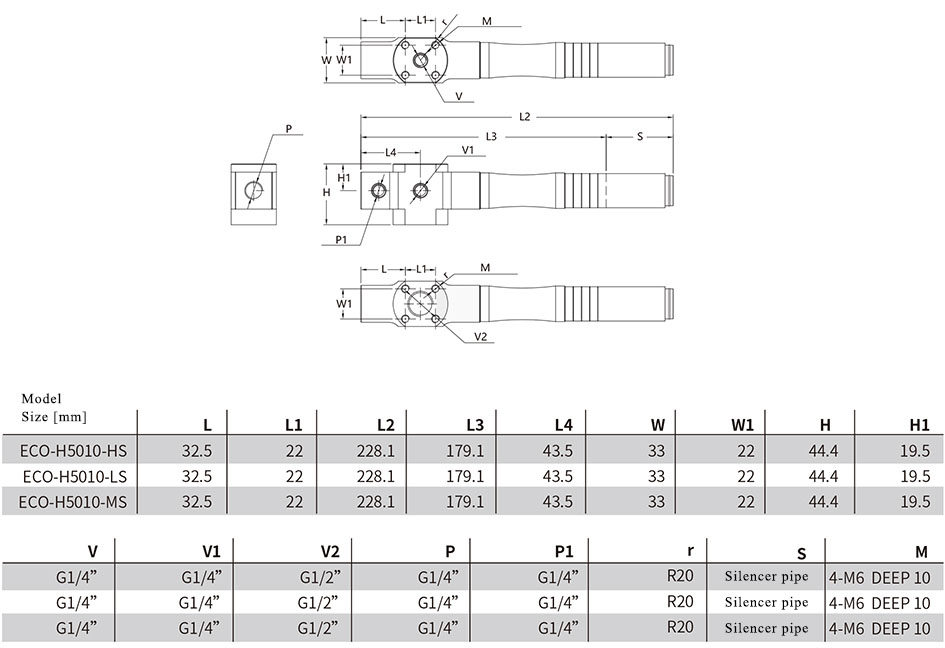

    Design data
