• ECG-10M

  • * Handling of printed circuit boards with holes.
    * Handling ultra-thin and fragile films.
    * Handling of sensitive plastic parts.
    * Handling of textiles or fibre composites.
    * The adsorption surface borders on the suction connection, with integrated vacuum generation function, high suction performance, low air consumption and controlled exhaust gas.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Handling of printed circuit boards with holes.
    Handling ultra-thin and fragile films.
    Handling of sensitive plastic parts.
    Handling of textiles or fibre composites.
    The adsorption surface borders on the suction connection, with integrated vacuum generation function, high suction performance, low air consumption and controlled exhaust gas.

    Product mix
    (1) Can quickly replace contact surfaces of various shapes
    (2) Anodized aluminium oxide body with built-in vacuum generator
    (3) Connector: compressed air inlet connector for blowing air
    (4) Basic model axial installation
    (5) Exhaust gas control
    (6) Vacuum detection port or blowback port
    (7) Vacuum connection

    Product advantages
    Prevent workpieces from being sucked in or damaged, compact suction system, direct connection, safe suction of porous materials, low operating costs and no contamination of the process area.

    Vacuum generator ECG assembly

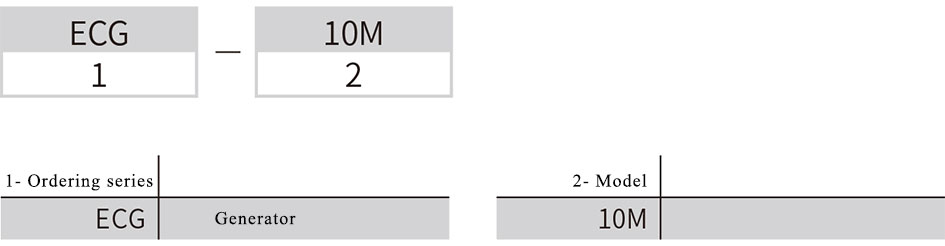

    Ordering no


    Technical data

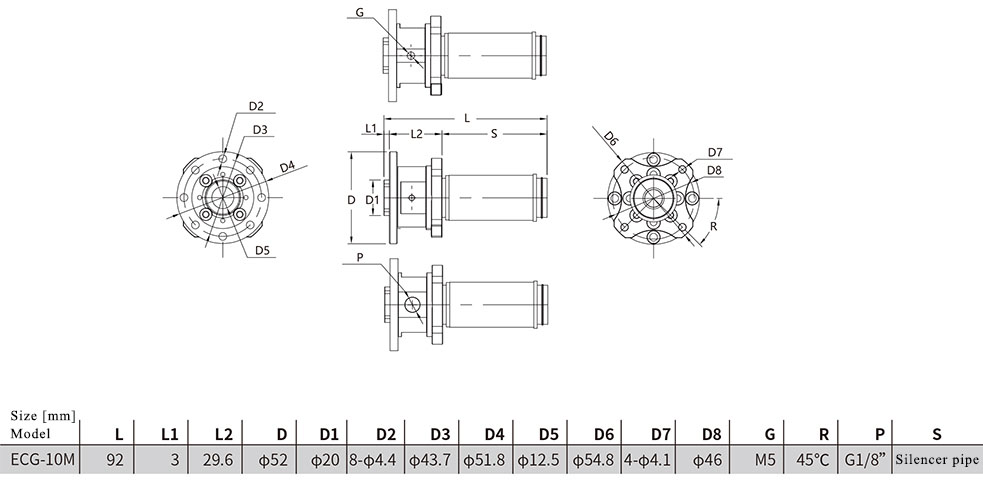

    Design data
