• ECG-10H

  • * Higher vacuum throughput.
    * Integrate generator, suction cup, silencer/pagoda joint.
    * There are two installation methods: vertical and horizontal.
    * Rubber material suction cup, flexible contact, strong adsorption force, protects the surface of the workpiece.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Higher vacuum throughput.
    Integrate generator, suction cup, silencer/pagoda joint.
    There are two installation methods: vertical and horizontal.
    Rubber material suction cup, flexible contact, strong adsorption force, protects the surface of the workpiece.

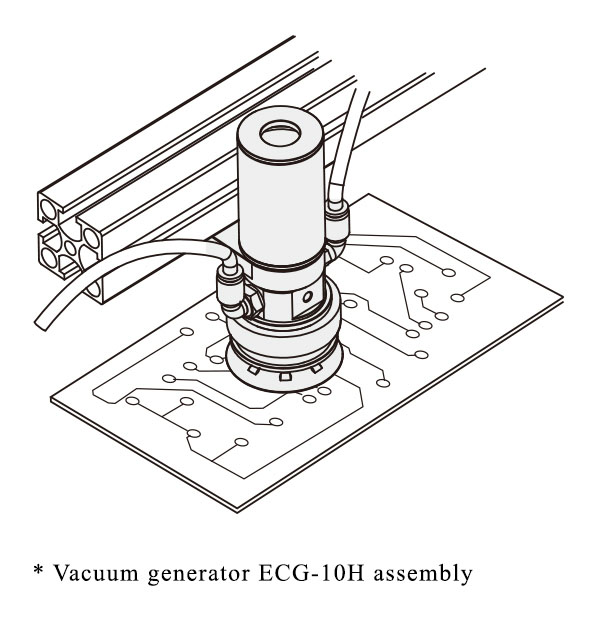

    Product mix
    (1) Release/Vacuum detection port
    (2) Fitting of flanges
    (3) Silencers
    (4) Air supply port
    (5) Vacuum generators
    (6) Suitable suction cups

    Product advantages
    Flexible contact, prevents scratches and other injuries to the workpiece when gripping and handling, simple structure, integrated construction, directly connected to compressed air, without the need for an additional generator.

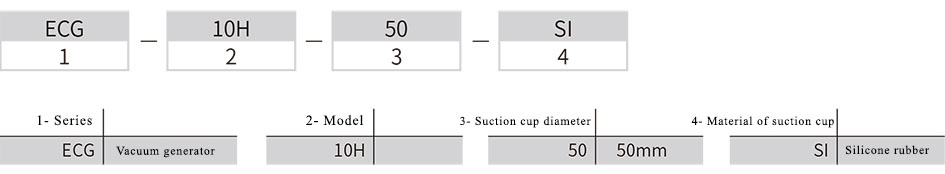

    Ordering no

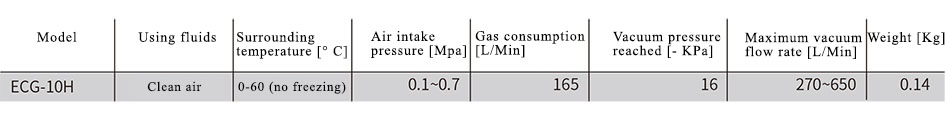

    Technical data

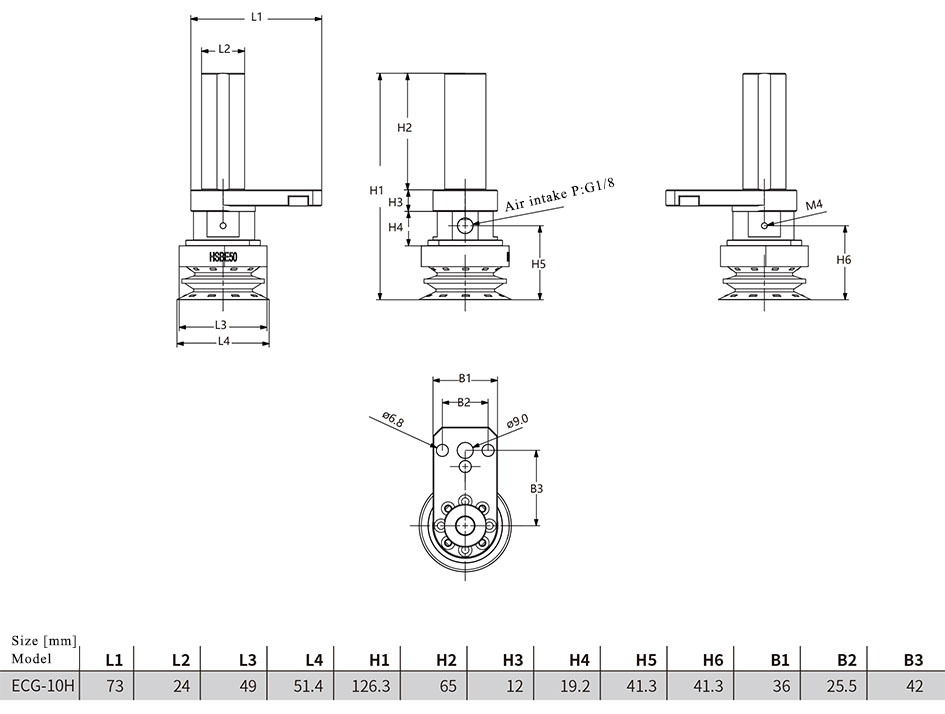

    Design data
