• ECO-H2010

  • * Can integrate different kinds of suction cups and modular design together. This vacuum gripping system greatly simplifies the selection and installation of vacuum systems. Take them on a tour of the wonders of a more energy efficient, efficient and reliable distributed vacuum system.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Can integrate different kinds of suction cups and modular design together. This vacuum gripping system greatly simplifies the selection and installation of vacuum systems. Take them on a tour of the wonders of a more energy efficient, efficient and reliable distributed vacuum system.
    Product mix

    Main body: made of plastic, small and light in weight
    (1) Connector: used for compressed air intake connectors
    (2) Connection connection: vacuum connection
    (3) Mounting screw: M3x4
    (4) Connection port: vacuum detection port

    Product advantages
    Modular, fast and convenient installation design, vacuum system with advantages such as economy and reliable operation, can greatly simplify the selection and work of vacuum systems. Provide more comfort for customers.

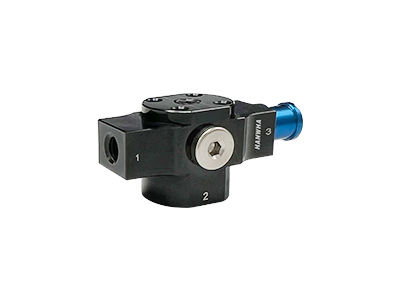

    Example of vacuum generator ECO-H2010
    Ordering no


    Technical data

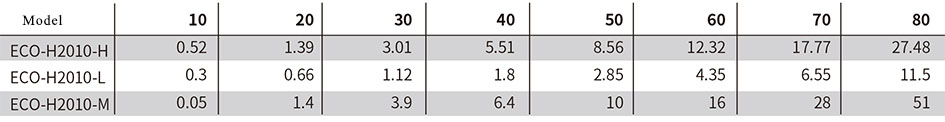

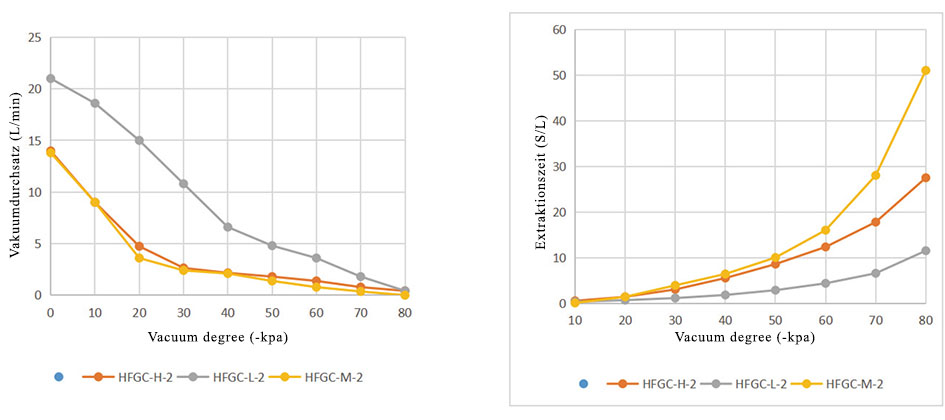

    Vacuum throughput (L/min) for different vacuum degrees (-kpa)

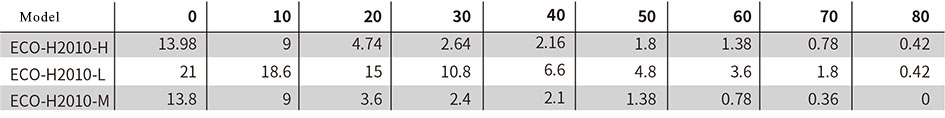

    Suction time (S/L) for different vacuum degrees (-kpa)

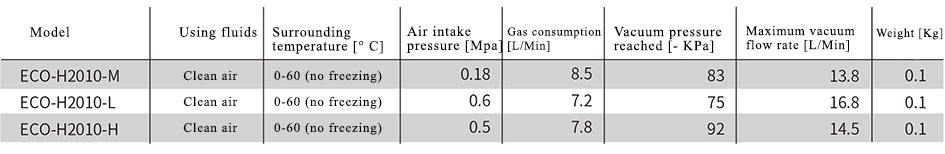

    Performance parameter

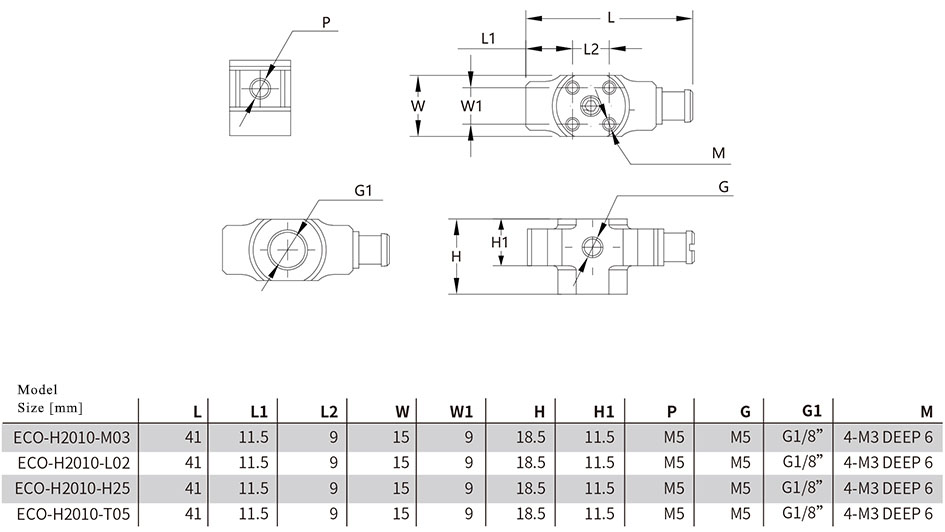

    Design data
