  • ECV-350M

  • * An integrated vacuum generator for handling airtight or slightly breathable workpieces in the electronics, packaging, robotics and automotive industries.
    * A high-performance vacuum generator with high flow rate, dirt resistance and long service life, used for handling airtight workpieces under extreme conditions, e.g. in punching lines for handling sheet metal.
    * The application of recording and placement of short cycle times.
    * Used for vacuum plant preparation and precise monitoring in automation systems.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    An integrated vacuum generator for handling airtight or slightly breathable workpieces in the electronics, packaging, robotics and automotive industries.
    A high-performance vacuum generator with high flow rate, dirt resistance and long service life, used for handling airtight workpieces under extreme conditions, e.g. in punching lines for handling sheet metal.
    The application of recording and placement of short cycle times.
    Used for vacuum plant preparation and precise monitoring in automation systems.

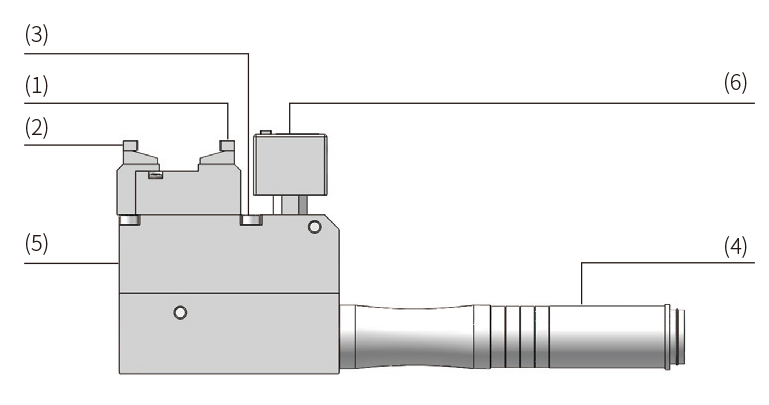

    Product mix
    Supply valve (1)
    Destruction valve (2)
    Push button (3)
    Silencer tube (4)
    Compressed air inlet (5)
    Pressure switch (6)

    Product advantages
    Prevent workpieces from being sucked in or damaged, compact suction system, direct connection, safe suction of porous materials, low operating costs and no contamination of the process area.

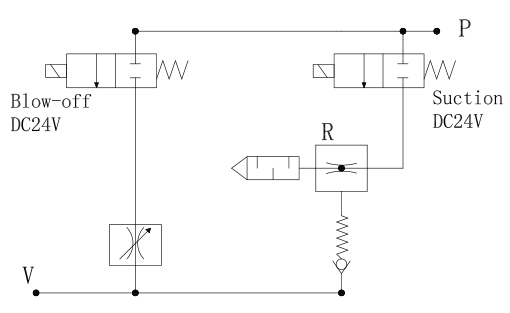

    Pneumatic diagram

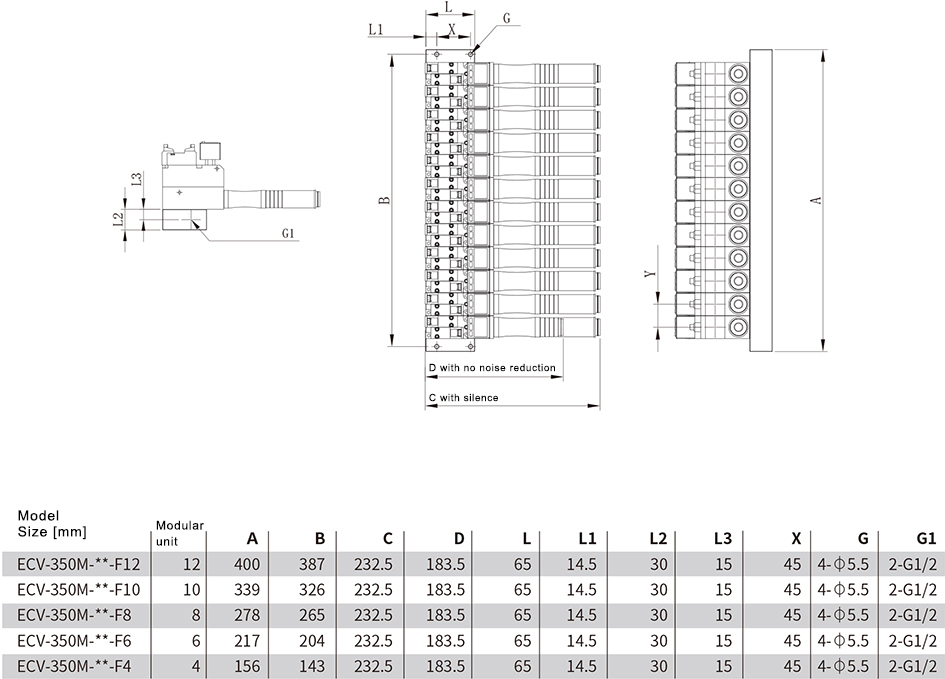

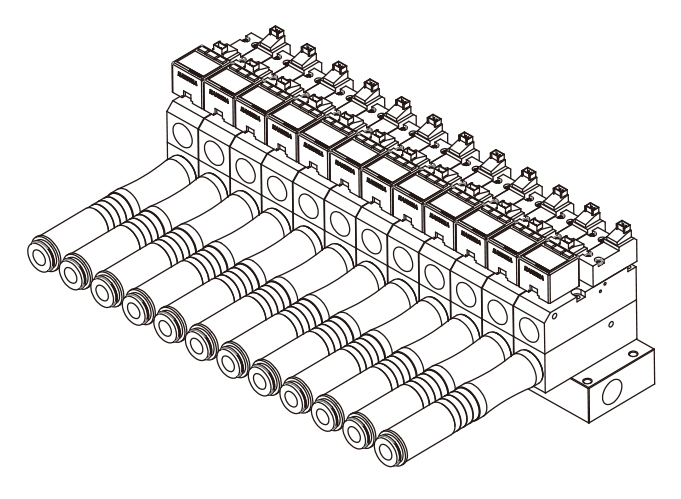

    Example of multiple parallel installation of vacuum generator ECV

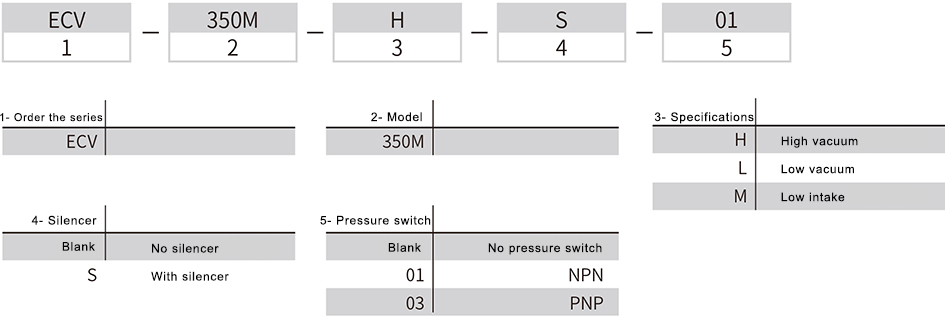

    Ordering no

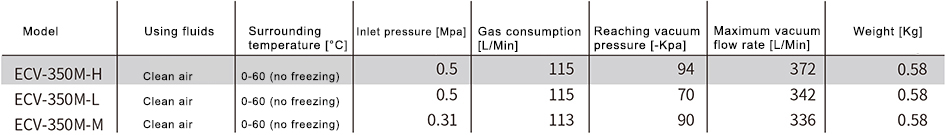

    Technical data

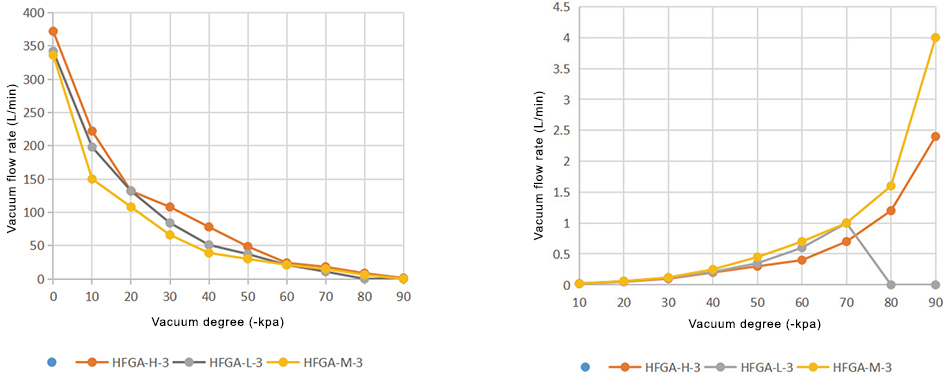

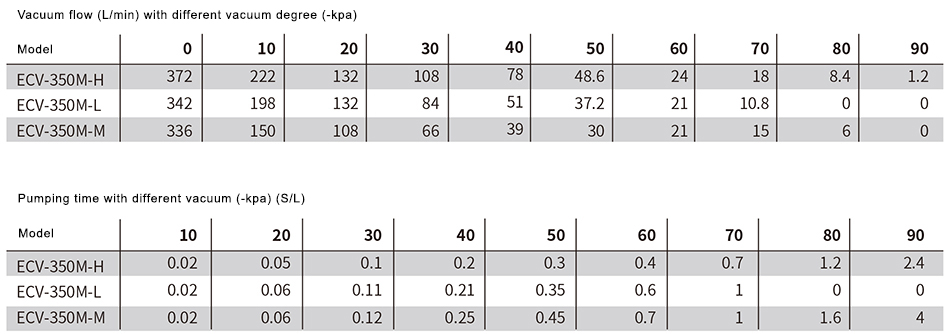

    Performance parameter

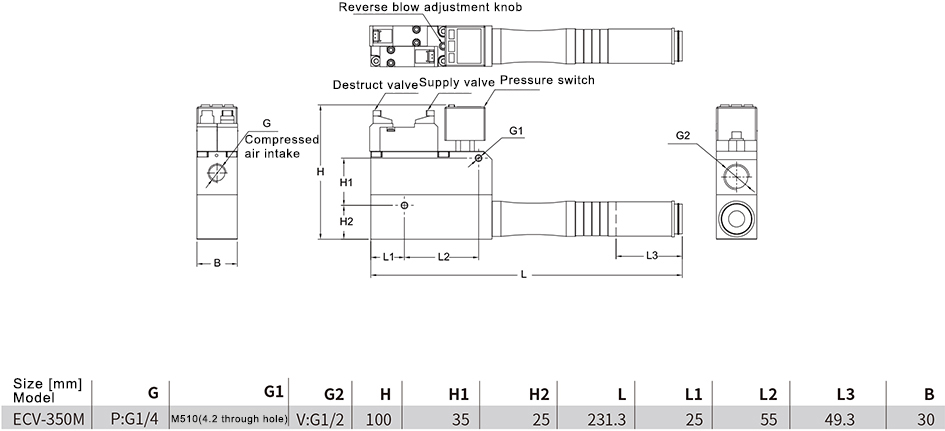

    Design data




    Technical data
