Flat suction cup (circular)
* A sturdy and wear-resistant circular flat suction cup with a stable support surface, suitable for particularly unstable working parts.
* Due to good vacuum distribution, safe component handling.
* Choose a large number of materials to meet various requirements (chemical resistance, temperature resistance).
* The ultra flat design and innovative vacuum supply system ensure maximum grip without any traces or deformations.

Contact: +491727628103

Introduce
Design
Parameter

A sturdy and wear-resistant circular flat suction cup with a stable support surface, suitable for particularly unstable working parts.
Due to good vacuum distribution, safe component handling.
Choose a large number of materials to meet various requirements (chemical resistance, temperature resistance).
The ultra flat design and innovative vacuum supply system ensure maximum grip without any traces or deformations.

Product mix

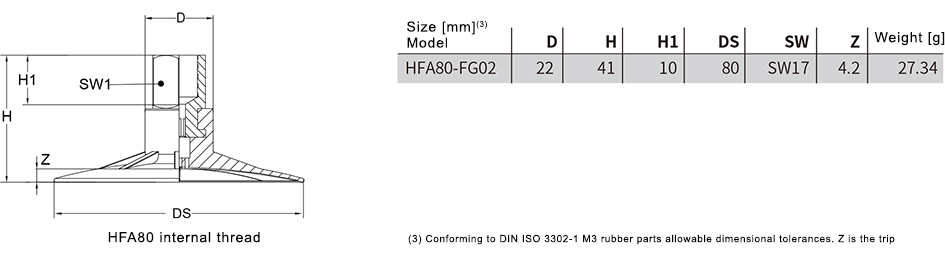

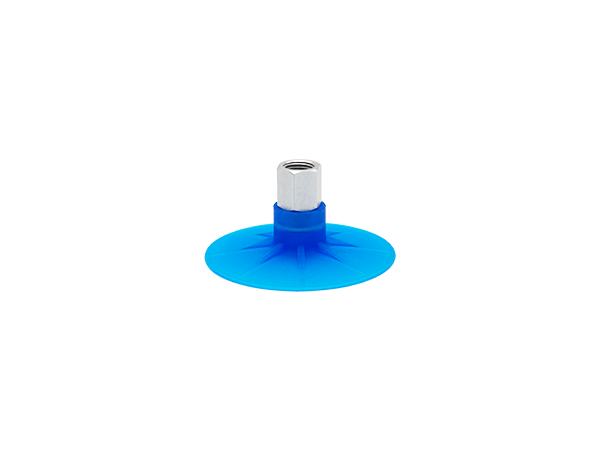

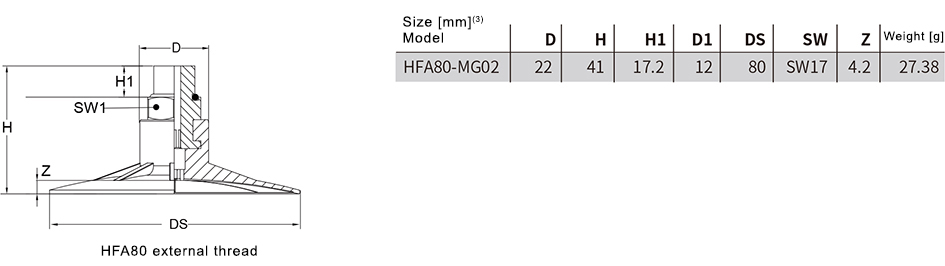

(1) (2) Suitable joints can be selected according to needs, such as G1/4 "external threaded joints or G1/4" internal threaded joints.

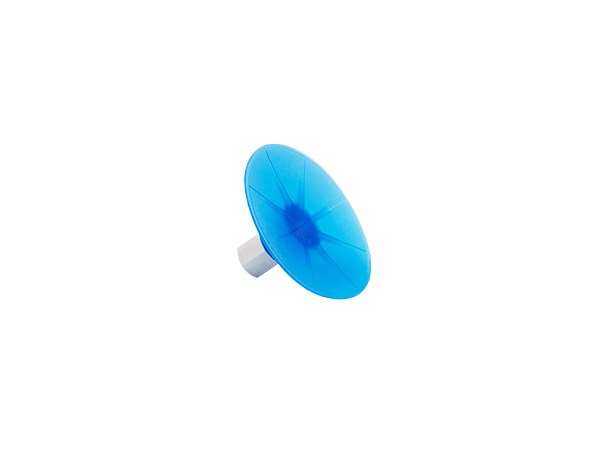

(3) Durable and wear-resistant circular flat suction cups.

Product advantages
Balance the internal and external pressure of the vacuum gripper, and quickly release the product.
There is an energy-saving effect when handling non breathable workpieces.

HFA suction cup handling of breathable density board surface

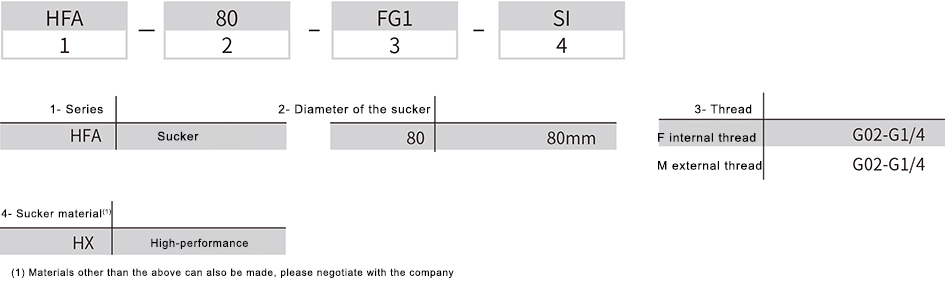

Ordering no

Selection specifications

Technical data

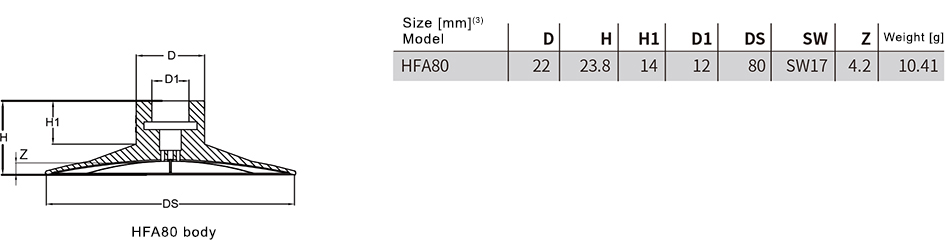

Design data
