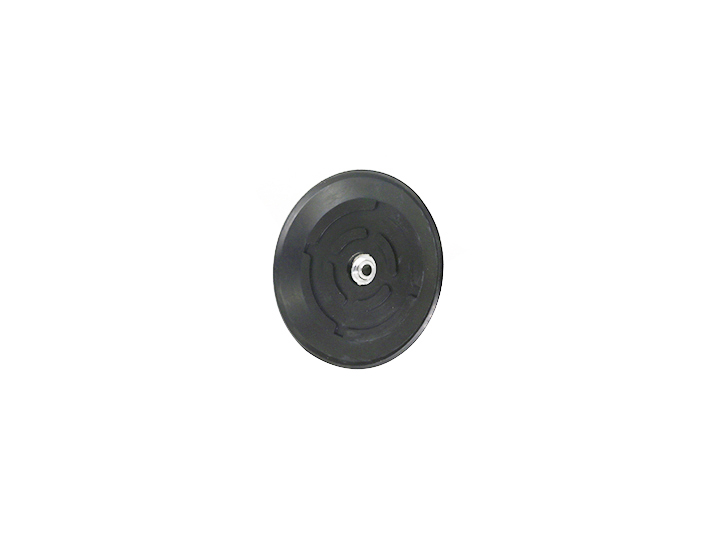

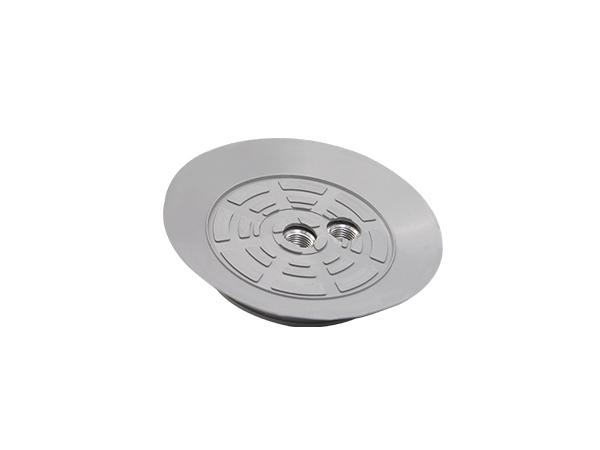

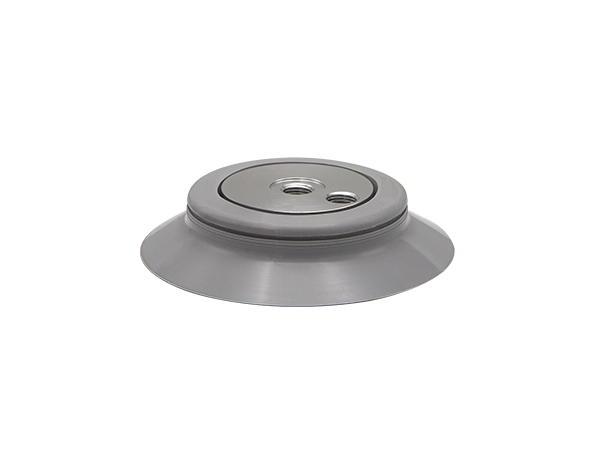

Flat suction cup (circular)
* Large supporting structure on the ground.
* Small internal volume.
* The rubber parts of the suction cup can be replaced separately.
* Full size specifications.
* Handling flat workpieces with smooth or slightly rough surfaces.
* Handling of high temperature workpieces.
* Almost no traces and antistatic when handling sensitive workpieces under pressure.

Contact: +491727628103

Introduce
Design
Parameter

Large supporting structure on the ground
Small internal volume
The rubber parts of the suction cup can be replaced separately
Full size specifications
Handling flat workpieces with smooth or slightly rough surfaces
Handling of high temperature workpieces
Almost no traces and antistatic when handling sensitive workpieces under pressure

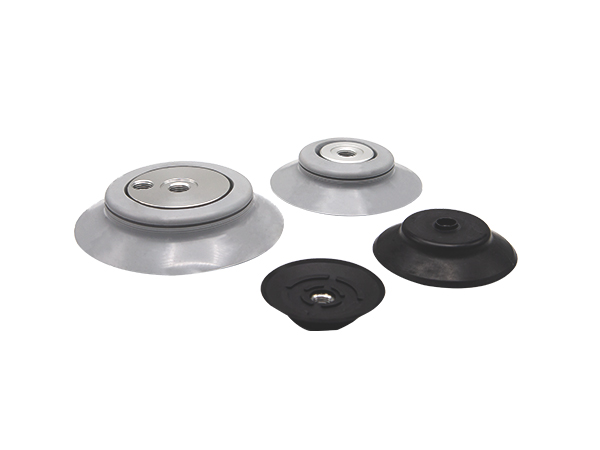

Product mix
Ein robuster und verschleißfester flachsauger (3) mit einer einzigen dichtlippe, bestehend aus einem saugnapf (2) und einem anschlusskopf (1).
Durchmesser 50mm und unten: Gerade im stecker.
Durchmesser 60mm und höher: Montageplatte und saugnapf sind zusammen vulkanisiert und das gelenk wird direkt eingeschraubt.

Product advantages
Can prevent permanent deformation of thin-walled workpieces
Excellent sealing performance, high adsorption capacity and short working cycle
Significant reduction in customer costs
Suitable for workpieces in different sizes and shapes

Example of HSA suction cup handling wood

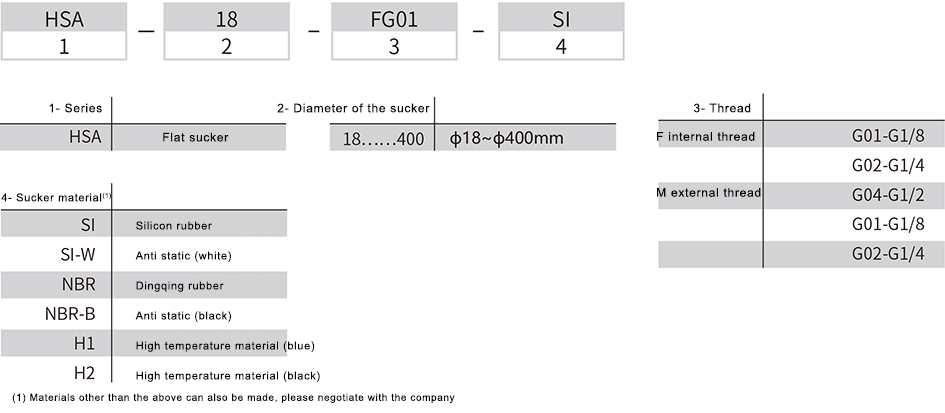

Ordering no

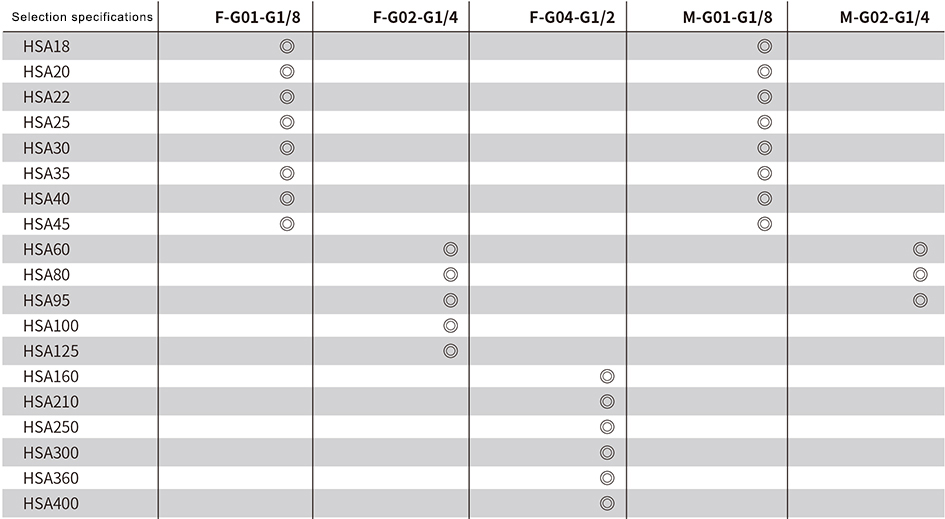

Selection specifications

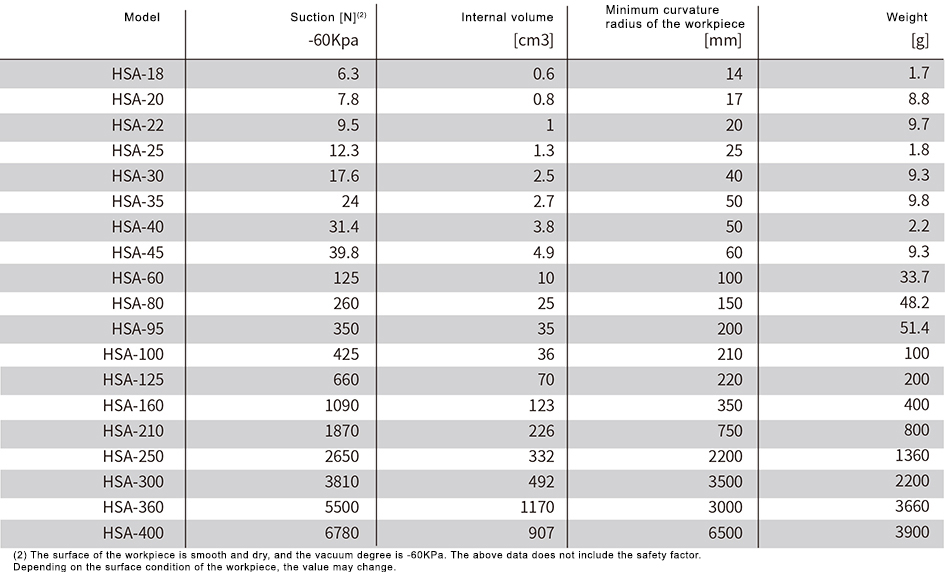

Technical data

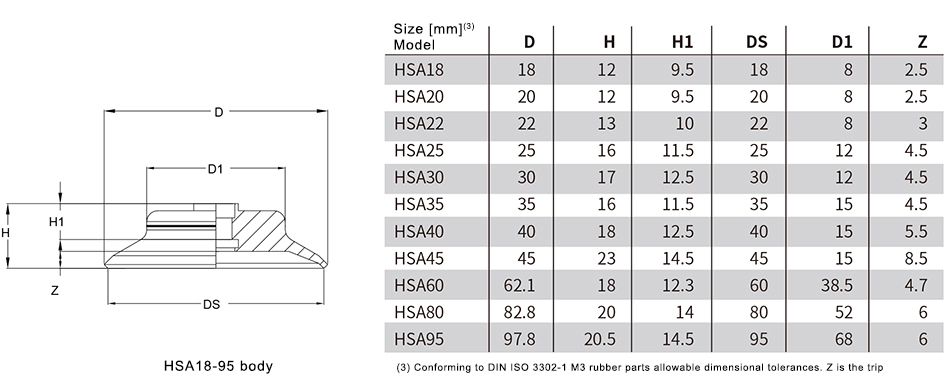

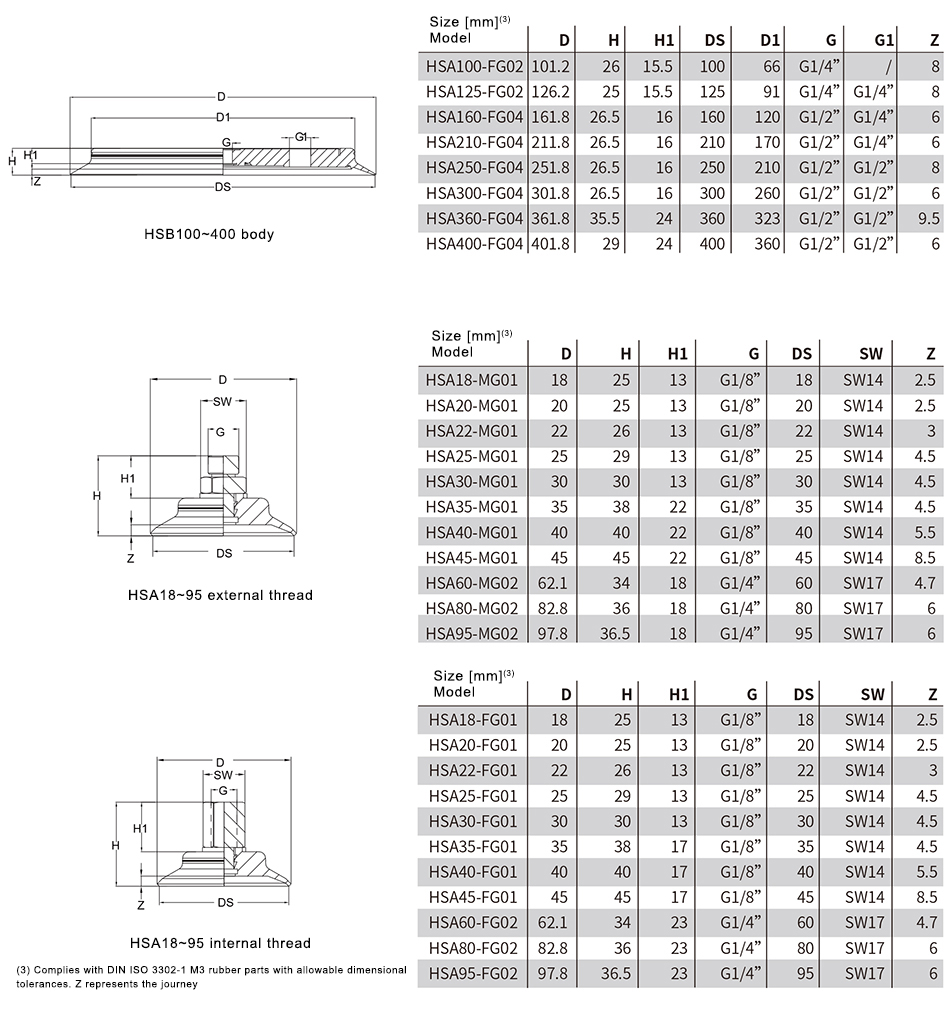

Design data
